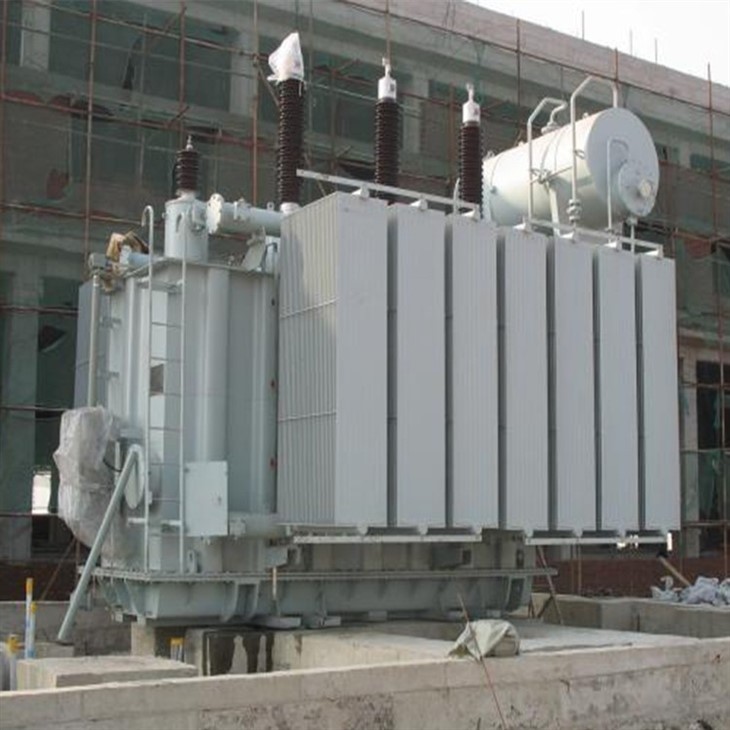

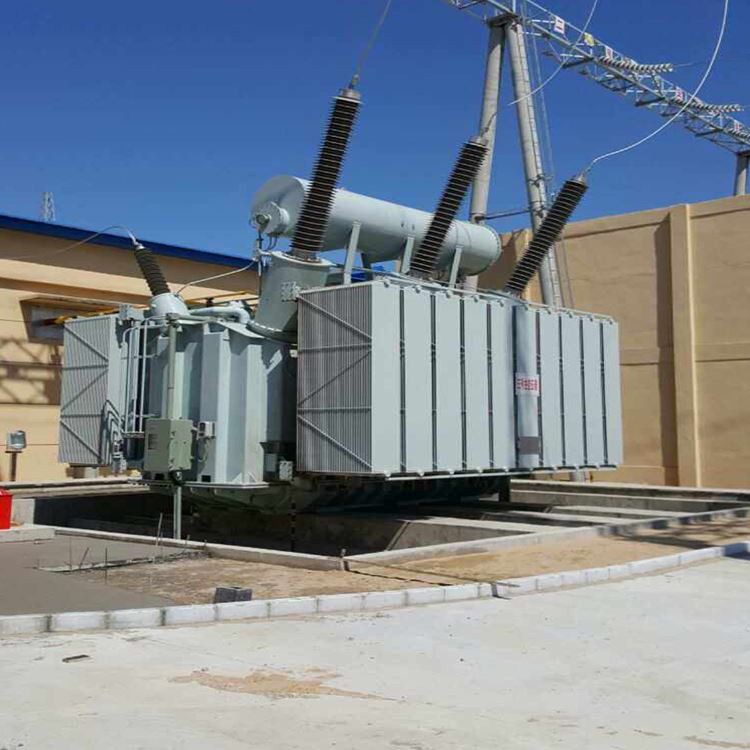

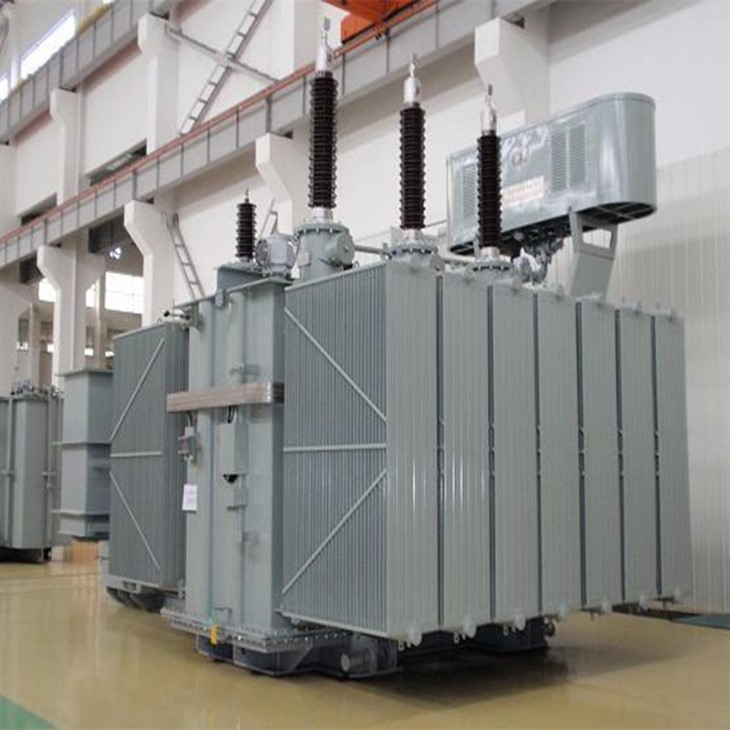

20 MVA Transformer
Transformer Type: Oil-immersed power Transformer
Manufacture Standard: IEC60076
Rating capacity: 20MVA
Rated HT voltage: 33KV
Rated LT voltage: 11KV
Features
20 MVA Transformer Specification
Our 20 MVA transformer is designed to meet the specific needs of your power distribution system. With an impressive capacity of 20MVA, this transformer is capable of efficiently handling high levels of power transmission. This product is ideal for applications requiring a high level of stability and reliability.
20 MVA Transformer Data Sheet
Transformer Type | Oil Immersed Power Transformer |
Manufacture Standard | IEC60076 |
Rating capacity | 20MVA |
Rated HT voltage | 33KV |
Rated LT voltage | 11Kv |
20 MVA Transformer Current Rating | 3499.2A / 1049.8A |
Cooling Way | ONAN/ONAF |
Vector Group | Dyn11 |
Temperature rise | 60/65K |
Insulation class | A |
Impedance | 10% |
Winding Material | Copper |
Insulation media | Mineral Oil comply with IEC |
20 MVA Transformer Oil Capacity | 6000kg |
20 MVA Transformer Weight | 30000kg |
20 MVA Transformer Dimensions | 3200*4300*3300mm |
20 MVA Transformer Parts
These are the basic components of a transformer:
Laminated core
Windings
Insulating materials
Transformer oil
Tap changer
Oil Conservator
Breather
Cooling tubes
Buchholz Relay
Explosion vent
20 MVA Transformer Nameplate
Our Service
At our company, we pride ourselves on delivering high-quality products and exceptional service to all our customers. Our expert team of professionals is available to support you throughout the product's lifecycle, offering maintenance and repair services whenever required.
