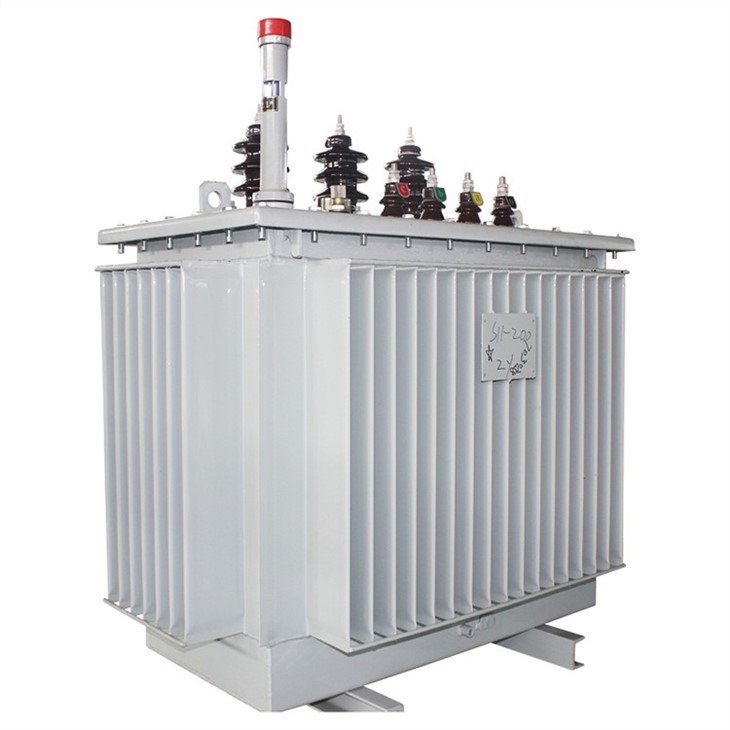

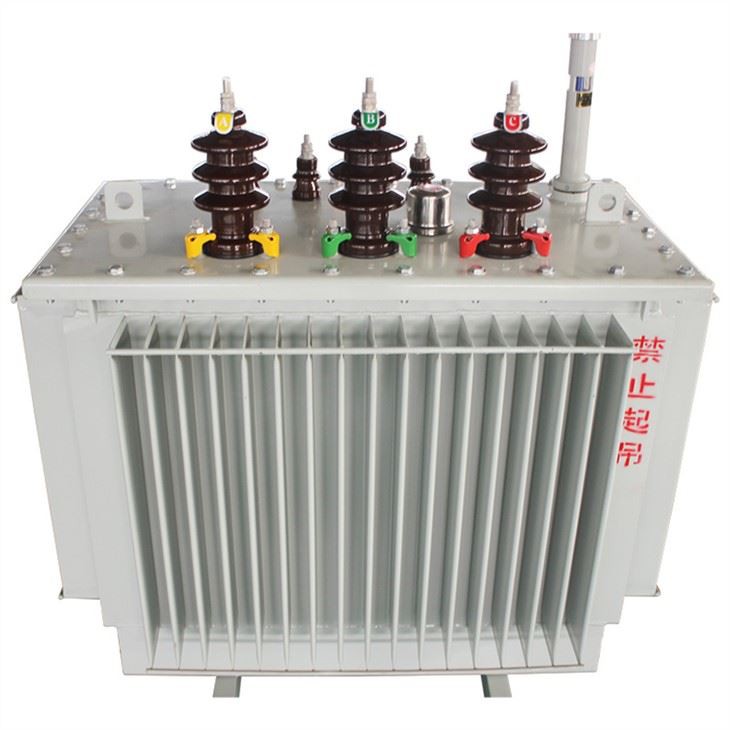

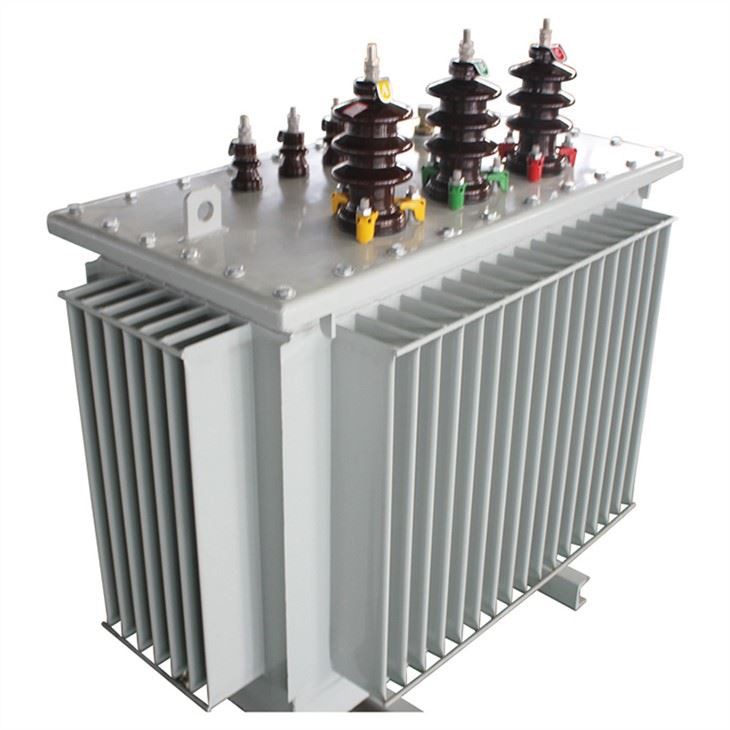

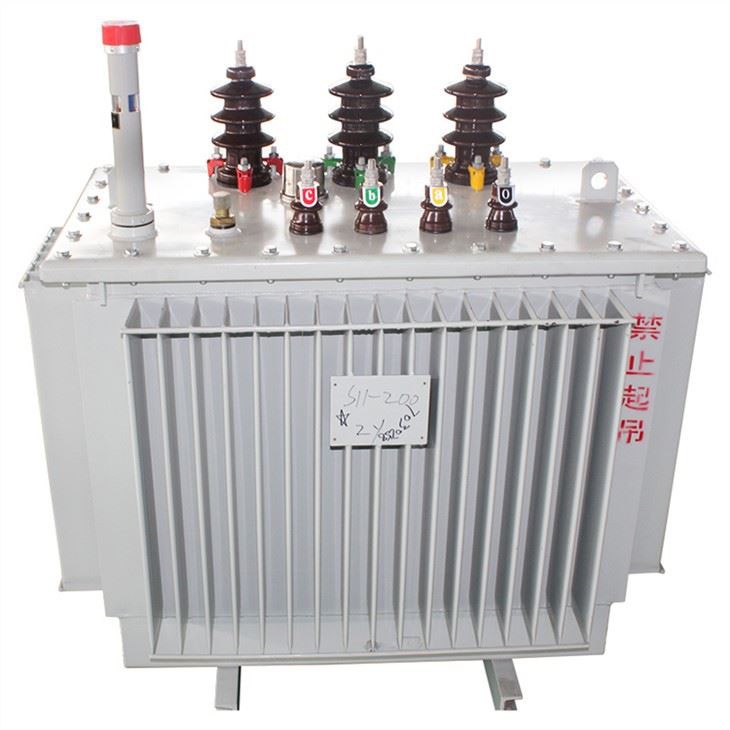

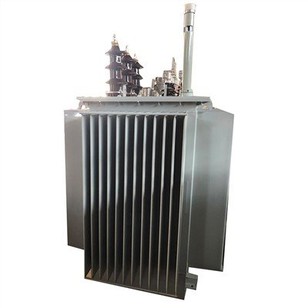

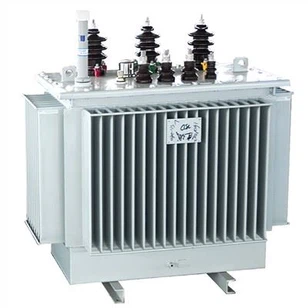

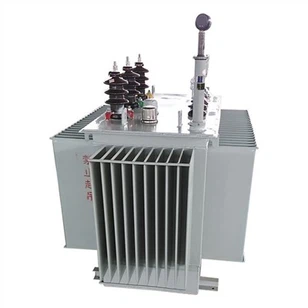

35KV Three Phase Oil Cooled Distribution Transformer



2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!



35KV Three Phase Oil Cooled Distribution Transformer is a new type of high-performance transformer with more reasonable structure and better performance. It uses oil as the main insulation method of the transformer and relies on oil as the cooling medium, such as oil-immersed self-cooling, oil-immersed air-cooled, oil-immersed water-cooled and Forced oil circulation, etc.



35KV Three Phase Oil Cooled Distribution Transformers are mostly suitable for power grid transformation in urban and rural areas, industrial and mining enterprises, and more suitable for Combined transformers and transformers for prefabricated substations.



Product Name: 35KV Three Phase Oil Filled Distribution Transformer

Product model: S9/S11/S13/S15

Rated voltage: 6KV / 10KV / 11KV / 22KV /33KV / 35KV / 36KV

Ambient temperature: -25°C-+40°C

Capacity optional: 50/80/100/125/160/200/250/315/400/500/630/800/1000/1250/1600/2000/2500/3150/4000/5000/6000/8000 KVA

                              MAX UP TO 10MVA





 Technical Parameter for S11 Series 35kV Power Transformer With Off Circuit Tap Changer

Model	Voltage Combination			Connection Group Symbol	No-load Loss (W)75℃	Load Loss R(W)	Impedance Voltage (%)	No-load Current(%)	Length L(mm)	Width W(mm)	Height H(mm)	Gauge Horizontal*Vertical (mm)	Active parts Weight(Kg)	Oil Weight(Kg)	Total Weight(Kg)
	High Voltage (kV)	Tapping Range of High Voltage%	Low Voltage (kV)
50	35 ±5%	±2×2.5%	0.4	Dyn11/ Yyn0	160	1200/1140	6.5	1.3	1195	935	1825	660*660	300	330	860
38.5
100					230	2010/1910		1.1	1200	995	1935	660*660	470	383	1130
125					270	2370/2260		1.1	1235	940	1955	660*660	550	465	1335
160					280	2820/2680		1	1285	895	1950	660*660	580	485	1475
200					340	3320/3160		1	1310	1150	1985	660*660	680	595	1755
250					400	3950/3760		0.95	1450	1090	2010	660*660	860	650	2000
315					480	4750/4530		0.95	1930	1065	2320	820*820	980	765	2290
400					580	5740/5470		0.85	1850	1165	2015	820*820	1170	885	2725
500					680	6910/6580		0.85	2045	1205	2415	820*820	1340	960	3090
630					830	7860		0.65	2085	1240	2515	660*660	1550	895	3810
800					980	9400		0.65	2305	1615	2685	820*820	1990	1030	4510
1000					1150	11500		0.65	2545	1540	2590	1070*1070	2415	1475	5055
1250					1400	13900		0.6	2495	2010	2675	820*820	2480	1405	5290
1600					1690	16600		0.6	2680	2100	2770	820*820	2600	1490	5450
2000					1990	19700		0.55	2790	2180	2860	820*820	2720	1590	5600
2500					2360	23200		0.55	2900	2290	2980	1070*1070	2830	1720	5760

S11 Series 35kV 630kVA-31500kVA Three-phase Dual Winding Power Transformer With Off Circuit Tap Changer

Model	Voltage Combination			Connection Group Symbol	No-load Loss (W)	Load Loss R(W)	No-load Current(%)	Short circuit impedance (%)	Length L(mm)	Width W(mm)	Height H(mm)	Gauge Horizontal*Vertical (mm)	Active parts Weight(Kg)	Oil Weight(Kg)	Total Weight(Kg)
	High Voltage (kV)	Tapping Range of High Voltage%	Low Voltage (kV)
630	35	±2×2.5%±5%	3.15 6.3 10.5	Yd11	830	7860	0.65	6.5	2400	1700	2210	820*820	2210	900	3250
800					980	9400	0.65		2500	1850	2390	820*820	2350	1030	3500
1000					1150	1150	0.65		2700	1950	2510	820*820	2490	1180	3860
1250					1400	1390	0.55		2900	2050	2630	820*820	2600	1350	4350
1600					1690	1660	0.45		3050	2130	2750	820*820	2810	1580	4855
2000					2170	1830	0.45		3105	2195	2805	1070*1070	2800	1800	5300
2500					2560	1960	0.45		3150	2535	2980	1070*1070	3525	2060	7665
3150	35-38.5	±2×2.5%±5%	3.15 6.3 10.5		3040	2300	0.45	7	3920	2725	2840	1070*1070	3995	2205	8565
4000					3610	2730	0.45		3310	2915	3070	1070*1070	4825	2560	10115
5000					4320	3130	0.45		3480	3020	3145	1070*1070	5700	2635	11305
6300					5240	3500	0.45	8 10	3590	2905	3210	1475*1475	7120	3240	13510
8000	35-38.5	±2×2.5%	3.15 3.3 6.3 6.6 10.5	YNd11	7200	3840	0.35		4070	3050	3595	1475*1475	8875	3840	16690
10000					8700	4530	0.35		4106	2795	3655	2000*1475	10305	3600	17690
12500					1000	5380	0.3		4570	3010	3840	1475*1475	12830	4310	20990
16000					1210	6580	0.3		5235	3295	4615	2000*1475	16010	6650	27660
20000					1440	7950	0.3		5360	3415	4660	2000*1475	18820	7600	32170
25000					1700	9400	0.25		5830	3810	4860	2000*1475	22360	9800	42600
31500					2020	112000	0.25		6290	4290	5260	2000*1475	25110	12010	49960

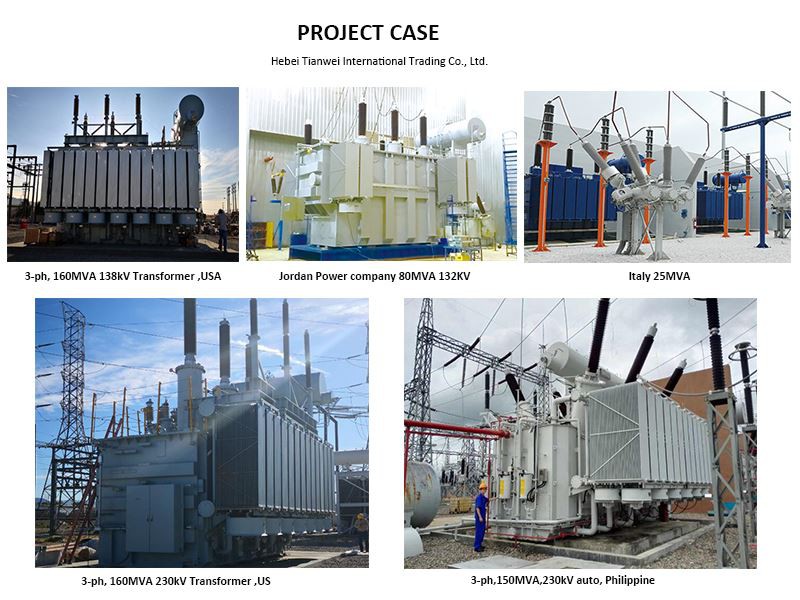

Hebei Tianwei International Trading Co,. Ltd have 14 years of experience in international power projects and have helped many customers around the world complete power projects. For example, Russia, Uzbekistan, Indonesia, Algeria, Morocco, Zimbabwe, Ghana, Yemen, Ethiopia, Nigeria, Kenya, Cameroon, Madagascar, New Zealand, Zambia, Vietnam, India, Malaysia, Laos,Tanzania, Guatemala, Turkmenistan, South Africa, Rwanda, Oman etc. Tianwei can also provide good after-sales service, so if you have transformer needs, you can contact us.





 Our Service

1.	Pre sale service
a.	Make technical solution.
b.	Send quotation, technical data sheet and drawing.
c.	Prepare power transmission plan, testing plan, and shipment plan.
2.	In sale services
a.	Supervise the manufacturing schedule totally in accordance with the plan.
b.	Send photos to customer during every manufacturing process(hold point).
c.	Iinform the customer one week before testing.
3.	After sale service
a.	Installation and commissioning.
b.	Training the worker.
c.	Squick response within 12 hours any time.
d.	Provide 12 months gurantee period normally.
