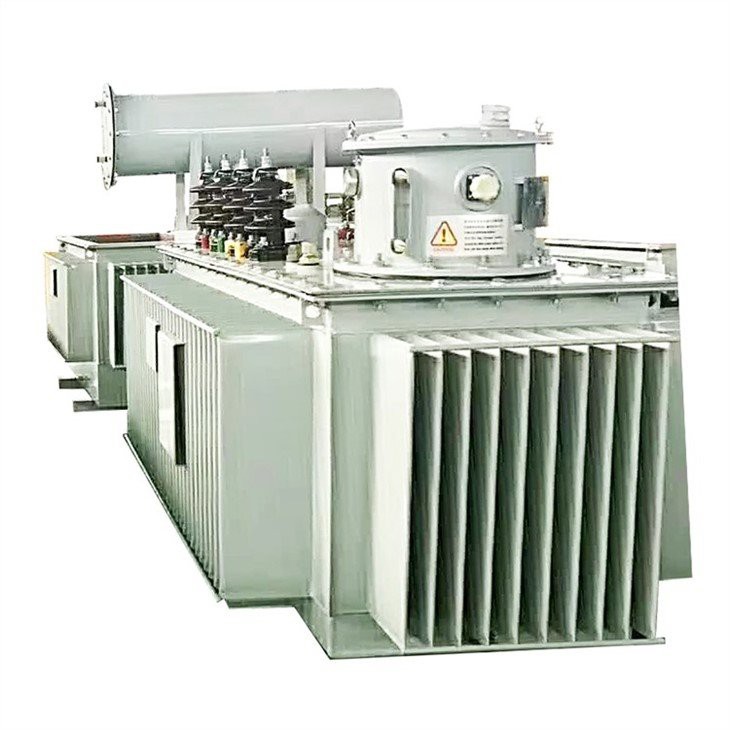

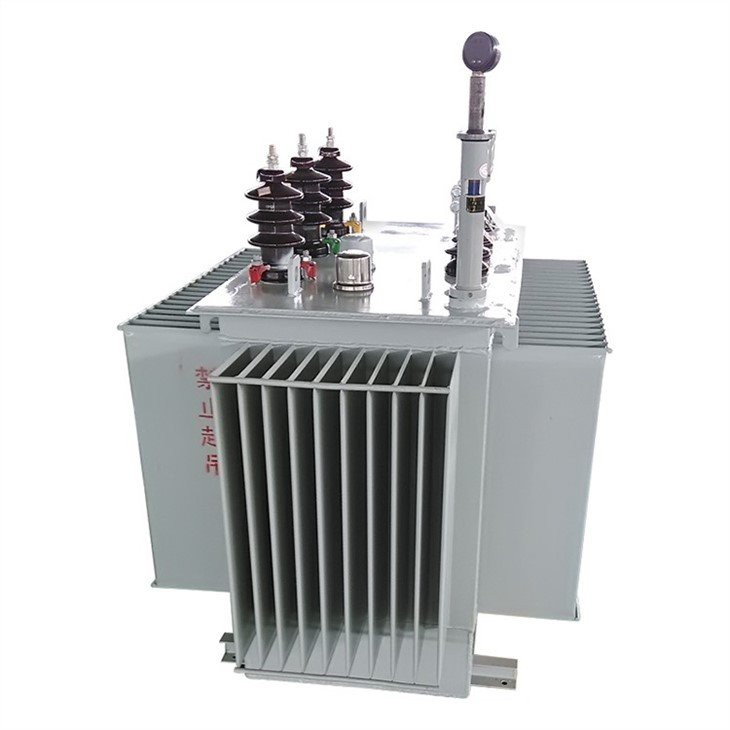

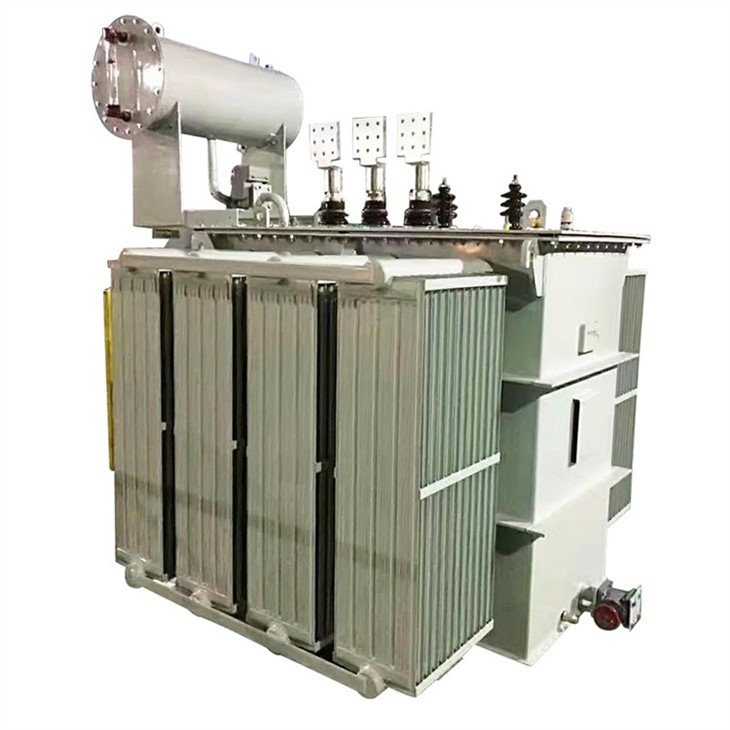

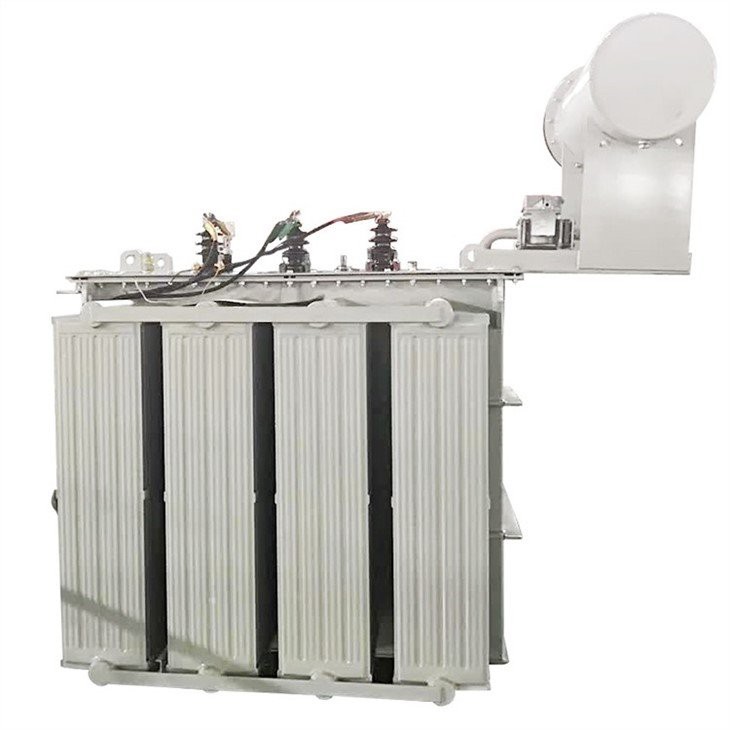

3 Phase Oil Immersed Type Distribution Transformer

2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!

------------------------------------------Product Description----------------------------------------------

The products are in accordance with Chinese national GB standards and the international IEC standards.

Environmental conditions：

1. High ambient temperature: +40℃

2. Low ambient temperature: -25℃

3. Altitude: <4000m

4. Monthly average relative humidity: 80% (25℃)

5. Installation location: Install in a place free of fire, explosion hazard, severe pollution, chemical corrosion and severe vibration, indoor or outdoor

Product Standards：

GB 1094 Power Transformer

GB/T 15164 Oil-immersed power transformer load guide

GB/T 6451 Three-phase oil-immersed power transformer technical parameters and requirements

IEC/60076

------------------------------------------Product Parameter----------------------------------------------

--------------------------------------------Product Features-------------------------------------------------

01 Good Economical Performance; The no-load loss for S13 series products decreased by 10.3% averagely and the no-load current decreased by 25% than S11 series.

02 Long Service Life: Transformer tank adopts hermetical structure. The covers between tanks can be connected by bolts and welded firmly. the transformer oil won't contact with air, so that extend the service life effectively.

03 High Operation Reliability: Improve the relevant sealing parts for the tank, increase the reliability and advance the technical level to ensure the reliability of the seal.

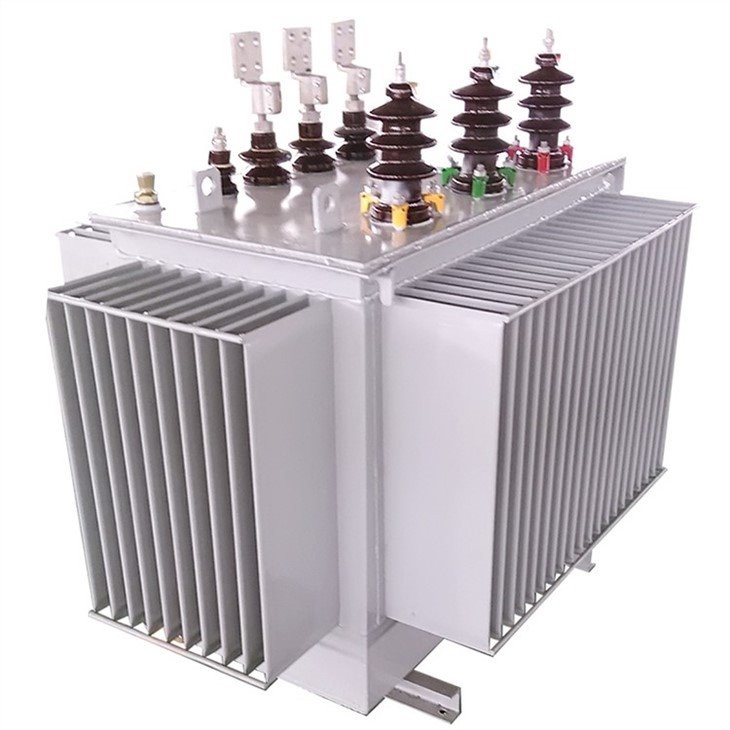

04 Small Installation Area: S13-M series transformer tank uses the corrugated plate radiator. When the oil temperature changes, the corrugated plate will proceed thermal expansion, which can replace the role of the oil conservator. the corrugated plate tank has beautiful appearance, less occupied area.

05 Low Noise: The Oil immersed distribution transformer core is stacked by imported high-quality cold-rolled silicon steel sheet, which reduces no-load current greatly, and makes the core bound to ensure compactness of the core and reduce noise.

---------------------------------------------------------Our Certificate----------------------------------------------------

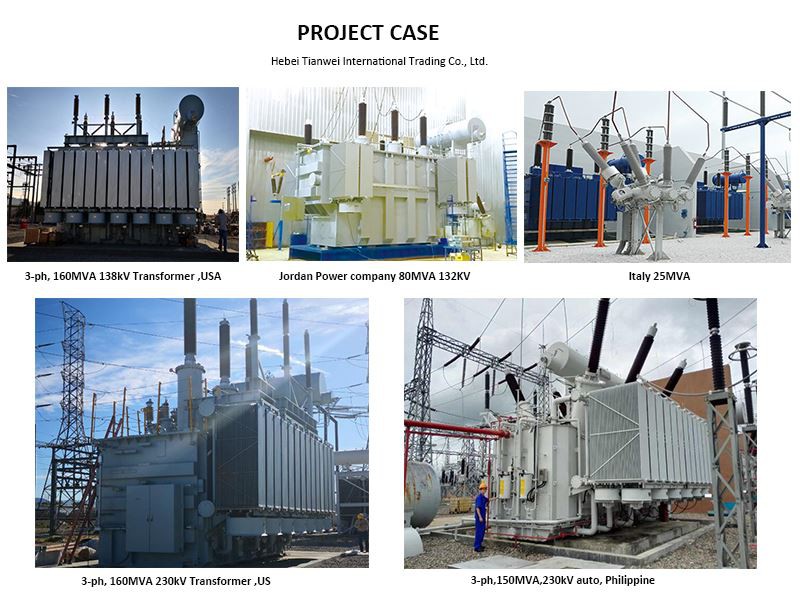

---------------------------------------------------------Project Case----------------------------------------------------

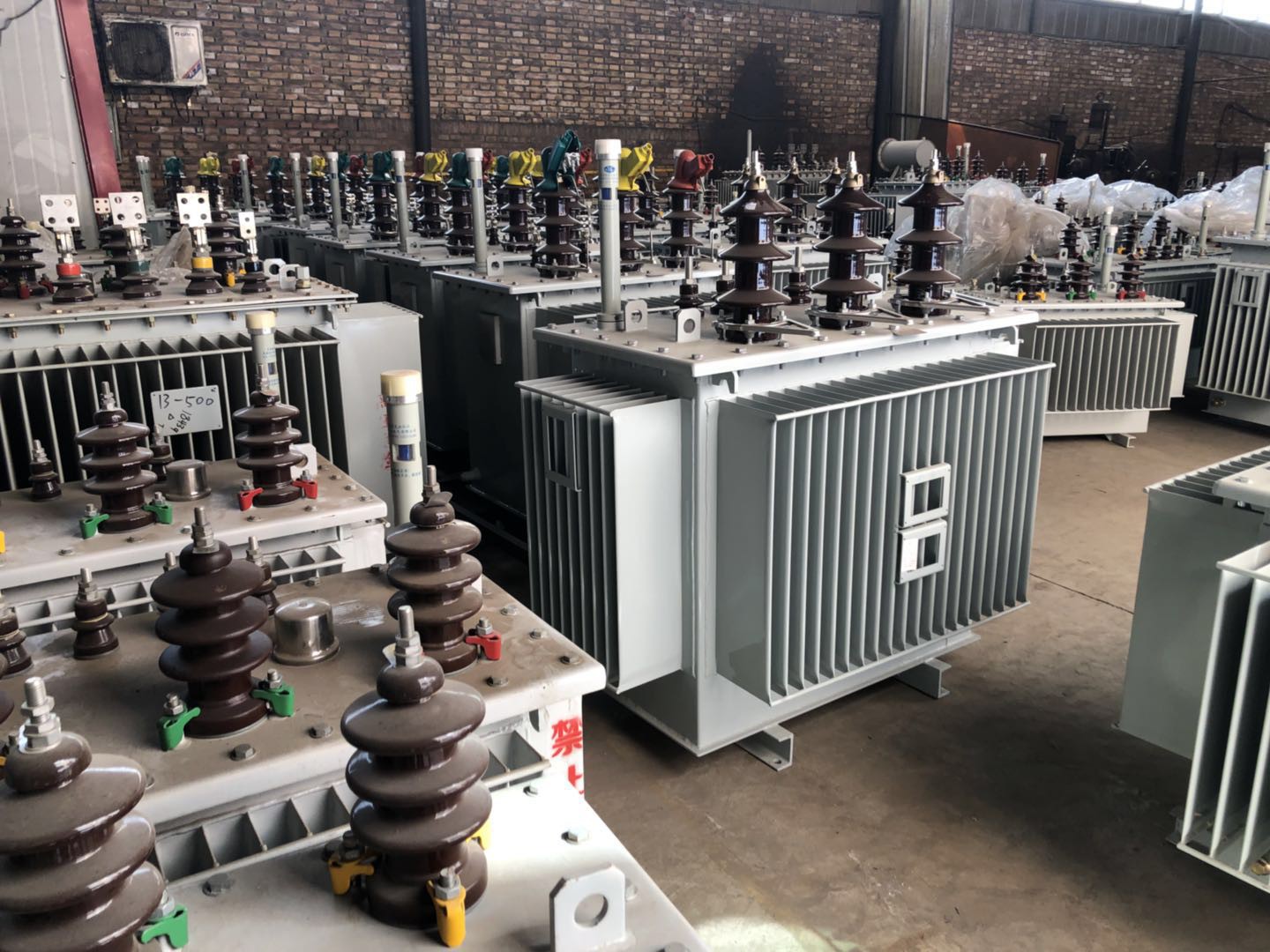

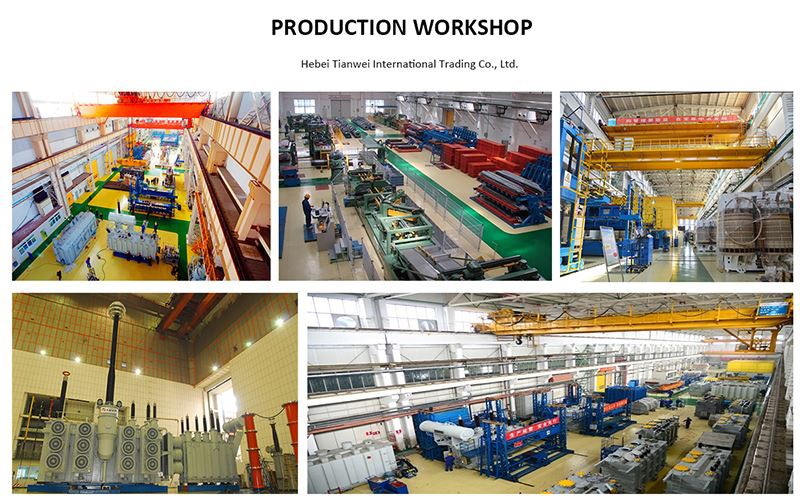

---------------------------------------------------------Our Factory----------------------------------------------------

Our factory covers an area of 33,300 square meters, with a total construction area of 6,100 square meters. There are currently 260 employees, including 18 technicians who have been engaged in the research and development of transformer products for many years, and 8 high-quality corporate managers. With the expansion of production scale and the increase of product varieties, it has now developed into a high-tech innovative enterprise that annual production capacity of more than 1000MVA, integrating the design, production and sales of open-type dry-type transformers, epoxy resin cast dry-type transformers, amorphous alloy transformers, and special transformers.

-------------------------------------------------------------FAQ--------------------------------------------------------------

1. Can l visit your factory?
A: By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.

2. Do you offer OEM service and can you produce as our drawings?
A: Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements.

3. What is your advantage compared with your competitors?

(1). Qualified Manufacturer

(2). Reliable Quality Control

(3). Competitive Price

(4). High Efficiency working (24*7hours)

(5). One-Stop Service

4. Can you give me a discount?
A: Discount is available,but we have to see the real quantity,we have different price based on different quantity,how much discounts is determined by the quantity,moreover,our price is very competitive in the field.

5. Is there the products tested before shipping?
A: Yes, of course. All of our transformer will be tested as per IEC60076.
