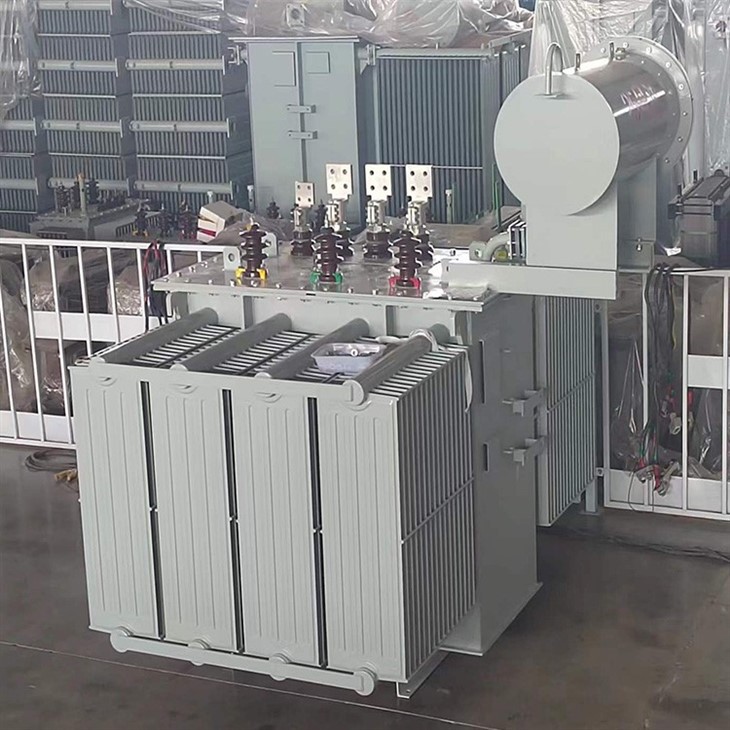

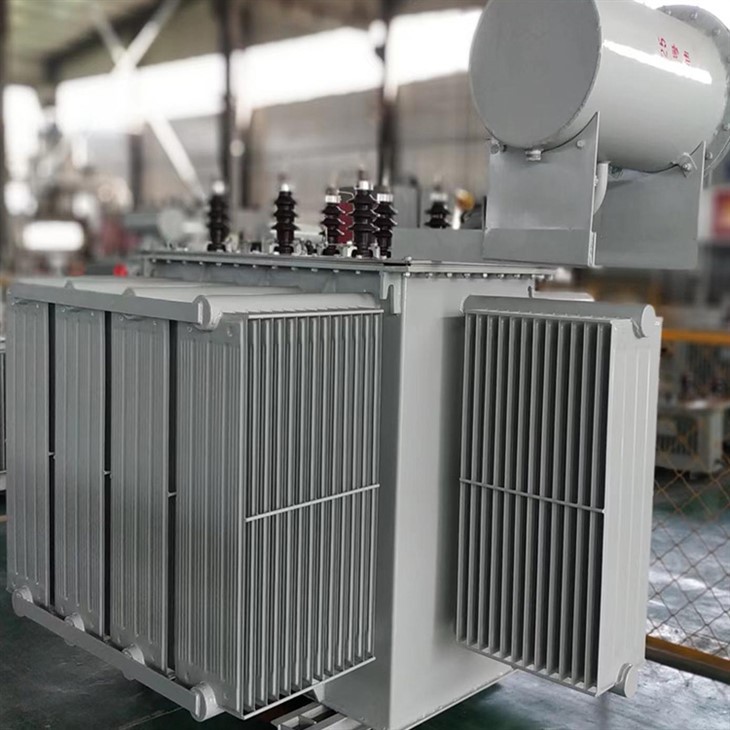

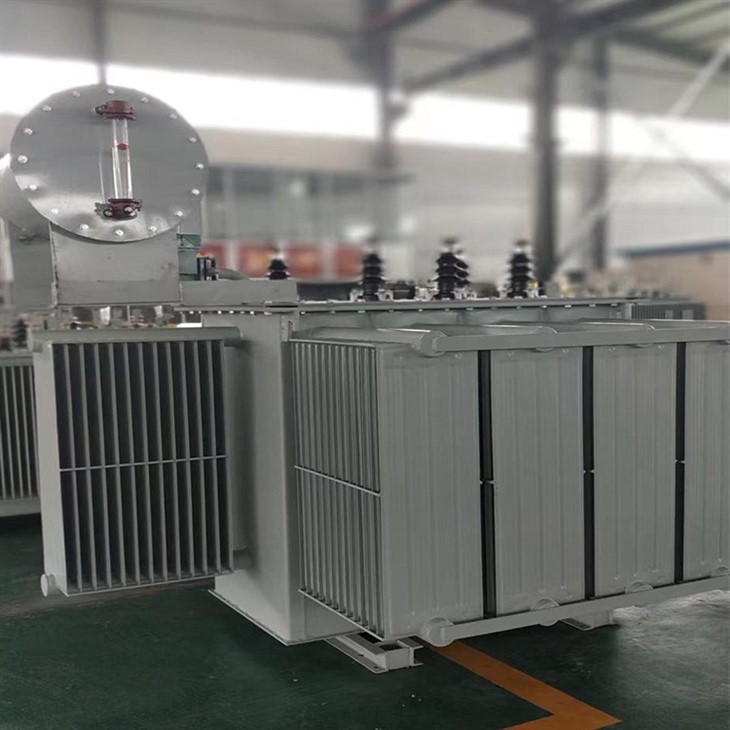

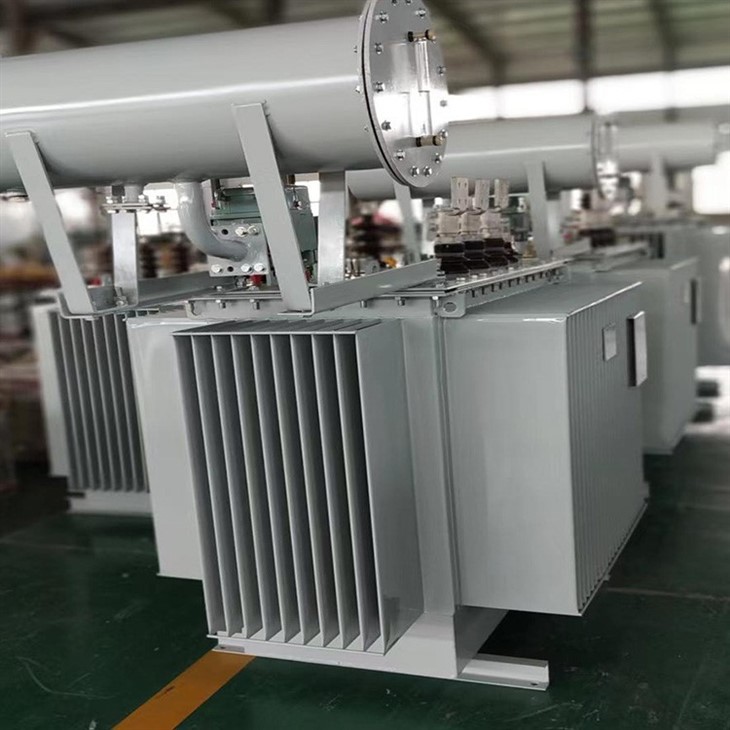

22KV Transformer
22KV transformers are electrical devices that are used for stepping up or stepping down voltage levels in the power transmission systems. They are designed to operate at a voltage rating of 22 kilovolts (22KV) and can handle large amounts of electrical power.
Features
22 KV Transformer Specifications
22KV transformers are electrical devices that are used for stepping up or stepping down voltage levels in the power transmission systems. They are designed to operate at a voltage rating of 22 kilovolts (22KV) and can handle large amounts of electrical power.
|
Rated capacity (KVA) |
Voltage Combination |
Vector Group |
No-load Loss(W) |
Load Loss (W)75℃ |
No-load Current (%) |
Short-circuit Impedance(%) |
||
|
High Voltage |
Tapping ranges of High Voltage |
Low Voltage |
||||||
|
30 |
22KV |
±5% |
400V 415V 433V |
Dyn11 |
100 |
690/660 |
2.1 |
5.5 |
|
50 |
130 |
1010/960 |
2 |
|||||
|
63 |
150 |
1200/1150 |
1.9 |
|||||
|
80 |
180 |
1440/1370 |
1.8 |
|||||
|
100 |
200 |
1730/1650 |
1.6 |
|||||
|
125 |
240 |
2080/1980 |
1.5 |
|||||
|
160 |
290 |
2540/2420 |
1.4 |
|||||
|
200 |
340 |
3000/2860 |
1.3 |
|||||
|
250 |
400 |
3520/3350 |
1.2 |
|||||
|
315 |
480 |
4210/4010 |
1.1 |
|||||
|
400 |
570 |
4970/4730 |
1 |
|||||
|
500 |
680 |
5940/5660 |
1 |
|||||
|
630 |
810 |
6820 |
0.9 |
6 |
||||
|
800 |
980 |
8250 |
0.8 |
|||||
|
1000 |
1150 |
11330 |
0.7 |
|||||
|
1250 |
1380 |
13200 |
0.7 |
|||||
|
1600 |
1660 |
15950 |
0.6 |
|||||
|
2000 |
1950 |
19140 |
0.6 |
|||||
|
2500 |
2340 |
22220 |
0.5 |
|||||
Features and Benefits
Some of the key features and benefits of 22 KV transformers include:
1. High Efficiency: 22KV distribution transformers are designed to have high efficiency, which means that they can convert electrical energy with minimum loss.
2. Compact Design: These transformers are designed to have a compact size, which makes them ideal for installing in small areas.
3. Low Noise Operation: 22KV power transformers are built with high-quality insulation materials, which help reduce operational noise.
4. Low Maintenance: These transformers require minimal maintenance, which makes them cost-effective over their lifetime.
5. High Voltage Capacity: 22KV transformers are designed to handle high voltage levels, which makes them suitable for use in high-power transmission systems.
Applications
22KV distribution transformers are used in a wide range of industries and applications. Some of the most common uses are:
1. Power Generation: These transformers can be used in power generation stations to step up or step down voltage levels as required.
2. Industrial Applications: 22KV power transformers are used in various industrial processes such as steel production, chemical manufacturing, and oil and gas refineries.
3. Transportation: They are also used in transportation systems such as railways and airports to power lighting and other equipment.
4. Renewable Energy: These transformers are also used in renewable energy systems such as wind turbines and solar power plants to convert electrical energy.
