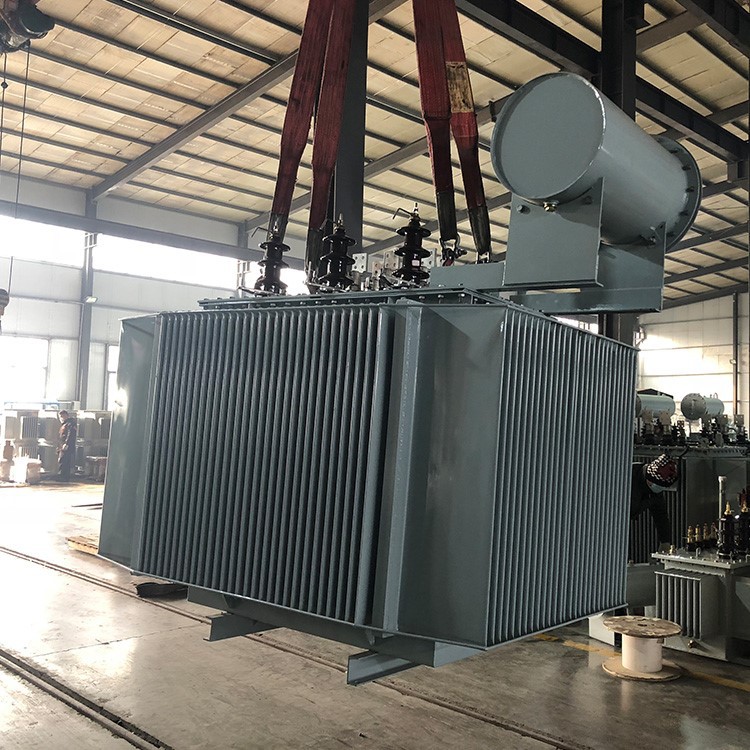

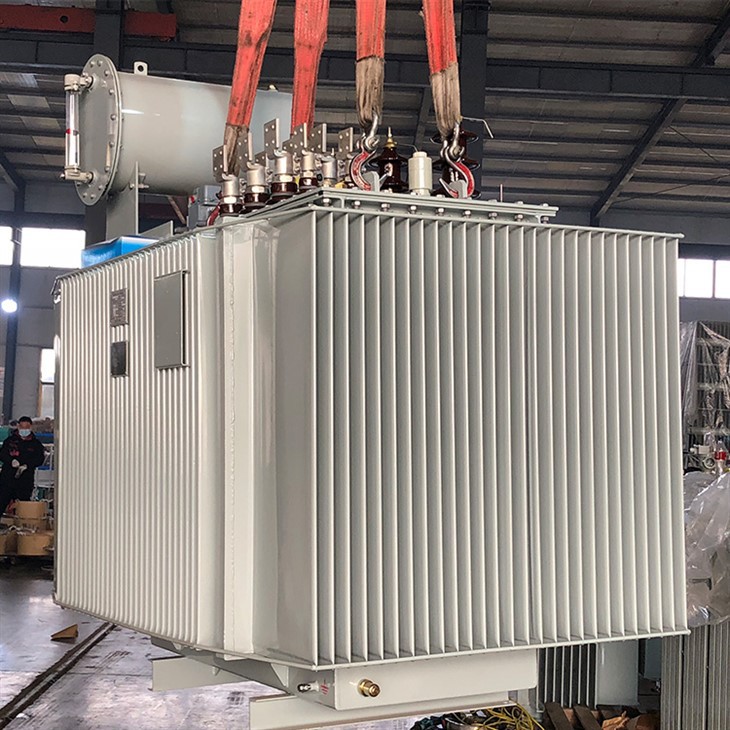

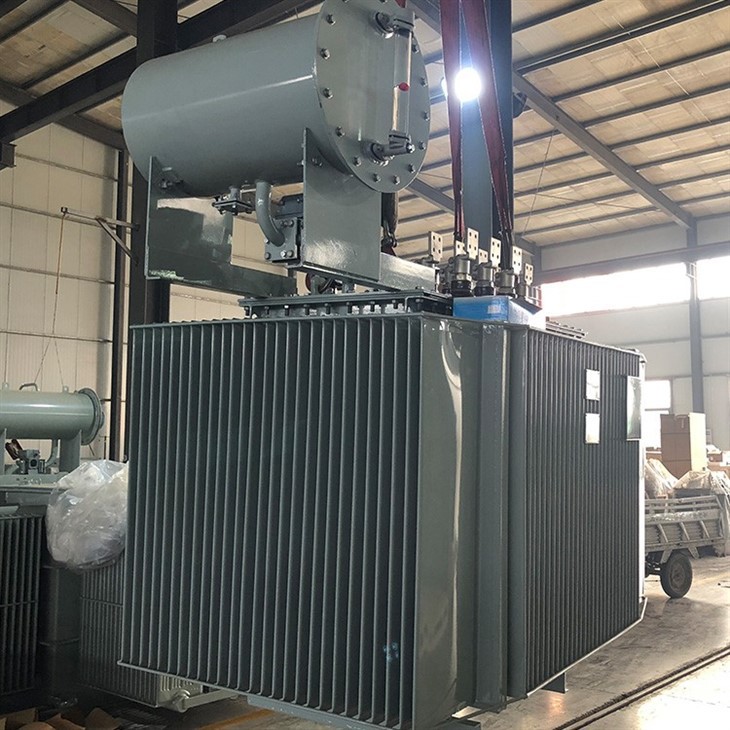

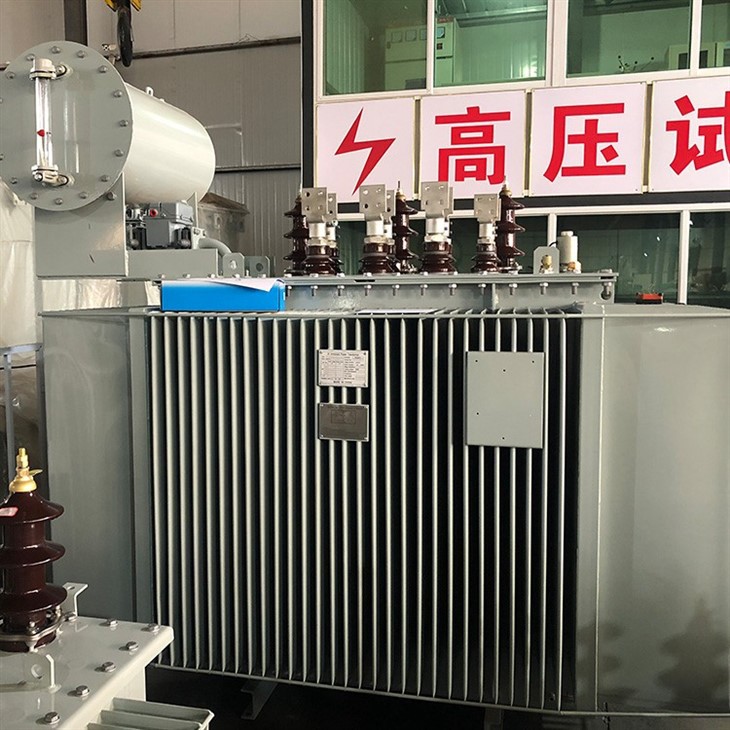

2500KVA Transformer
Our 2500KVA Transformer is made with only the best materials, ensuring long-lasting performance and safety.
Features
Product Description:
Our 2500KVA Transformer is a top-of-the-line power transformer designed for heavy-duty industrial applications. With a rated power of 2500KVA, it provides a reliable and stable power supply to a wide range of equipment and machinery. This transformer is built to last, made with high-quality materials that ensure long-lasting performance, durability, and safety.
|
Transformer type |
hermetically sealed with natural oil circulation |
|
Power |
2500 kVA |
|
Rated voltage of the LV winding |
0.69kV |
|
Rated voltage of the HV winding |
6kV |
|
2500KVA Transformer Amps |
240.6A/2091.9A |
|
Diagram and connection group of windings |
Dyn11 |
|
Voltage regulation range |
±2x2.5% |
|
Winding material |
Copper |
|
Short circuit losses |
28000W |
|
No-load losses |
2800W |
|
2500KVA Transformer Impedance |
6.5% |
|
No-load current |
0.4% |
|
Rated frequency |
50 Hz |
|
2500KVA Transformer Dimensions |
|
|
Length |
2345mm |
|
Width |
1424mm |
|
Height |
2385mm (without rollers) |
|
2500KVA Transformer Weight |
5850kg |
|
Availability of transport rollers |
As per your requirements |
|
Availability of gas relay |
yes |
|
Presence of temperature sensor |
yes |
|
Presence of safety valve |
yes |
|
Availability of oil indicator |
yes |
|
Insulation heat resistance |
class A |
|
Ambient temperature |
from -45℃ to +40℃ |
|
Altitude above sea level |
1000m |
Product Features:
1. High-Quality Materials: Our 2500KVA Transformer is made with only the best materials, ensuring long-lasting performance and safety.
2. Efficient Cooling System: The transformer is designed with an efficient cooling system that ensures optimal operation and prevents overheating.
3. Protective Enclosure: The transformer is housed in a sturdy and protective enclosure that ensures safety and protection from environmental factors.
4. Easy to Install and Use: The transformer is easy to install and use, with clear instructions provided for seamless integration into your existing equipment or machinery.
Product Procurement Process:
To purchase our Transformer 3 Phase 2500KVA, please follow the steps below:
1. Contact our sales department to receive a quote and discuss any specific requirements you may have.
2. Once you have received your quote, make the payment for your order.
3. Our team will then ship your order to your specified location and provide you with tracking information.
4. Upon receiving your transformer, follow the installation instructions provided to ensure safe and proper use.
We understand how vital reliable power is to your business operations, and our 2500KVA Transformer is designed to meet and exceed your expectations. Contact us today to order your transformer and experience the difference it makes in your industrial applications.
