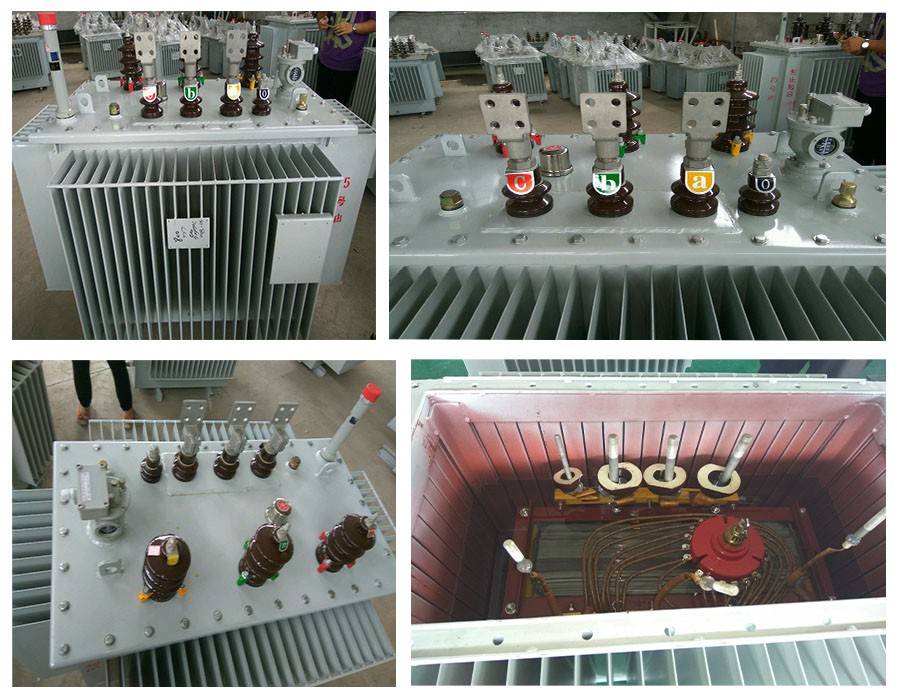

500 KVA Distribution Transformer

Product description:
Our 500 KVA distribution transformer is a high-quality and reliable product that is designed to meet the demanding needs of modern power distribution systems. With a range of features and benefits, this transformer is an ideal choice for commercial, industrial, and residential applications.

500 KVA Distribution Transformer Specifications

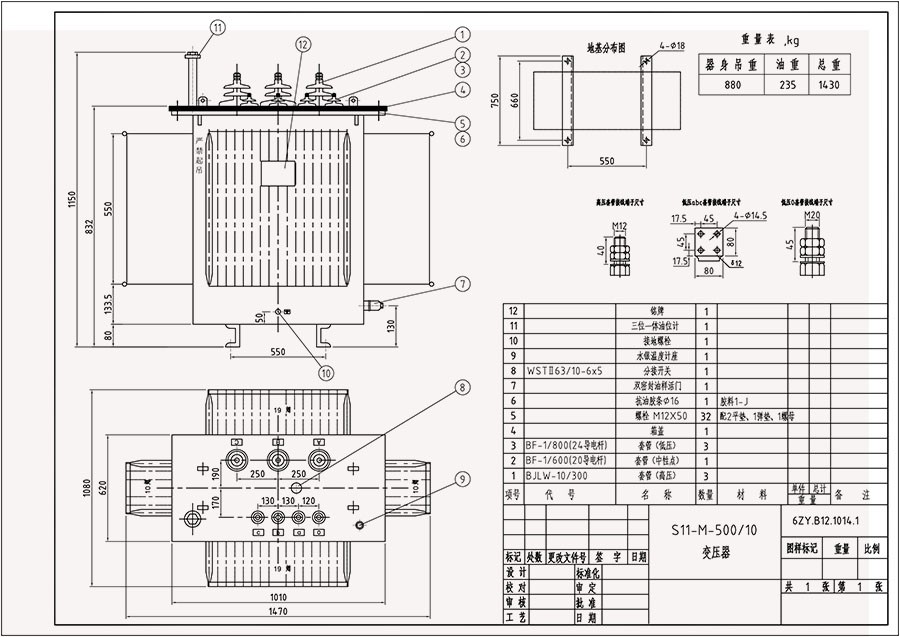

500 KVA Distribution Transformer Outline Drawing

Product Advantages:
- High efficiency: Our transformer is designed to minimize energy loss, resulting in lower operating costs and greater efficiency.
- Low noise level: Our transformers are engineered for minimal sound emissions, ensuring that they operate quietly and without disruption.
- Robust construction: Our transformers are built to last, with durable materials and a rugged design that can withstand even the most challenging environments.
- Life cycle cost: Our transformers are designed for long service life with minimum maintenance and low operating cost.
- Customizable: We offer a range of customizable options to meet specific customer needs, including different voltage and power ratings.

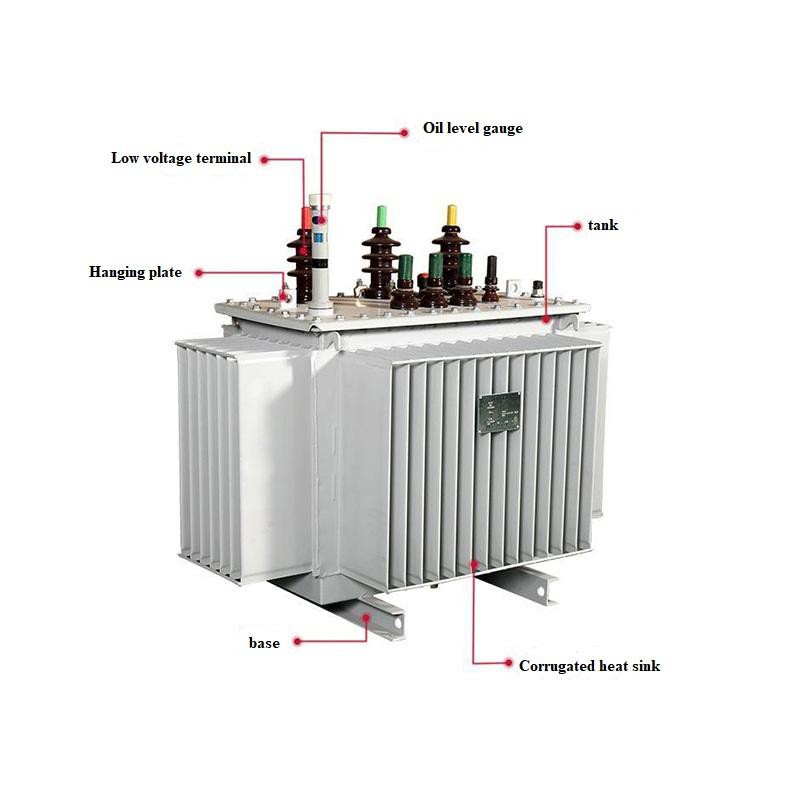

500 KVA Transformer Parts
Our 500KVA distribution transformer comprises high-quality components, including copper or aluminum windings, steel core, insulating materials such as Nomex paper, and oil. These materials are carefully selected to provide optimal performance, durability, and safety.

500 KVA Transformer Nameplate
Our product nameplate displays critical information, including the manufacturer's name, model number, capacity, voltage, phase, frequency, and date of manufacture, among other important details. This information helps to ensure that the product is correctly identified and installed in the right application.

Product Installation:
Our 500KVA distribution transformer has been successfully installed in a wide range of applications, including hospitals, data centers, commercial buildings, and more. Our experienced team of engineers can provide installation and maintenance support, ensuring that the product operates safely and efficiently over its entire life cycle.

FAQ
1.How To Install 500 KVA Transformer?
To install a 500 KVA transformer, follow these steps:
1.1. Choose a suitable location for the transformer. The location should be level and well-ventilated.
1.2. Ensure that you have the necessary tools and equipment for the installation, including a crane or lifting device, safety gear, and a transformer oil draining and filling system.
1.3. Carefully transport the transformer to the installation site using a truck or trailer.
1.4. Position the transformer on its foundation and secure it in place with bolts.
1.5. Connect the primary and secondary cables to the transformer terminals, making sure that they are correctly sized and rated.
1.6. Fill the transformer with oil, making sure to follow the manufacturer's instructions.
1.7. Test the transformer for proper operation, including voltage and current readings.
1.8. Once the transformer has been successfully tested, energize the circuit and monitor it to ensure that it is functioning correctly.
By following these steps and adhering to all relevant safety regulations and industry standards, you can successfully install a 500 KVA transformer.

2.How Much Is 500 KVA Transformer?
11kv 500 KVA Transformer Cost:USD4*14.00/SET

3.How Many Amps Is A 500 KVA Transformer?
11kv 500 KVA Transformer Amps: 26.2A/695.6A

4.What Is The Impedance Of 500 KVA Transformer?
500 KVA Transformer Impedance:4.5%
