63 KVA Transformer

S11 oil-immersed transformer, rated voltage 10KV, Capacity includes 30KVA, 50KVA, 63KVA, 80KVA, 100KVA, 125KVA, 160KVA, 200KVA, 250KVA, 315KVA, 400KVA, 500KVA, 630KVA, 800KVA, 1000KVA, 1250KVA, 1600KVA, 2000KVA, 2500KVA, 3150KVA, 4000KVA, 5000KVA, etc.

The S11 63KVA transformer is a 10KV/0.4KV oil-immersed power transformer, which can be made of all-copper or all-aluminum. Its rated capacity is 63KVA, belongs to the three-phase S11 oil-immersed transformer, with small volume, low noise and other advantages, used in urban residential areas, industrial parks and commercial centers and other places, is one of our company's main products.

63 KVA Transformer Specification

1.Rated capacity: 63KVA

63 KVA Transformer Load Capacity：56KW

2. Rated voltage: 10KV/0.4KV

3. 63 KVA Transformer Current Rating: 91A

4. Vector group: Yyn0

5. No-load loss: 180W

6. Load loss: 850W

7. Short-circuit impedance: 4%

8. Winding impedance voltage: 4.5KV

9. Cooling method: ONAN

10. 63 KVA Transformer Oil Capacity: 200L

11. 63 KVA Transformer Weight: 760KG

12. 63 KVA Transformer Dimensions: 770*960*1100mm

13. 63 KVA Copper Transformer Price: USD1*00.00/SET

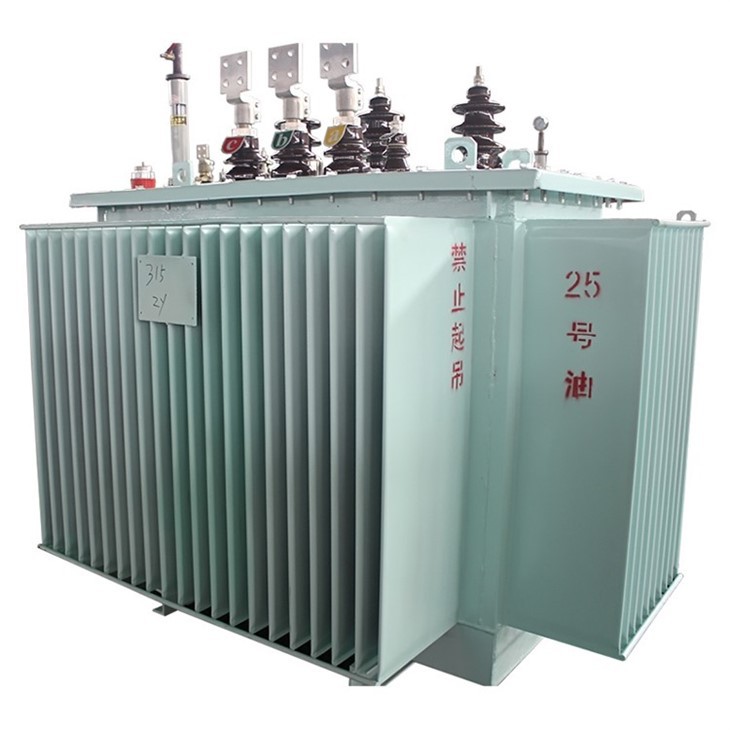

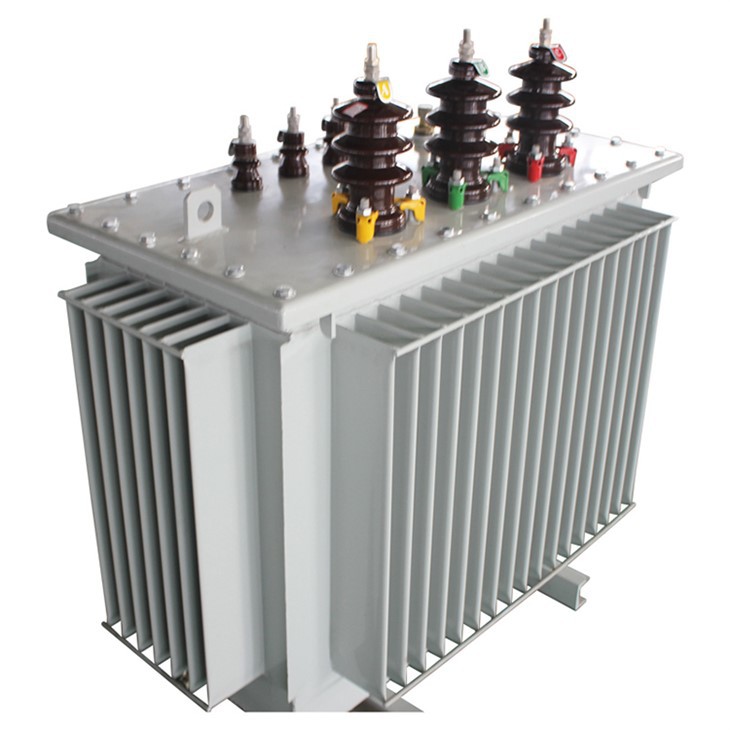

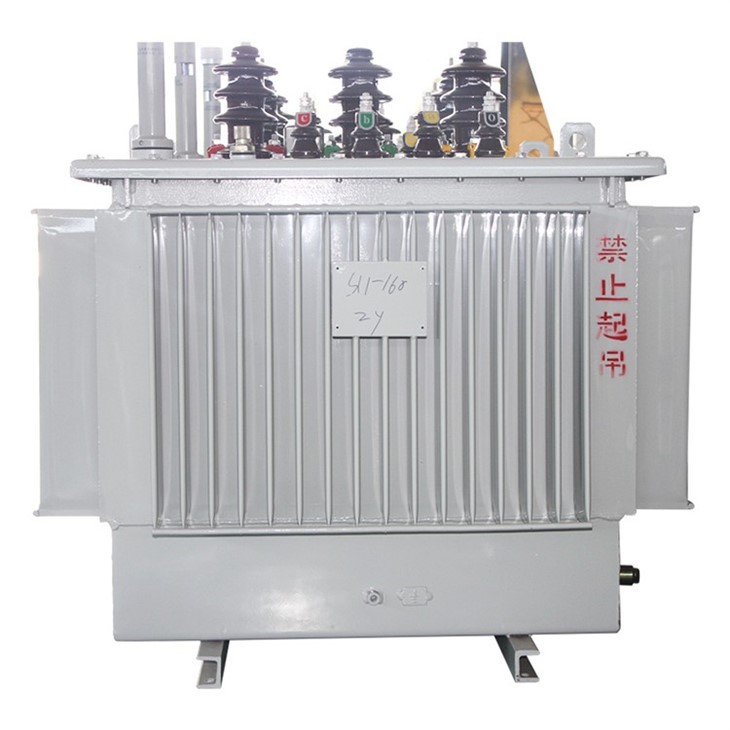

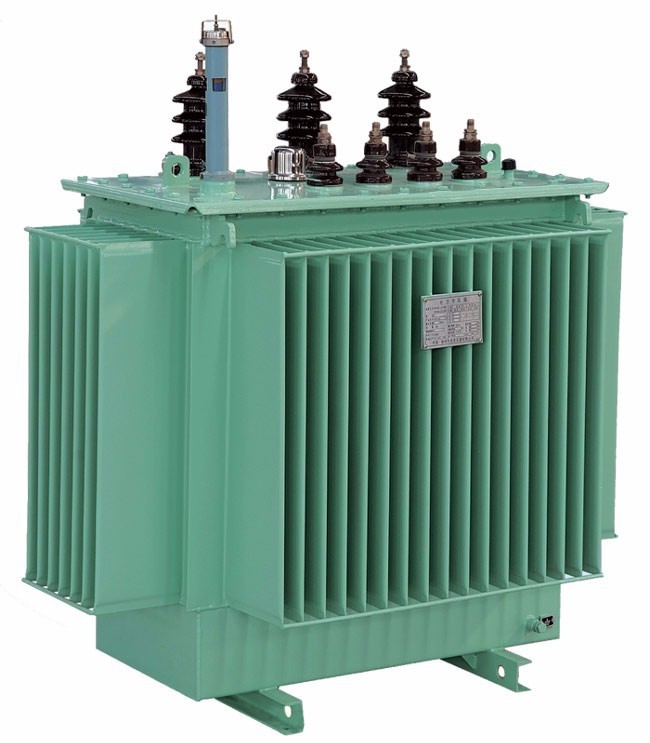

63 KVA Transformer Image

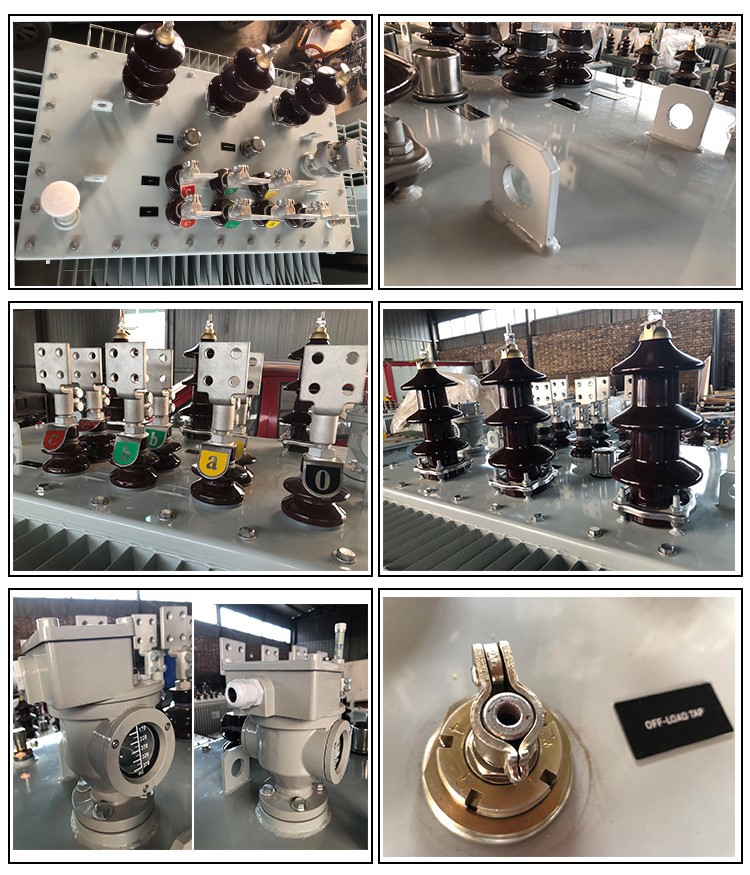

63 KVA Transformer Details

63 KVA Transformer Nameplate

63 KVA Transformer Size Chart

The 63 KVA Transformer core is made of imported cold rolled silicon steel sheet, which greatly reduces no-load loss and no-load current, and binds the core to ensure the firmness of the core and reduce noise.

The high and low voltage windings are wound with oxygen-free copper, the low voltage windings are 500kVA and below the double-layer cylinder structure, the 630kVA and above the double helix or quadruhelix structure, and the high voltage windings are multi-layer cylinder structure.

The 63 KVA Transformer connection group adopts Dyn11 to reduce the influence of harmonics on the power grid and improve the quality of power supply.

The transformer is fully sealed structure, extending the service life and maintenance free.

The measured noise value is lower than the standard.

After the normal transportation of this series of transformers, the relevant parts can be installed, the acceptance project test can be put into operation after passing.

Executive Standard

GB 1094.1 Power transformer

GB/T 15164 Load guidelines for oil-immersed power transformers

GB/T 6451 three-phase oil-immersed power transformer Load guide GB 2536 transformer oil

JB/T 3837 transformer product model preparation method Dirty JB/T 501 power transformer test guidelines

GB 1094.3 Insulation levels and insulation tests for transformers Air gaps for external insulation DL/ T572 Code for transformer operation

1. What is a transformer?

Transformer is a kind of power equipment according to Faraday's law of electromagnetic induction, which uses the principle of electromagnetic induction to convert AC electrical energy into different voltages, powers or frequencies. It consists of a high-voltage coil, a low-voltage coil and an iron core. Through transformers, power can be efficiently distributed and transmitted.

2. Why do transformers need to be oil-immersed?

Oil-immersed transformers can effectively isolate and stabilize the current inside the transformer while protecting the transformer from corrosion and humidity. Oil is not only an insulating material, but also can transfer heat and prevent fire. Therefore, it is widely used in high voltage equipment.

3. What are the advantages of S11 63 KVA transformer?

The S11 63KVA transformer has the advantages of small size and low noise. In the aspect of energy saving, the three-loop core is used, which is designed for low voltage winding, high voltage winding and neutral lead winding respectively. In terms of floor space, the transformer has been improved by technical innovation and optimization, and the volume is gradually reduced, which is suitable for the environment with limited space. At the same time, in terms of noise, the vibration and noise of the transformer are reduced.

4. How much load can 63 kva transformer handle?

850W
