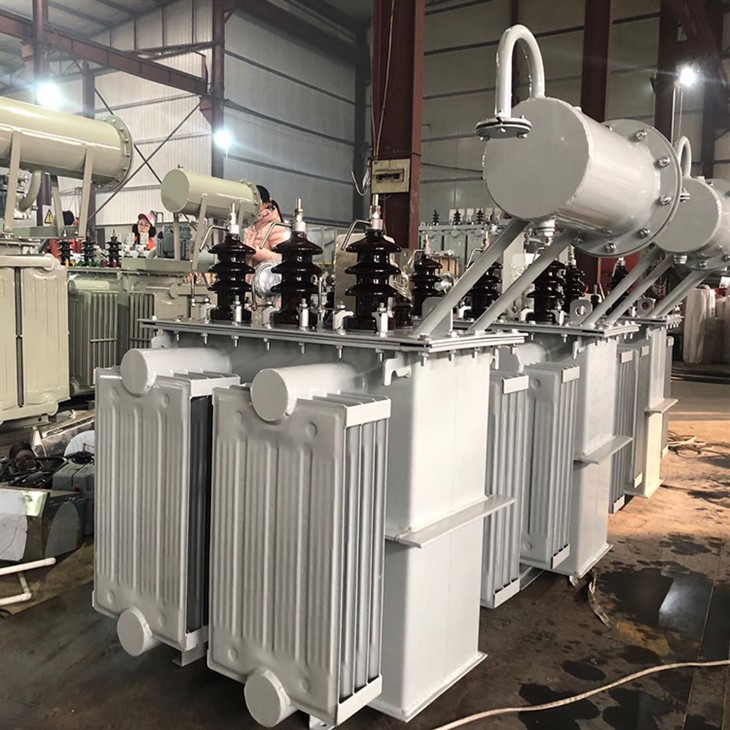

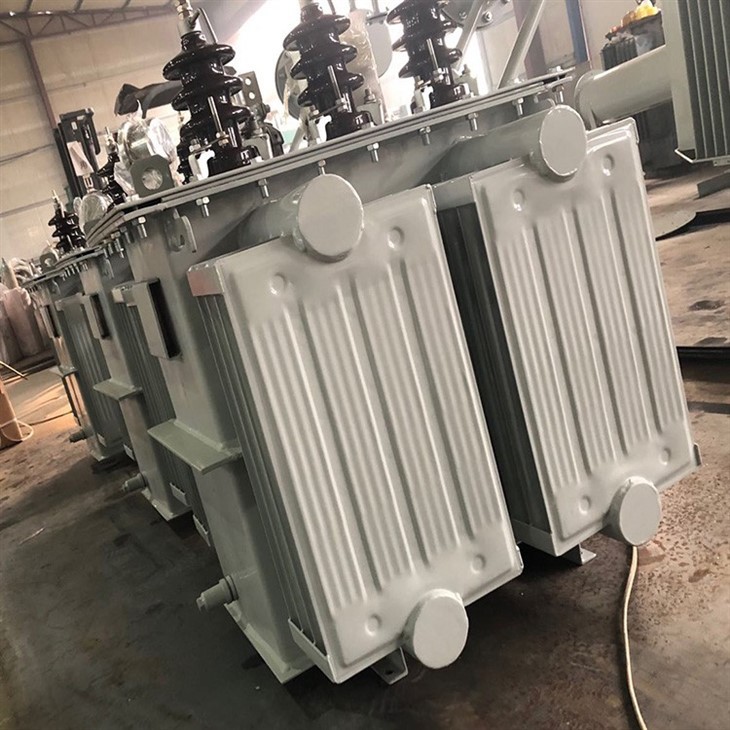

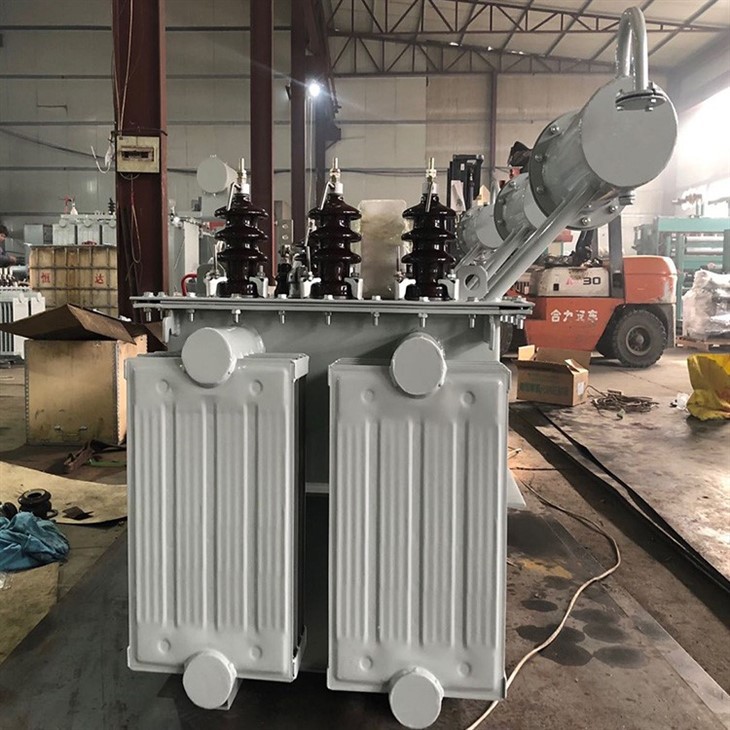

Power Transformer 300KVA

Product Introduction - Power Transformer 300KVA
Product Parameters:
Rated Voltage: 10KV
Input Phase: Three Phase
Output Phase: Three Phase
Rated Capacity: 300KVA
Operating Frequency: 50Hz
Insulation Class: Class A
Efficiency: ≥ 98%
Overall Dimension: 1600mm x 900mm x 1800mm
Weight: 1800kg

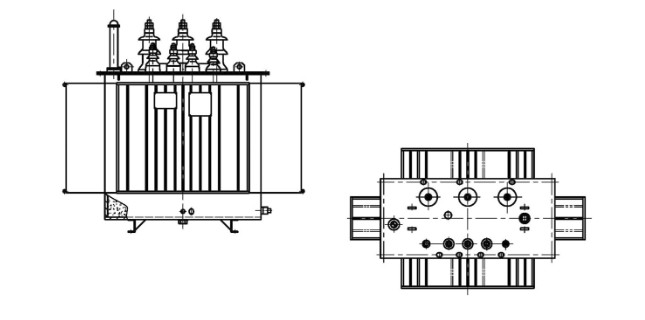

Product Drawing:
Attached please find the detailed product drawing for Power Transformer 300KVA.

Product Manufacturing Process:
1. Raw Material Inspection

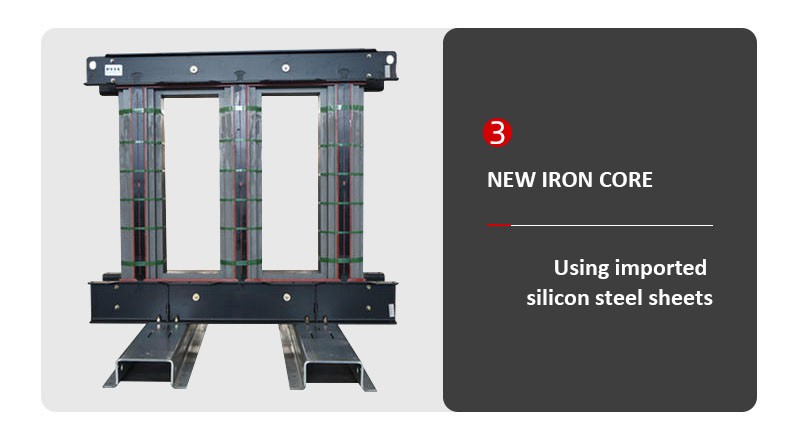

2. Core Cutting
3. Coil Winding
4. Core Assembly
5. Core and Coil Assembly
6. Vacuum Drying
7. Insulation Resistance Test
8. Oil Filling
9. Painting and Finishing
10. Final Inspection and Testing

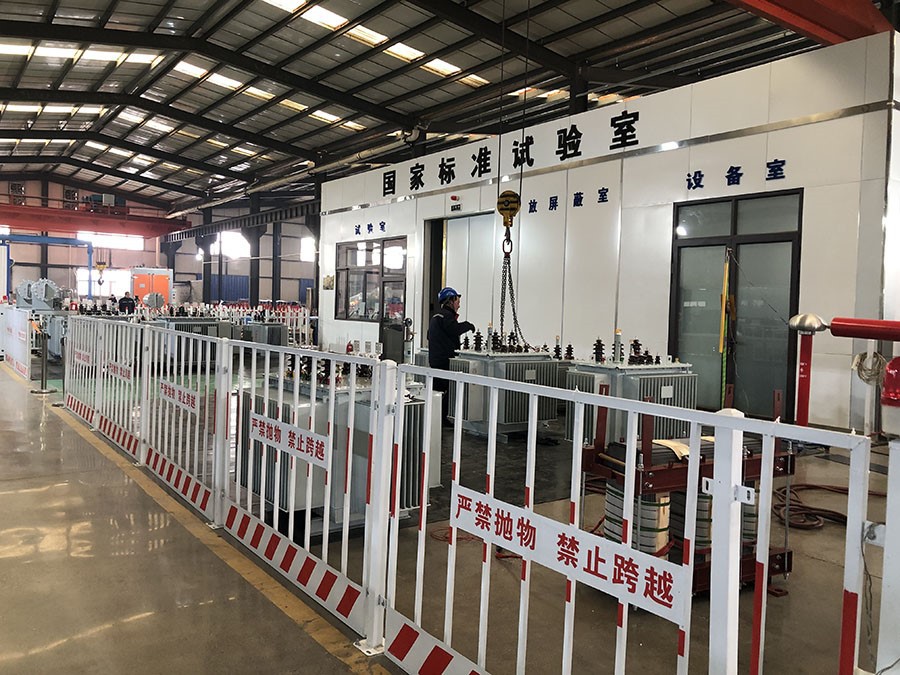

Product Testing Process:
1. Visual Inspection
2. Insulation Resistance Test
3. Power Factor Test
4. Turns Ratio Test
5. Oil Quality Test
6. Load Loss and Impedance Voltage Test

Product Certificates:
Power Transformer 300KVA has obtained the following certificates:
1. ISO9001 Quality Management System Certificate
2. CE Certificate
3. UL Certificate (optional)
4. Type Test Report (optional)

If you have any questions or would like to place an order, please contact us at your earliest convenience.
