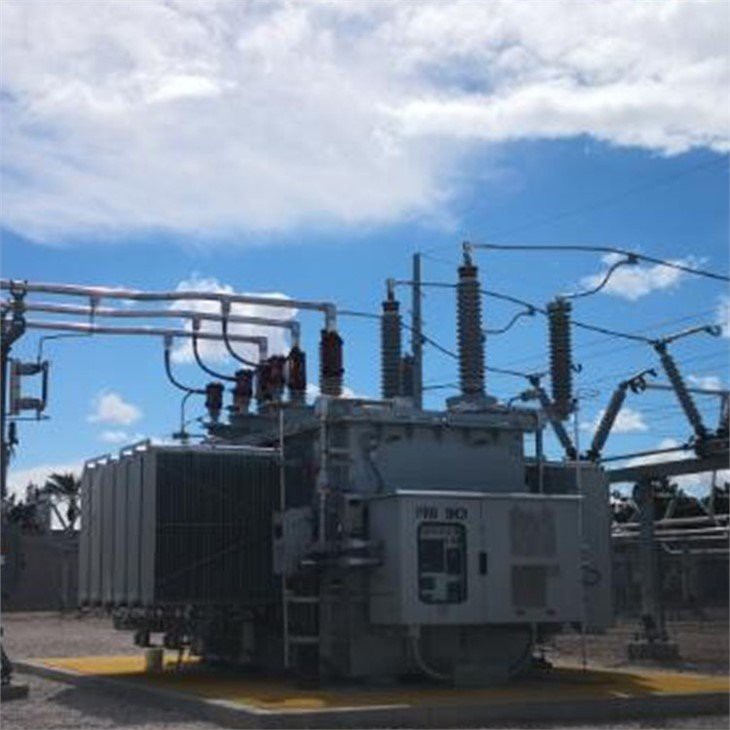

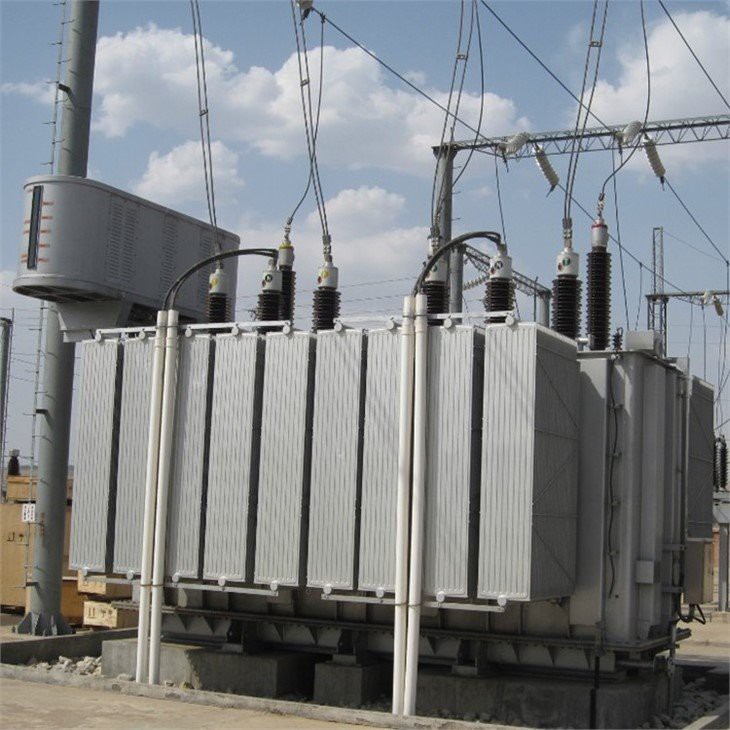

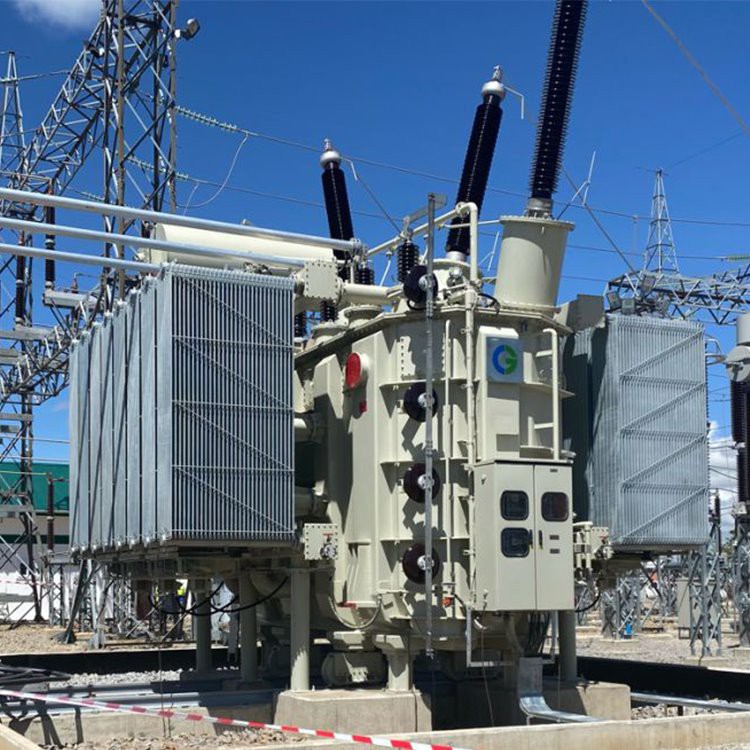

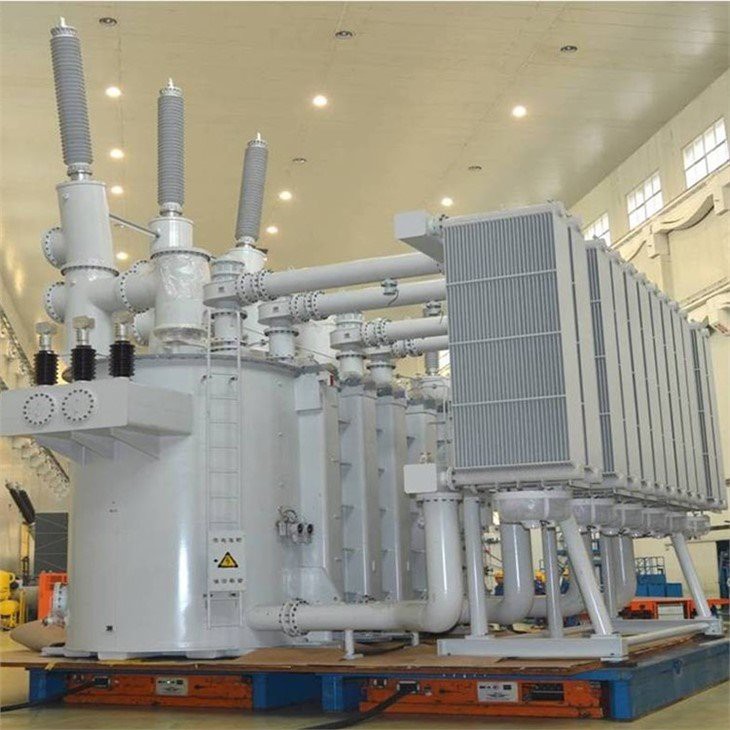

110kV High Voltage Three Phase Two Winding NLTC Power Transformer

110kV Oil-immersed Power Transformers

At present, lines with voltage levels of 110kV and above are generally used as transmission lines, and lines with voltages of 35kV and below are used as distribution lines. 110kV transformers are mostly used in power supply systems to change 110kV transmission voltage into 35kV, 20kV or 10kV distribution voltage. , for use by users or public distribution transformers. Large power users also use 110kV transformers as user transformers. Small power plants also use 110kV as the grid-connected voltage, so a 110kV transformer is used as a step-up transformer.

The commonly used 110kV High Voltage Three Phase Two Winding NLTC Power Transformer capacity ranges from 10,000 to 63,000kVA, with 31,500kVA being the most common in power systems. The maximum capacity produced by our company is 100000kVA.

Standards

GB1094.1Power Transformer General Regulation

GB1094.2Power Transformer Temperature rise

GB1094.3Power Transformer Insulation Levels and Insulation Tests

GB1094.5Power Transformers Short-circuit Capacity

GB6451 Oil-immersed power transformers technical parameters and requirements

Transformer test

Below are the tests conducted by Hebei TIANWEI. Before delivery, other tests required by clients can also be done accordingly.

Insulation resistance test

Resistance of all windings

Check voltage ratio and vector group

No-load test at rated frequency and rated voltage

Impedance test

Withstand voltage testing

Induced over-voltage withstand testing

Partial discharge measurement

Oil leakage test

Hebei Tianwei International Trading Co., Ltd is a professional producer for power transformer，high voltage, low voltage switchgear, box type substation and relation products. We have strictly quality management according with the ISO 9001 international quality system. The company is a modern enterprise with strength of technology, inspection equipment. Nowdays, our products have been widely used in electric power, coal, petroleum, chemical, metallurgy, transportation, communication, building and city infrastructure construction ,Tianwei not only has excellent quality products. but also good after sale service. These have won the praise and trust from customers. The company since its inception, has always been taken to "quality first, customer first, service first reputation first" as our purpose, in future, under all the Tianwei people's endeavor work, we believe we will have a more bright tomorrow!

1.Providing quality packaged power solutions at the shortest lead time in the industry to commercial and industrial clients.

2.Product manufacture and supply according to the highest industry quality standards – ISO 9001 and SANS.

3.We invest in keeping large quantities of standard transformers and MV switchgear in stock – we supply quickly and provide 24/7 emergency support to ensure minimal downtime.

4.Our dedicated departments, infrastructure and highly trained personnel allow fast, full on-site installation, service and supply capabilities.
