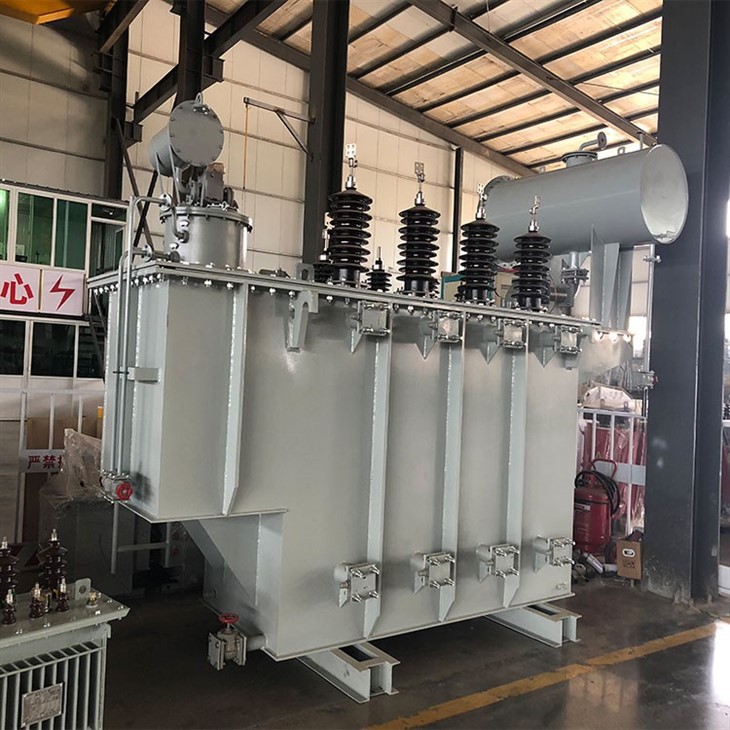

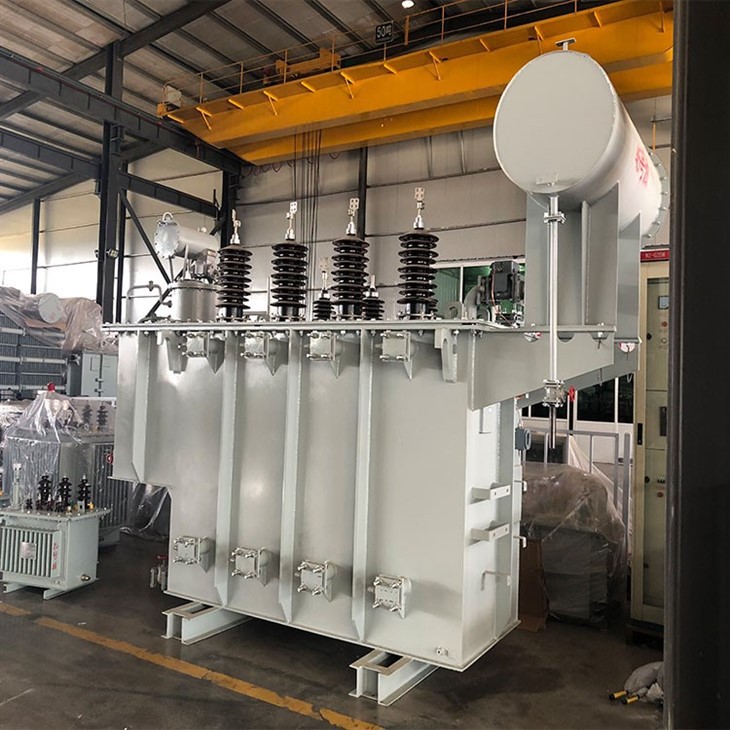

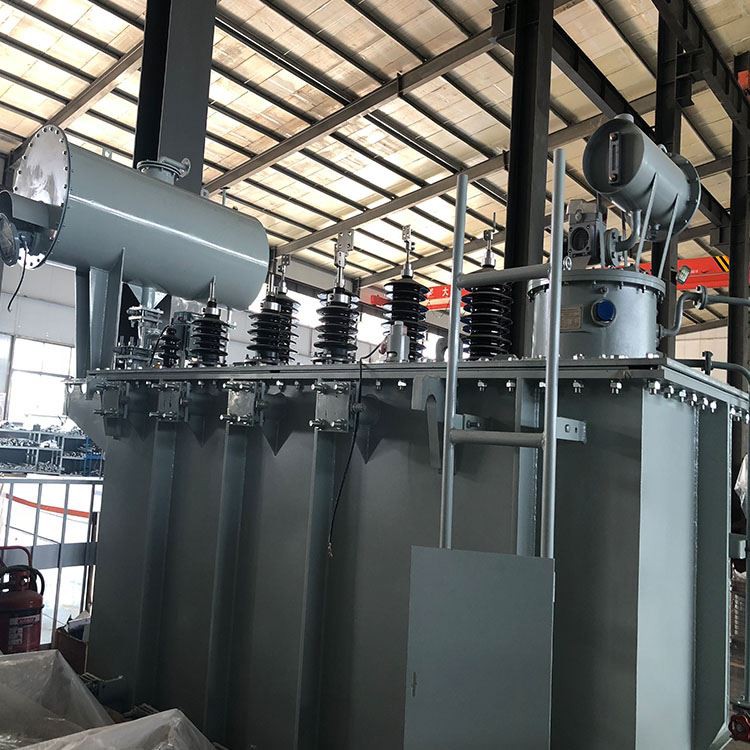

10 MVA Transformer

2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!

10 MVA Transformer Specification

Transformer 10 MVA Data Sheet:

Transformer Type: Power Transformers

Rated Power: 10000 kVA

Rated Voltage: 33000/11000 V

Frequency: 50Hz

Phases: 3

Cooling Method: ONAN

10 MVA Transformer Impedance: 7%

10 MVA Transformer Current Rating

Voltage Regulation: OLTC On-load tap changer

Temperature Rise (oil/wind) : 65/60 K

Connection: Dyn11

10 MVA Transformer Weight: 30000kg

10 MVA Transformer Oil Capacity: 8000kg

10 MVA Transformer Dimensions: 4200*3000x3200mm

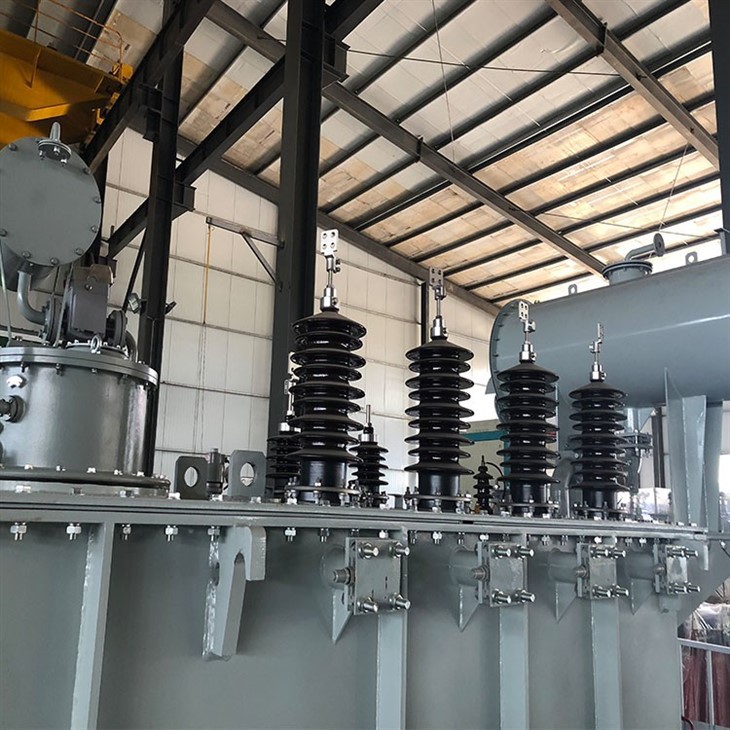

10 MVA Transformer Details:

10 MVA Transformer Parts Name

The 10MVA transformer is an essential component in power distribution systems. It converts high voltage power to low voltage power, making it suitable for the consumption of commercial, industrial and residential users. There are several key parts that make up the 10 MVA 33/11kv transformer including:

1. Core: The core is made up of laminated silicon steel sheets that reduce magnetic losses. 10000kva transformer supports the primary and secondary windings and provides a path for magnetic flux.

2. Windings: 10000 kva transformer windings consist of copper or aluminum conductors that are wrapped around the core. The primary winding carries the high voltage power while the secondary winding carries the low voltage power.

3. Tap changer: The tap changer is a device that allows for the adjustment of the transformer's output voltage. It can be manually or automatically operated and is essential for maintaining a constant voltage supply.

4. Bushings: The bushings are the electrical connections between the transformer and the power system. They are made of ceramic or porcelain and provide insulation for the conductors.

5. Cooler and radiators: The cooler and radiators are used to dissipate heat generated during the operation of the 10000kva transformer. They are essential for maintaining the temperature of the transformer within safe limits.

10 MVA Transformer Nameplate Details

1.What Is 10 MVA Transformer

A 10 MVA power transformer is a type of power transformer that is capable of handling up to 10 megavolt-amperes (MVA) of electrical power. This type of transformer is commonly used in large industrial settings and power grids.

2.How to Transform Transformers

Transformers use an electromagnetic induction to transform voltage. An alternating current (AC) passes through a coil of wire called the primary winding, which creates a magnetic field. This magnetic field induces a voltage in a second coil of wire called the secondary winding, which is connected to the device being powered.

3.How to Power Transformers Work

Power transformers work by changing the voltage of the electrical power that flows through them. The primary winding is connected to a high-voltage power source, and the secondary winding is connected to the load. The transformer decreases the high-voltage power to a lower voltage that can be safely used by the load. This allows electrical power to be transmitted over long distances with minimal loss.
