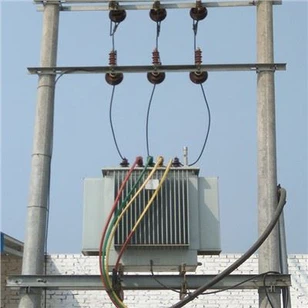

200 KVA Pole Mounted Distribution Transformer

200 kVA Pole Mounted Transformer Description:

Rated Power: 200kva

Rated Voltage: 11/0.4 kV

Rated Current: 10.5/288.68 A

Rated Frequency: 50 Hz

Number of Phase: 3 phase

Connection Symbol: Dyn11

Cooling Method: ONAN

Insulation Class: A

Insulation Level: LI75 AC28/ LIA

HV & LV winding material:Copper

Applied Standard: IEC 60076

Voltage Regulation: ±2 * 2.5%

Maximum Ambient Temperature: 50°C

Maximum Temperature Rise for oil: 50°C

Maximum Temperature Rise for winding: 55°C

No-load losses: 500W

Copper losses (at 75 °C): 2400W

Impedance Voltage (IEC Tolerance Applied): 4%

Transformer Type: Hermetically Sealed

Weight of oil: 160 kg

Total weight of transformer: 880 kg

Over all Dimensions (L x W x H): 1320 x 750 x 1170 mm

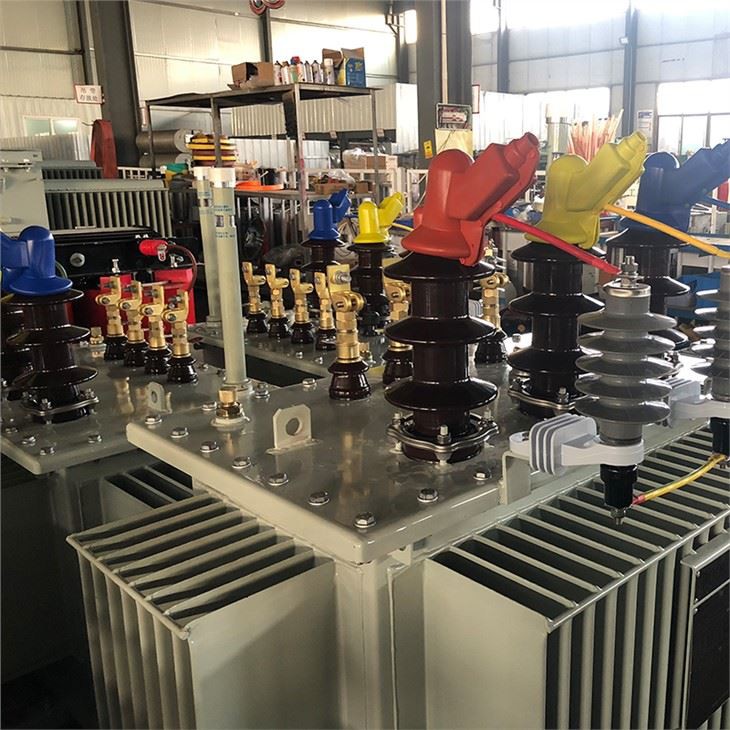

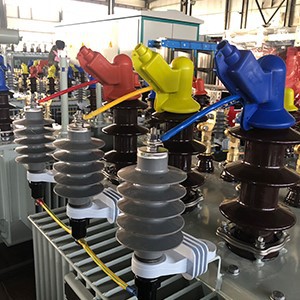

HV Bushing

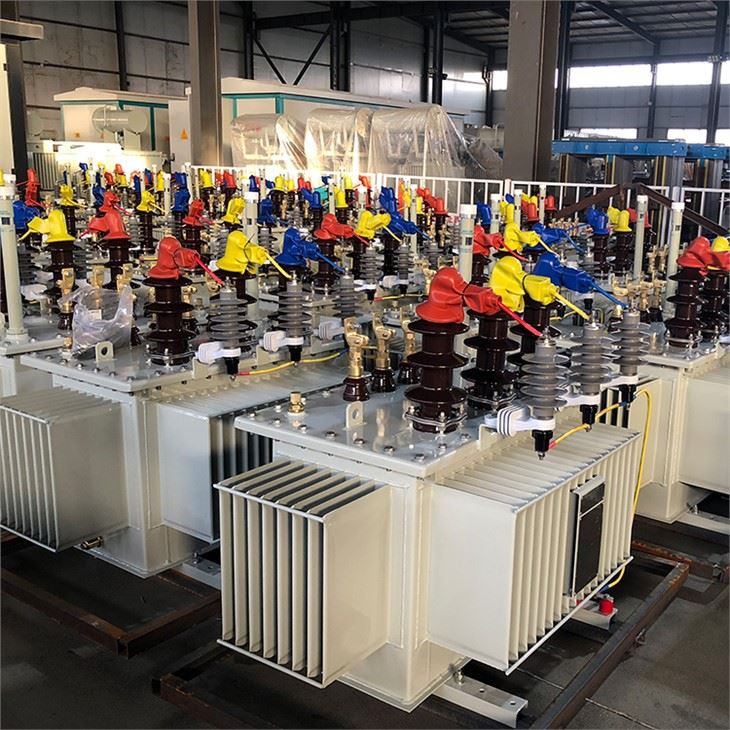

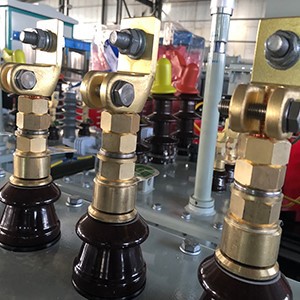

LV Bushing

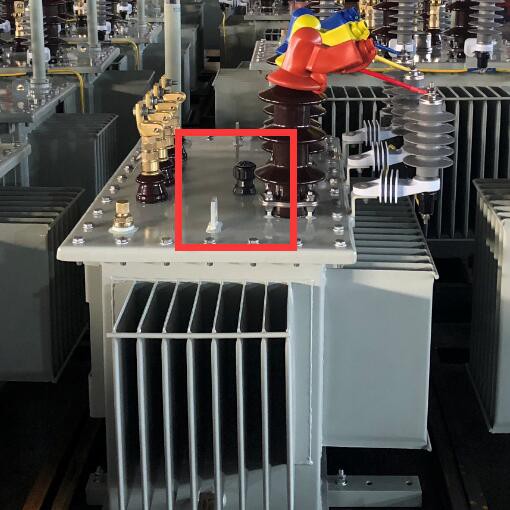

Tap Changer

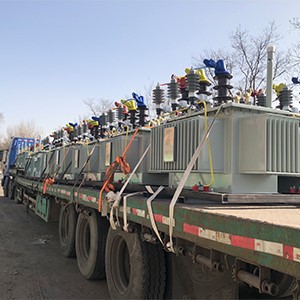

Shipping

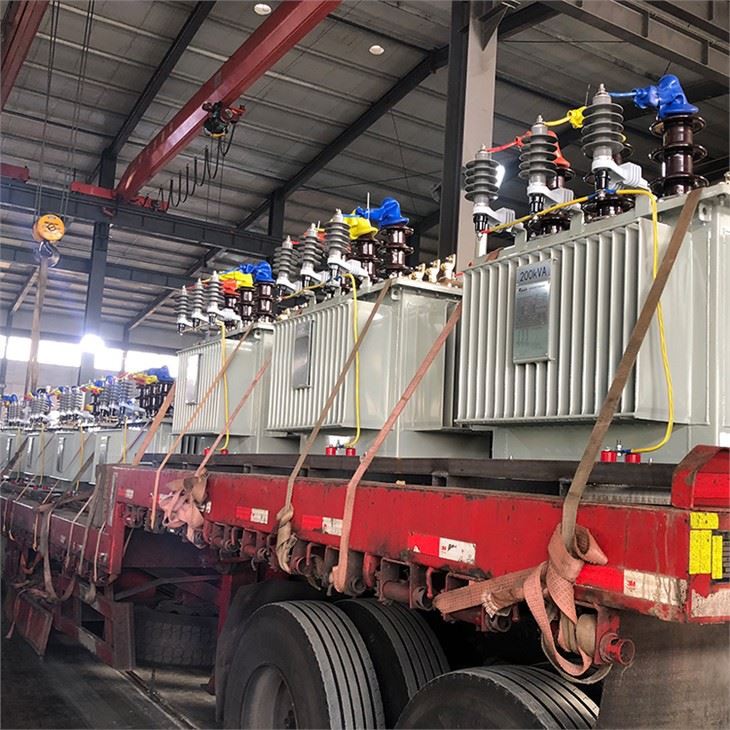

200 kVA Pole Mounted Transformer shipping 1

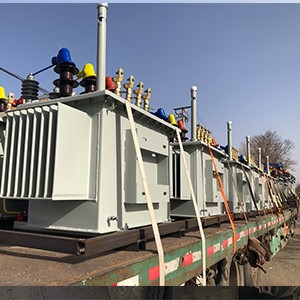

200 kVA Pole Mounted Transformer shipping 2
