100 KVA 3 Phase Oil Cooled Distribution Transformer

Rated Voltage: 6kv 10kv 22kv 33kv and so on Provide ODM OEM Service
delivery time: within 7 working days
Warranty: 2 Years

Send Inquiry

Features

2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!

Products Description



100 KVA Distribution Transformer Specification:

100 KVA Transformer Capacity

High Voltage (kV)

Tap Range of High Voltage

Low Voltage (kV)

Connection Symbol

No-load Loss of 100 KVA Transformer (W)

Load Loss (W)

No-load Current (%)

Short-circuit Impedance (%)

100

6

6.3

10

10.5

±5%

±2X2.5%

0.4

Dyn11

Yzn11

Yyn0

200

1580/1500

2.1

4

100

20

22

±5%

±2X2.5%

0.4

Dyn11

Yzn11

Yyn0

200

1730/1650

1.6

5.5

100

33

35

38.5

±5%

±2X2.5%

0.4

Dyn11

Yyn0

230

2010/1910

1.1

6.5

the efficiency of a 100 kva transformer is 0.98


100 KVA 3 Phase Oil Cooled Distribution Transformer Conditions of Use:

1 Ambient temperature: -15℃～+40℃

2 relative humidity: ≤85%

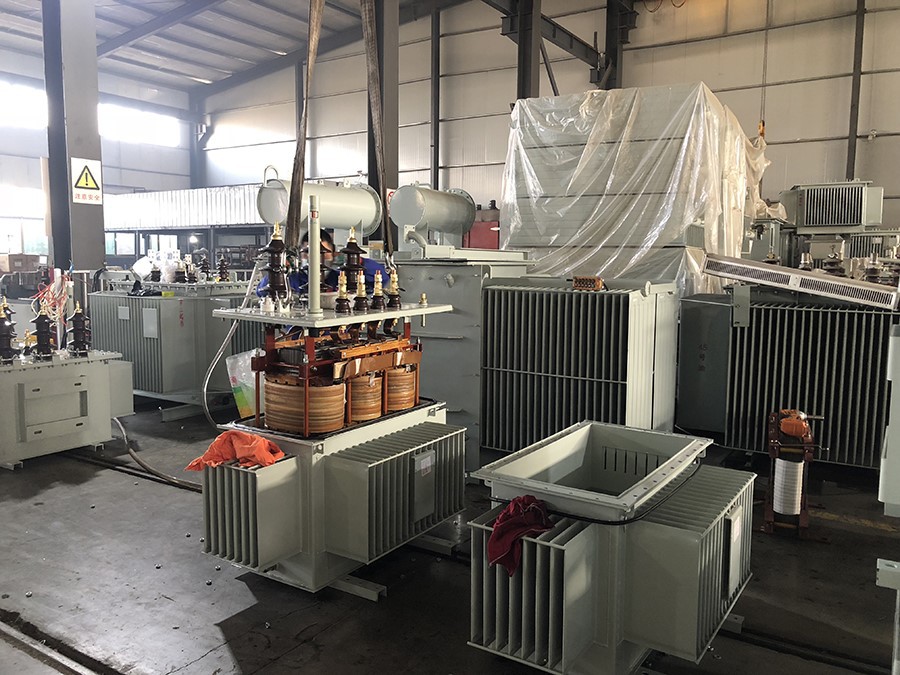

100 KVA Transformer Winding

100 KVA 3 Phase Oil Cooled Distribution Transformer


Products Details


100 kVA Transformer Details

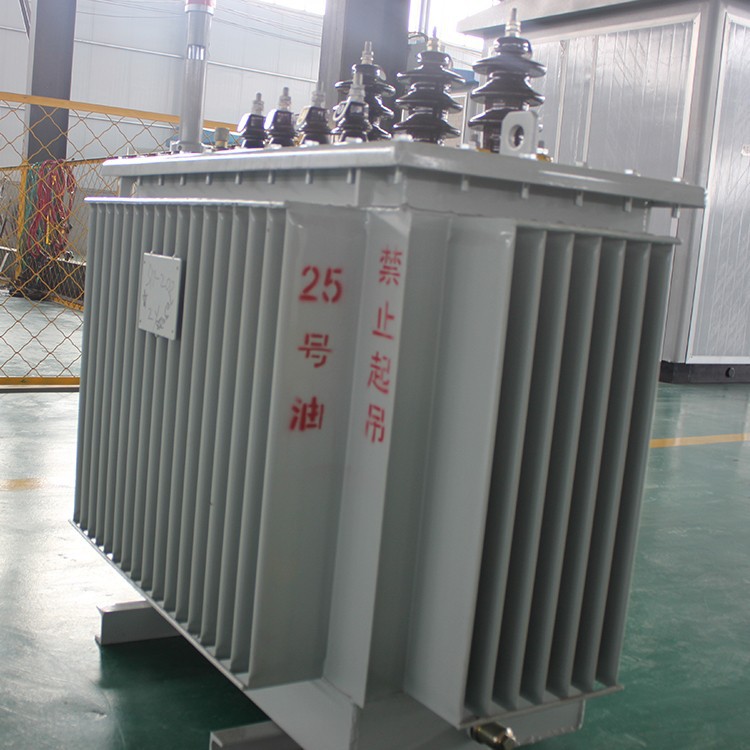

100 KVA 3 Phase Oil Coole Distribution Transformer 1.jpg

100 KVA 3 Phase Oil Cooled Distribution Transformer 1

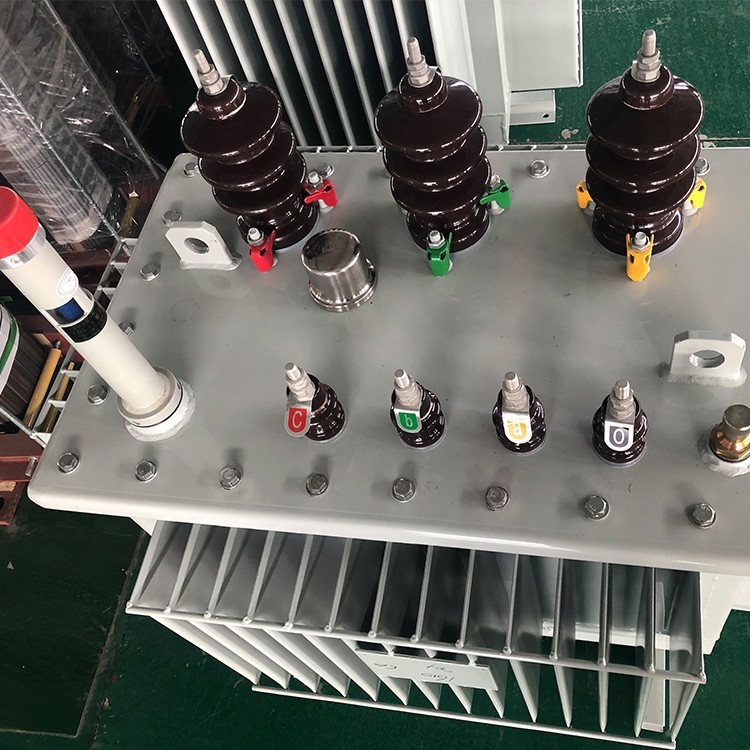

100 KVA 3 Phase Oil Coole Distribution Transformer 2.jpg

100 KVA 3 Phase Oil Cooled Distribution Transformer 2

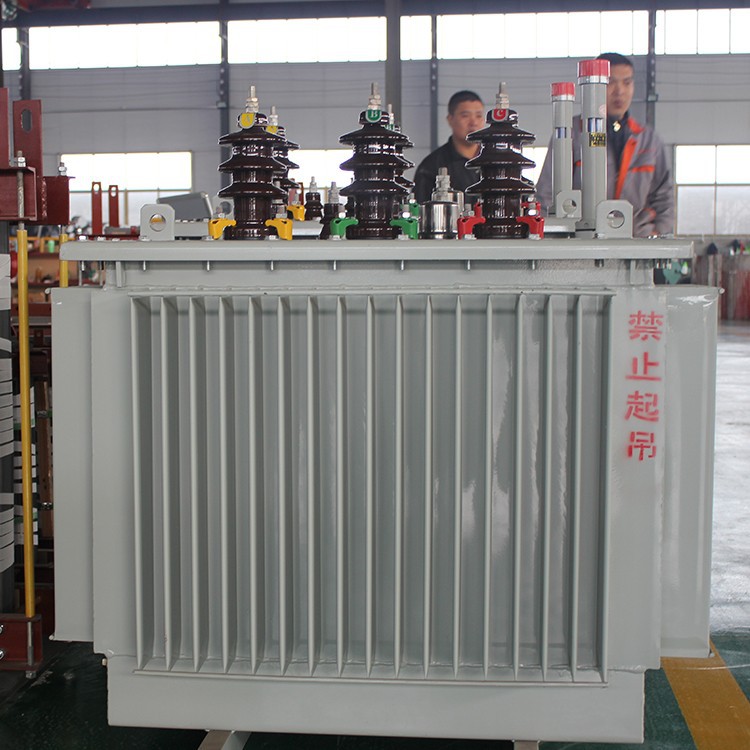

100 KVA 3 Phase Oil Coole Distribution Transformer 3.jpg

100 KVA 3 Phase Oil Cooled Distribution Transformer 3

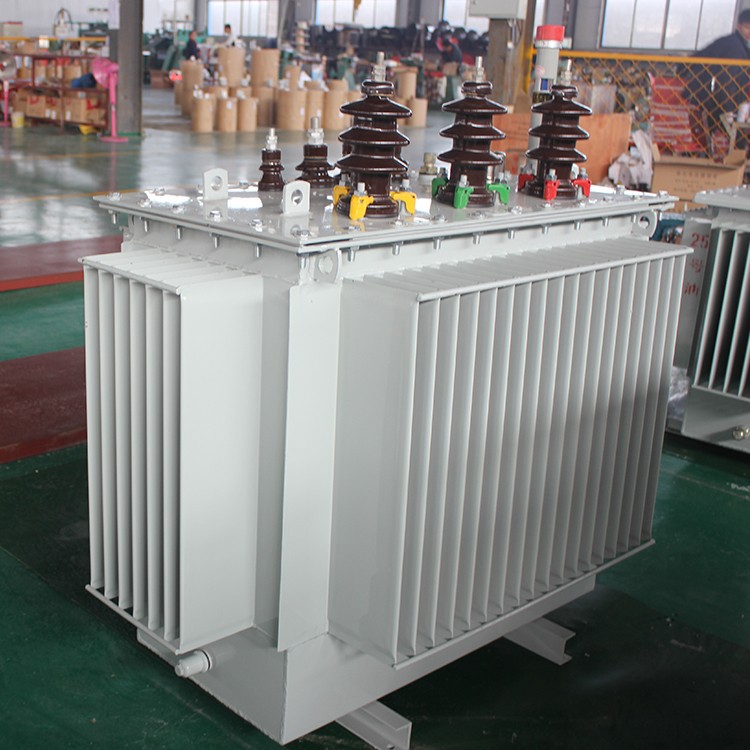

100 KVA 3 Phase Oil Coole Distribution Transformer 4.jpg

100 KVA 3 Phase Oil Cooled Distribution Transformer 4

Our Service

We can customize transformer as per your requirements.

Please provide the following data when placing an order, so we can service you better.

1. Type of transformer （Oil Type or Dry Type）

2. Rated capacity

3. Input voltage/ Output voltage

4. Phase number (single phase or three phase)

5. Frequency(50hz or 60hz)
