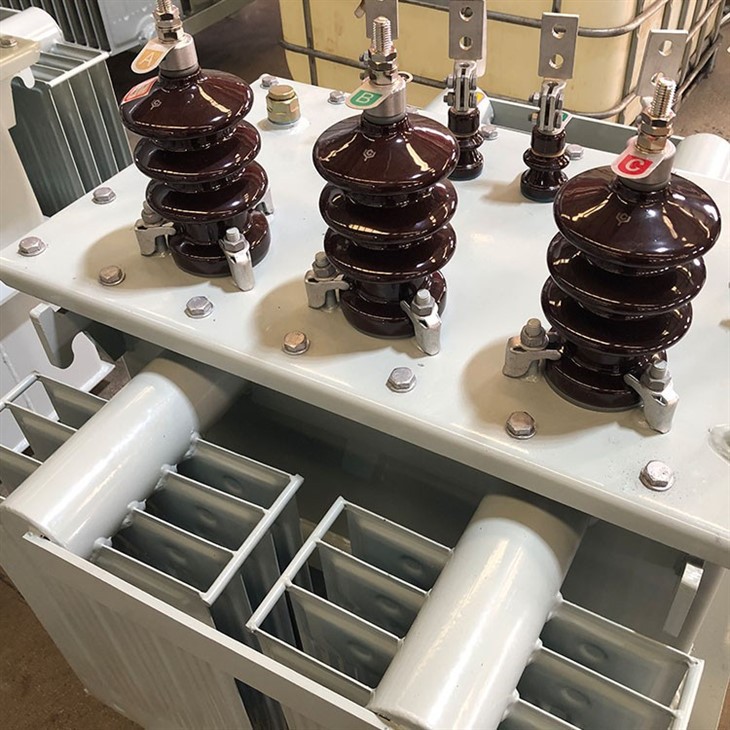

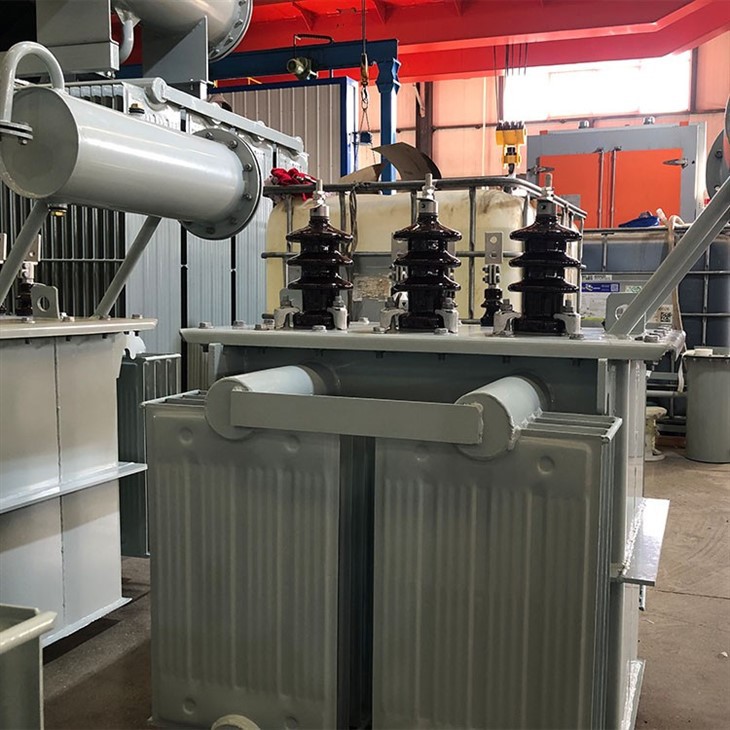

100 KVA Pole Mounted Transformer
Rated Voltage:100KVA
Standard: IEC 60076
Cooling Mode: ONAN
Rated Voltage: 11KV/0.415KV
Phase: 3 phase
Frequency:50HZ
Features
100 KVA Transformer Specification:
Rated Voltage | 100KVA |
Standard | IEC 60076 |
Cooling Mode | ONAN |
Rated Voltage | 11KV/0.415KV |
Phase | 3 phase |
Frequency | 50HZ |
100 KVA Transformer Amps | 5.25A/139.12A |
100 KVA Transformer Load Capacity | 80KW |
100 KVA Transformer Maximum Load | 80KW |
Vector Group | Dyn11 |
Load Loss | 1680W |
No Load Loss | 245W |
No-Load Current | 0.93% |
Impedance at 75℃ | 3.9% |
Winding Material | Copper |
100 KVA Transformer Size | 1000*750*800mm |
Weight Of Copper In 100 KVA Transformer | 200kg |
Weight Of 100 KVA Transformer | 615kg |
Power Transformer 100 KVA Price | USD1*00.00/SET |

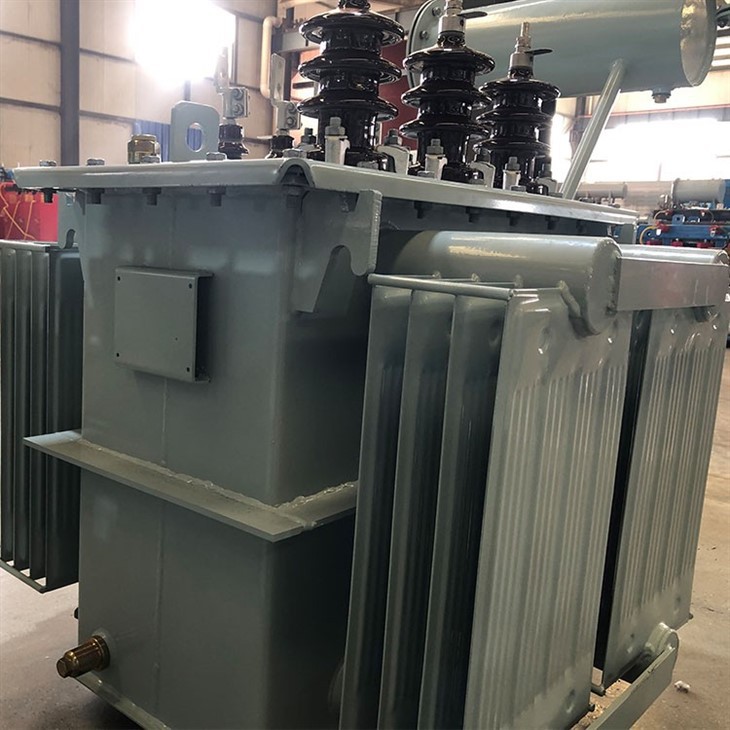

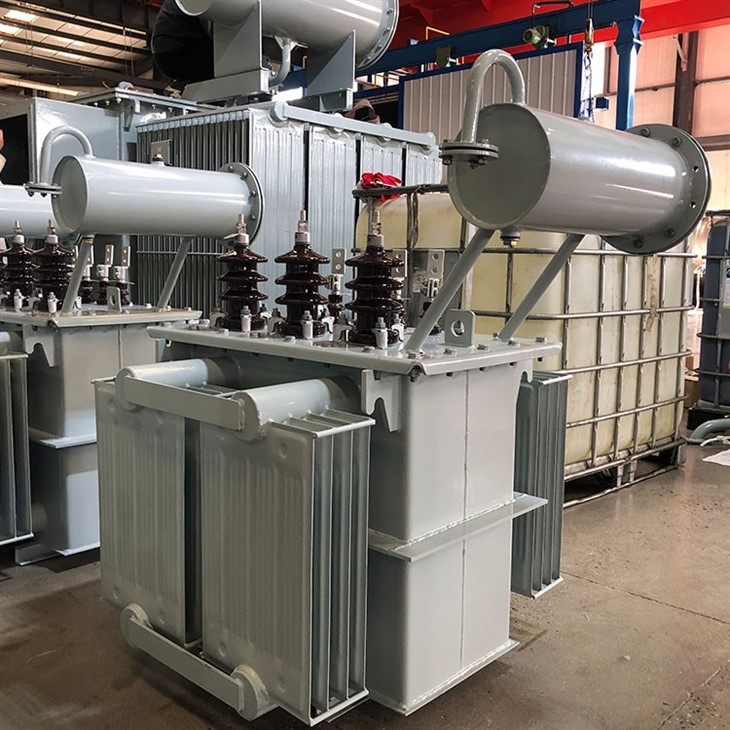

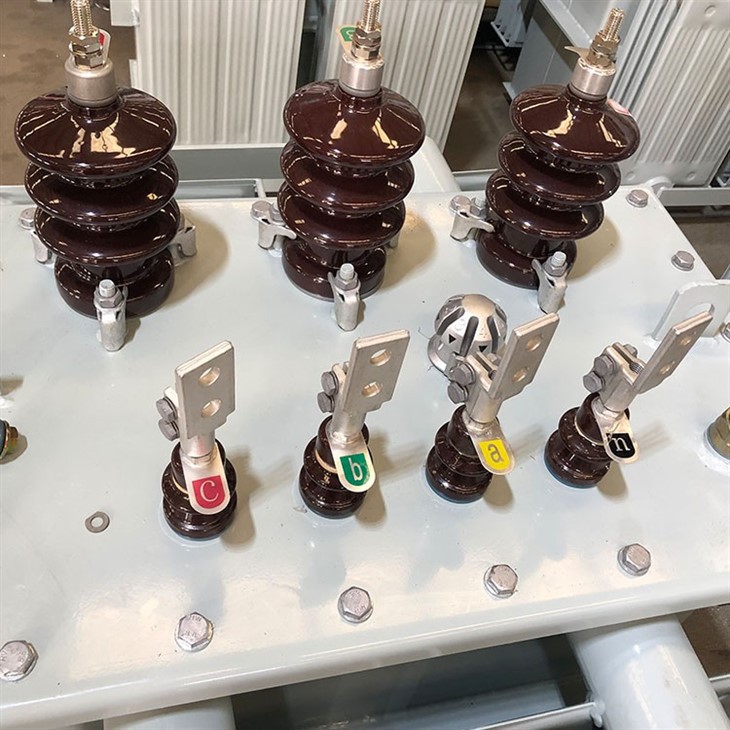

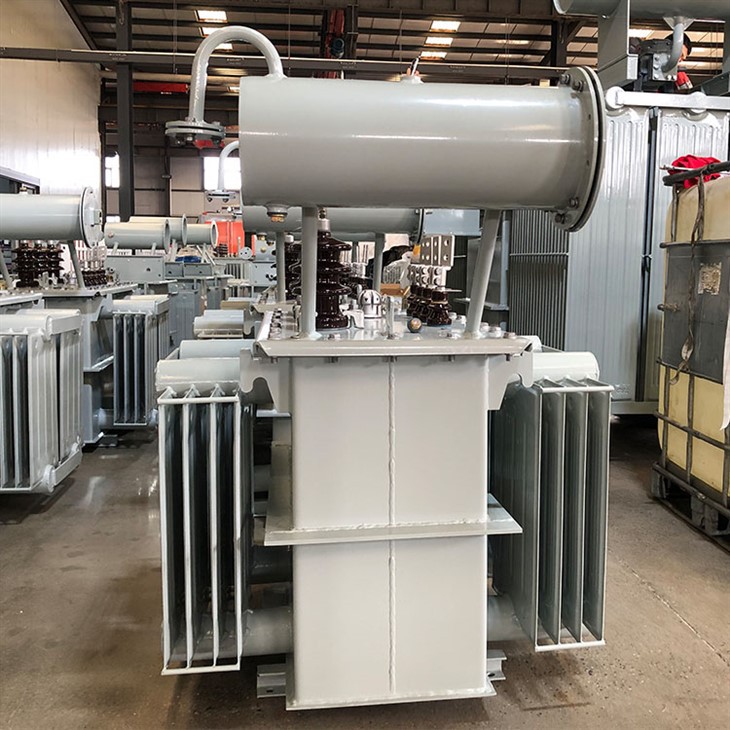

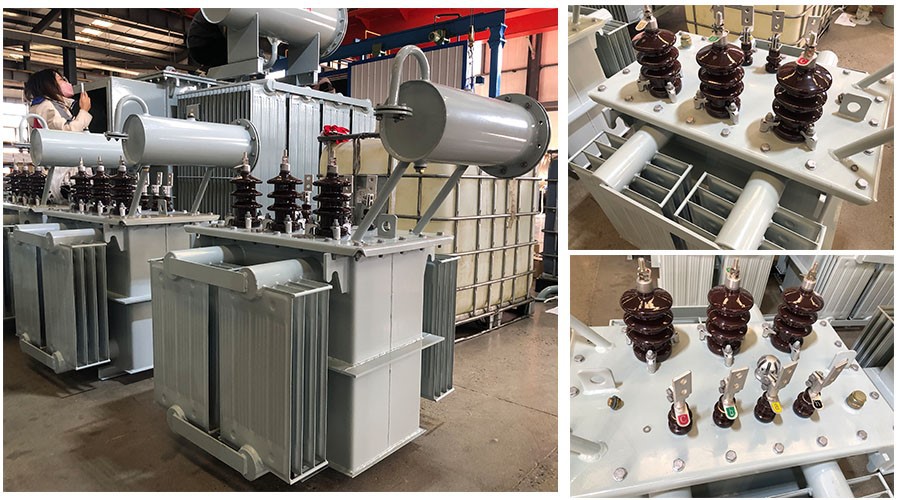

100 KVA Transformer Details

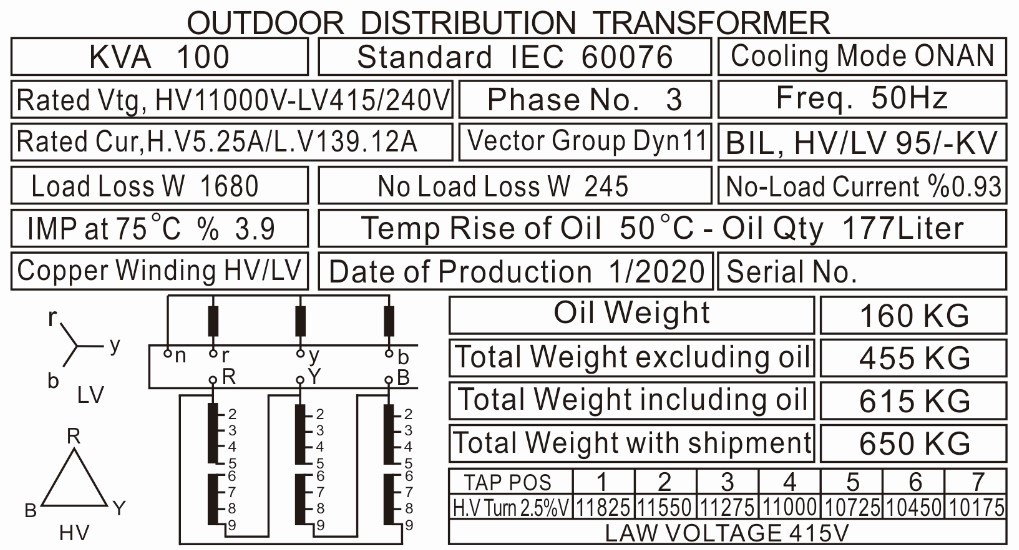

100 KVA Transformer Nameplate:

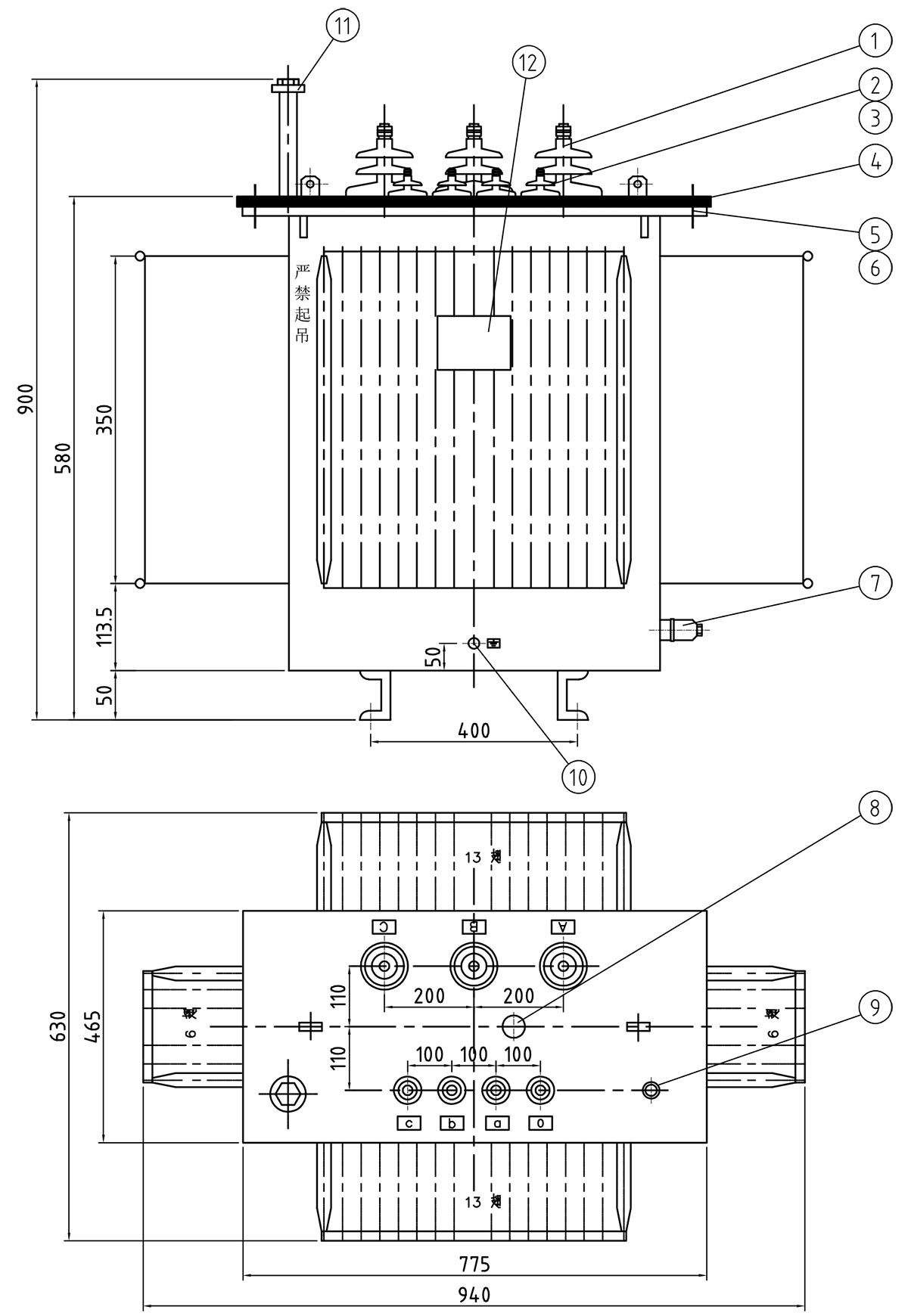

100 KVA Transformer Drawing:
