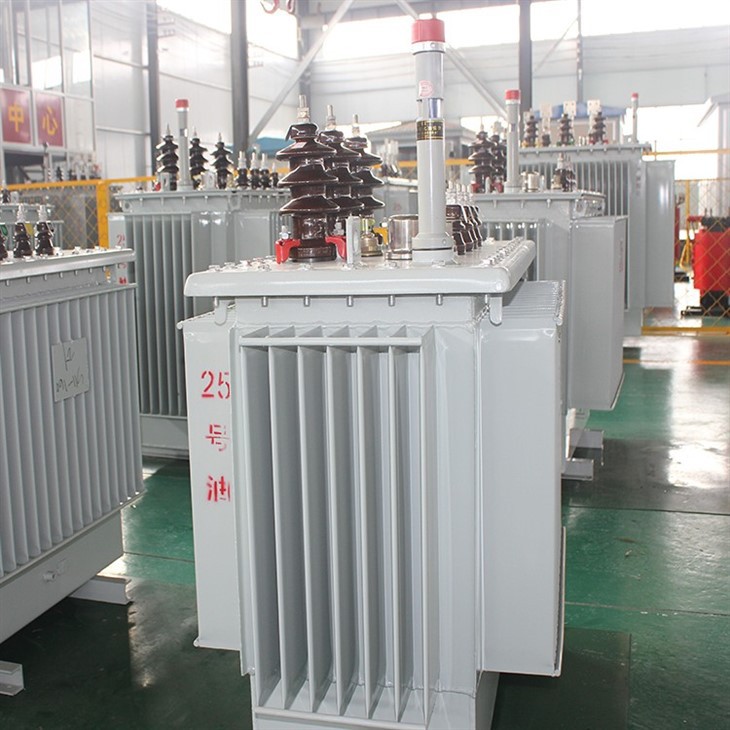

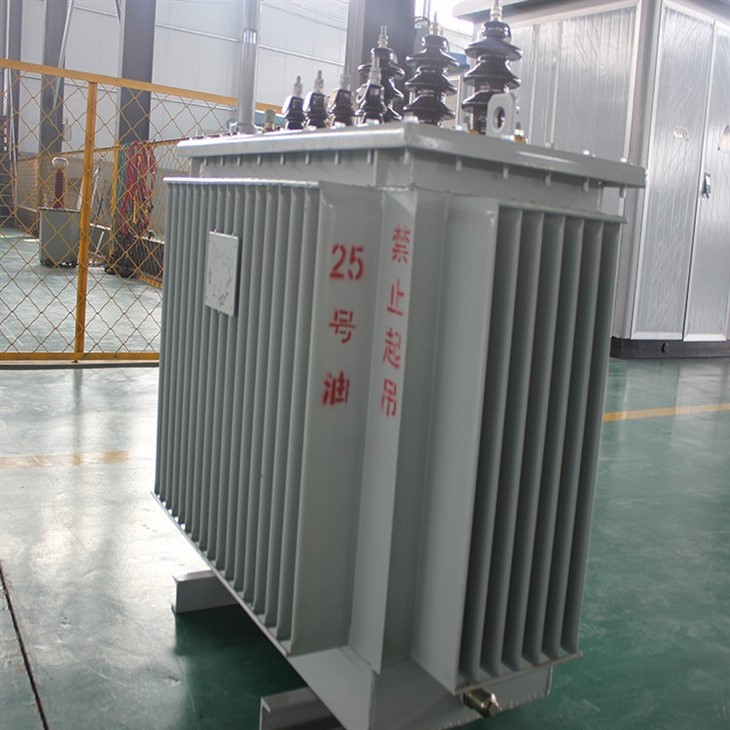

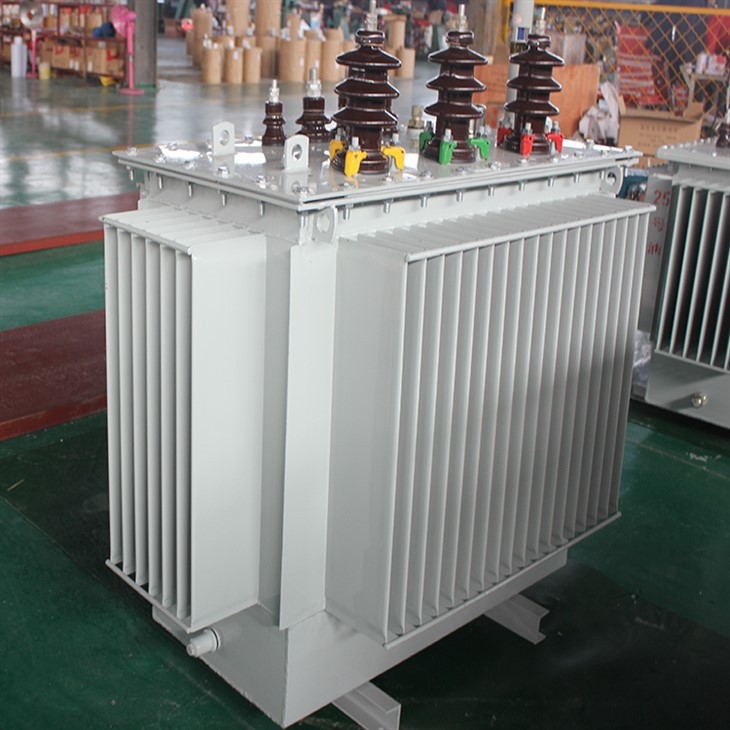

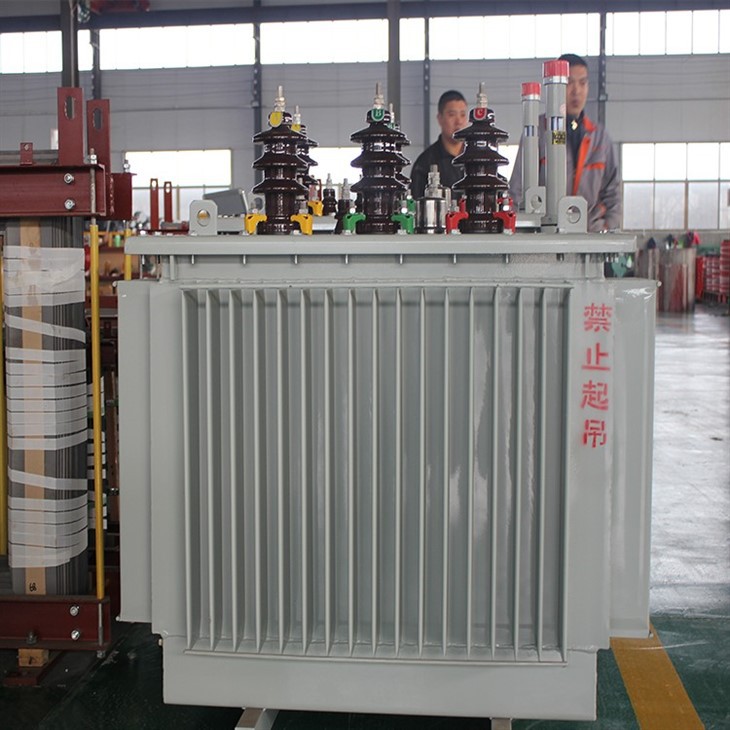

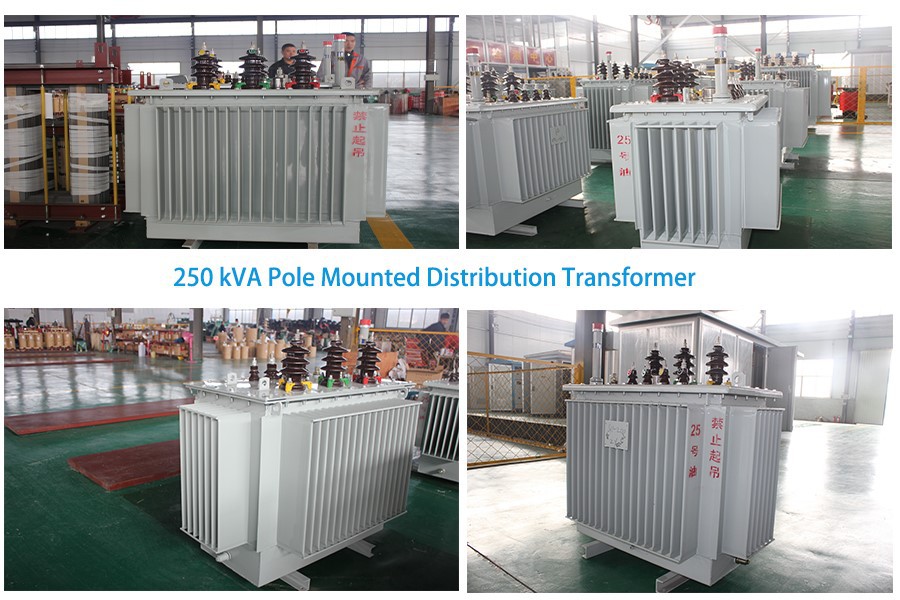

250 KVA Transformer
Model:S-M-250/10
Iron core material:Cold rolled oriented silicon steel sheets
Iron core structure:Lamination
High voltage winding:10kV
Low voltage winding:0.4kV
Features
250 KVA Transformer Specification
250 KVA Transformer Data Sheet
Rated value of S-M-250/10 oil immersed transformer | |||
1 | Model | S-M-250/10 | |
2 | Iron core material | Cold rolled oriented silicon steel sheets | |
3 | Iron core structure | Lamination | |
4 | High voltage winding | kV | 10 |
5 | Low voltage winding | kV | 0.4 |
6 | High voltage rated current | A | 14.43 |
7 | Low voltage rated current | A | 360.8 |
8 | Connection group | Dyn11 | |
9 | Rated frequency | Hz | 50 |
10 | Rated capacity | KVA | 250 |
11 | Phase number | 3 | |
12 | Voltage regulation method | Off-Circuit-Tap-Changing | |
13 | Voltage regulation position | V | H.V. side |
14 | Voltage regulation range | ±5% or ±2X2.5% | |
15 | Cooling method | ONAN | |
Insulation level of S-M-250/10 oil immersed transformer | |||
1 | High voltage winding lightning full wave impulse voltage (peak) | kV | 75 |
2 | High voltage winding lightning impulse voltage (peak) | 85 | |
3 | Rated short-time power frequency withstand voltage of high-voltage winding (effective value) | kV | 35 |
4 | Rated short-time power frequency withstand voltage of low-voltage winding (effective value) | kV | 5 |
Temperature Rise of 250KVA transformer | |||
1 | Top oil | K | 55 |
2 | Winding (average) | 65 | |
3 | Winding (hotspot) | 78 | |
4 | Iron core, fuel tank, and structural surface | 75 | |
No-load Loss of 250KVA Transformer | |||
1 | No-load losses at rated frequency and voltage | kW | 0.26 |
No-load Current of S-M-250/10 oil immersed transformer | |||
1 | 100% Rated Voltage | % | 0.9 |
Load Loss of S-M-250/10 oil immersed transformer | |||
1 | Main Tap(75℃) | kW | 2.56 |
Impedance of 250KVA Transformer | |||
1 | Main Tap | % | 4.0 |
Noise Level | dB | 53 |
250 KVA Transformer Amps: 14.43A/360.8A
250 KVA Transformer Full Load Current: 360.8A
Cable Size For 250 KVA Transformer: H.V. 3c X 35/ 50 sq.mm L.V. 3.5 C X 300 sq.mm
250 KVA Transformer Oil Capacity: 140kg
250 KVA Transformer Copper Weight: 200kg
250 KVA Transformer Size: 1180*820*1000mm
250 KVA Copper Transformer Price: USD2*71.40/SET
250 KVA Transformer Nameplate

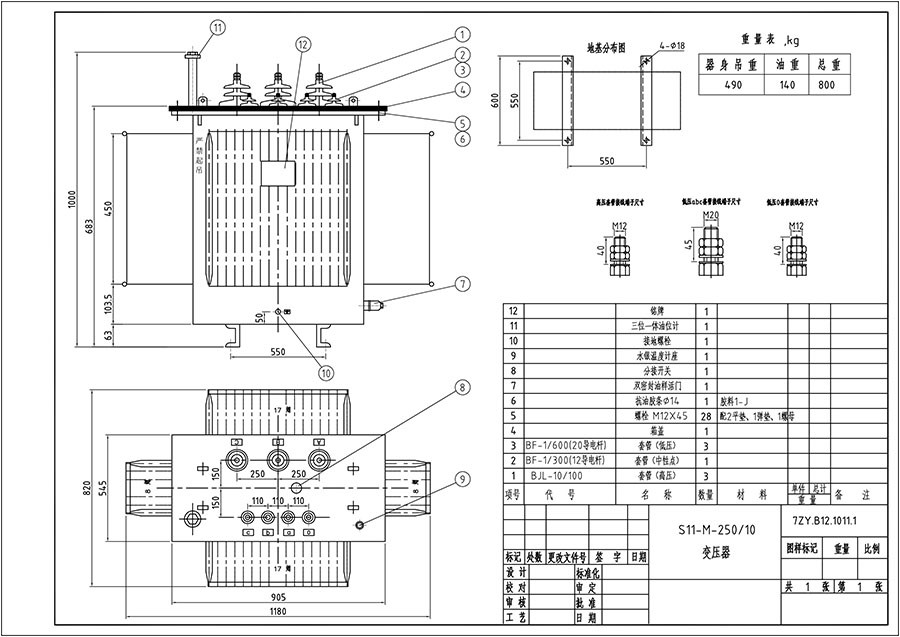

250KVA Transformer Outline Drawing
