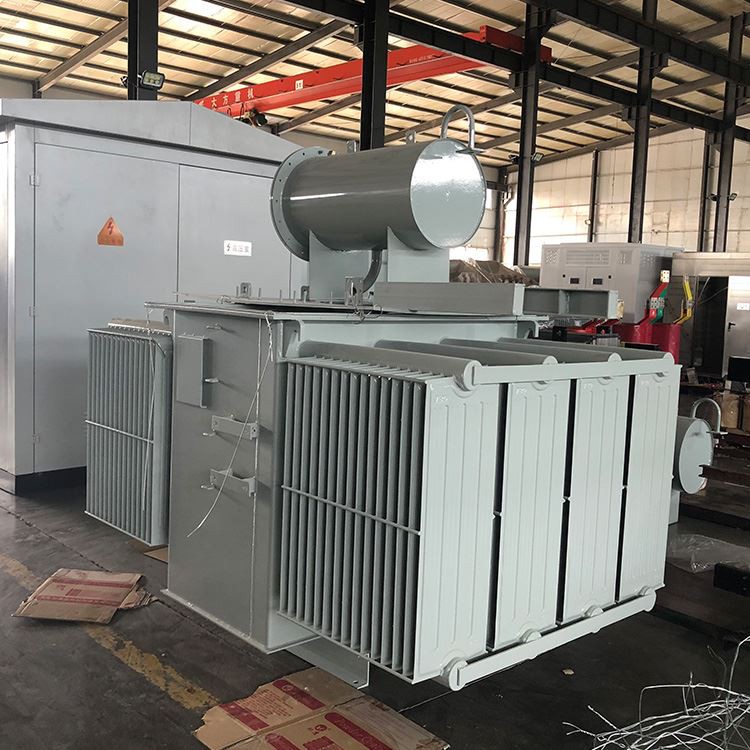

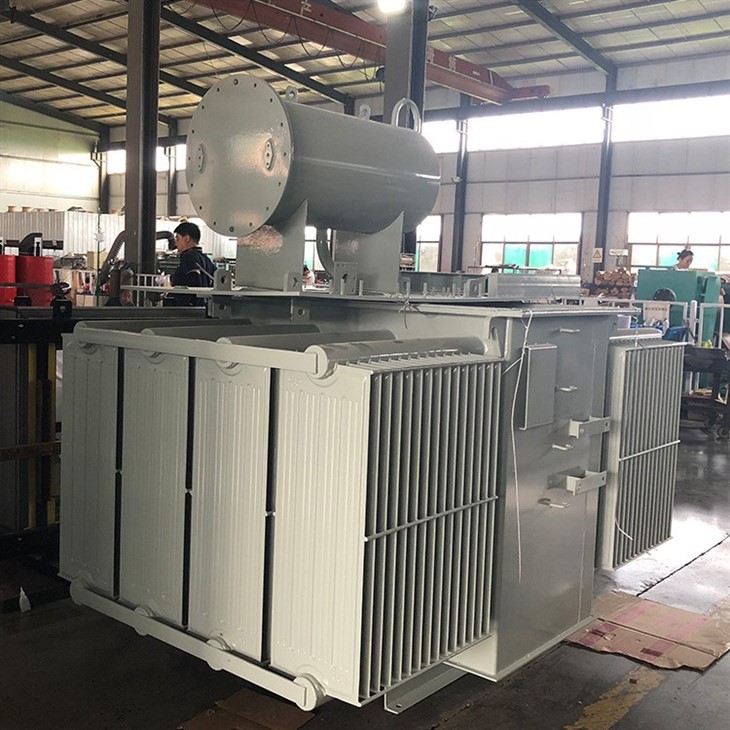

2000 KVA Transformer

Three-phase transformers of hermetically Sealed, oil immersed type with natural (ONAN) cooling for indoor installation, designed for use in three-phase MV/LV distribution systems.

Send Inquiry

Features

Products Description

2000 KVA Transformer Specification

Three-phase transformers of hermetically Sealed, oil immersed type with natural (ONAN) cooling for indoor installation, designed for use in three-phase MV/LV distribution systems.

2000 KVA Transformer Technical Specification

Rated Power	2000KVA
Rated Voltage	10/0.4kV
Current Rating	115.5/2886.8A
Frequency	50Hz
Phase number	three phase
Tap Changer	±2X2.5%
Vector Group	Dyn11
Cooling Method	AN/AF
2000 KVA Transformer Full Load Current	2886.8A
2000 KVA Transformer Impedance	4.98%
2000 KVA Transformer Losses
No Load Losses Of 2000 KVA Transformer	2590W
Load Loss	16300W
Insulation Level	HV LI75/AC35kV
	LV AC5kV
2000 KVA Transformer Weight	5135kg
2000 KVA Transformer Dimensions	175011001860mm

2000 KVA Transformer Nameplate

TEST REPORT

2000 KVA Transformer Test Report

Why Choose Us

1. COMPLIANCE STANDARDS

In order to be accepted, all of our transformer comply with the requirements of the following recommendations, standards and specifications:

Reference	Scope
IEC 60076-1	Power Transformers General
IEC 60076-2	Temperature Rise
IEC 60076-3	Power transformers insulation levels, dielectric tests and external clearances in air
IEC 60076-4	Power transformer guide to the lightning impulse and switching impulse testing power transformers and reactors
IEC 60076-5	Power transformer’s ability to withstand short circuit
IEC 60076-16	Transformers for wind turbine applications
EN50588-1	Medium power transformers 50 Hz, with highest voltage for equipment not exceeding 36 kV
IEC 60076-12	Load guide for dry-type power transformers

2. ELECTRICAL TESTS

2.1. ROUTINE TESTS

These tests will be carried out on all the transformers after the manufacturing, enabling an official test certificate to be produced for each one:

- measurement of windings resistance

- measurement of the transformation ratio and vector group

- measurement of impedance voltage and load loss

- measurement of no-load loss and no-load current

- applied voltage dielectric test at 10kV

- induced voltage dielectric test

- measurement of partial discharges.

All these tests comply with IEC 60076-11 and IEC 60076-1 to 60076-3 standards.

2.2. TYPE TESTS OR SPECIAL TESTS

Transformers will be of type tested.

- temperature rise test carried out in accordance with the simulated loading method as defined by the IEC 60076 standard.

- lightning impulse test in accordance with IEC 60076-3

- short circuit test in accordance with IEC 60076-5

- noise level measurements in accordance with IEC 60076-10.

All these tests comply with IEC 60076-11 and IEC 60076-1 to 60076-5 standards.

3. OUR COMPANY

Our company has more than 10 years of manufacturing and installation experience to ensure the perfect transformer system. We will provide necessary documents, certificates, and test report to you.

We can be responsible for the design, supply of complete transformers as your requirements and provide drawings to the satisfaction of our transformer user.
