315 KVA Transformer
Rated Voltage:10/0.4
Rated Current:315KVA
Frequency:50HZ
Current Rating:18.2/455A
Connection Group:Dyn11
Cooling Method:ONAN
Features
315 KVA Transformer Specification
Rated Voltage | 10/0.4 |
Rated Current | 315KVA |
Frequency | 50HZ |
Current Rating | 18.2/455A |
Connection Group | Dyn11 |
Cooling Method | ONAN |
No-load Current | 0.5% |
No-Load Loss | 0.34KW |
Impedance (75℃) | 4% |
Load Loss | 3.83KW |
Total Loss | 4.17KW |
Oil BDV Value | ≥35KV |
Insulation Level | LI75/AC35 |
Oil Capacity | 200KG |
Copper Weight | 400KG |
Weight | 800KG |
Dimensions | 1100*900*900mm |

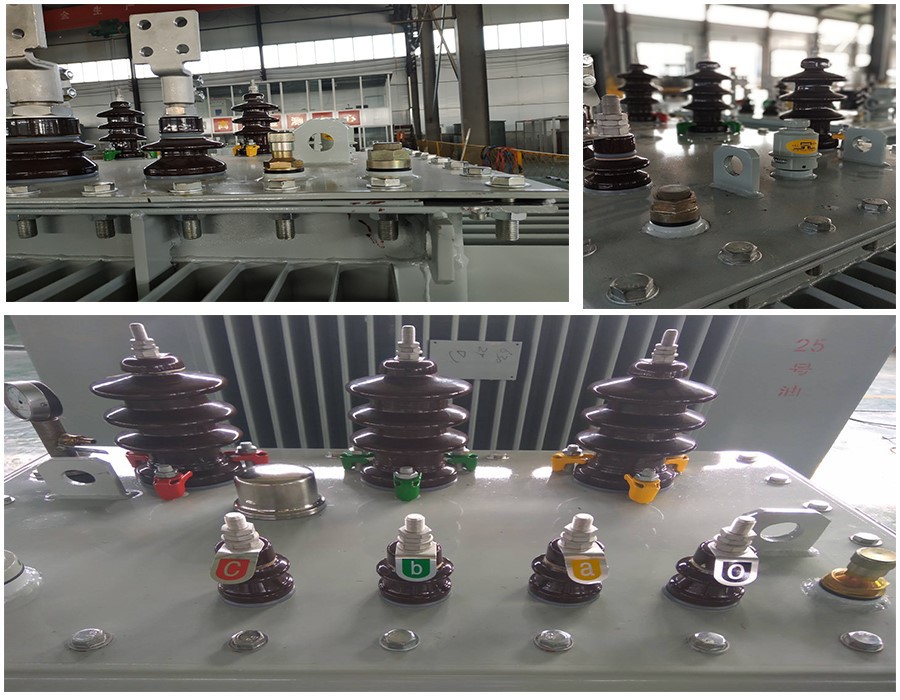

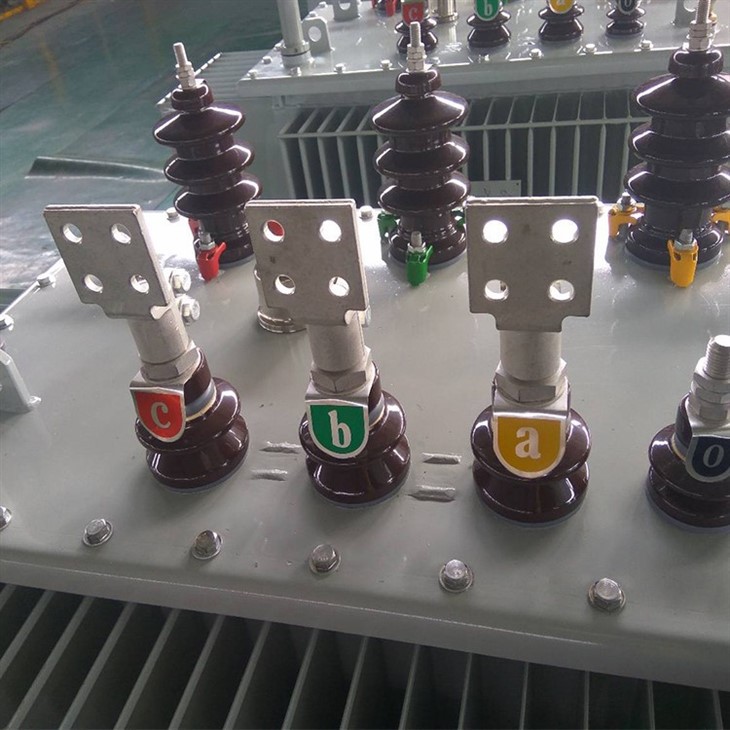

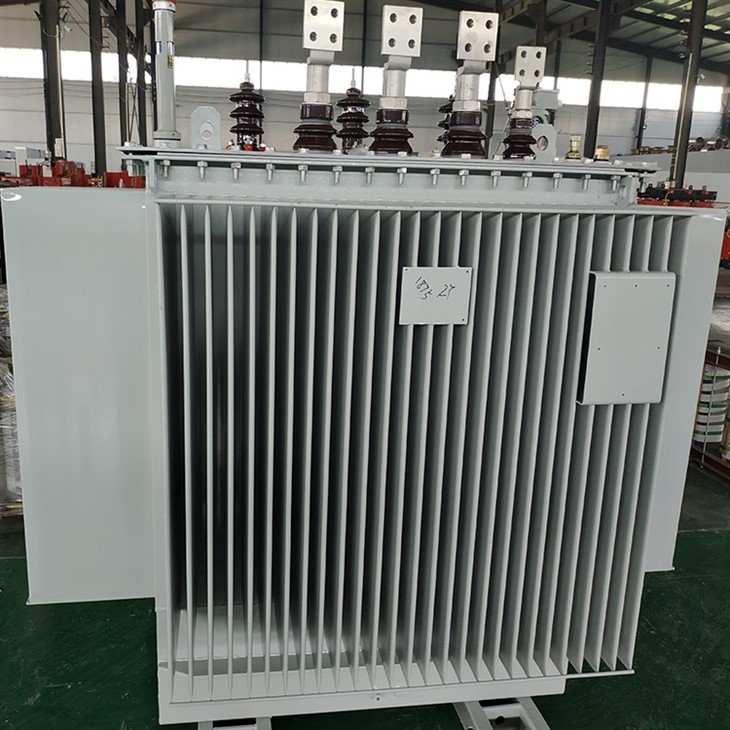

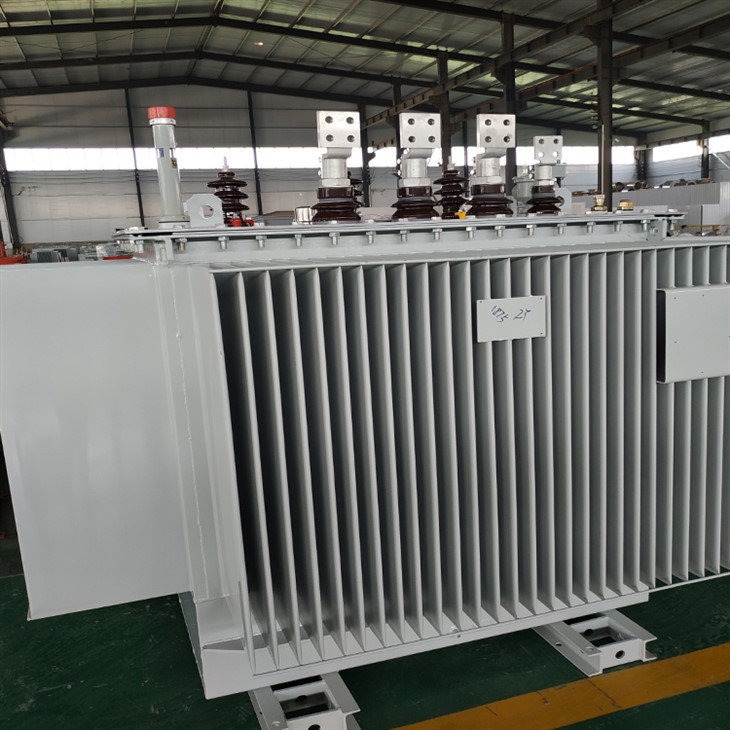

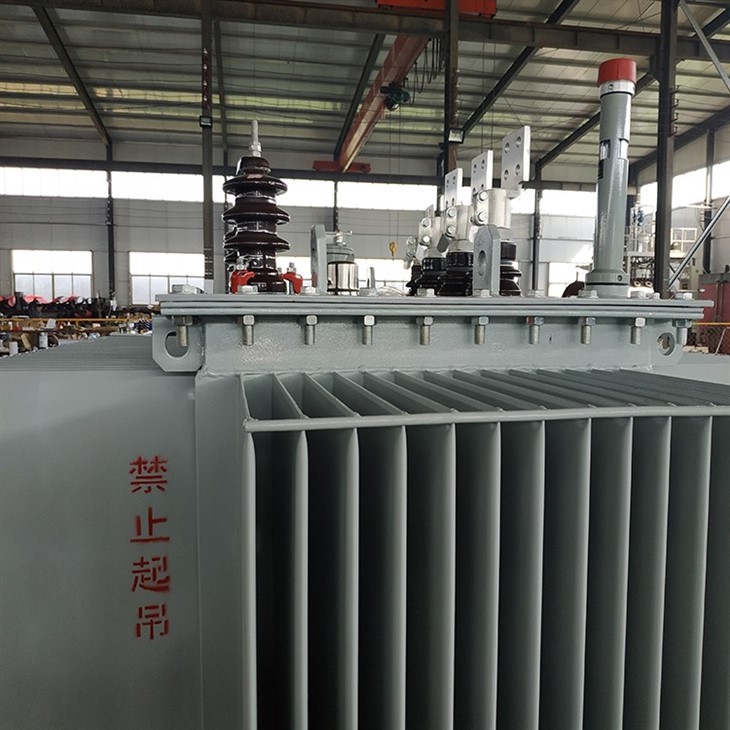

315 KVA Transformer Details

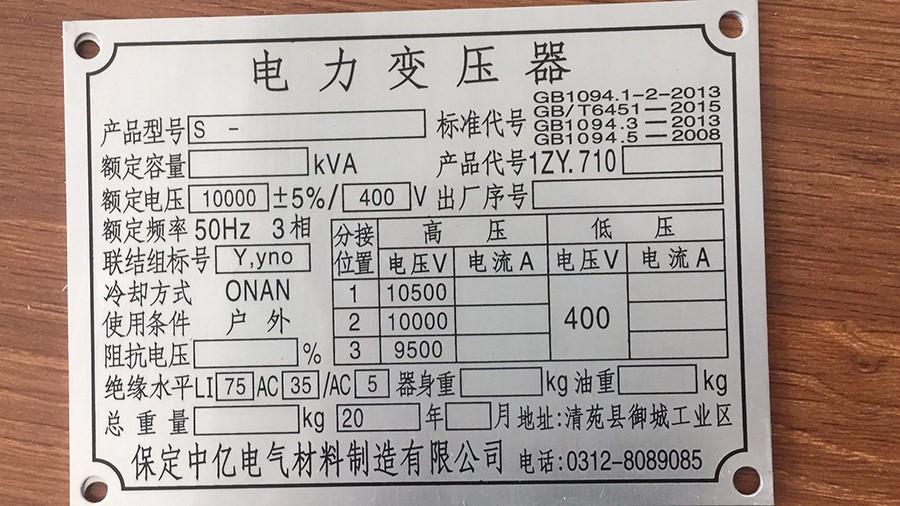

315 KVA Transformer Nameplate
