1500 KVA Transformer

1500 kVA Transformer Specification

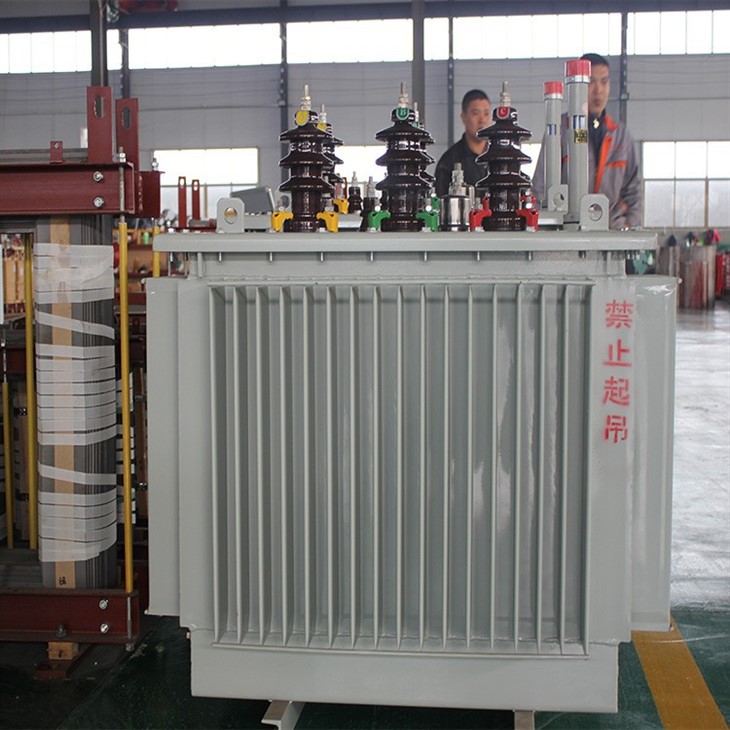

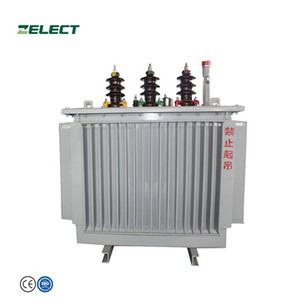

Product Name: oil immersed transformer

Product Model: S11-1500KVA

Rated Capacity: 1500KVA

1500 kVA Transformer Load Capacity: 1200KW

Rated Voltage: 13.8/0.4kv

1500 kVA Transformer Current Rating / Amps: primary amps: 62.7A

secondary amps: 2165.1A

1500 kVA Transformer Full Load Current: 2165.1A

Connection Symbol: Yyn0/Dyn11

1500 kVA Transformer Impedance: 4.5%

1500 kVA Transformer Dimensions / Size:

1500 kVA Transformer Oil Capacity: 650L

Copper Weight: 400KG

1500 kVA Transformer Weight: 2500kg

1500 kVA Transformer Cable Size: as per the distance

Use Environment: outdoor/indoor use

Normal: the altitude does not exceed 1000m.

The highest ambient temperature is +40℃, the lowest is -25℃, and the average annual temperature is +20℃

Product Introduction:

Product implementation standard: GB1094; GB/T6451; IEC60076.

Transformer Structure And Characteristics:

1. 1500 kVA distribution transformer low-voltage winding generally adopts cylindrical structure or spiral structure; The high voltage winding adopts the multi-layer cylinder structure, so that the ampere-turns distribution of the winding is balanced, the magnetic leakage is small, the mechanical strength is high, and the short-circuit resistance is strong.

2. The iron core and the winding are respectively using fastening measures, the device height, low pressure lead and other fastening parts are equipped with self-locking locknut, the use of non-hanging core structure, can withstand the transport of the shock.

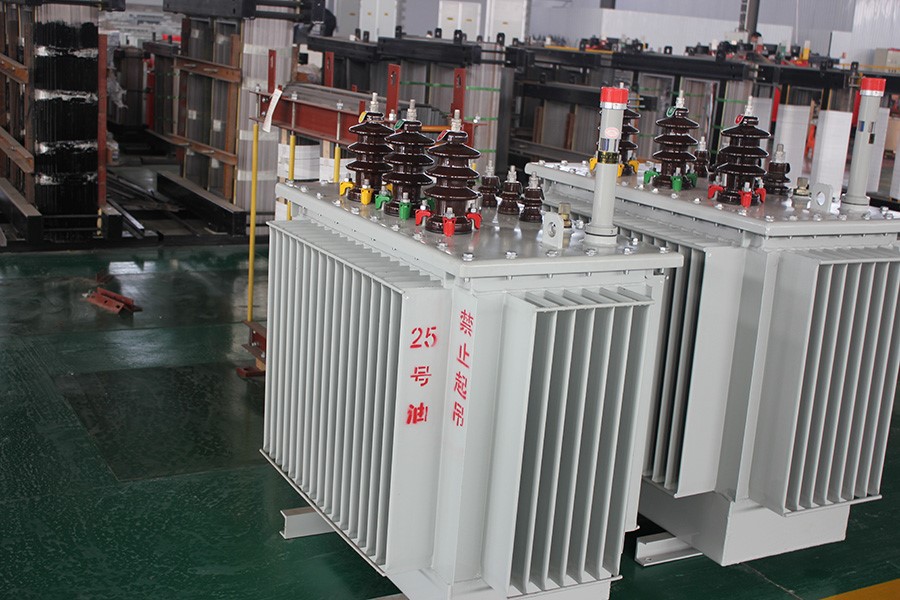

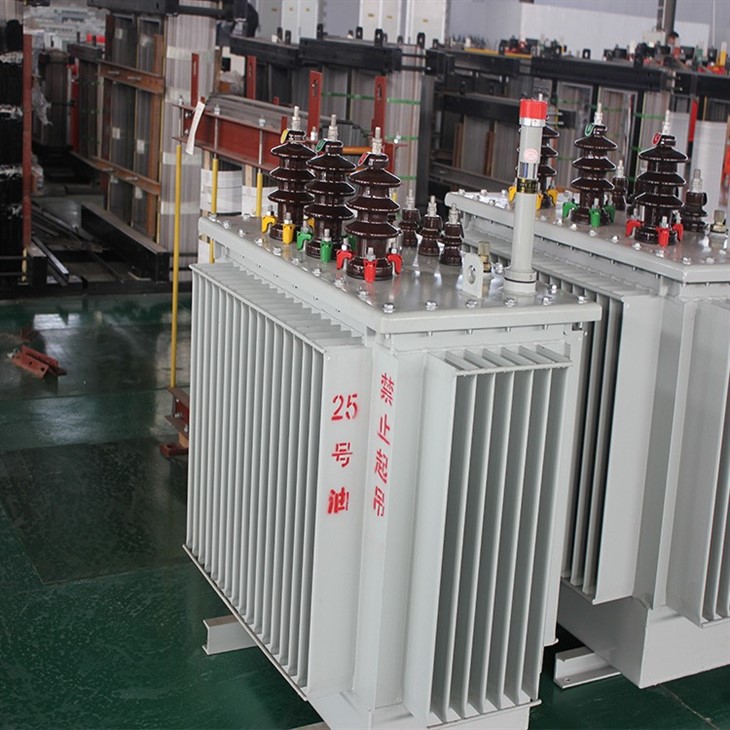

3. 1500 kVA transformer heat dissipation. The oil tank adopts corrugated sheet, which has respiratory function to compensate for the volume change of oil caused by temperature change, so the product has no oil storage tank, which obviously reduces the height of the transformer.

4. Because the corrugated sheet replaces the oil storage tank, the transformer oil is isolated from the outside world, which effectively prevents the entry of oxygen and water, resulting in a decline in insulation performance.

5. The product surface is sprayed with primer and top paint after oil removal, embroidery removal and phosphating treatment, which can meet the special requirements of metallurgy, petrochemical systems and wet and dirty areas.

6. Selected components, using a fully sealed transformer tank, according to the standard requirements installed pressure release valve, signal thermometer, gas relay, etc., to ensure the safe operation of the transformer.

This series of products is beautiful in appearance, small in size, can reduce the installation floor area, is the ideal maintenance-free quality products.

1500 kVA transformer nameplate

FAQ:

1. What is a 1500 kva transformer

A 1500 kva transformer is an electrical device used to convert high voltage electricity into low voltage electricity. It is capable of handling a maximum power output of 1500 kilovolt-amperes (kVA).

2. What size fuse for 1500 kva transformer

The appropriate fuse size for a 1500 kVA transformer will depend on several factors, such as the voltage rating and the type of fuses used. Generally, it is recommended to consult the manufacturer's specifications and guidelines to determine the appropriate fuse size. However, as a general rule, a 1500 kVA transformer may require a fuse size of approximately 500-600 amps. It is crucial to ensure that the fuse size is appropriate to the transformer and its electrical load to avoid potential safety hazards and damage to the equipment.

3. How much is 1500 kva transformer

USD12000.00

4. How much oil is in a 1500 kva transformer

650L
