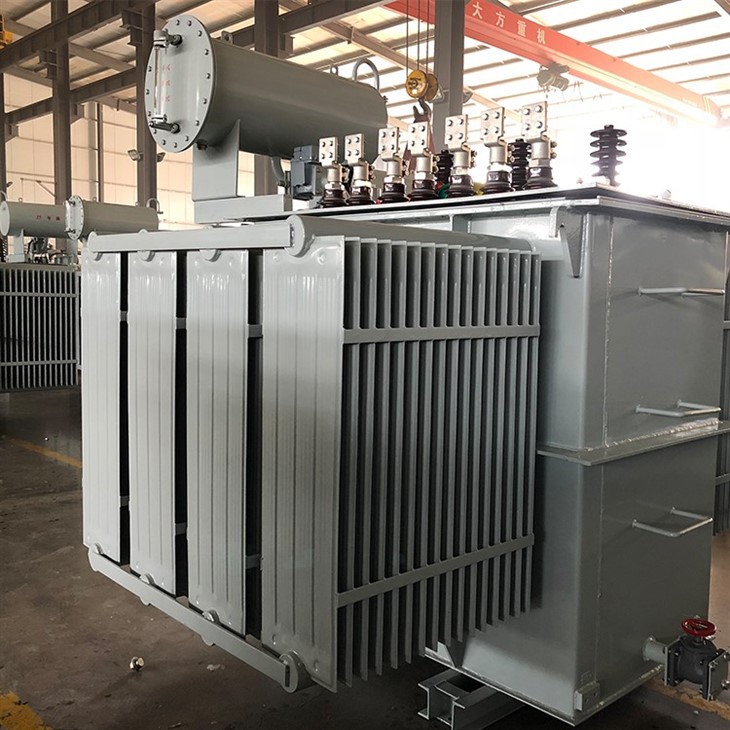

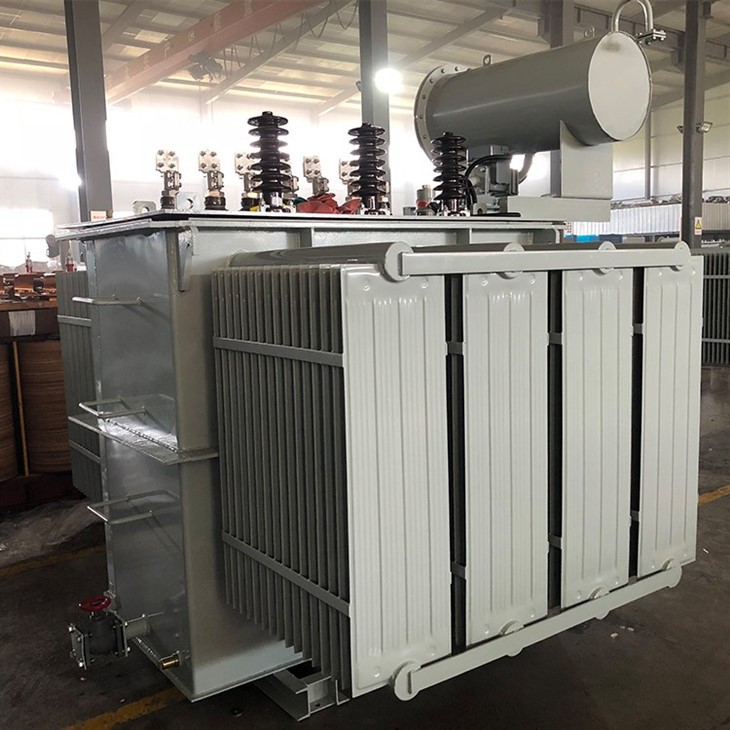

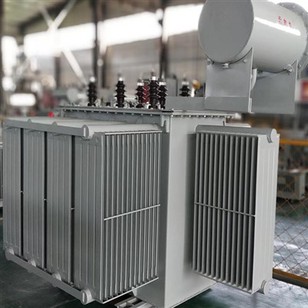

15MVA Transformer
Capacity: 15MVA
Voltage rating: 33kV/66KV/110kV/220kV/400kV
Cooling method: ONAN/ONAF
Impedance voltage: 6%/7%/8%/9%
Short circuit impedance: 10%/12.5%/15%
Tap changer: OLTC
Features
Product parameters:
Capacity: 15MVA
Voltage rating: 33kV/66KV/110kV/220kV/400kV
Cooling method: ONAN/ONAF/ONAF+ODAF
Impedance voltage: 6%/7%/8%/9%
Short circuit impedance: 10%/12.5%/15%
Tap changer: OLTC/RLTC
Product features:
High efficiency
Low noise
Low loss
Excellent insulation performance
Strong overload capacity
Long service life

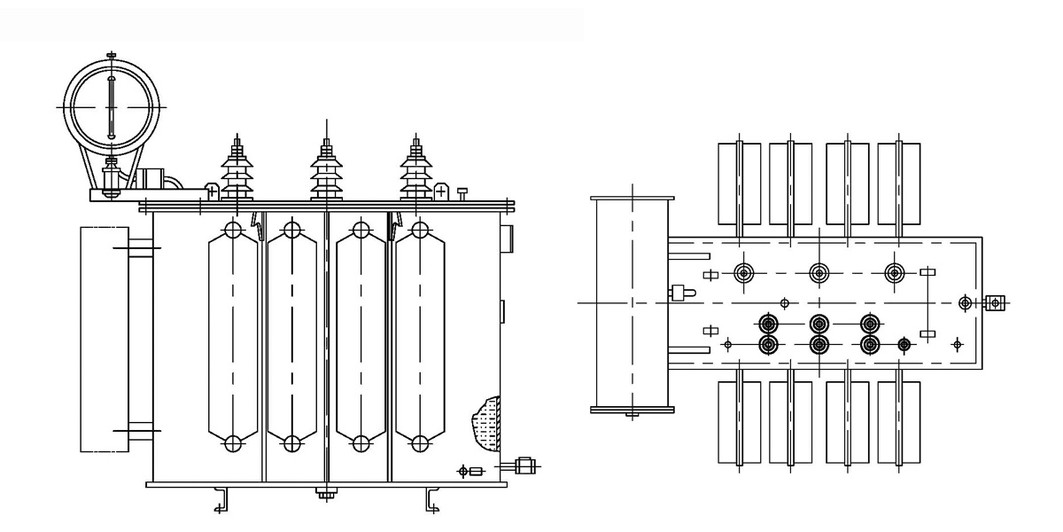

Product drawings:
(Note: The drawings can be provided upon request.)

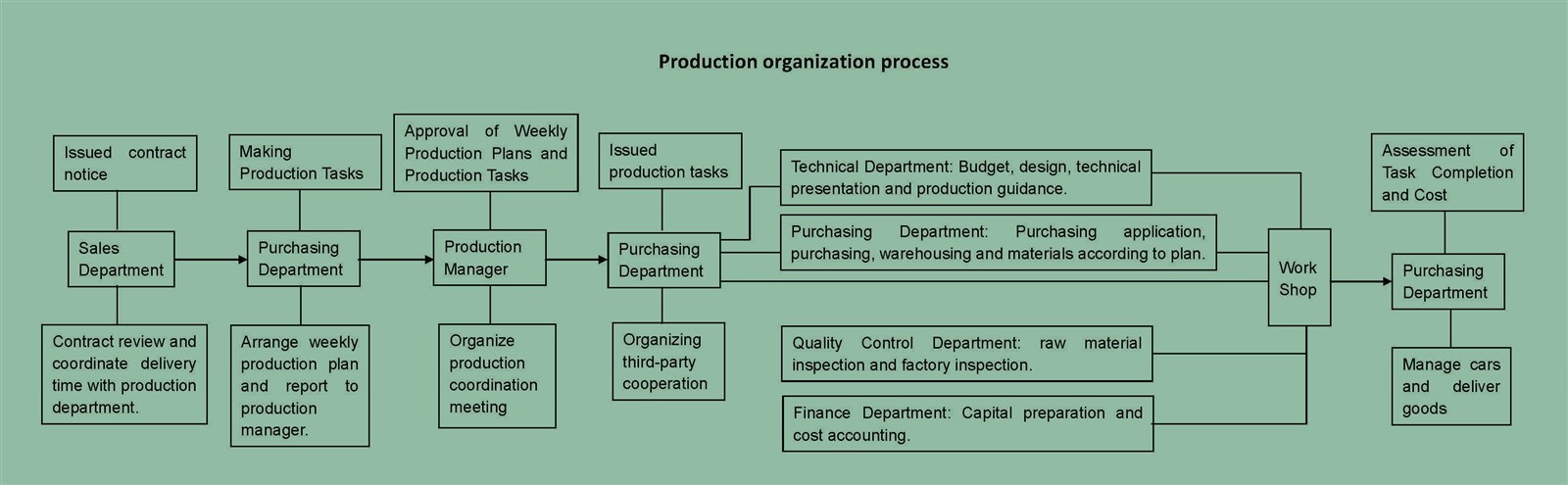

Production process:
1. Core assembly: The iron core is assembled by stacking laminated sheets and stacking with tight screws.
2. Winding: The copper wire is carefully wound around the core according to the specific requirements of the transformer, with insulation materials added at intervals to prevent short circuits.
3. High-voltage test: After the winding is completed, the transformer is subjected to a high-voltage test to ensure the insulation performance.
4. Insulation drying: The insulation materials are dried to ensure a stable dielectric constant.
5. Assembly: The core and winding are assembled into a complete transformer, and tap changer and related accessories are added.
6. Painting and packaging: After painting, the transformer is properly packaged and ready for shipment.
Product certificates:
- ISO 9001:2015 Quality Management System Certification
- ISO 14001:2015 Environmental Management System Certification
- OHSAS 18001: 2007 Occupational Health and Safety Management System Certification
- CE Certification
- RoHS Certification
In conclusion, this 15MVA transformer is a high-efficiency, low-noise and low-loss product with excellent insulation performance, strong overload capacity and long service life. With different cooling methods, voltage ratings, and tap changers, this transformer is suitable for various industrial and commercial applications. Our production process strictly follows quality management, environmental management and occupational health and safety management systems, and our products are certified by various international authorities, ensuring their quality and reliability.
