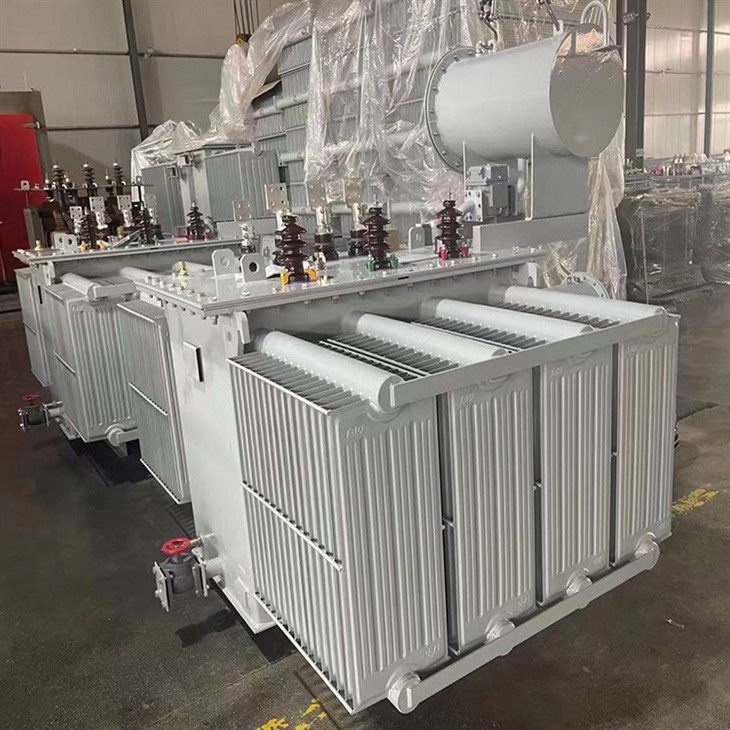

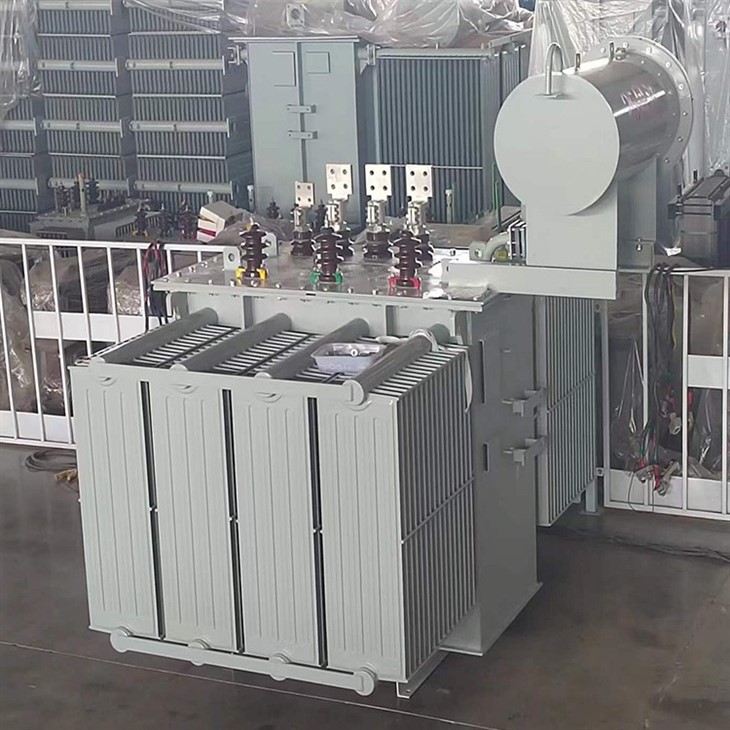

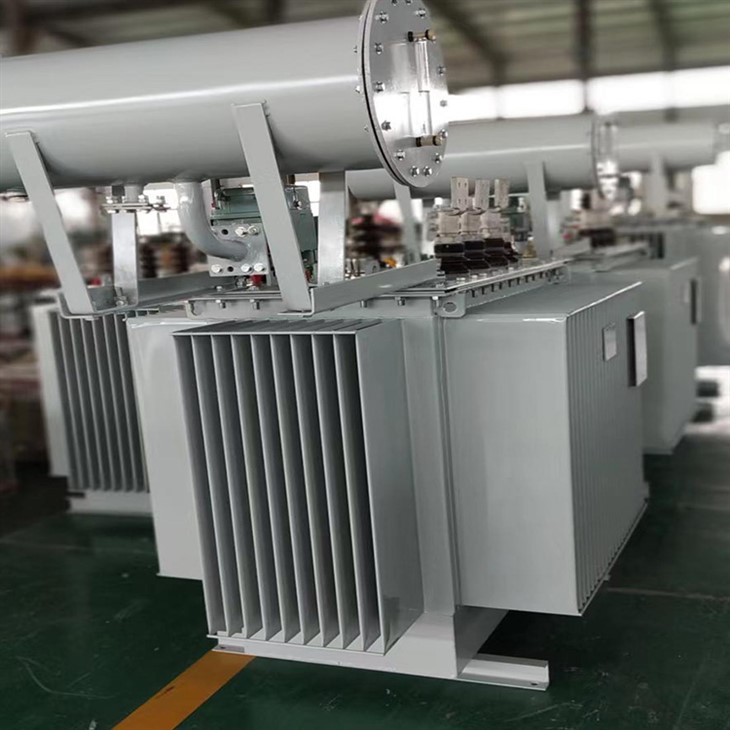

2500 KVA Oil Type Transformer

The 2500 KVA Oil Type Transformer is a reliable and efficient transformer designed for various industrial and commercial applications. It features advanced technologies that allow for optimal energy distribution and cost-effective operation. This transformer is designed to meet high-performance standards and industry requirements and is manufactured using high-quality materials to ensure durability and reliability.

Product Parameters:
Power: 2500KVA
Voltage: 33 kV
Frequency: 50 Hz
Phase: Three
Insulation Class: A
Cooling Method: Oil Immersed
HV/LV Connection: Dyn11
Ambient Temperature: 40°C
Total Weight: 7600 kg
Dimension (LxWxH): 4200x1850x2650 mm

Product Features:
1. High Energy Efficiency: The transformer features advanced technologies that ensure maximum energy efficiency, resulting in lower energy consumption and cost savings for users.
2. Robust Design: The transformer is designed to withstand extreme operating conditions, with high-grade materials and advanced manufacturing techniques used to ensure durability and reliability.
3. Customizable Options: The transformer can be customized to meet specific customer needs in terms of voltage ratings, cooling method, and other parameters.
4. Easy Maintenance: The transformer is designed for easy maintenance, with major components easily accessible and replaceable.
5. Environmentally Friendly: The transformer meets environmentally friendly standards, with low noise levels and reduced carbon emissions.

Product Drawings:

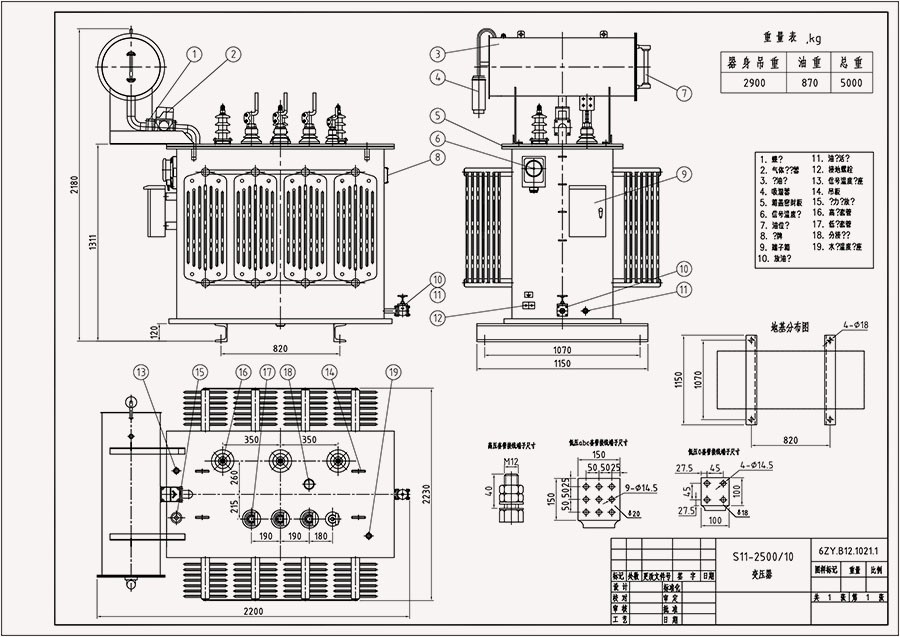

Attached to 2500 KVA Oil Type Transformer product description is a detailed drawing of the transformer, showing its key dimensions and features.

Product Testing:

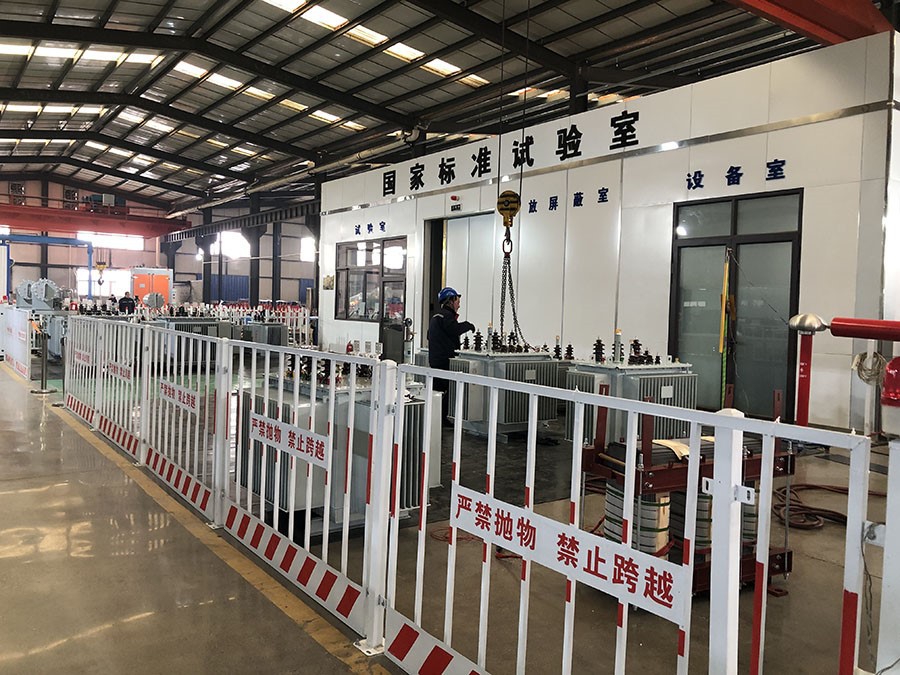

All our transformers are subject to rigorous testing to ensure that they meet industry standards for performance, efficiency, and safety. Our testing procedures include:
1. Routine tests: including measurement of winding resistance, no-load current, impedance voltage, short-circuit impedance, and load loss.
2. Type tests: including temperature rise test, lightning impulse test, and power-frequency withstand voltage test.
3. Special tests: including noise level measurement, harmonic analysis, and insulation resistance.

Product Packaging:

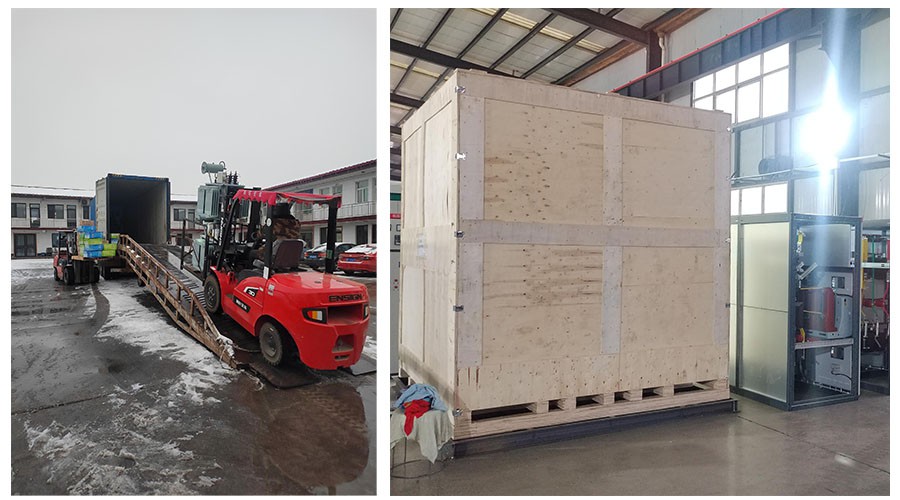

The 2500 KVA Oil Type Transformer is packaged in a strong wooden crate designed to protect it during transportation and storage. We also provide custom packaging options to meet specific customer requirements.
