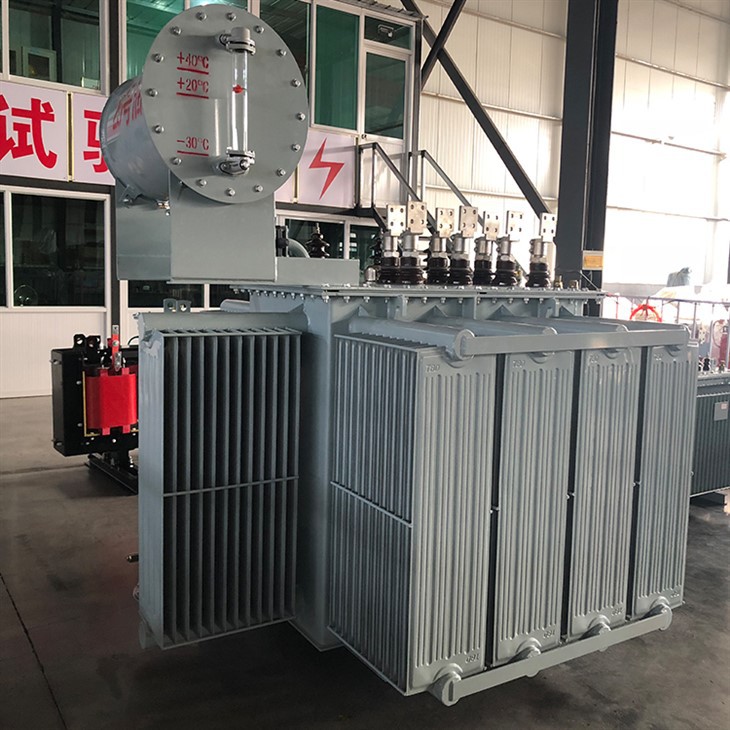

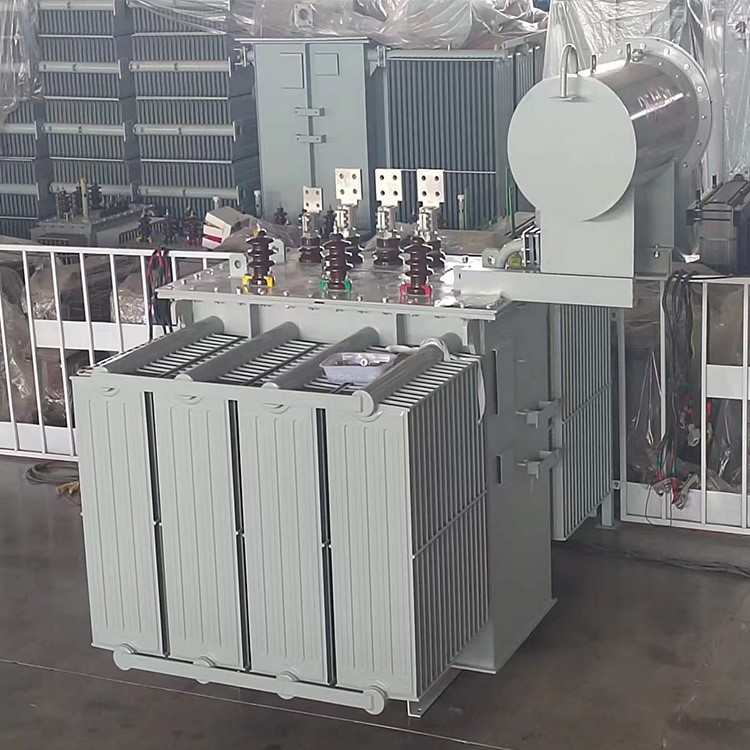

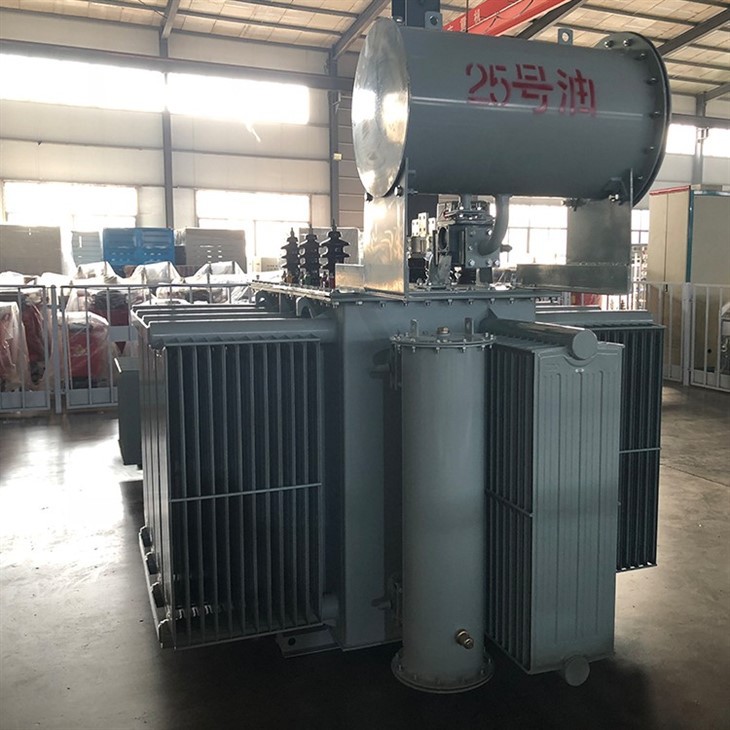

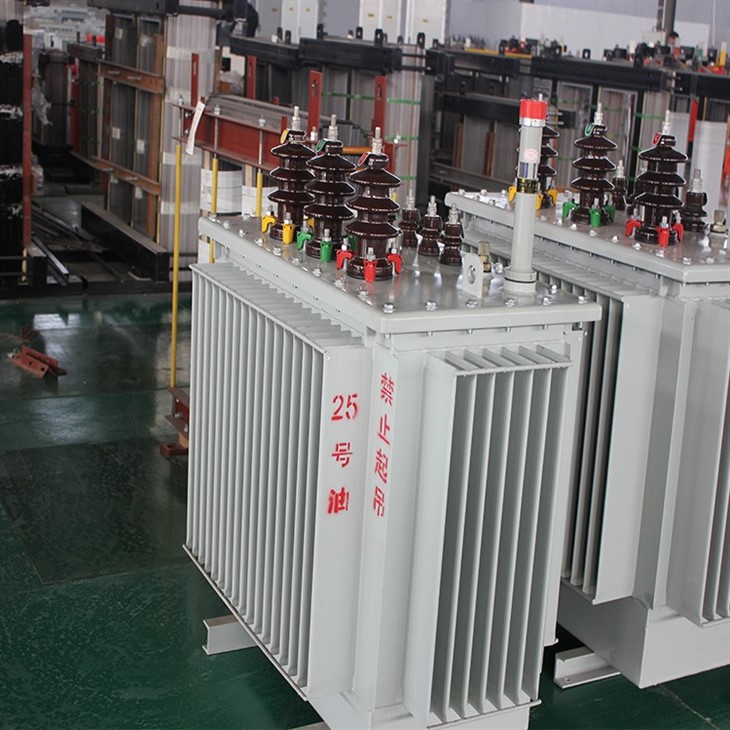

2500 KVA Power Transformer
Transformer type:hermetically sealed
Power:2500 kVA
Rated voltage of the LV winding:0.69 kV
Rated voltage of the HV winding:6 kV
Connection group of windings:Dyn11
Features
Product Description:
The 2500 kva power transformer is a reliable electrical transformer that is designed to step up or step down voltage levels to meet specific power supply requirements. Our transformer is designed to deliver efficient, reliable and consistent power to a broad range of applications, including industrial and commercial settings.
Product Parameters:
|
Transformer type |
hermetically sealed |
|
Power |
2500 kVA |
|
Rated voltage of the LV winding |
0.69 kV |
|
Rated voltage of the HV winding |
6 kV |
|
Connection group of windings |
Dyn11 |
|
Voltage regulation range |
±2x2.5% |
|
Winding material |
copper |
|
Short circuit losses |
28000 W |
|
No-load losses |
2800 W |
|
Short circuit voltage |
6.5% |
|
No-load current |
0.4% |
|
Rated frequency |
50 Hz |
|
Ambient temperature |
from -45℃ to +40℃ |
|
Altitude above sea level |
1000 m |
Product Benefits:
- High Efficiency: The transformer is designed to deliver maximum efficiency, thereby ensuring that energy losses are minimized.
- Reliability: Build to last, the transformer is made of high-quality materials that make it robust for long-term use.
- Low Noise Levels: The transformer is designed to be very quiet and operates smoothly, thereby ensuring that noise pollution is minimized.
- Compact Design: Our transformer is compact and takes up minimum space, thereby making it easy to deploy and install.

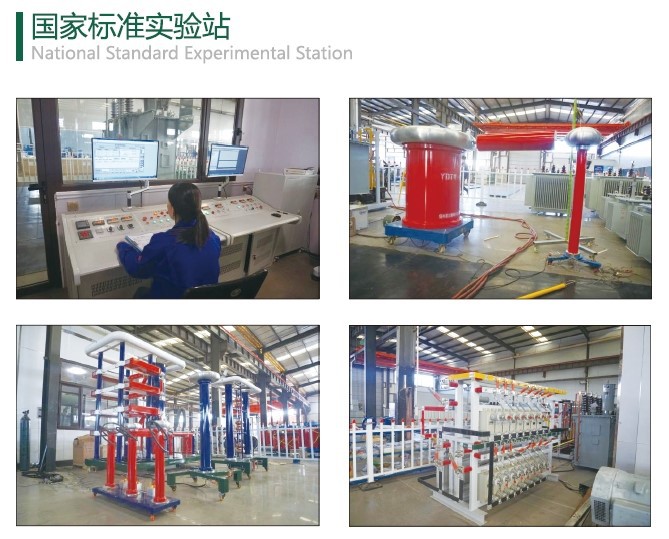

Product Testing:
Our 2500 kva power transformers are tested according to IEC, ANSI, IEEE standards to ensure they meet customer requirements and industry standards. We test for the following:
- Temperature Rise Test
- Winding Resistance Test
- Partial Discharge Test
- Impulse Voltage Test
- Transformer Ratio Test

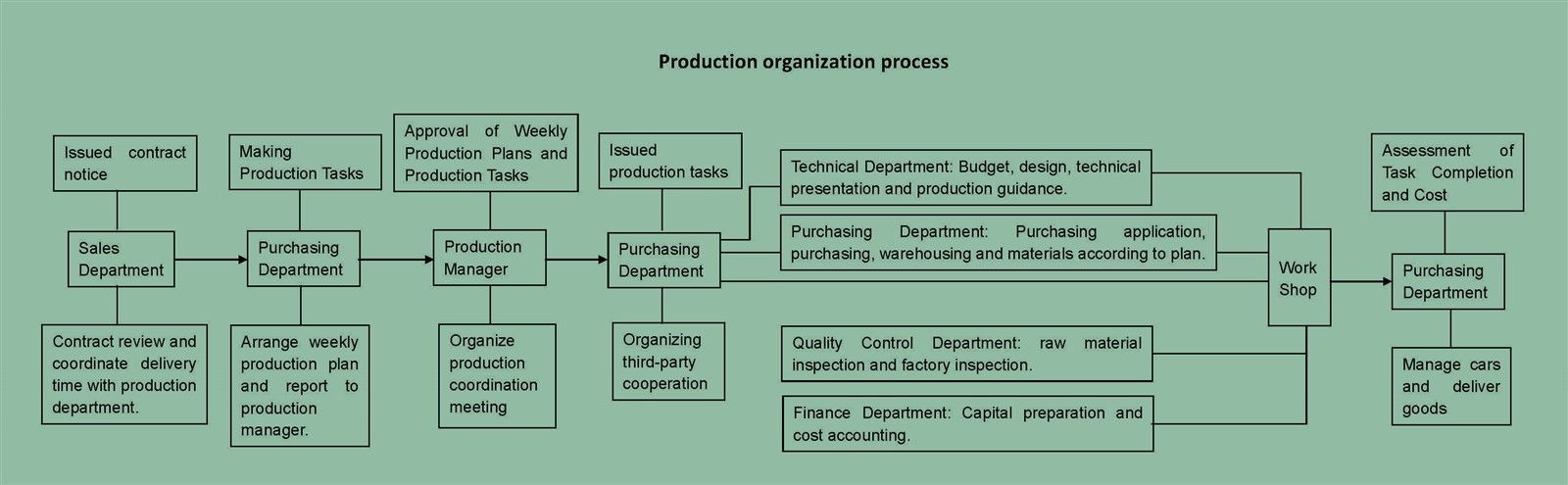

Product Production Process:
Our 2500 kva power transformers are produced according to strict quality control measures at each stage of the production process. From sourcing raw materials to delivery, we ensure that our transformers meet international standards and customer specifications. We employ skilled and experienced personnel to manufacture these transformers using state-of-the-art equipment and the latest technological advancements.
Conclusion:
Our 2500 kva power transformer is an excellent power solution for a wide range of applications. Whether you are a commercial or industrial client, our transformer promises to deliver efficient, reliable and consistent power. Order yours today and experience the many benefits that come with having a top-quality transformer in your establishment.
