2.5 MVA Dry Type Transformer

The 2.5 MVA Dry Type Transformer is a high-quality, reliable and efficient transformer that is designed to meet the needs of a wide range of industrial and commercial applications. This high-performance transformer features advanced technology, enhanced safety features, and a compact size, making it an ideal solution for a variety of power distribution applications.

Transformer Specifications:
The following are the specifications of the 2.5 MVA Dry Type Transformer:
Rated Power: 2.5MVA
Input Voltage: 11 kV
Output Voltage: 433 V
Frequency: 50 Hz
Phase: 3
Impedance: 4%
Temp Rise: 120°C
Insulation Level: BIL 60 kV
Efficiency: 98%

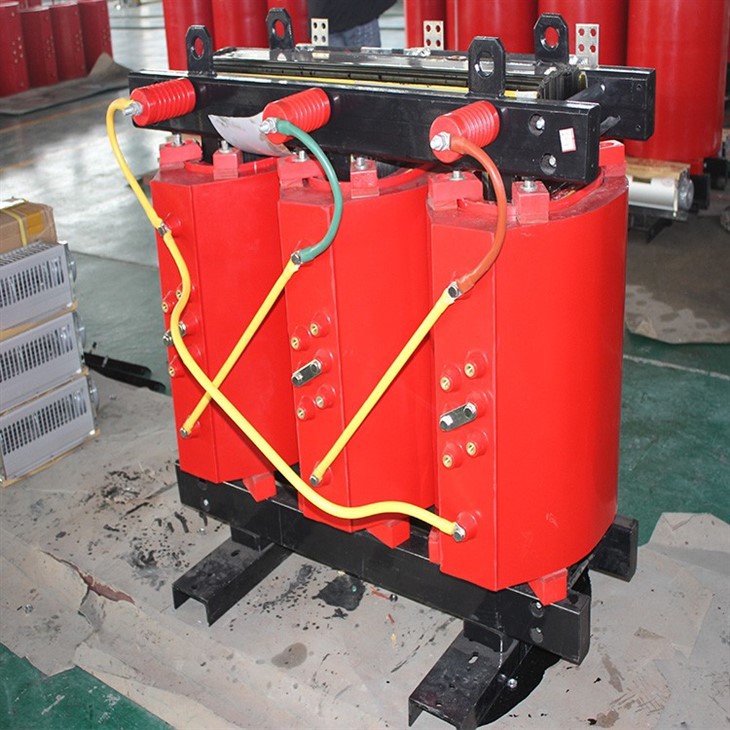

2.5MVA Dry Type Transformer Transformer Details:
1. Iron core
Made up of high quality cold rolled silicon steel sheet that is for electric engineering
2. Low voltage winding
Made up of a whole copper foil coil
3. High voltage winding
Made up of sectional type vacuum casting double glass-fiber covered coils
4. Low voltage terminal
5. High voltage terminal
Variable wiring mode, which is convenient for installation
6. Resilient pad
Avoid mechanical resonance, and reduce noise
7. Clamp and trolley
The wheel of trolley can rotates to 90°
It is convenient for vertical and horizontal movement.
8. Packing type resin insulation
With advantages of damp proof, anti-damp and hot, flame-retardant, and selfextinguish.

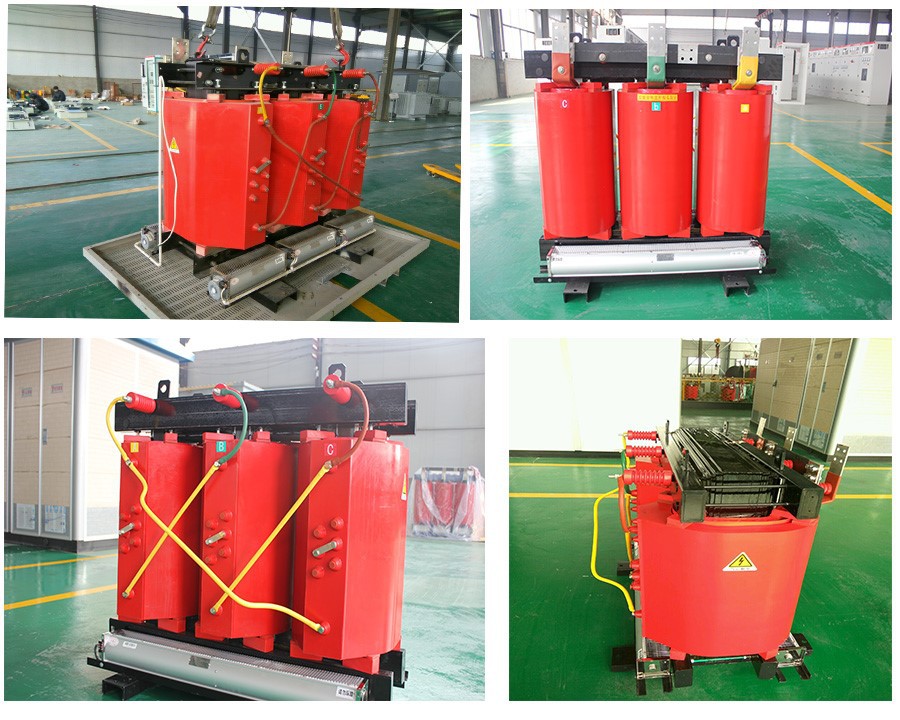

2.5 MVA Dry Type Transformer Drawings:
The following is a product drawing of the 2.5 MVA Dry Type Transformer:

When purchasing the 2.5 MVA Dry Type Transformer, the following factors should be taken into consideration:
1. Type of Load: The type of load the transformer will be supplying power to should be taken into account. This will determine the appropriate rating and specification requirements of the transformer.
2. Input and Output Voltage: Ensure that the input and output voltage requirements of the transformer are properly matched with the power system requirements.
3. Dimensions and Weight: The dimensions and weight of the transformer should be taken into account to ensure that it will fit within the allocated space and be easy to transport.
4. Safety Features: Ensure that the transformer comes with the necessary safety features, such as overload protection, short circuit protection, and over-temperature protection.

The 2.5MVA Dry Type Transformer is an advanced and reliable transformer that is specifically designed to meet the power needs of industrial and commercial applications. With its advanced technology, enhanced safety features, and compact size, this transformer is an ideal solution for a wide range of power distribution applications. When purchasing this transformer, make sure to take into account the specifications, dimensions, and weight, as well as the safety features it comes with to ensure a safe and efficient power supply.
