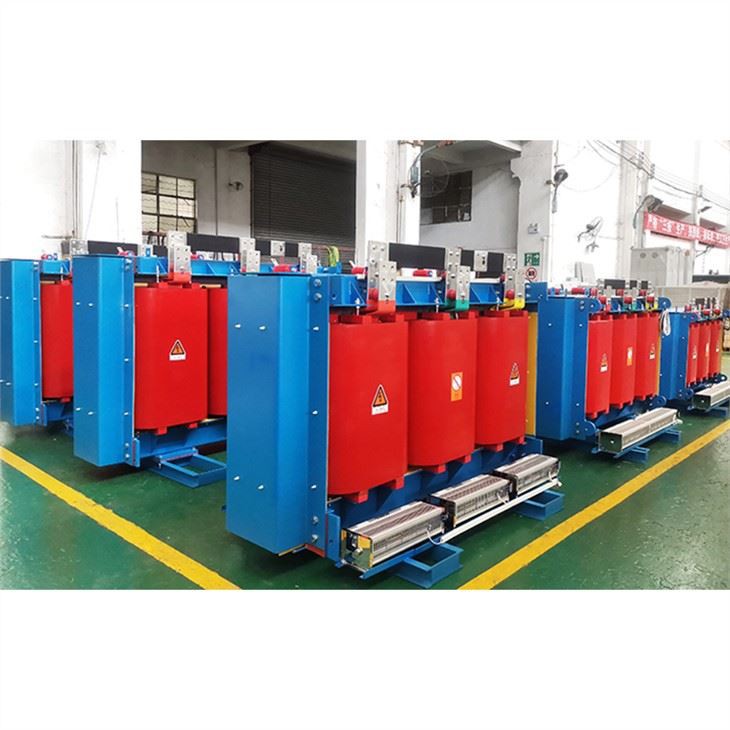

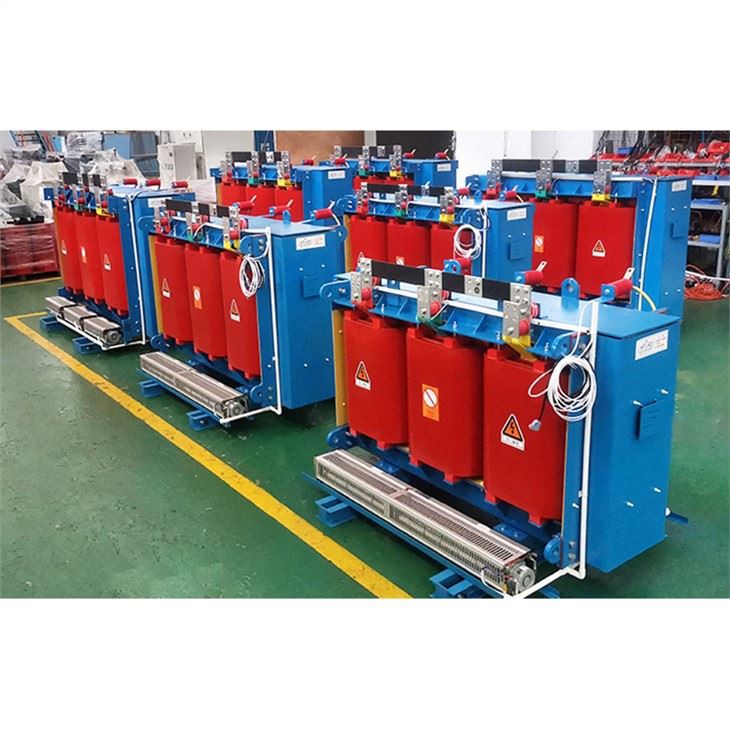

SCBH15 Amorphous Alloy Dry Type Power Transformers

Type: SCBH15 Amorphous Alloy
Voltage: 10KV 20KV
Capacity: 50-2500kVA

Send Inquiry

Features

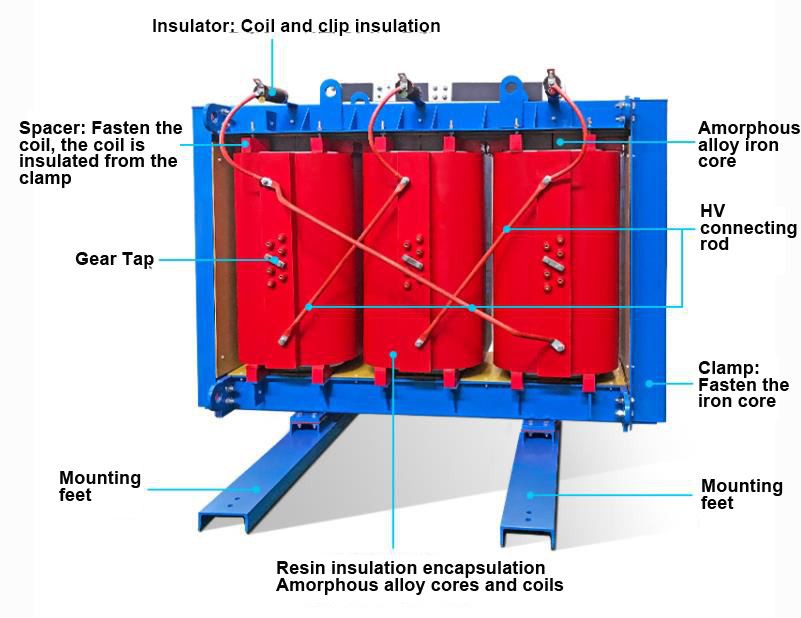

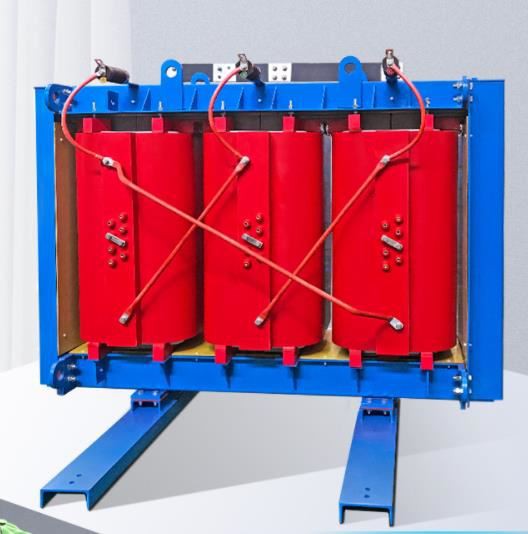

amorphous alloy dry type transformer structure

Application:

SCBH15 series amorphous alloy dry type power transformers can be used in high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises and power plants, especially for places with high flammable, explosive and fire protection requirements.


Technical Parameter

SCBH15 series Amorphous Alloy Dry type Power Transformers technical parameter

Model

Rated Voltage

Connection Symbol

No-load Loss（KW）

On-Load Loss（kw）No-load Current(%)Short-circuit Impedance (%)

HV (kV)

HV Tap Range

LV (kV）

130（B）155（F）180（H）

SCBH15-50/20

20

22

24

±2.5%±5%

±2x2.5%±5%

0.4

Dn11

0.11

1.16

1.23

1.31

0.7

6

SCBH15-100/20

0.17

1.87

1.992.130.7

SCBH15-160/20

0.21

2.33

2.472.640.6

SCBH15-200/20

0.23

3.14

2.77

2.940.6

SCBH15-250/20

0.26

3.22

3.423.660.5

SCBH15-315/20

0.3

3.85

4.084.360.5

SCBH15-400/20

0.36

4.564.845.180.5

SCBH15-500/20

0.41

5.465.796.190.5

SCBH15-630/20

0.48

6.456.847.320.5

SCBH15-800/20

0.55

7.798.268.840.4

SCBH15-1000/20

0.64

9.229.7810.40.4

SCBH15-1250/20

0.74

10.811.512.30.4

SCBH15-1600/20

0.86

13

13.814.80.3

SCBH15-2000/20

1.06

15.416.317.50.3

SCBH15-2500/20

1.29

18.219.320.70.3

SCBH15-1600/20

0.86

14.3

15.2

16.30.38

SCBH15-2000/20

1.06

16.817.819.10.3

SCBH15-2500/20

1.29

2021.222.70.3

Specifications, capacity, size and packaging can also be customized according to the drawings provided by customers. Welcome to contact us!

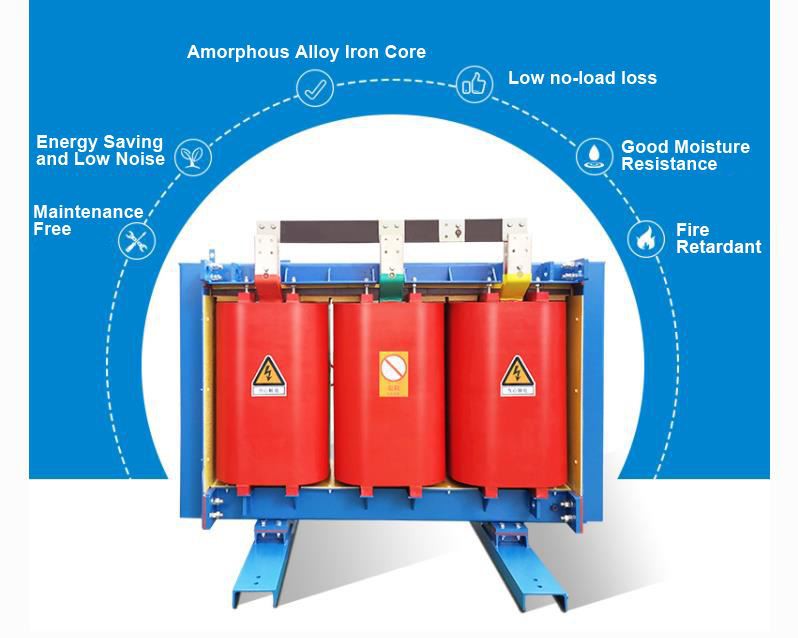

Product Advantages:

1. The iron core of the product is supported by excellent and advanced magnetic conductive material amorphous alloy, with superior performance, and its performance index has reached the advanced level abroad. Features of amorphous alloy dry-type transformer: no-load loss is one third of that of ordinary silicon steel sheet dry-transformation, the energy saving effect is very good, and the product reaches the national first-class energy efficiency standard.

2. Safe, flame retardant and fireproof, it can be directly installed in the load center.

3. Maintenance-free, easy to install, and low overall operating cost.

4. Good moisture-proof performance, can operate normally under 100% humidity, and can be put into operation without drying after production is stopped.

5. Low loss, low noise and strong heat dissipation.

6. The shell can be configured according to customer needs, which is safe and beautiful.

amorphous alloy dry type transformer 3

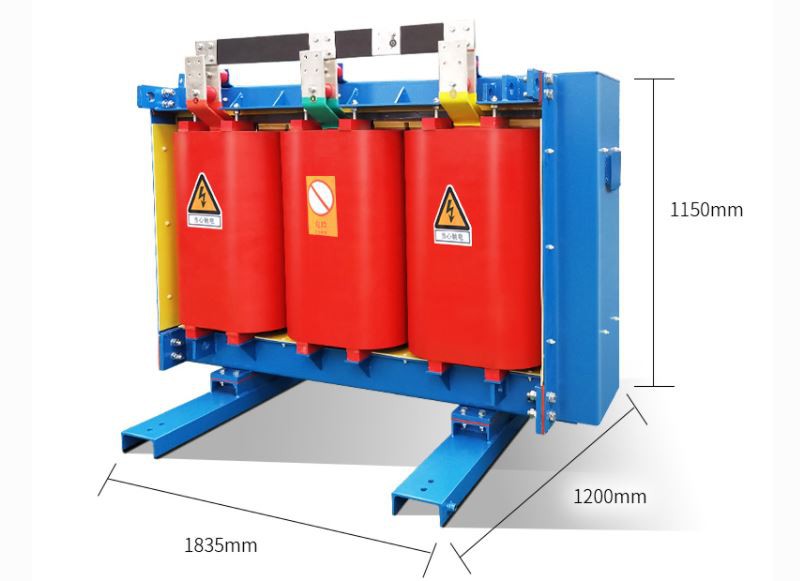

SCBH15 Amorphous Alloy Dry Type Power Transformers Dimensions (20KV 800kVA)

amorphous alloy dry type transformer
