100kva Transformer

Specification Parameters of S11-100KVA/35KV/10KV-6KV-0.4KV Power Transformer

S9 (S11) - □/□

S represents three-phase oil-immersed transformer

9 (11) is the horizontal performance code

□/□ represents the rated capacity/rated voltage (high-voltage side), and the low-voltage side corresponding to 35KV can be 10kv/6kv/0.4KV

Executive Standard for S11-100KVA/35KV Power Transformers

1. GB1094.1~2-1996 Power Transformers

2. GB1094.3,5-2003 Power Transformers

3. GB/T6451-2008 Technical parameters and requirements for three-phase oil-immersed power transformers

S11-100KVA/35KV Power Transformer Technical Data Sheet

100kva Transformer Name Plate

Characteristics of S11-100KVA/35KV Transformer:

A. The 35kV transformer adopts a corrugated oil tank for temperature rise, which occupies a small area and has a beautiful appearance.

B. The high and low voltage coils are directly wound on the iron core, with good concentricity and short-circuit resistance.

C. The iron core of 35kV transformer is a seamless and non graded nearly pure circular section made of silicon steel sheet material. The iron yoke and iron core column are connected with rounded corners, and the iron core is closed.

D. Cancel the oil storage tank and use a corrugated plate oil tank. The temperature induced oil volume change is adjusted by the elasticity of the corrugated plate to isolate the transformer oil from the air and prolong the service life.

E. Due to the special structure of the 35kV transformer core, it is made of high-quality cold-rolled silicon steel sheets with crystalline orientation.

F. The entire mechanization of iron core processing reduces labor intensity, improves product quality, and stabilizes quality.

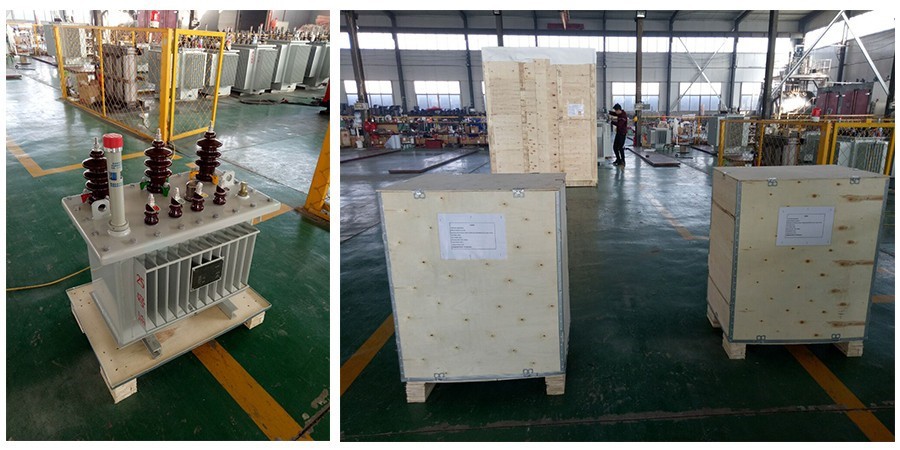

100kva Transformer Packaging

FAQ

1.What is 100kva distribution transformer?

A 100kva distribution transformer is a type of electric power transformer used to transfer electrical energy from a primary voltage circuit to a secondary voltage circuit. It has a power capacity of 100 kilovolt-amperes (kVA), which is suitable for small to medium-sized power distribution systems.

2. How much is 100kva transformer?

USD*,800.00/SET
