250 KVA Pole Mounted Distribution Transformer

Rated capacity: 250 KVA
Rated voltage: 11KV 0.4KV
Tap range: ±2X2.5%
Connection Symbol:Dyn11/ yyn0

Send Inquiry

Features

2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!

Products Description

250 kVA Transformer Specification:

250 KVA Pole Mounted Distribution Transformer has a compact design and can be easily mounted on a electric pole, which makes it convenient for use in urban and rural areas where space limitations require compact infrastructure. Its power rating allows it to be used in a variety of settings including commercial, industrial, and residential areas.

250 KVA Pole Mounted Distribution Transformer has multiple safety features to protect it from damage caused by electrical surges, lightning strikes, and other external factors. It also features advanced technology for monitoring electrical performance and detecting faults, ensuring optimum efficiency and minimal downtime.

250 kVA Transformer Data Sheet

Rated capacity	250 KVA
Rated voltage	11KV 0.4KV
Tap range	±2X2.5%
Connection Symbol	Dyn11/yyn0
Short circuit impedance	4.0%
No-load loss	0.4KW
Load loss	3.4KW
No-load current	0.9%
250 kva transformer weight
Body weight	660KG
Oil weight	195KG
Gross weight	1045KG
250 kva transformer dimensions	13057601390 mm
250 kva transformer price	USD3, *88.00/SET

Products Images

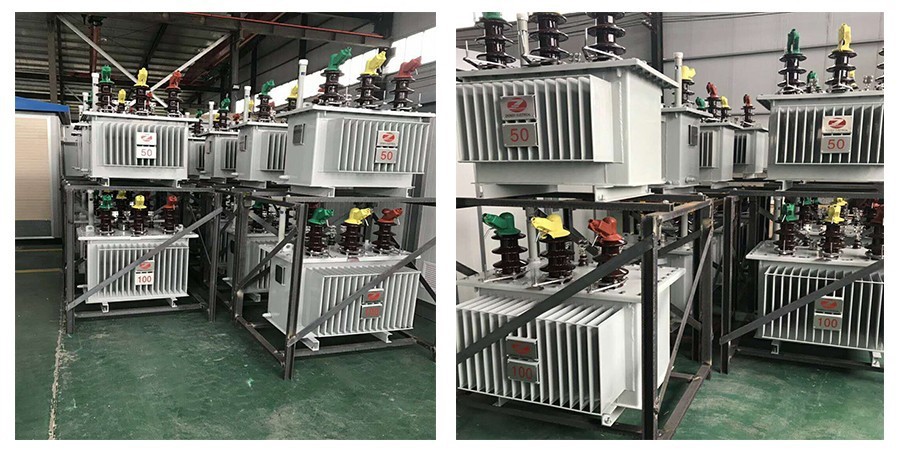

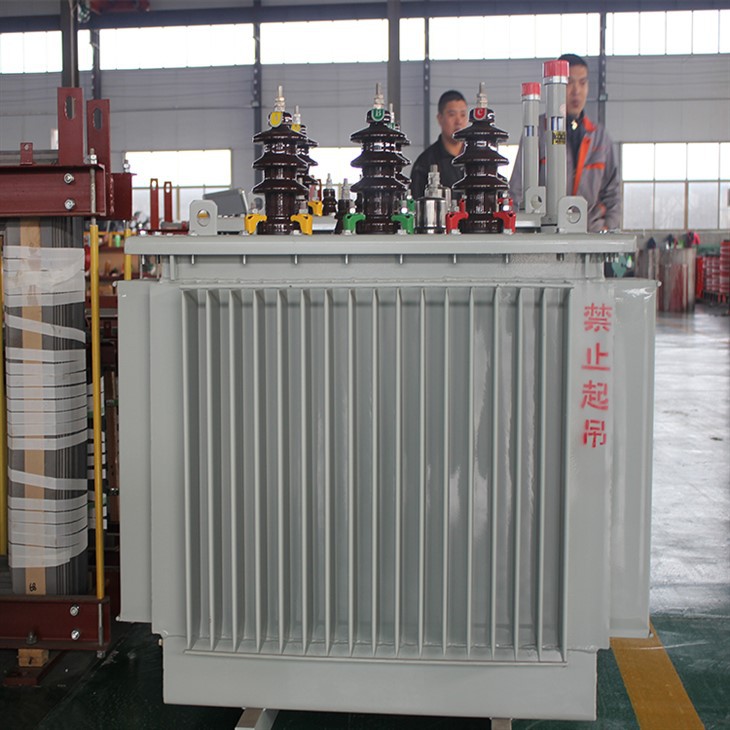

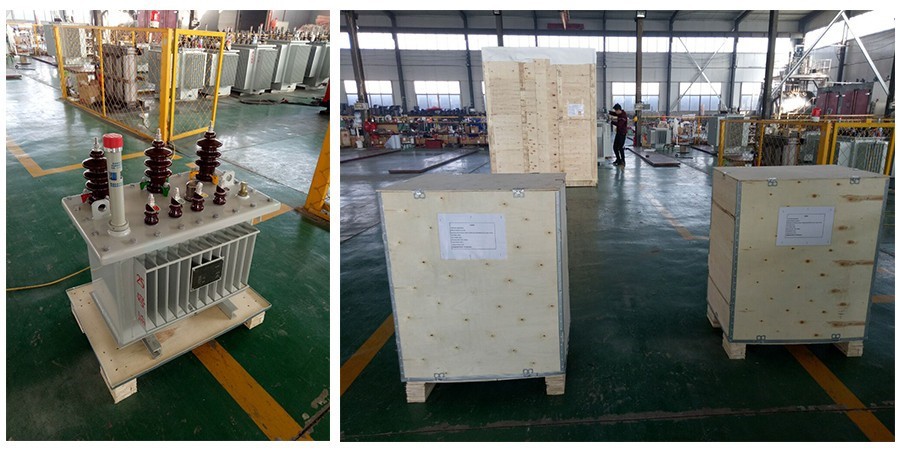

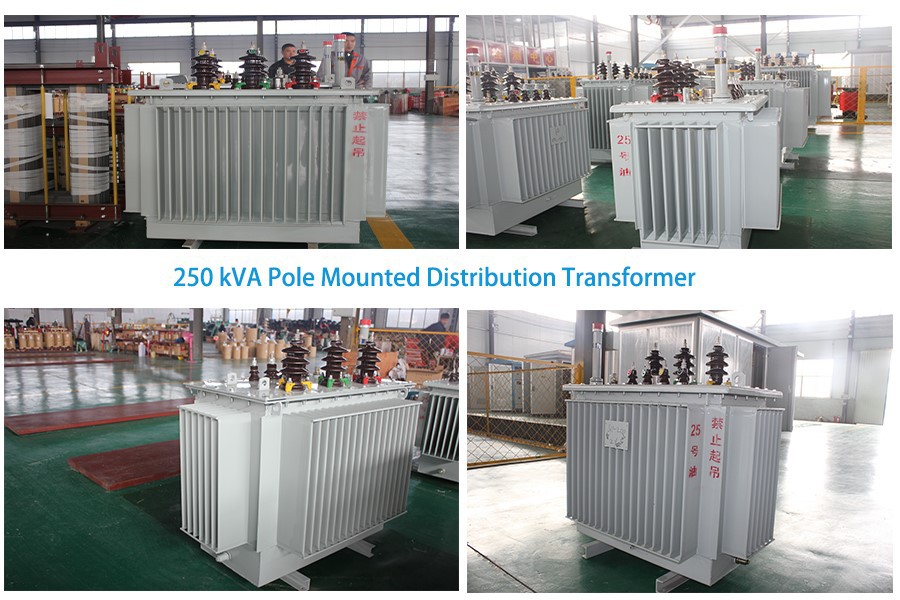

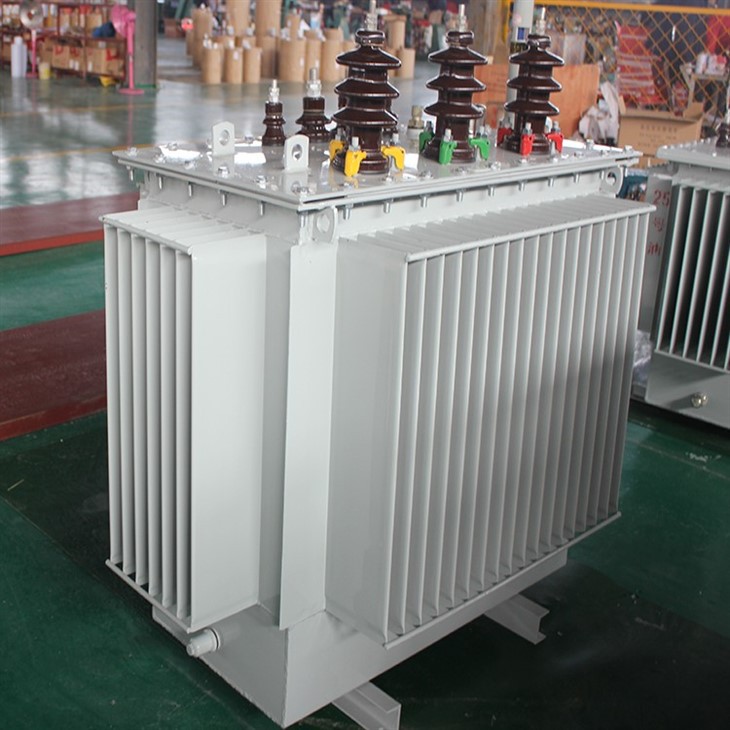

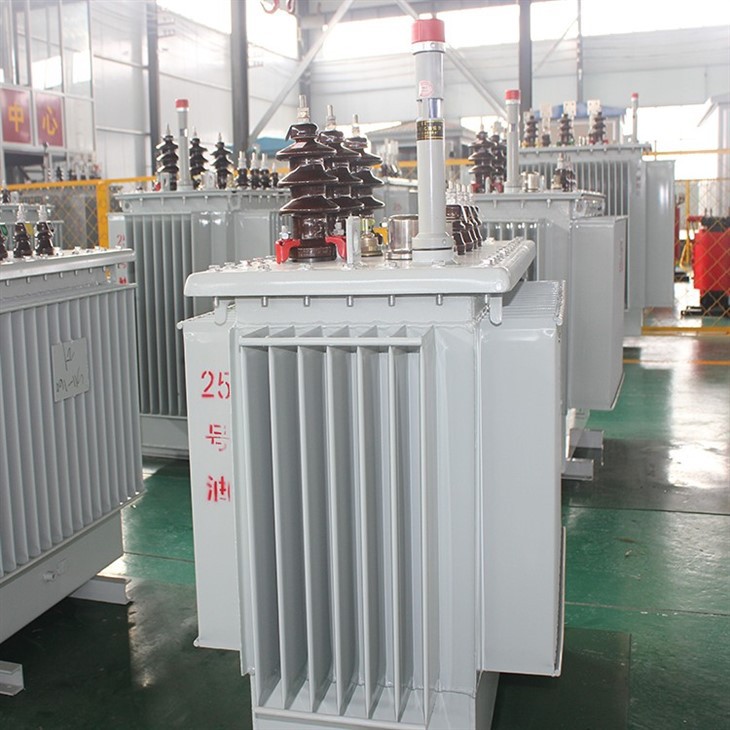

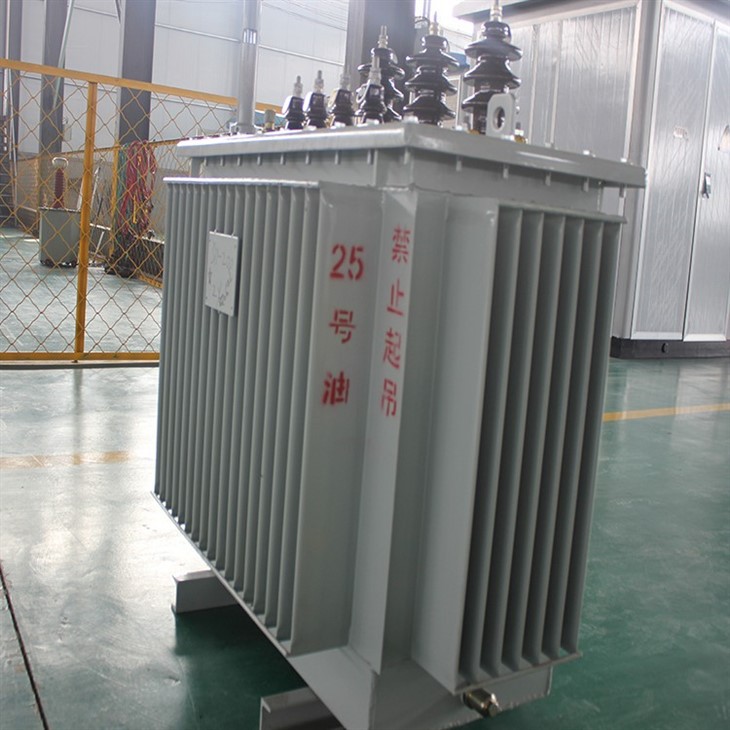

250 kVA Pole Mounted Distribution Transformer 5

FAQ

250 kVA Transformer Load Capacity in KW

When the power factor = 1, it can carry 250KW. When the power factor=0.9, it can take 250x0.9=225KW.

The rated active power that the 250KVA transformer can connect to is: 250KVAx load power factor.

Of course, the transformer also allows appropriate overload, and the short-term overload can reach several times.

2. 250 kVA Transformer Current Rating

The rated current of the 250kVA transformer is 360A, that is, it can output a three-phase 360A current. The formula for calculating the rated current of the transformer is, input rated current: capacity/√3/input voltage rate, output rated current: capacity/√3 /output voltage.

For example: 10KV/0.4KV200KVA oil cooled transformer with an efficiency of 0.95, the maximum rated current of the high-voltage side is 12A, and the maximum rated current of the low-voltage side is 288A
