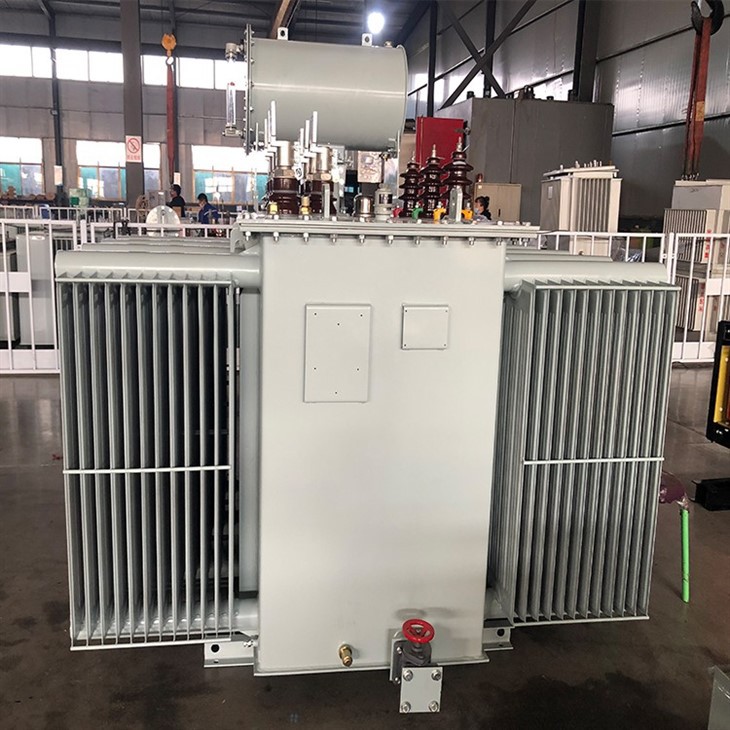

11KV Transformer 3000 KVA

To place an order or request for more information on our 11KV Transformer 3000 KVA, please feel free to contact us.

Product Description:

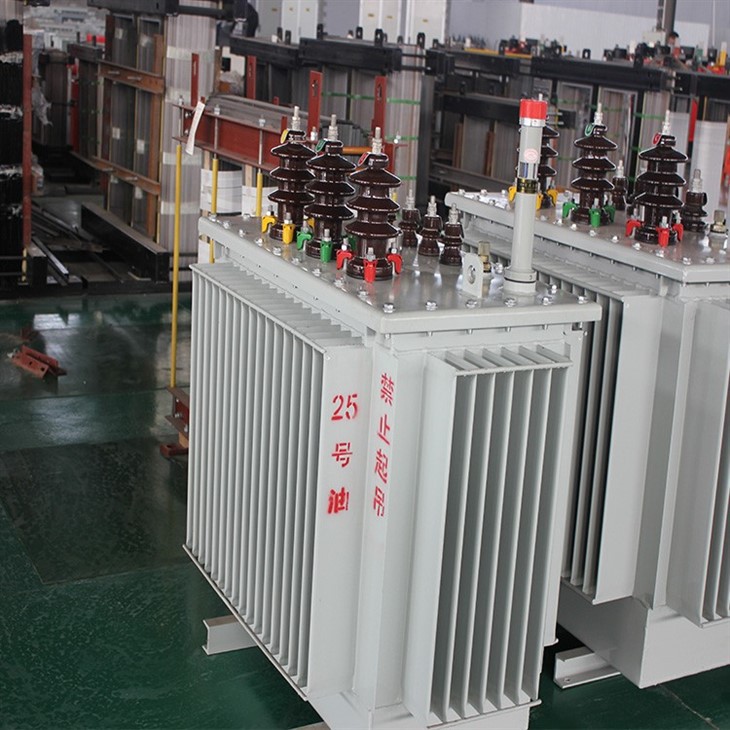

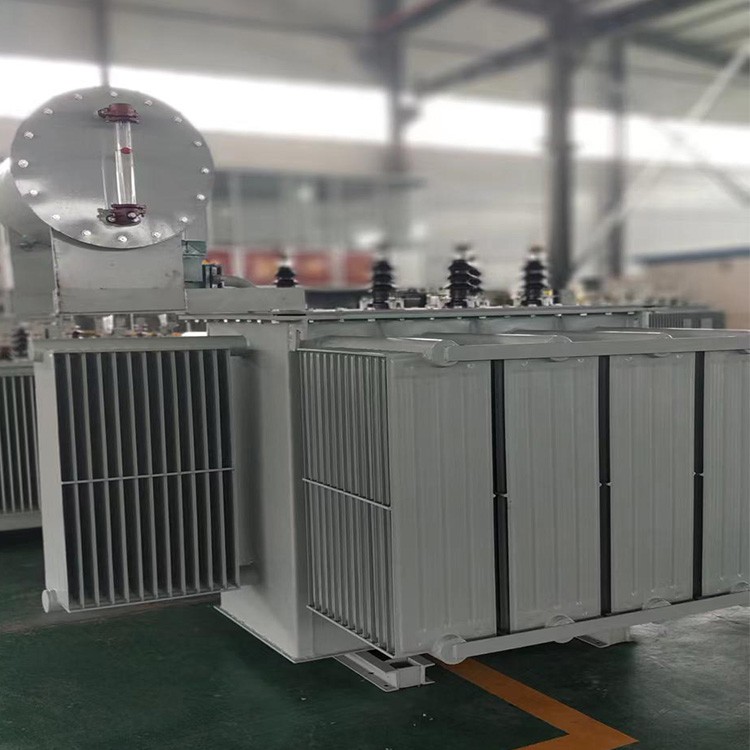

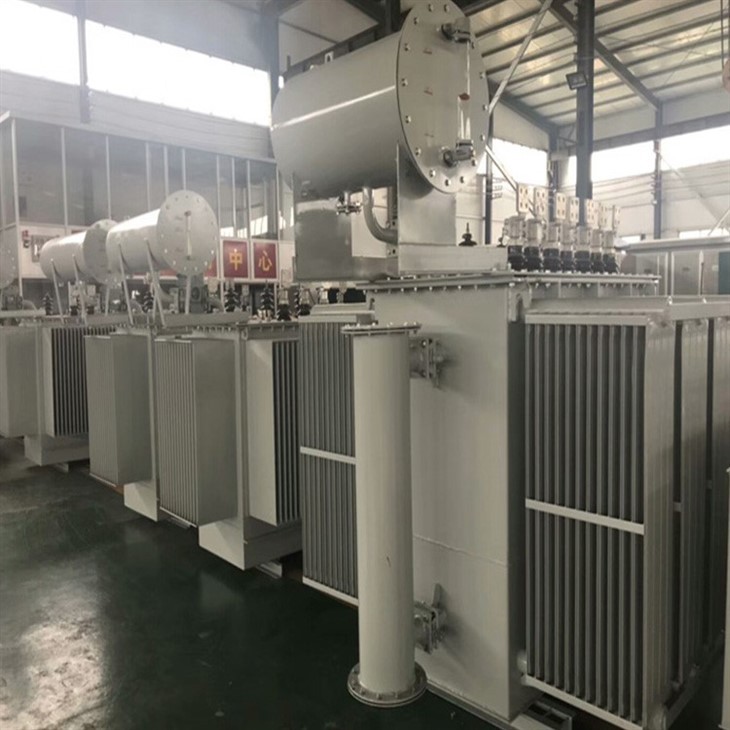

The 11KV Transformer 3000 KVA is a highly efficient transformers used to transform the input voltage of 11KV to an output voltage of 415V. It is designed to handle a load of 3000 KVA, thus making it an ideal choice for industrial and commercial applications.

Product Specifications:
- Input Voltage: 11KV
- Output Voltage: 415V
- Capacity: 3000 KVA
- Phase: Three Phase
- Frequency: 50 Hz
- Cooling Method: Oil Immersed
- Insulation Class: Class A
- Winding Material: Copper
- Enclosure Material: Steel

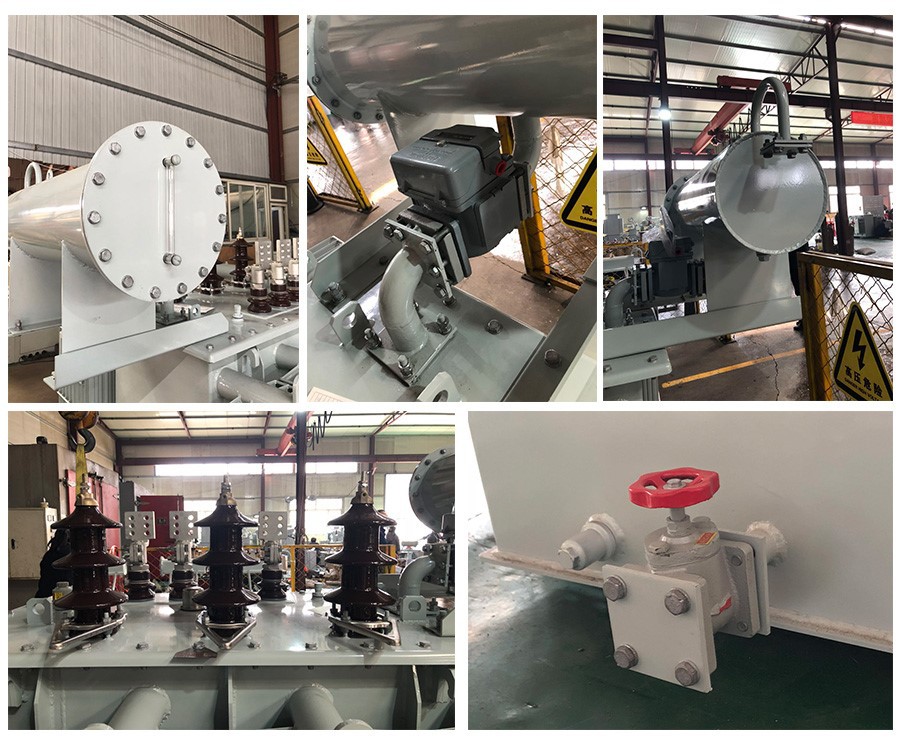

Product Components:
- High-Quality Transformer Core
- Copper Winding
- High Insulation Materials
- Steel Enclosure
- Oil Filled Tank

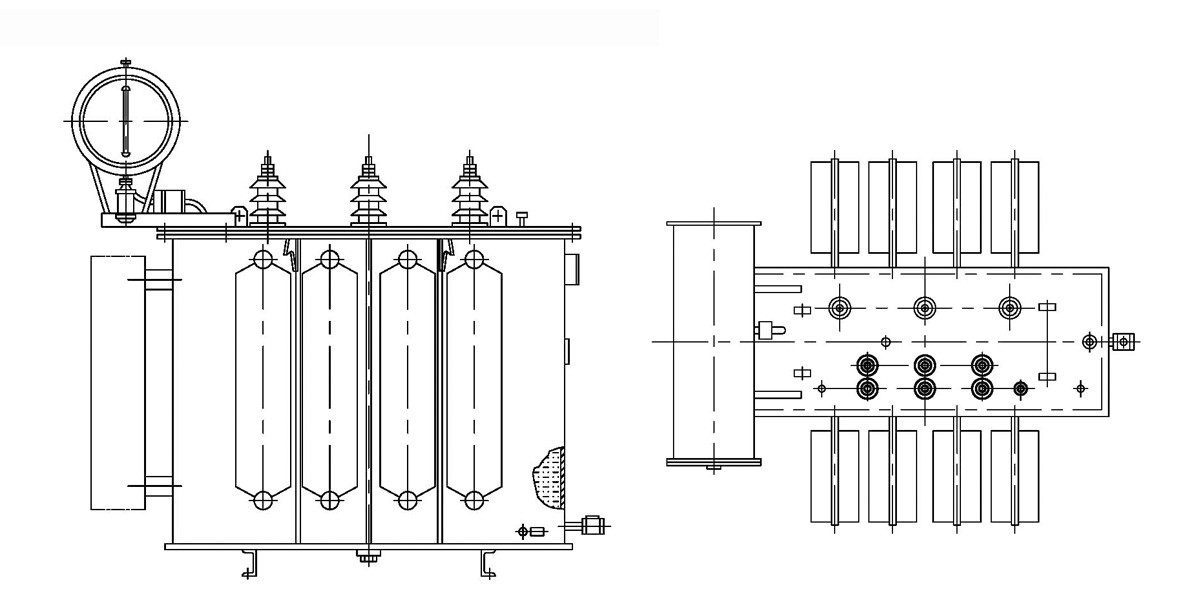

Product Drawings:
Our 11KV Transformer 3000 KVA is designed in accordance to the international standards and technical specifications. We have provided detailed product drawings which includes electrical and mechanical features, and all dimensions, to best serve our customers.

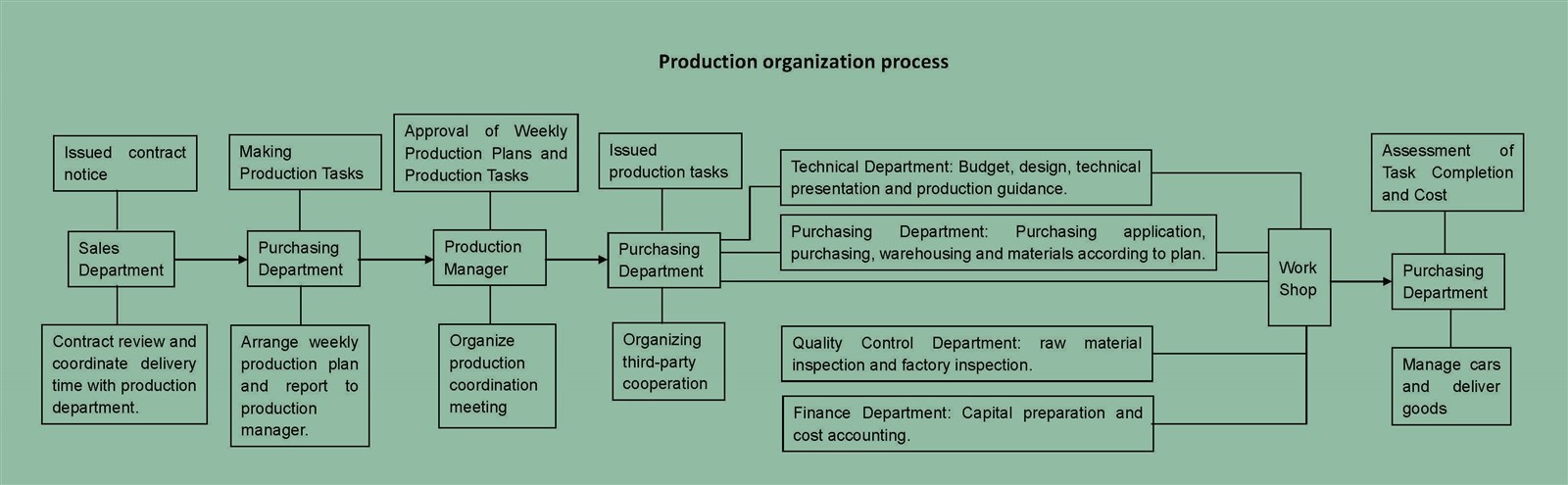

Product Production Process:
Our 11KV Transformer 3000 KVA is manufactured using state-of-the-art technology and equipment, under the supervision of highly trained professionals, guaranteeing quality, durability and safety. Our production process includes the following:
1. Raw Material Inspection
2. Core Cutting and Lamination Winding
3. Insulation Treatment and Coiling
4. Core and Coil Assembly
5. Tank Fabrication and Painting
6. Transformer Filling and Testing

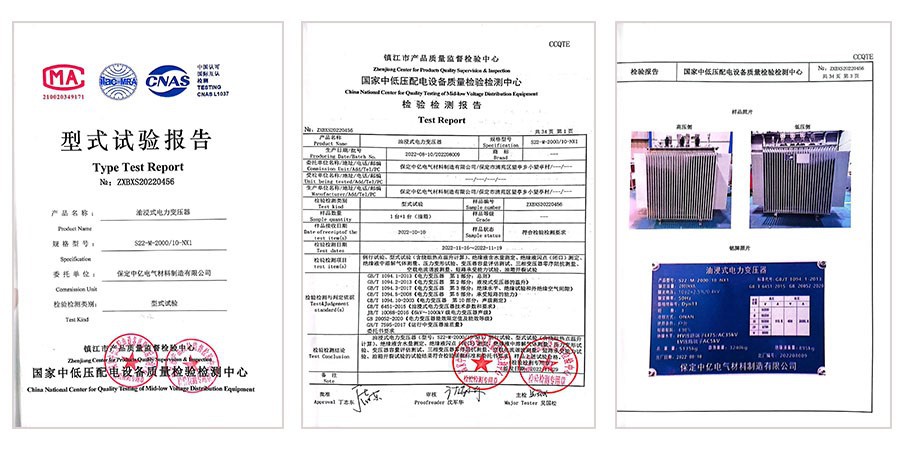

Product Certification:
Our 11KV Transformer 3000 KVA is certified by international organizations such as ISO 9001:2015, CE and ROHS, confirming the quality, safety and environmental friendliness of the product.
