Products
200 KVA Transformer
Our transformer is a certified and tested product, designed to deliver high efficiency, performance, and safety under the most stringent operating conditions.
Features
22 KV 200 KVA Transformer - Your Reliable Power Partner!
Our transformer is a certified and tested product, designed to deliver high efficiency, performance, and safety under the most stringent operating conditions. With a robust build and top-of-the-line components, our transformer ensures reliable power distribution with minimal losses and maximum power transfer.
200 KVA Transformer Specification:
Rated Power | 200 KVA |
Primary Voltage | 22 KV |
Secondary Voltage | 0.4 KV |
200 KVA Transformer Current Rating | 288.7A/5.2A |
200 KVA Transformer Full Load Current | 230.9A |
200 KVA Transformer Load Capacity In KW | 196KW |
Efficiency | ≥98% |
Frequency | 50/60 H |
Cooling System | ONAN |
Insulation Level | Class A |
Ambient Temperature | -25 to +55 °C |
Protection Level | IP00/IP20 |
200 KVA Transformer Dimensions | 800mm x 900mm x 1400mm |
200 KVA Transformer Weight | 800kg |
How Much Does 200 KVA Transformer Cost?
22KV 200 KVA copper transformer price: *857.00/SET

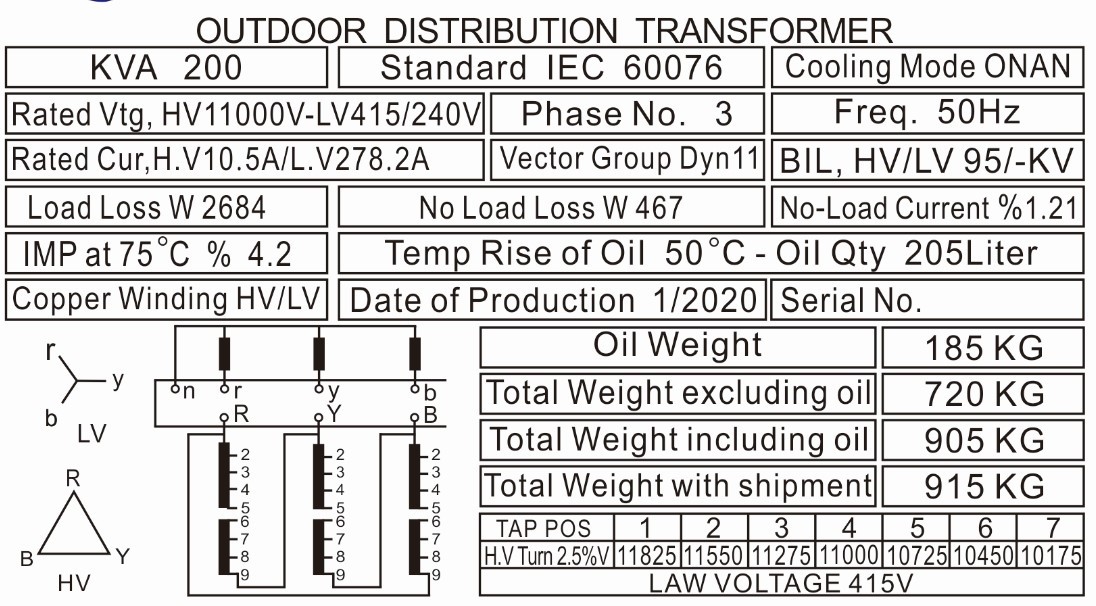

200 KVA Transformer Nameplate

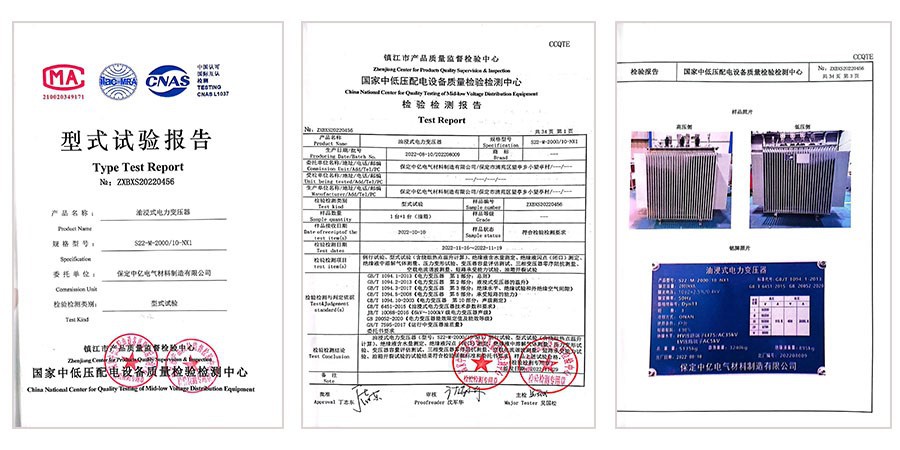

Product Certificate:
Our 22 KV 200 KVA transformer is certified by various national and international regulatory bodies, ensuring that it adheres to industry specifications and standards. Some of the certificates that we hold include:
- ISO 9001:2015
- CE Marking
- CB Scheme
- UL Certified
Product Manufacturing Process:
Our transformers are designed and manufactured using the latest technologies, state-of-the-art equipment, and skilled workers. Our manufacturing process includes:
- Transformer Design & Specification

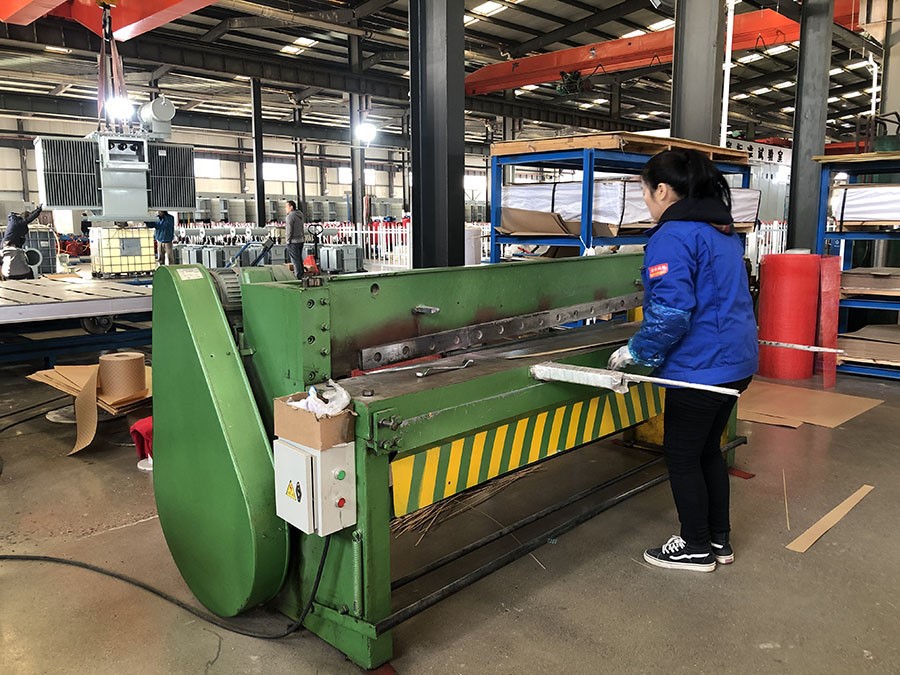

- Core Cutting
- Winding
- Insulation & Assembly
- Tank Fabrication
- Painting & Drying
- Final Assembly & Test

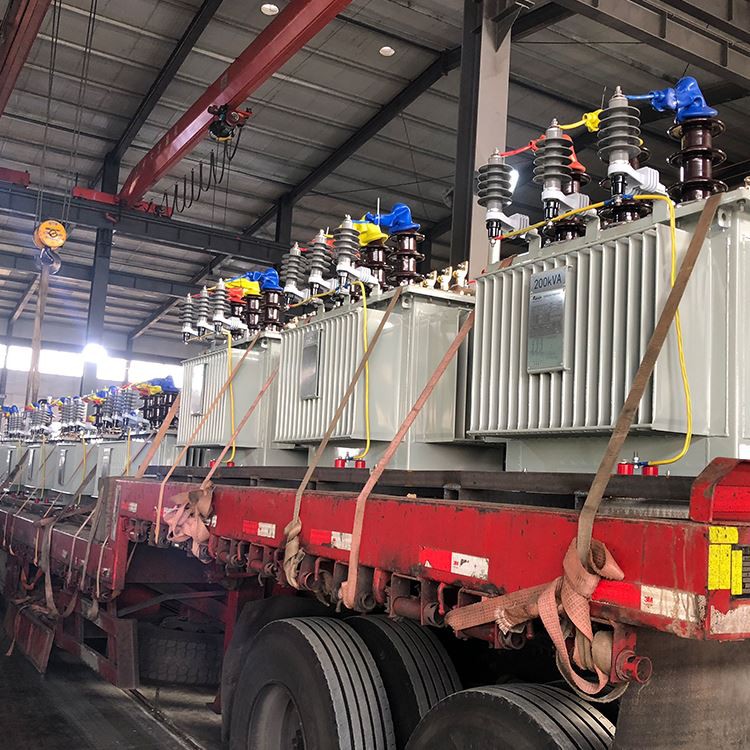

Product Export Packaging:
As an exporter, we take great care in ensuring that our products are packaged well to withstand the rigors of transport. Our transformers are packed in sturdy wooden crates or steel structures, properly labeled and marked to ensure safe handling during transportation.
Product Export Documentation:
We provide our customers with complete export documentation, including:
- Commercial Invoice
- Packing List
- Bill of Lading
- Certificate of Origin
- Inspection Certificate
- Customs Declaration
- Insurance Certificate (if required)
Conclusion:
With our 200 KVA 3 phase transformer, you can be assured of a reliable, efficient, and safe power distribution system. Contact us today, and let us be your reliable power partner!
Hot Tags: 200 kva transformer, China, suppliers, manufacturers, factory, buy, price, for sale, residential electrical transformer, single transformer, transformer utility pole, 100 kva 3 phase transformer, power transformer station, 2500kva transformer
