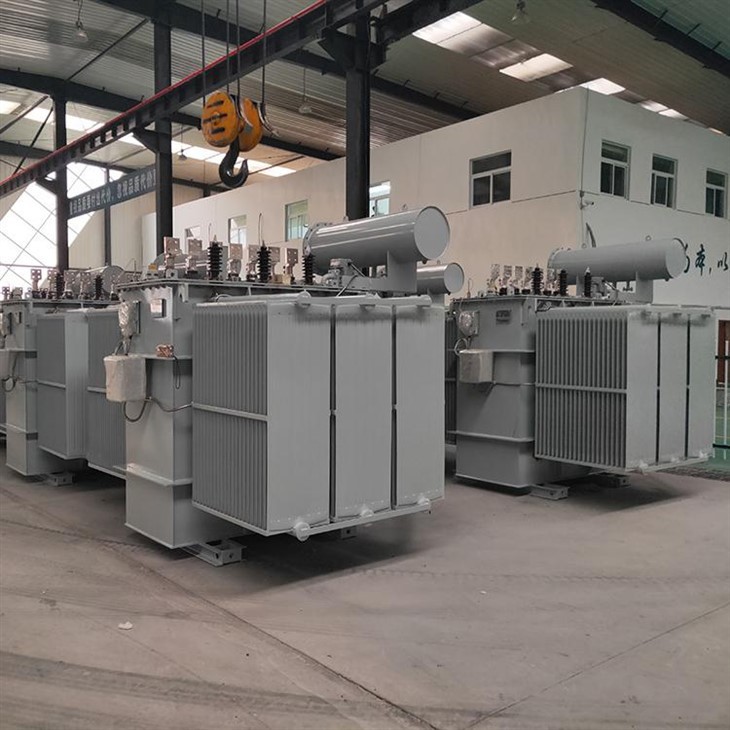

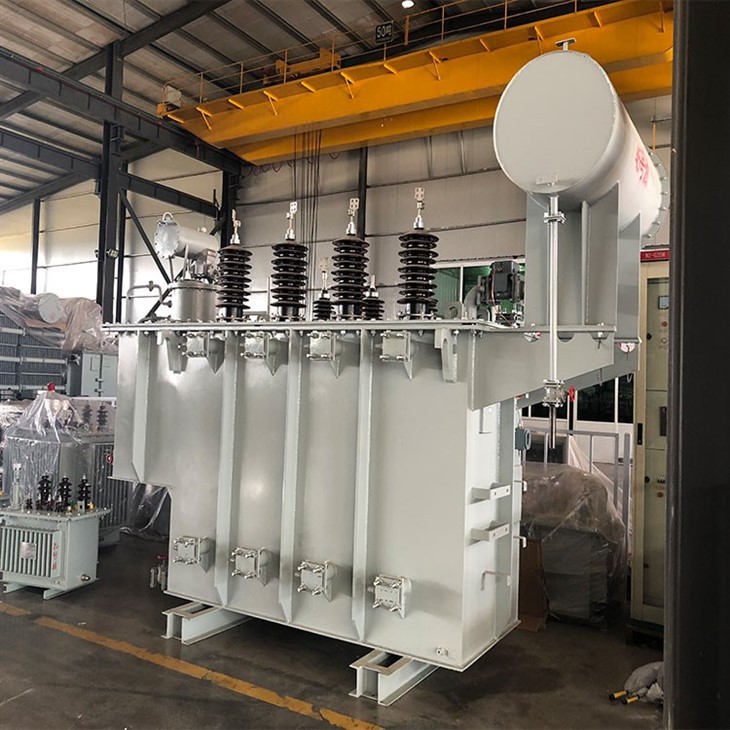

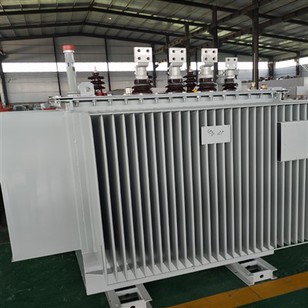

11KV 2000 KVA Transformer

A transformer is an essential component of an electrical power system, and it helps in the transmission and distribution of electrical power from the source to the destination. An 11KV 2000 KVA transformer is a high-capacity transformer that can handle large amounts of electrical power.

Product Parameters:
The product parameters of an 11KV 2000 KVA transformer include high voltage of 11KV, rated capacity of 2000 KVA, and low voltage of 0.415 KV. The transformer has a frequency of 50 Hz, and it is designed to operate under specified environmental conditions such as temperature and humidity.

Product Advantages:
The product has several advantages, including high efficiency, low noise, and low temperature rise. The transformer is designed to minimize the magnetic flux leakage, which results in higher efficiency. The transformer is also designed to reduce the noise level to less than 65 dB, which makes it ideal for use in residential areas. The low temperature rise of the transformer ensures that it operates within the recommended temperature limits, which prolongs its lifespan.

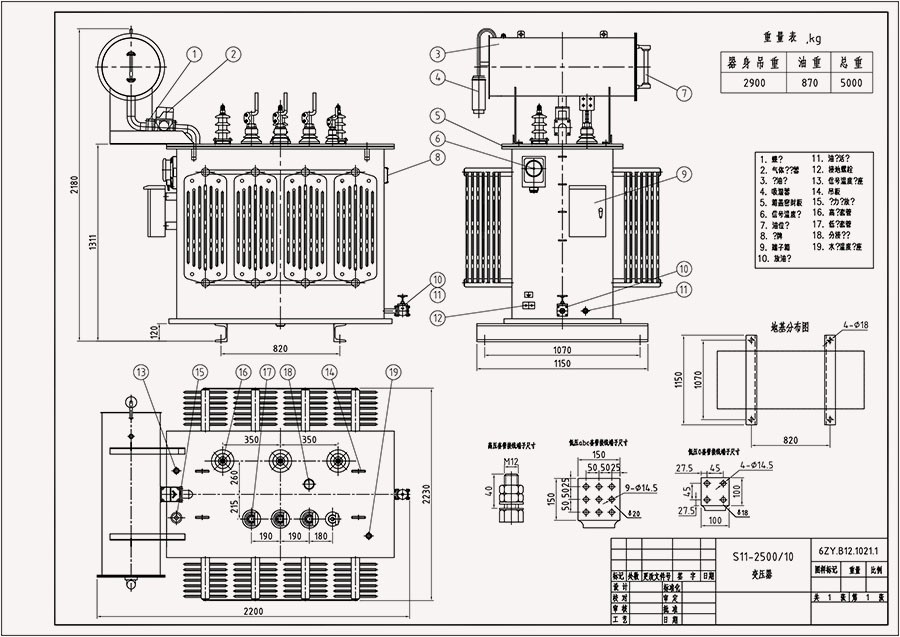

Product Drawings:
The product drawings of an 11KV 2000 KVA transformer include the mechanical and electrical drawings of the transformer. The mechanical drawings show the dimensions, weight, and mounting details of the transformer. The electrical drawings show the electrical connections, winding details, and insulation requirements of the transformer. The drawings help in the design, fabrication, and installation of the transformer.

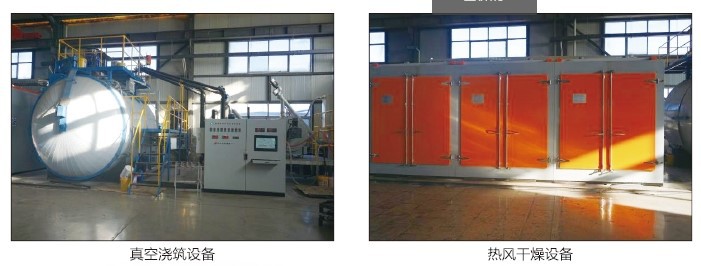

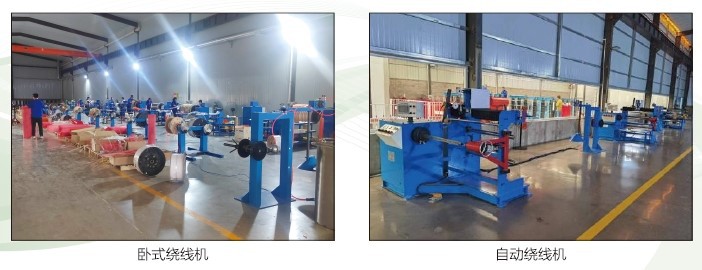

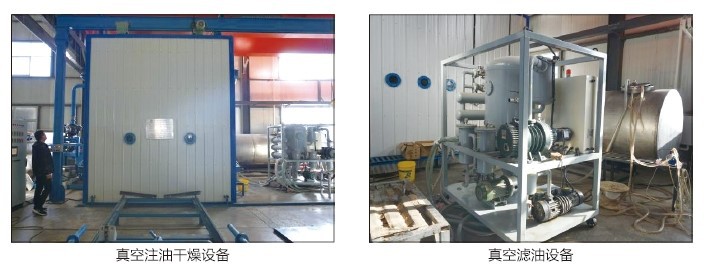

Product Production Equipment:
The production equipment used for the manufacturing of an 11KV 2000 KVA transformer includes a core cutting machine, winding machine, insulation machine, oven, and painting booth. The core cutting machine is used to cut the transformer core into the desired shape and size. The winding machine is used to wind the copper wire around the core. The insulation machine is used to insulate the winding with an insulating material. The oven is used to bake the insulation material, and the painting booth is used to apply the final coat of paint to the transformer.

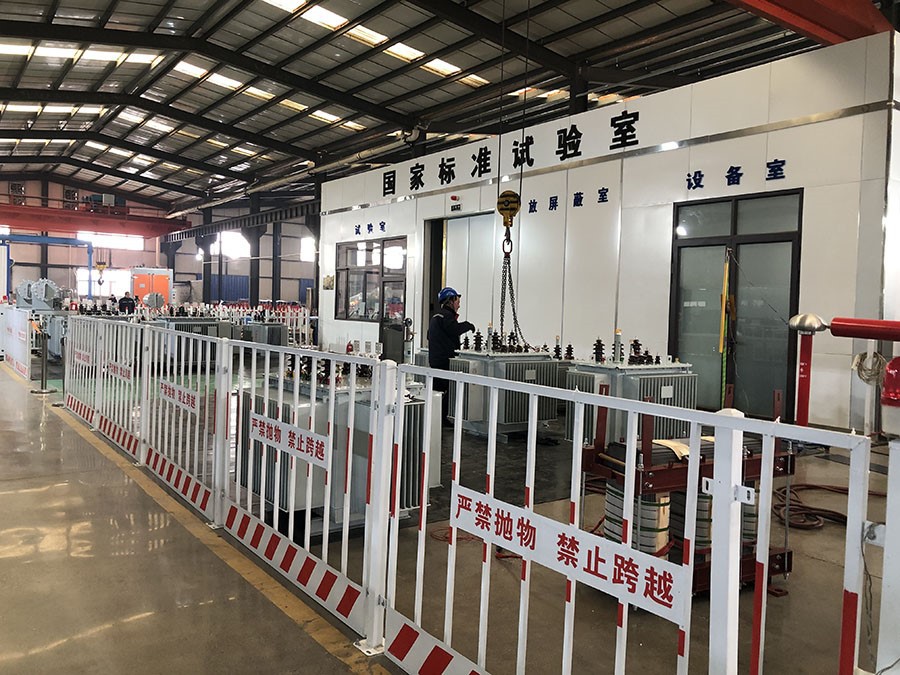

Product Testing:
The product testing of an 11KV 2000 KVA transformer involves several tests, including routine tests and type tests. The routine tests are conducted before the transformer is shipped to the customer, and they include measurement of winding resistance, insulation resistance, and voltage ratio. The type tests are conducted on a sample transformer to verify the design parameters, and they include impulse voltage test, partial discharge test, and temperature rise test.
