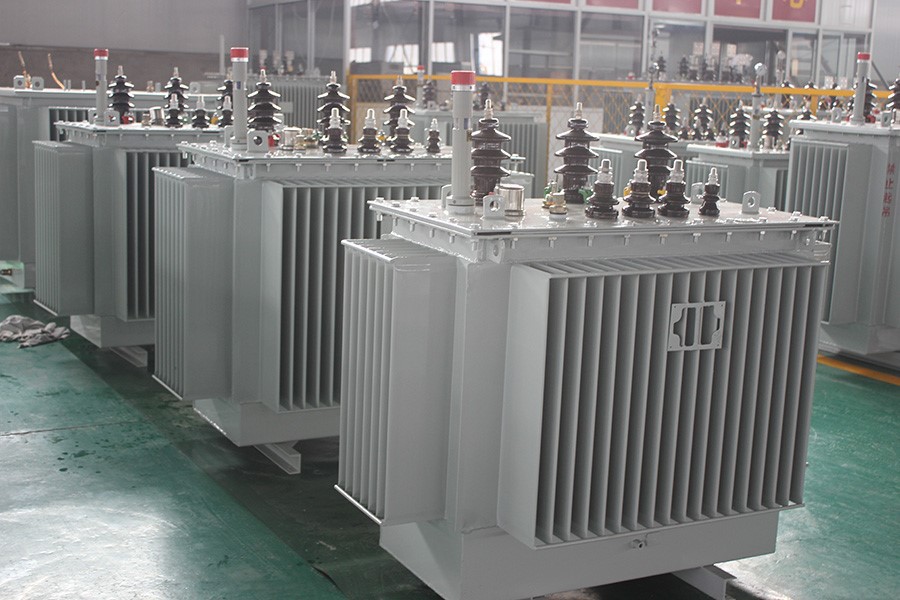

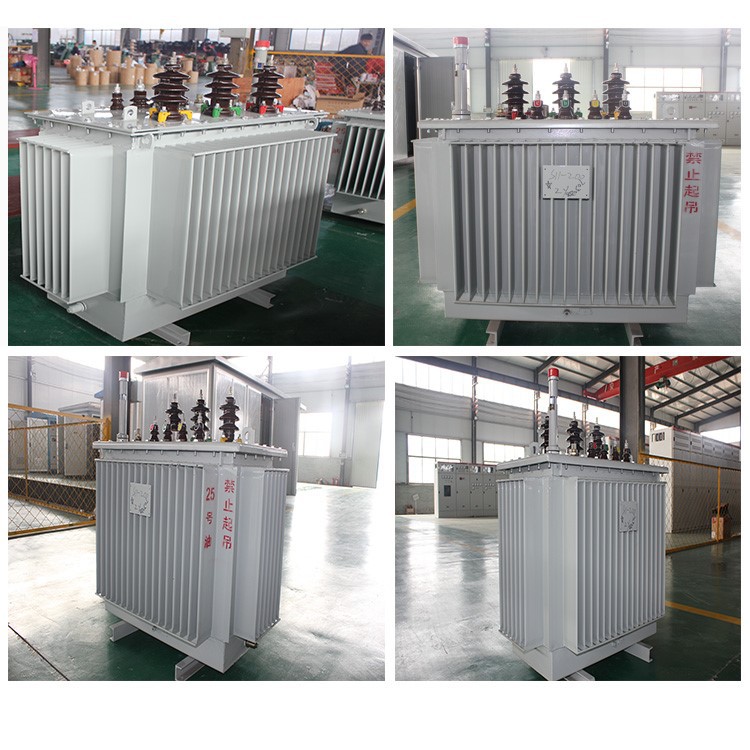

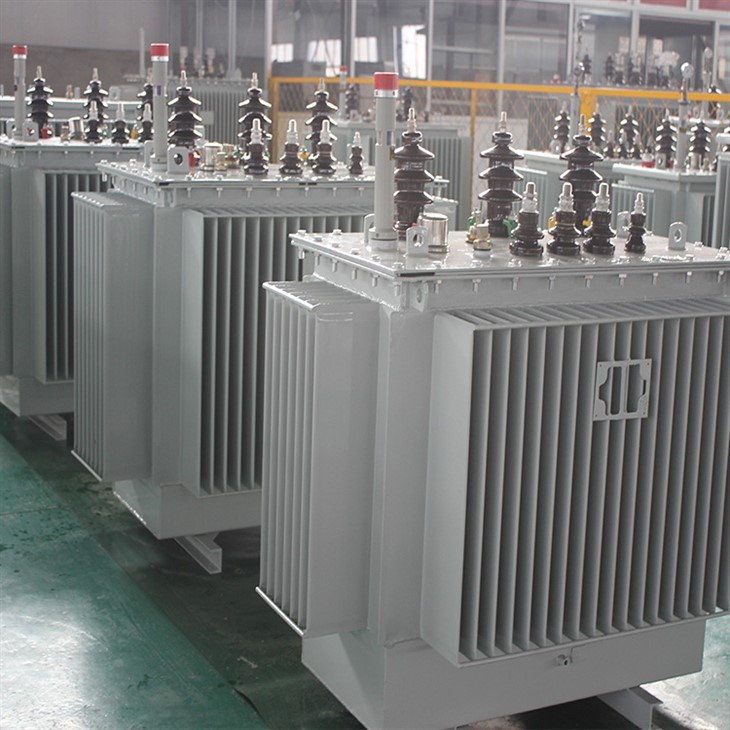

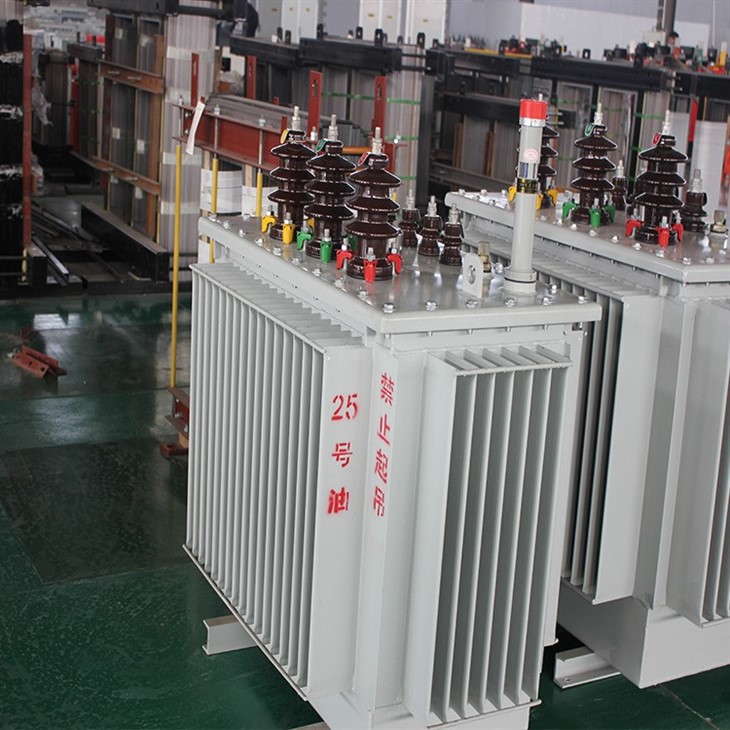

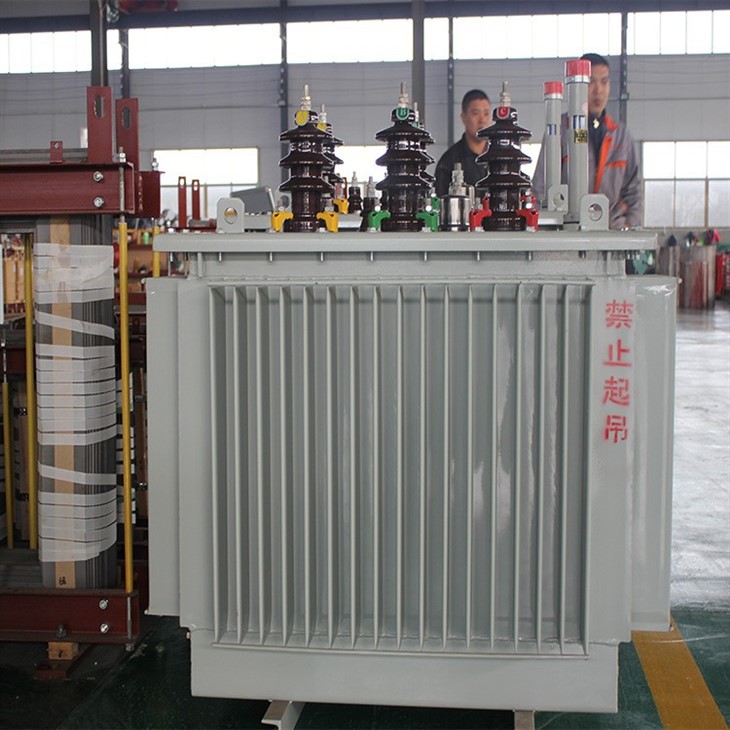

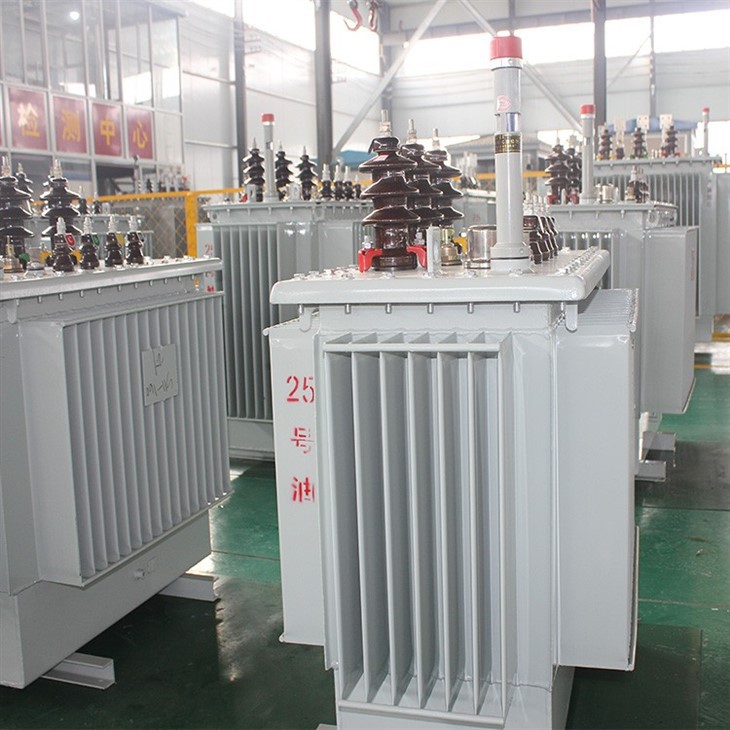

1500 KVA 3 Phase Power Distribution Transformer

1500KVA Transformer Specifications:
- Three-phase power distribution transformer with a capacity of 1500 KVA
- High-quality insulation materials that provide excellent resistance to moisture and other environmental factors
- Efficient oil cooling system to maintain optimum temperature and prolong transformer lifespan
- Built to withstand high temperatures and varying load conditions
- Available in different voltage configurations to suit your specific requirements

PRODUCT PARAMETERS:
Power Rating: 1500 KVA
Input Voltage: 11 KV
Output Voltage: 400 V
1500kva Transformer Impedance: 4%
1500kva Transformer Current: 78.7A/2165.1A
Frequency: 50Hz
Cooling: ONAN/ONAF/ODAF
Type: Oil-Immersed, Air-Cooled
1500kva Transformer Weight:3450kg
1500kva Transformer Dimensions:1850*1360*1740mm

1500kva Transformer Name Plate

PRODUCTION PROCESS:
Our transformer is crafted using top-quality raw materials and advanced manufacturing techniques. It undergoes a thorough process of winding, insulation, core assembly, tank fabrication, and final assembly to ensure optimal performance, longevity, and reliability.

TESTING EQUIPMENT:
Our transformer is subjected to rigorous testing processes to ensure that it meets all industry standards and customer requirements. We use advanced testing equipment such as Partial Discharge Testing, Transformer Ratio and Polarity Tests, and Oil BDV tests to guarantee optimal performance.

ORDERING GUIDE AND NOTES:
To order our 1500 KVA 3 Phase Power Distribution Transformer, kindly provide us with the following details:
- Power Rating
- Input Voltage
- Output Voltage
- Type of cooling required
- Frequency
NOTES:
- Our transformer comes with a 2-years warranty.
- Delivery time may vary based on the quantity ordered.
- Transportation and installation charges may apply.

Experience uninterrupted power with our 1500 KVA 3 Phase Power Distribution Transformer. Trust us for quality, reliability, and consistency.
