Introduction

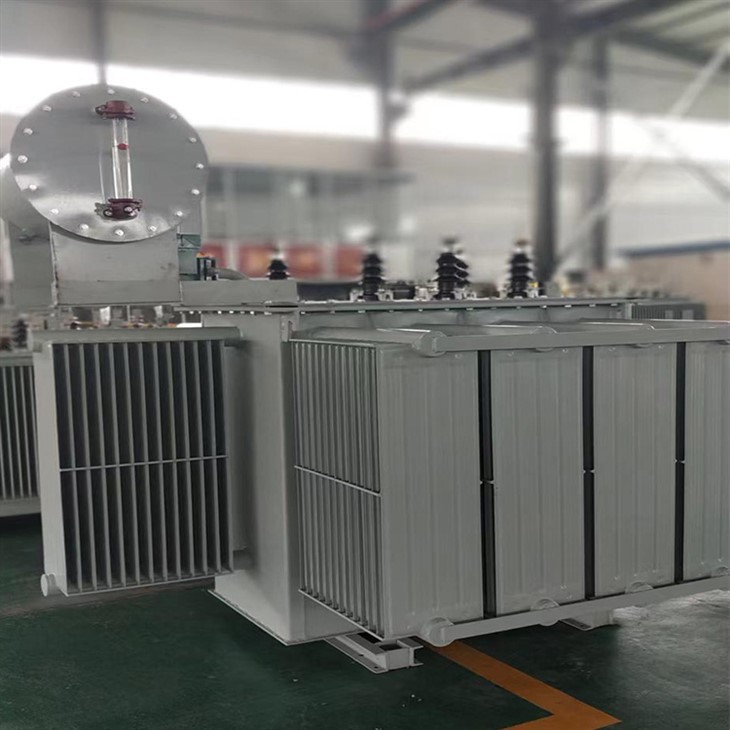

Our 20MVA transformer is a highly efficient and reliable equipment that is used for power transmission and distribution in various industries. It is designed and manufactured to meet the highest industry standards and specifications.
Product Advantages
1. High Efficiency: The transformer uses the latest technology to ensure the highest energy efficiency, which results in lower energy consumption and operational costs.
2. Low Maintenance: The transformer is designed to require minimal maintenance, which reduces the downtime and improves the overall reliability of the equipment.
3. Compact Size: The transformer is designed to be compact, which makes it easier to transport, install and operate.
4. Customizable: The transformer can be customized to meet the specific requirements of our customers, which ensures maximum performance and efficiency.
5. High-Quality Materials: The transformer is made of high-quality materials, which ensures that it is durable and can withstand harsh environmental conditions.
Product Parameters
|
KVA Rating |
12/16/20 MVA |
|
Phases |
3-Phase |
|
Primary Voltage |
115000 VOLTS |
|
Secondary Voltage |
13800/7967 VOLTS |
|
Frequency |
60Hz/50Hz |
|
Temperature Rise |
55°/65C |
|
Forced Air (Fans) |
Yes |
|
Cooling Method |
ONAN/ONAF/OFWF |
|
Standards |
IEC 60076 |
|
Tap Changer |
±2.5% Taps |
|
Windings Material |
Copper |
|
Efficiency |
Standard |
|
Insulation Fluid |
Mineral Oil |
|
20mva transformer dimensions |
as per final products |

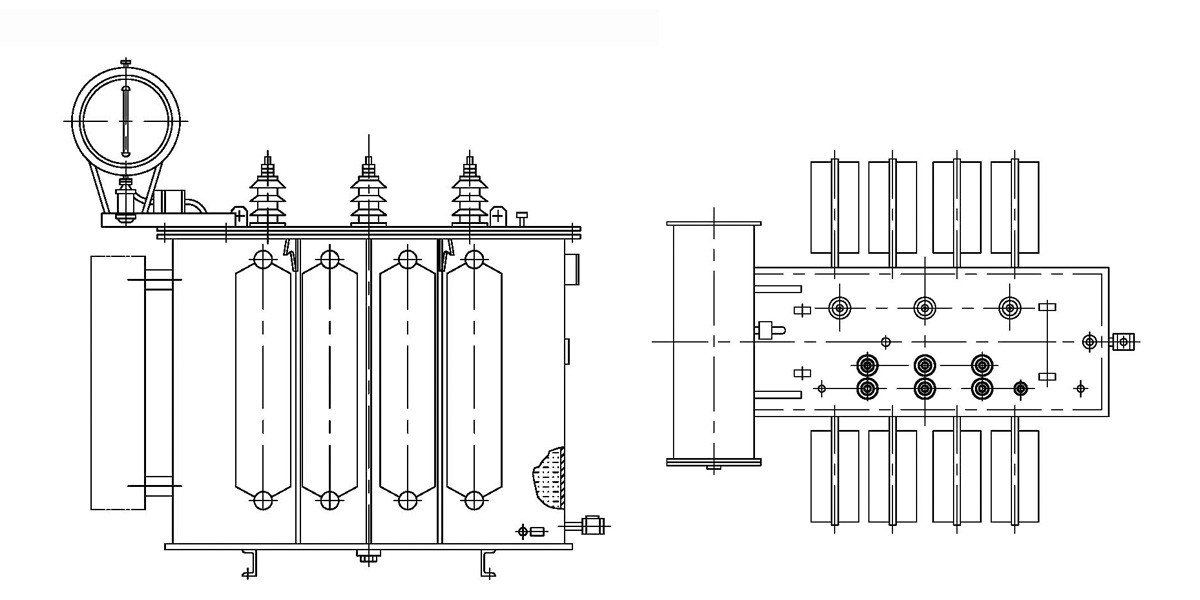

Product Drawings
Our 20MVA transformer is designed and manufactured to the highest standards, as shown in the product drawings.

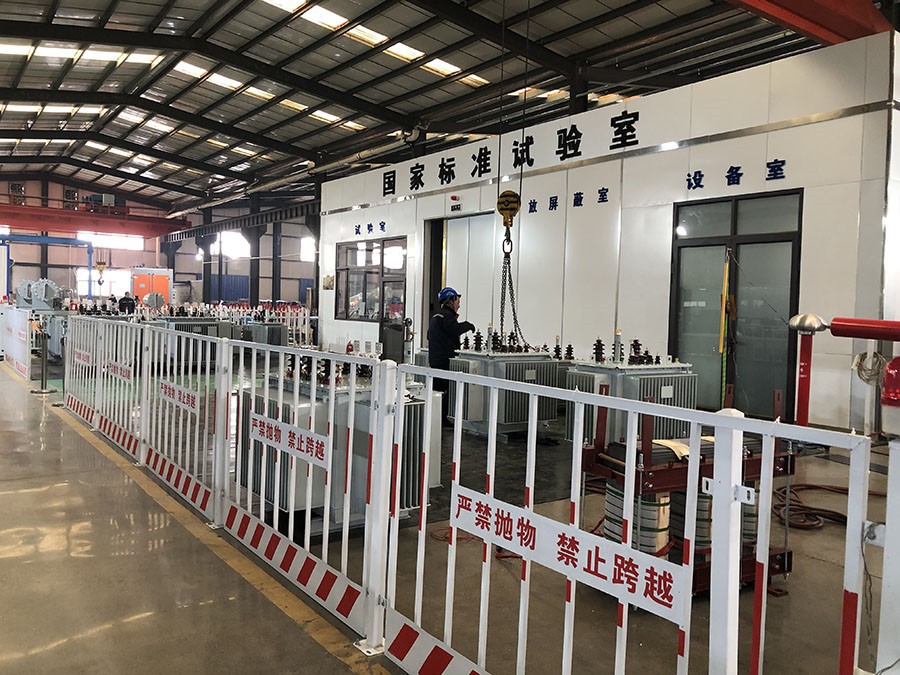

Product Testing
Our transformer is subjected to rigorous testing and inspection processes to ensure that it meets the highest quality standards and specifications. We use advanced testing equipment and methods to perform various tests, such as the temperature rise test, sound level test, and insulation resistance test.
Product Certification
Our transformer is certified to meet various international standards and certifications, such as ISO 9001 and IEC 60076. We believe that these certifications demonstrate our commitment to providing our customers with the best products possible.
