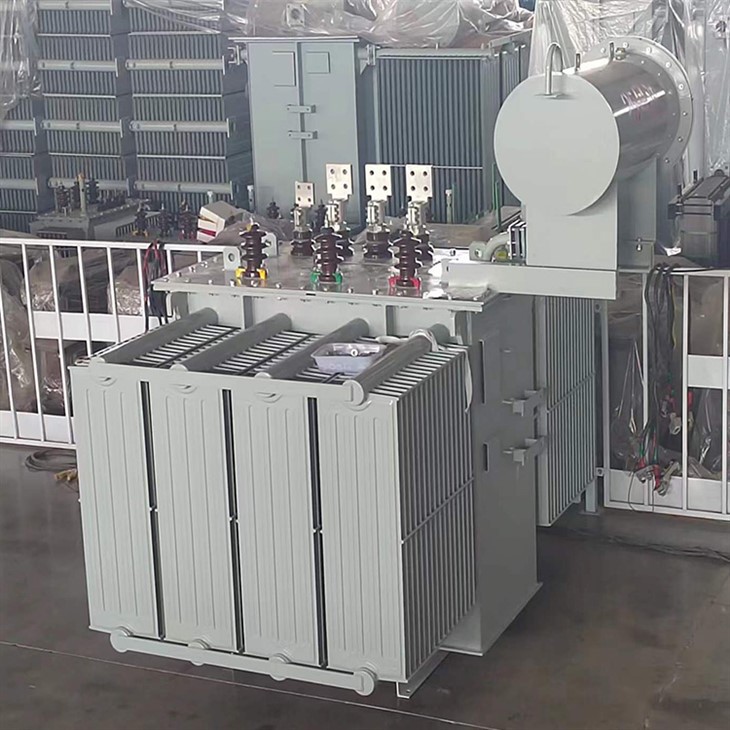

2500 KVA Distribution Transformer
Model:S-2500/6
Rated Capacity:2500kVA
Rated Primary Voltage:6kV
Rated Secondary Voltage:0.69kV
Rated Frequency:50Hz
Impedance Voltage:5%
Vector Group:Dyn11
Features
Product Parameters:
|
No. |
Item |
Unit |
Offered |
|
1 |
Model |
1 |
S-2500/6 |
|
2 |
Rated Capacity |
kVA |
2500 |
|
3 |
Rated Primary Voltage |
kV |
6 |
|
4 |
Rated Secondary Voltage |
kV |
0.69 |
|
5 |
Rated Current (H.V. / L.V.) |
A |
240.57/2091.910 |
|
6 |
Rated Frequency |
Hz |
50 |
|
7 |
Impedance Voltage |
% |
5 |
|
8 |
Vector Group |
/ |
Dyn11 |
|
9 |
Tapping Type |
/ |
off-load |
|
10 |
Tapping Range |
% |
±2*2.5% |
|
11 |
No-load Loss |
W |
3.30 |
|
12 |
Load Loss |
W |
21.20 |
|
13 |
No-load Current |
% |
0.4 |
|
14 |
Insulation Class |
/ |
A |
|
15 |
Cooling Method |
/ |
ONAN |
|
16 |
Noise Level |
dB |
≤60 |
|
17 |
Dimension |
mm |
2200*2230*2180 |
|
18 |
Weight |
kg |
5000 |
Product Features:
High-efficiency design saves energy and reduces costs
High-quality materials ensure long-term reliability and durability
Comprehensive protection mechanisms ensure safe and stable operation

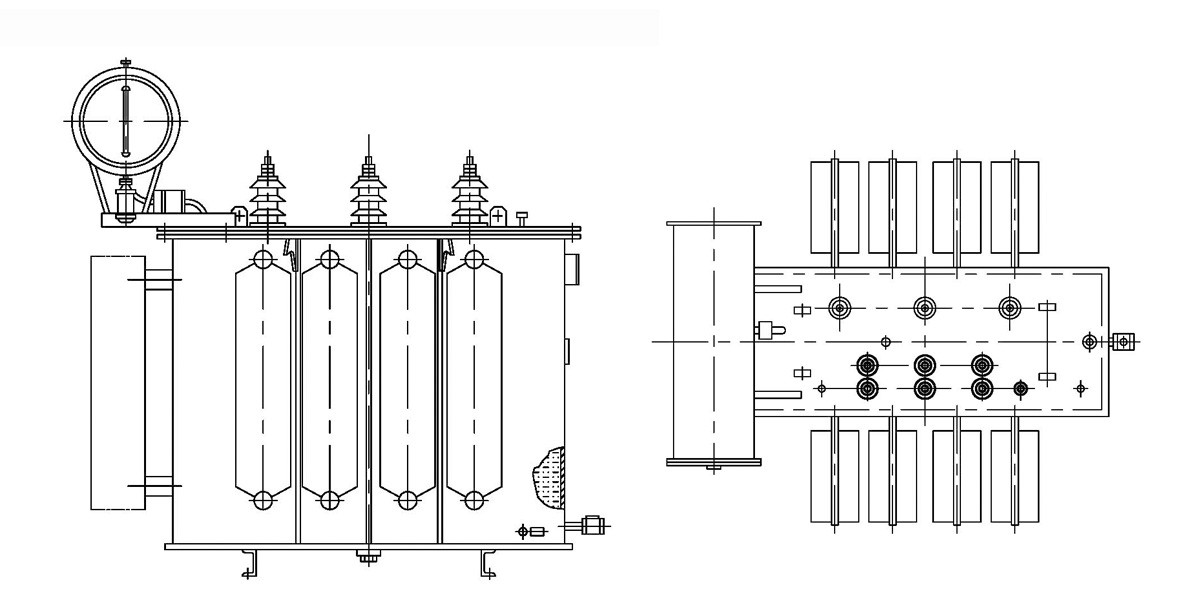

Product Drawings:
Detailed dimensional drawings and schematic diagrams are available upon request

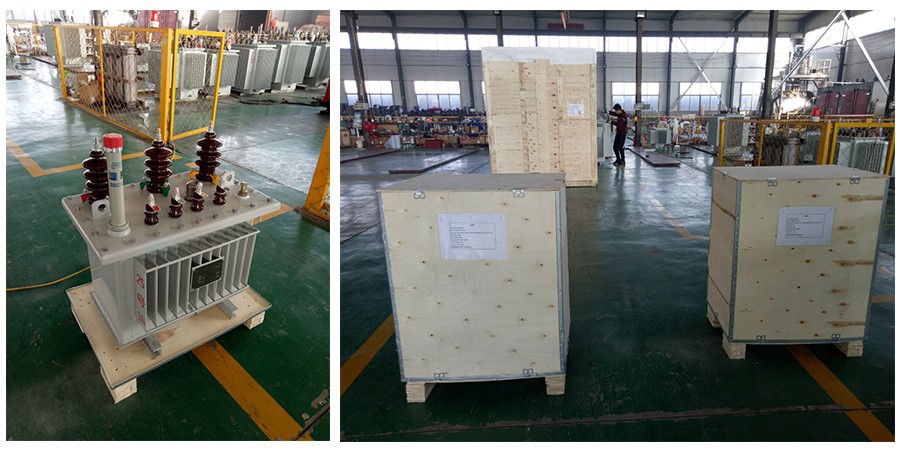

Product Packaging:
Standard export packaging ensures safe transportation and delivery
Customized packaging options are also available upon request

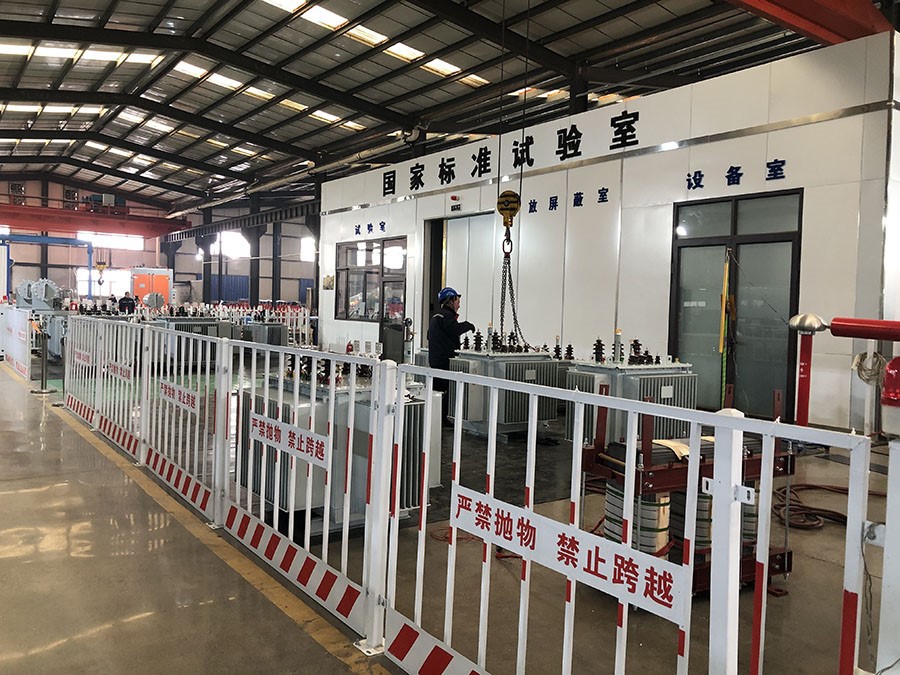

Product Testing:
Each 2500 KVA Distribution Transformer undergoes rigorous testing to ensure optimal performance and quality
2500 KVA Distribution Transformer Tests include no-load test, load test, temperature rise test, and insulation resistance test

Our 2500 KVA Distribution Transformer is a reliable and efficient solution for your power distribution needs. With a high-quality build and comprehensive protection mechanisms, this transformer ensures safe and stable operation. Our extensive testing procedures ensure top-notch performance and quality, so you can rely on our product for years to come. Contact us today for more information on this product and our other power distribution solutions.
