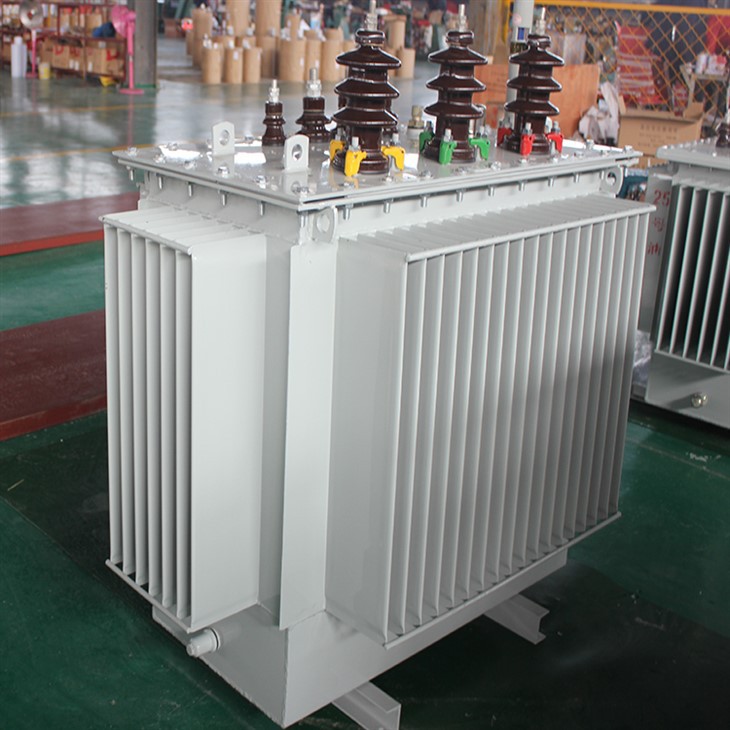

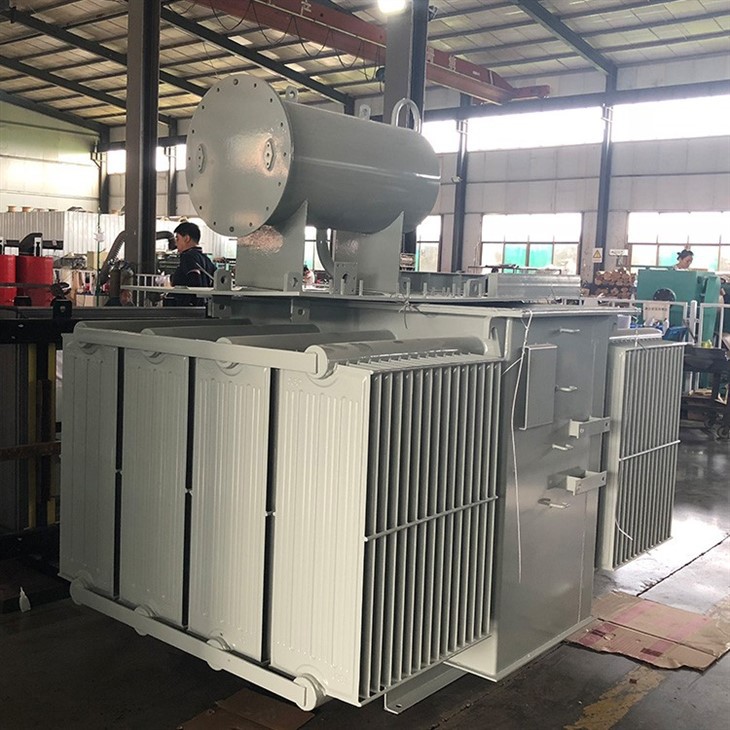

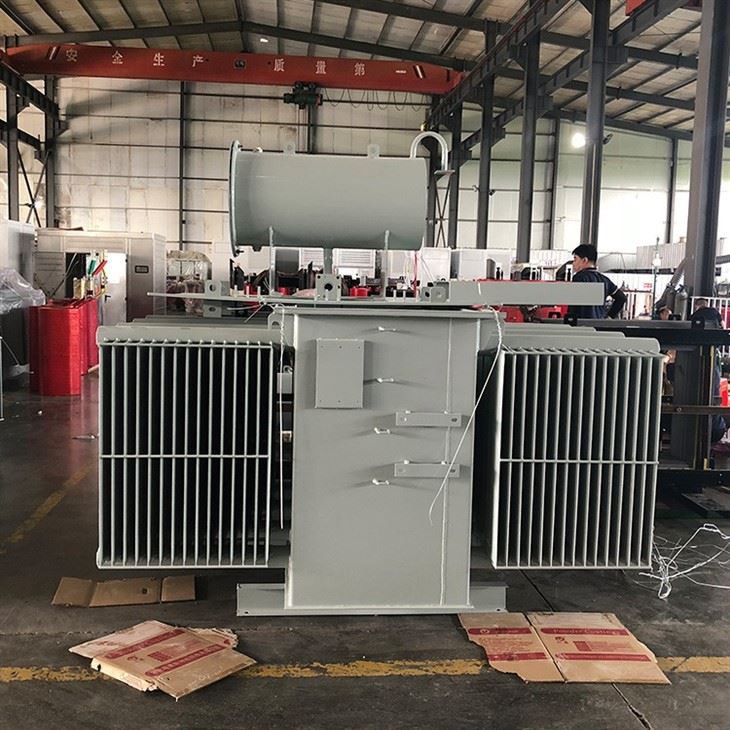

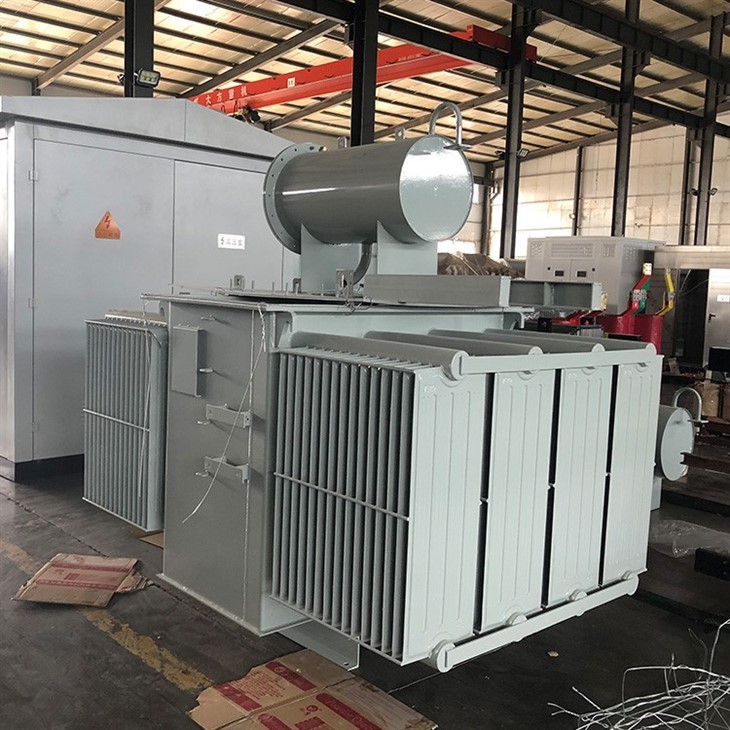

300 KVA Oil Filled Transformer

Product Parameters:

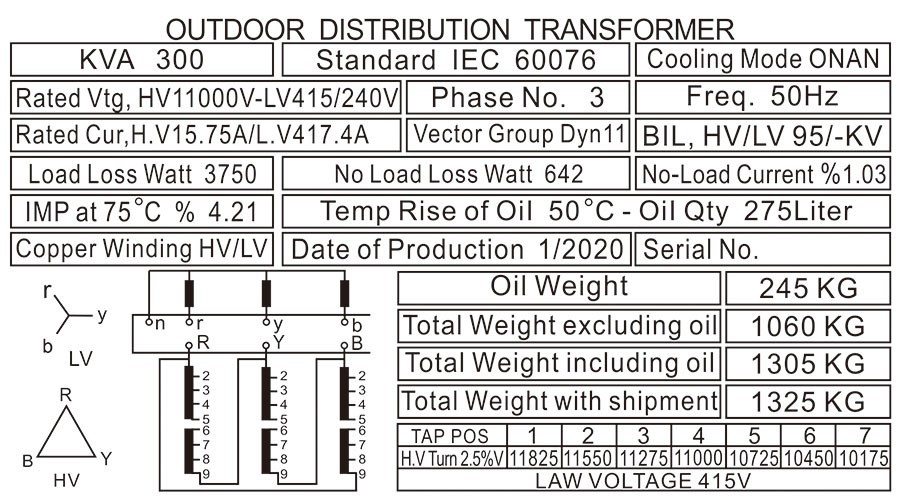

Product Nameplate:

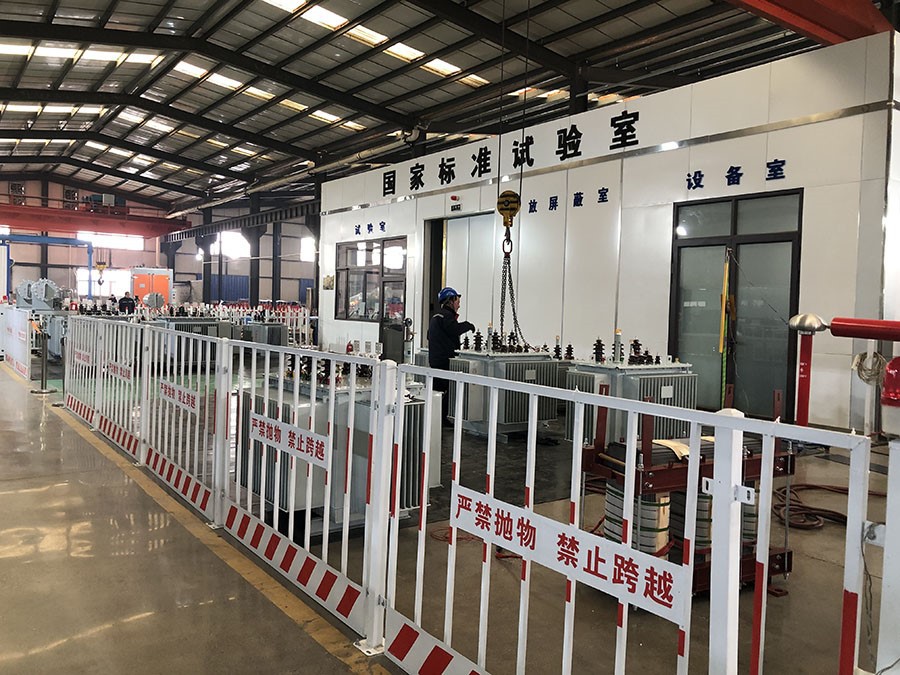

Product Factory Testing:
- Routine Tests: Insulation Resistance, Winding Resistance, Impedance Voltage, and Load Loss and No-Load Loss
- Type Tests: Impulse Voltage, Temperature Rise, and Short-Circuit

Product Packaging:
- The transformer is packaged with suitable materials to protect and prevent damage during transportation.
- The transformers are shipped with a moisture-proof and dust-proof coating that is durable and moisture resistant.
- All packaging materials comply with international packaging standards to ensure safe transportation and storage of the transformer.

Product Construction:
1.Core
Best quality low loss cold rolled grain-oriented electrical steel lamination.

2.Winding
Fully insulated by class A insulation that withstand the highest voltage 12.5 KV.

3.Main Tank
4.Gaskets & Joints
All gaskets be with cork or similar material as base, bounded by oil resisting synthetic material or rubber. Gaskets of plain synthetic materials not permissible.

5.Fittings
Conservator Tank
Lifting Lugs
Breather
Oil Level Gauge:
Main Tank drain valve
Conservator
Thermometer
Earth Terminals
