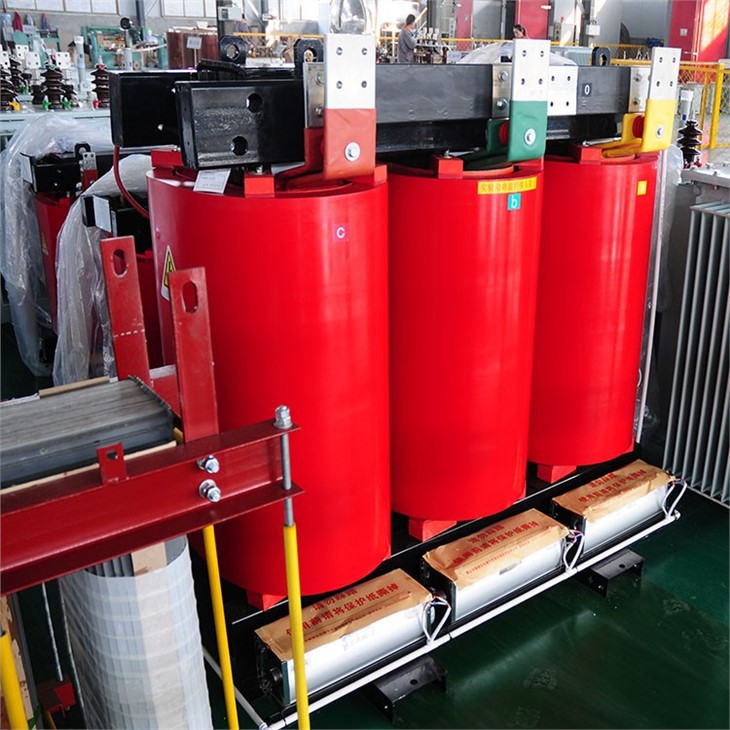

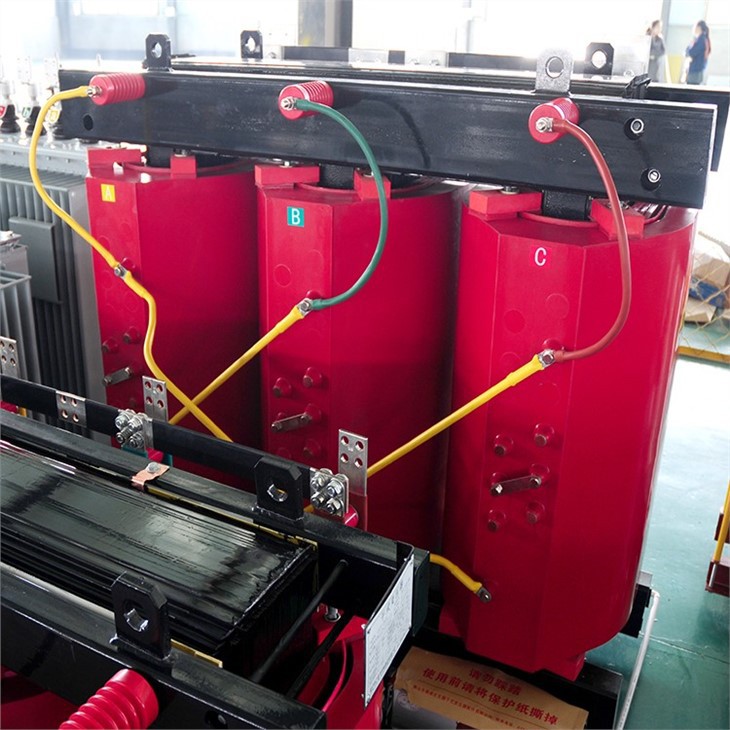

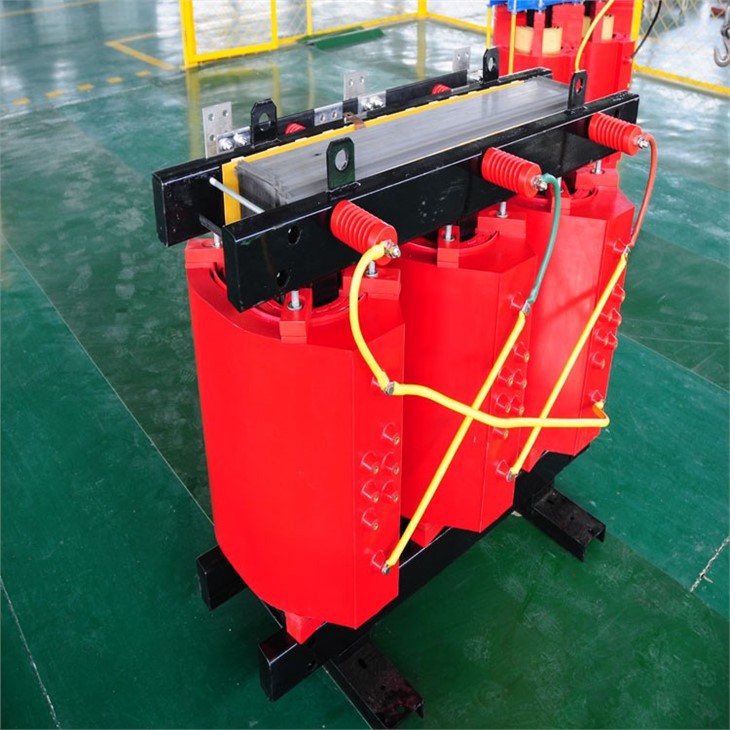

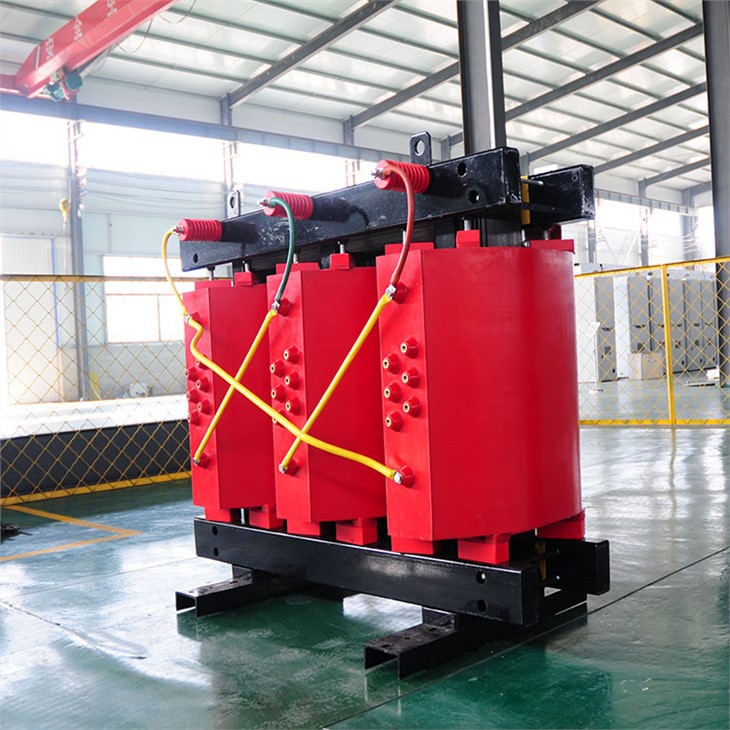

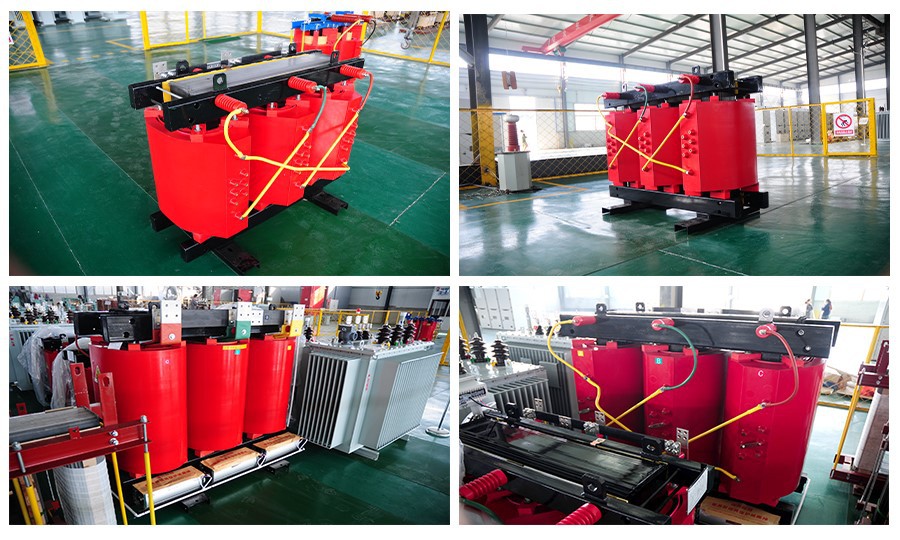

100 KVA Dry Type Transformer

2-YEARS WARRANTY

Our sales manager Grace with 10-years distribution transformer exporter experience

Will Help You Make Technical Solutions and Shipment Solutions

Contact Grace Now!

100 kVA Dry Type Transformer Specification

The 100 kVA dry type transformer is a highly efficient and reliable power transformer designed for use in industrial and commercial applications. This transformer is highly popular due to its many advantages over traditional liquid-filled transformers, including higher efficiency, lower maintenance requirements, and increased safety.

One of the main advantages of the 100 kVA dry type transformer is its high efficiency. This is due to the lack of liquid insulation, which reduces heat losses and allows the transformer to operate at higher temperatures. As a result, the transformer is able to deliver more power with less energy consumption, which can result in significant cost savings over time. Additionally, the dry-type transformer is highly resistant to short circuits, ensuring a high level of reliability in even the most demanding applications.

However, there are also a few drawbacks to consider when using a 100 kVA dry type transformer. One of the main disadvantages is that the transformer tends to be larger and heavier than its liquid-filled counterparts. This can make it difficult to install, especially in smaller or more confined spaces. Additionally, the dry-type transformer tends to be more expensive than traditional liquid-filled transformers, which can be a limiting factor for some applications.

100 kVA Dry Type Transformer Parameter

1. Input Voltage: 10kV

2. Output Voltage: 0.4kV

3. Power Rating: 100 kVA

4. Frequency: 50-60Hz

5. Insulation Class: F/H

6. Cooling Type: Natural Air Cooling

7. System Efficiency: 95%

8. Enclosure Protection Class: IP20

9. Operating Temperature: -5°C ~ +40°C

10. Noise Level: <65 dB

11.100 kVA Dry Type Transformer Dimensions：900*700*1100mm

How Much Is 100 kVA Transformer？

In terms of pricing, a 100 kVA dry type transformer price can range anywhere from $10,000 to $30,000, depending on various factors such as efficiency, size, and certification requirements.

Overall, the 100 kVA dry type transformer is a highly efficient and reliable power transformer that offers many advantages over traditional liquid-filled transformers. While it may have a few drawbacks including size and cost, the benefits of this transformer typically outweigh the disadvantages, making it a preferred choice for many industrial and commercial applications.

1. How Many Amps Can A 100 kVA Transformer Handle?

The rated current of a 100kva transformer is 144A. During normal operation, the load should not exceed the rated current of the transformer. The consequences of over-standard operation are insulation aging, transformer heating, and finally insulation damage, and there is a risk of short circuit. The circuit through which high-voltage DC passes is called a DC circuit, which is a closed conductive circuit composed of a DC power supply and a resistor. In this DC-DC circuit, a constant electric field is formed. The rated output of a 100kva transformer is 144A, and the normal load cannot exceed this rating. For a 380V three-phase asynchronous motor, its rated current is about twice the power of the motor, and it can be used with a 70kw motor.

2.How Many Houses Can A 100 kVA Transformer Handle?

It depends on your users electricity load. For a 100KVA transformer, the output current of each phase is 150A. If the maximum power consumption of each household is 1000W, then the current of a household is 4.5A, 150/4.5=32 households, 32 households * 3 phases = 96 households, so when the transformer is fully loaded, it can supply 96 households at most, but under normal circumstances, a 100KVA transformer only uses 0.8 of the total capacity, which is 80KVA, and 80 households use electricity
