1500 KVA Cast Resin Transformer

Product Description:
The 1500 KVA cast resin transformer is a high-performance transformer used in a variety of industrial applications. This transformer features a cast resin insulation system that provides excellent thermal and electrical characteristics, making it an ideal choice for harsh environments. It is designed to offer a reliable, low-maintenance solution that ensures maximum uptime and long life.

Product Parameters:
Voltage: 10-33 kV
Power rating: 1500 KVA
Frequency: 50 Hz
Cooling Method: AN or AF
Windings: Copper or Aluminum
Material: Resin Cast

Product Structure:

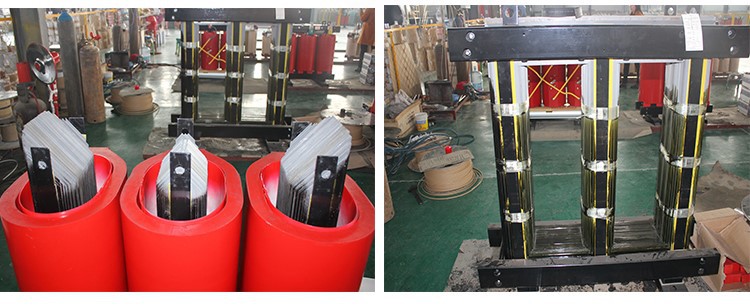

1. Iron core
Made up of high quality cold rolled silicon steel sheet that is for electric engineering
2. Low voltage winding
Made up of a whole copper foil coil
3. High voltage winding
Made up of sectional type vacuum casting double glass-fiber covered coils

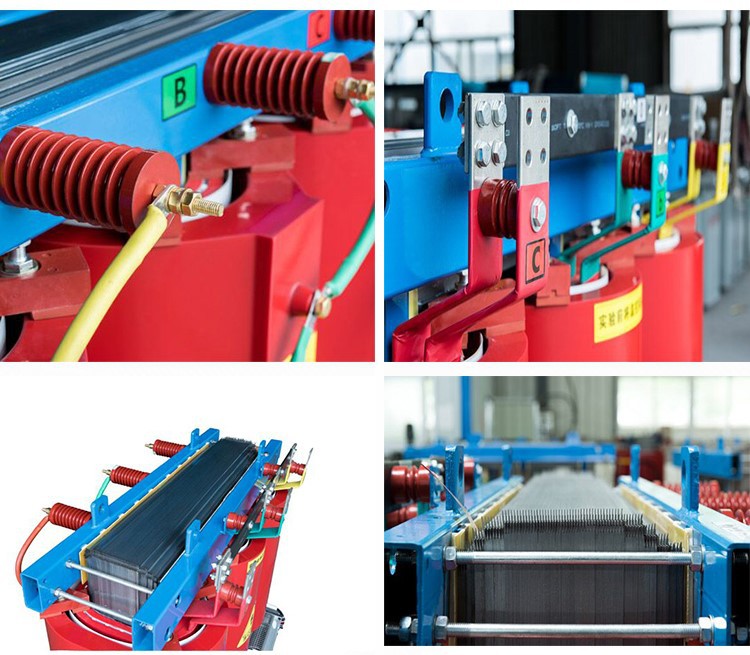

4. Low voltage terminal
5. High voltage terminal
Variable wiring mode, which is convenient for installation
6. Resilient pad
Avoid mechanical resonance, and reduce noise
7. Clamp and trolley
The wheel of trolley can rotates to 90°
It is convenient for vertical and horizontal movement.
8. Packing type resin insulation
With advantages of damp proof, anti-damp and hot, flame-retardant, and self-extinguish.

Product Production Process:
The production process of the 1500 KVA cast resin transformer involves several steps.
The first step is to design and engineer the transformer to meet the specific requirements of the application.
The next step is to cast the resin to create the transformer core and insulating material.
Once the resin has cured, the windings are added, and the transformer is assembled.
The final step is to test and quality check the transformer to ensure it meets all the required standards and specifications.

Why Choose us?
- High-quality materials
- Advanced technology
- Efficient performance
- Customized solutions
- Competitive prices
- Reliable delivery
