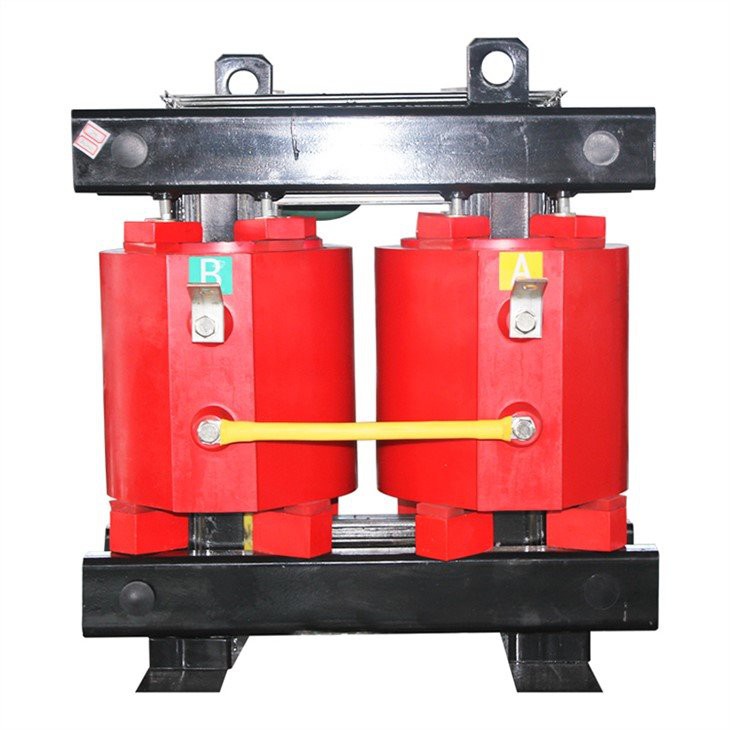

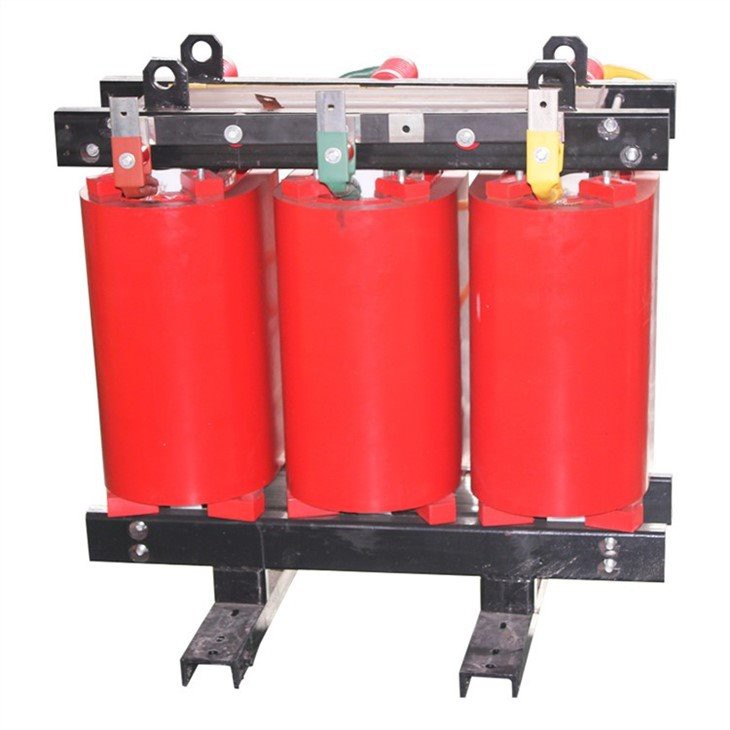

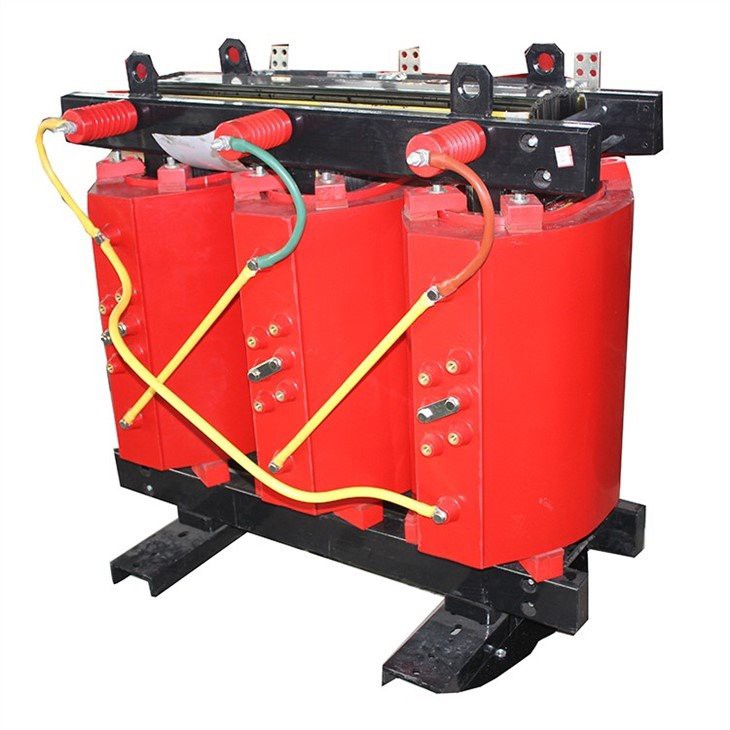

20KV Outdoor Cast Resin Dry Type Electrical Transformer

Type:20KV Dry type Transformer
MOQ:1pc
Warranty:2 years
OEM/ODM Service:Yes
Certification:ISO 9001
Shipping:Sea
Payment:T/T

Send Inquiry

Features

Products Description

2-Years Warranty

Our Sales Manager Grace with 10-years Transformer Export Experience

20KV Outdoor Cast Resin Dry Type Electrical Transformer Technical Parameter:

（KVA）Rated capacity	Voltage Combination			Connection Group Symbol	No-load Loss（W）	Load Loss （W）			No-load Current (%)	Short-circuit Impedance（%）
（KVA）Rated capacity	High Voltage (KV)	Tapping ranges of High Voltage	Low Voltage(KV)	Connection Group Symbol	No-load Loss（W）	130℃（B）（100℃）	155℃（F）（120℃）	180℃（H）（145℃）	No-load Current (%)	Short-circuit Impedance（%）
50	20 22 24	±2.5% ±5%	0.4	Dyn11 Yyn0	340	1160	1230	1310	2	5.0
100					540	1870	1990	2130	1.8
160					670	2350	2470	3460	1.8
200		±2X2.5% ±5%			730	2770	2940	3140	1.8
250					840	3220	3420	3660	1.8
315					970	3850	4080	4360	1.8
400					1150	4650	4840	5180	1.1
500					1350	5460	5790	6190	1.1
630					1530	6450	6840	7320	1
800					1750	7790	8260	8840	1
1000					2070	9220	9780	10400	0.85
1250					2380	10800	11500	12300	0.85
1600					2790	13000	13800	14800	0.85
2000					3240	15400	16300	17500	0.7	8.0
2500					3870	18200	19300	20700	0.7
2000					3240	16800	17800	19100	0.7
2500					3870	20000	21200	22700	0.7

20KV Outdoor Cast Resin Dry Type Electrical Transformer Advantages:

▶ Safe and reliable, low noise, fire-proof and explosion-proof. Easy maintenance and low energy consumption.

▶ Moisture-proof and corrosion-resistant. Suitable for working in extreme environmental conditions, and can be put into operation directly without drγing process after outage.

▶ Low partial discharge and long operation life.

▶ According to customer demand, configurable enclosure and safe.

▶ Widely used in the high-way, subways, office buildings, stations, airports, high-rise buildings, residential quarters, commercial centers, mines and other places.
