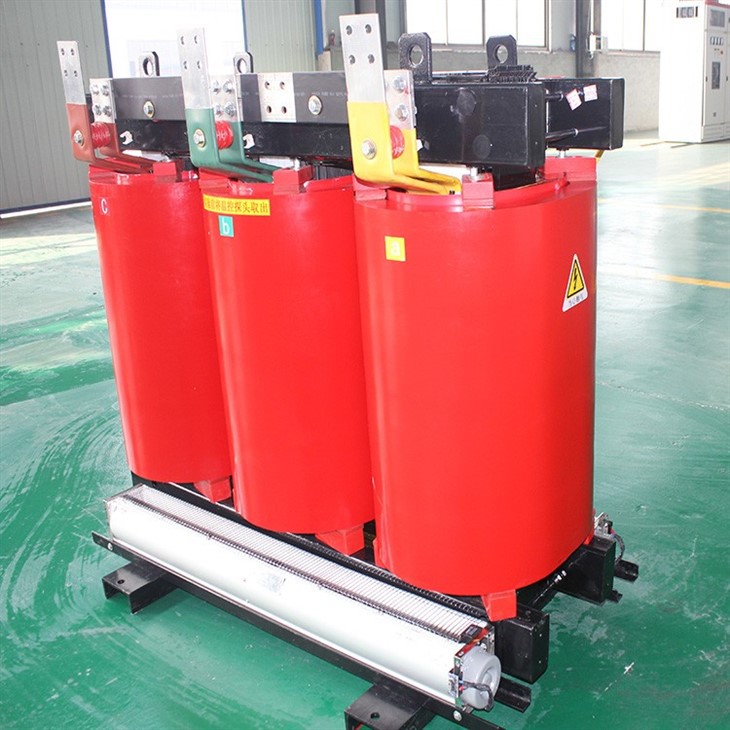

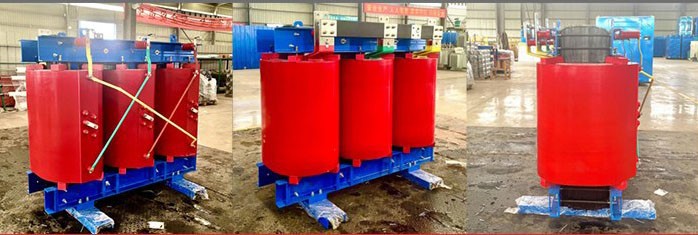

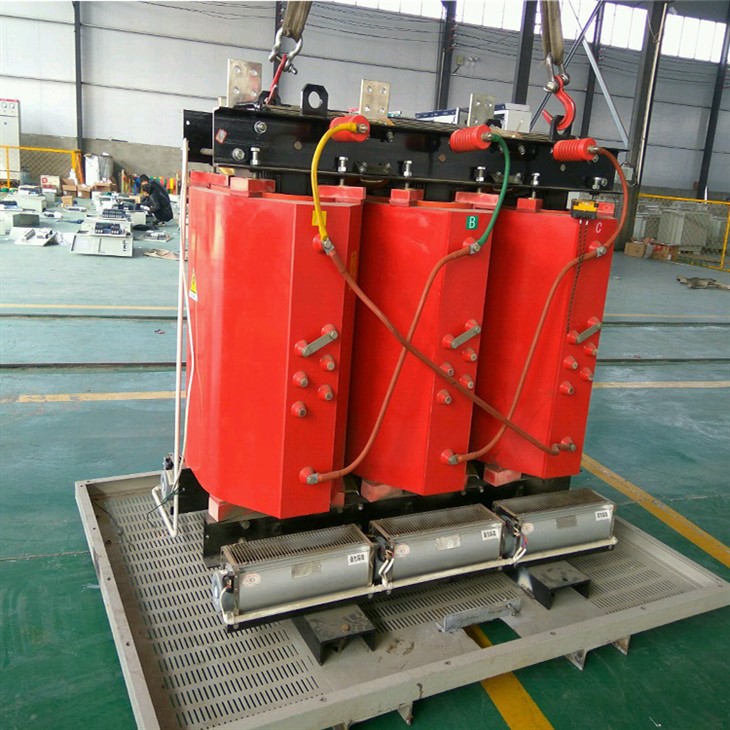

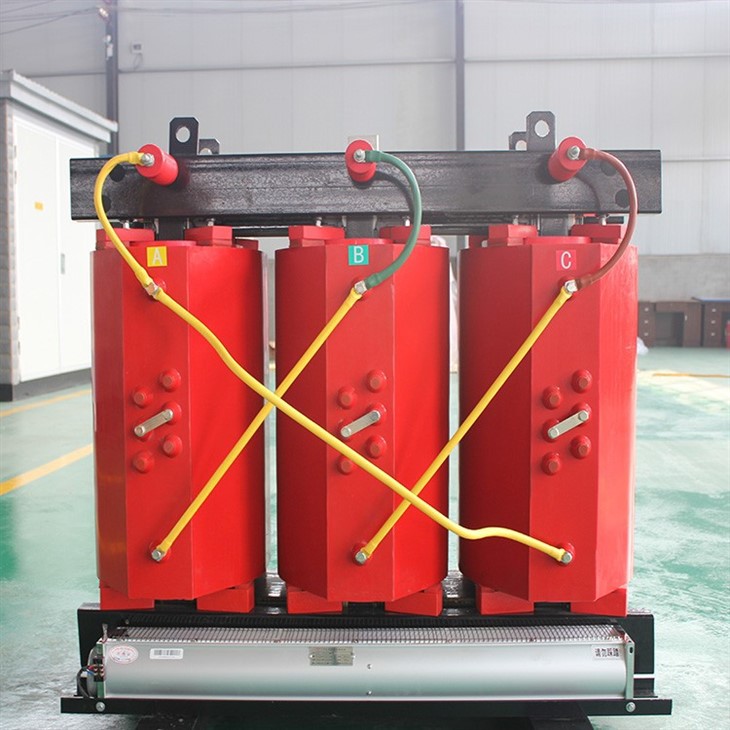

300KVA Dry Type Transformer

Product Parameters:
Power Rating: 300KVA
Input Voltage: 11KV
Output Voltage: 400V
Frequency: 50Hz
Phase: Three
Cooling Type: Dry Type
Insulation Class: Class F
Protection Class: IP23
Efficiency: ≥ 98%
Operating Temperature: -10°C to +40°C

Product Details:
Our 300KVA Dry Type Transformer is designed to meet high-performance standards for industrial and commercial applications. This product features a three-phase, 11KV input voltage and 400V output voltage, with a frequency of 50Hz. The transformer uses Class F insulation material that provides higher thermal resistance, ensuring durability and longer lifespan. It also features an IP23 protection class that shields the transformer from moisture, dust, and dirt.

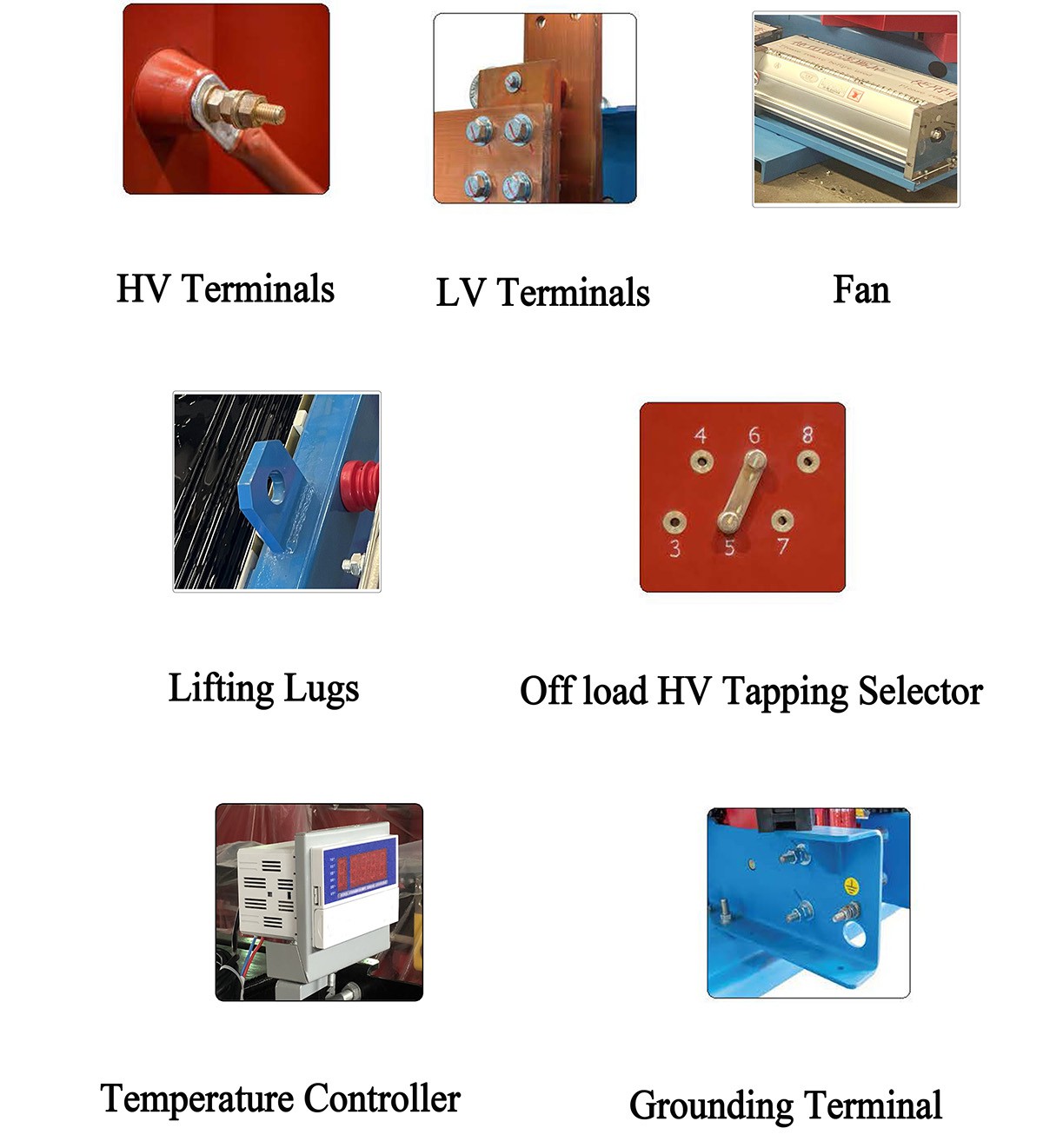

Our transformer is constructed with high-quality core material, which consists of cold-rolled grain-oriented silicon steel sheets that are tightly stacked. The winding structure is made up of copper or aluminum, ensuring low resistance, minimum power loss, and high efficiency. The transformer is also equipped with a thermocouple and intelligent temperature control system that prevents overheating.

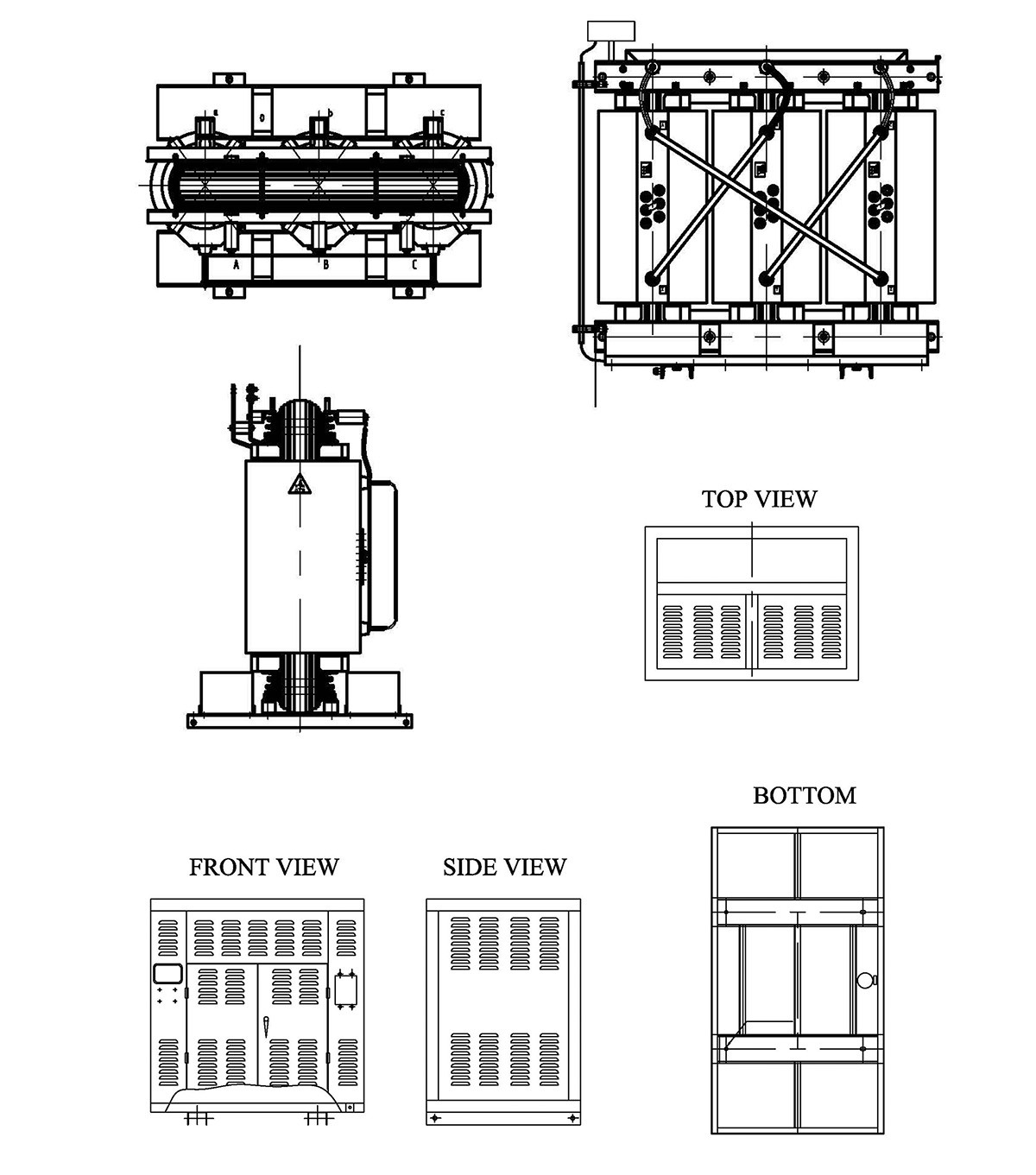

Product Drawings:
For detailed specifications and installation requirements, please refer to our product drawings.

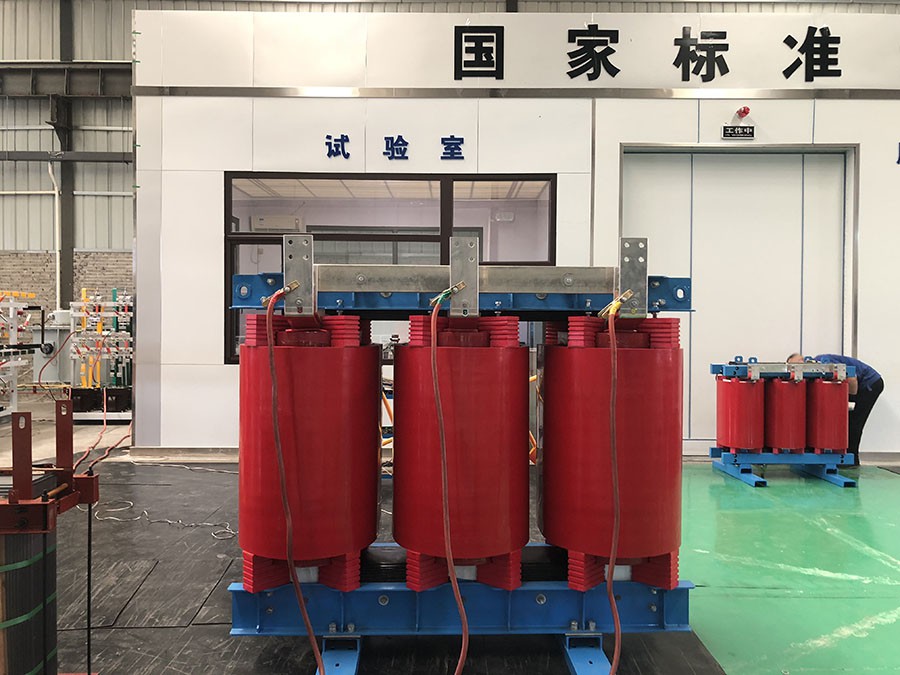

Product Testing:
Our 300KVA Dry Type Transformer undergoes rigorous testing to ensure that it meets safety, performance, and reliability standards. Our testing includes the following:
Dielectric strength test
Impedance voltage test
No-load current test
Load loss and impedance voltage test
Insulation resistance test
Temperature rise test
Short-circuit withstand test

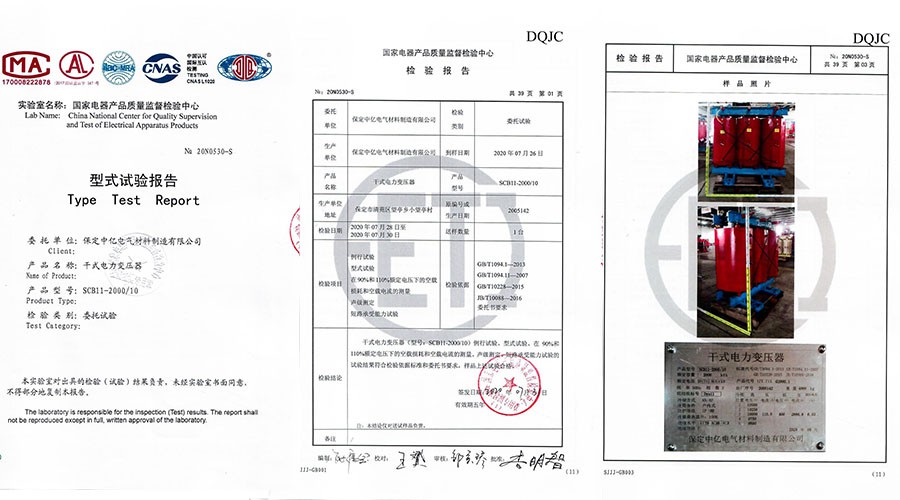

Product Reports:
Our transformers are certified by international standards organizations such as ISO and CE. Our product reports include the following:
CE certificate report
ISO 9001:2015 certificate report
Test reports conducted by authorized third-party organizations

FAQ:
1. What is the lead time for the delivery of the transformer?
The lead time varies depending on the order quantity and availability of stock. For more information, please contact us.
2. Does the transformer come with a warranty?
Yes, we offer a warranty on all of our products. For more information about our warranty policies, please contact us.
3. Can the transformer be customized to meet specific requirements?
Yes, we offer customized solutions tailored to our customers' specific needs. Please contact us to discuss your requirements.

In conclusion, our 300KVA Dry Type Transformer is a high-quality product that offers excellent performance, reliability, and durability. Designed for industrial and commercial applications, it is certified by international standards organizations and undergoes rigorous testing. For more information about our products or to discuss your specific requirements, please contact us.
