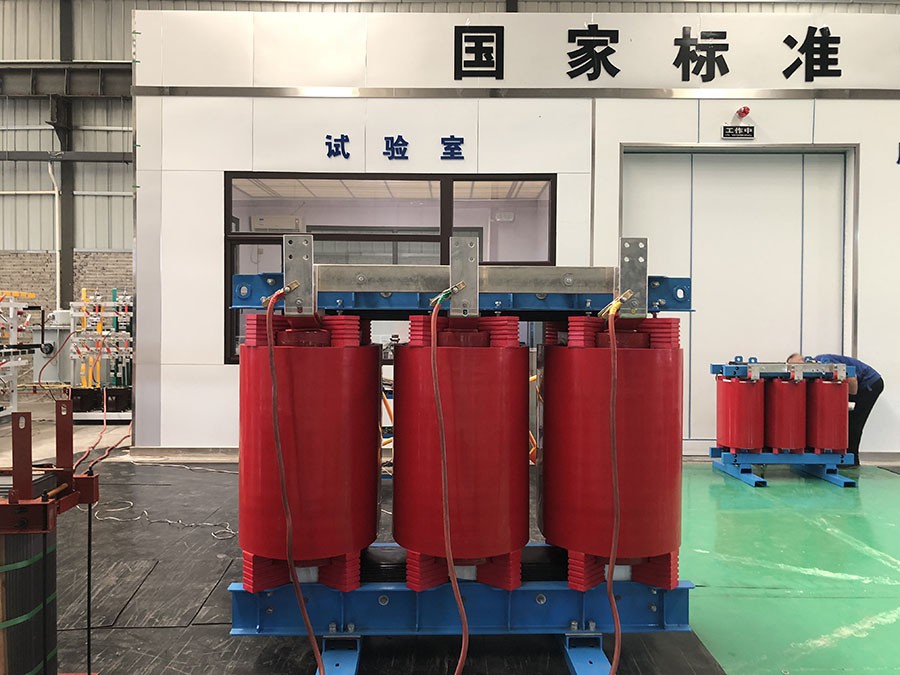

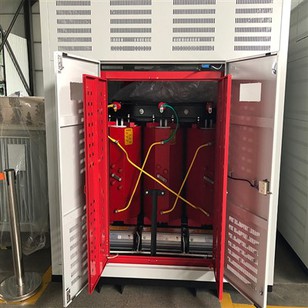

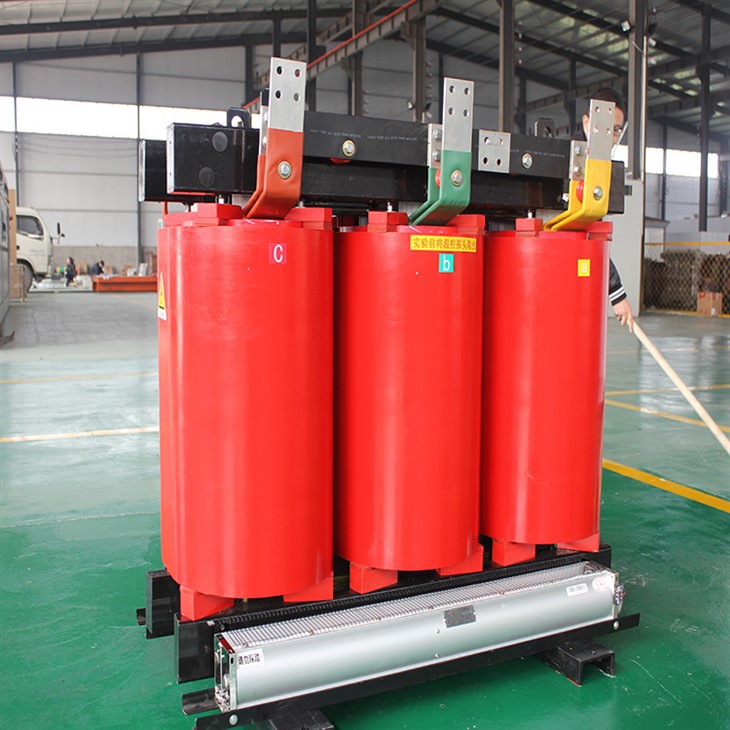

4 MVA Dry Type Transformer

Product Specifications:
The 4 MVA Dry Type Transformer is a reliable and efficient solution for power distribution and transmission systems. It has a power rating of 4 MVA and operates at an input voltage of 33 kV and output voltage of 660 V. The transformer is designed to operate at a frequency of 50 Hz using an air natural cooling method.

- Power Rating: 4 MVA
- Input Voltage: 33 kV
- Output Voltage: 660 V
- Frequency: 50 Hz
- Cooling Method: Air Natural

Product Testing:
The transformer has undergone a range of comprehensive tests to ensure its quality and reliability. These tests include insulation resistance, high voltage, magnetic balance, no-load and load loss, temperature rise, impulse voltage, and noise tests. The results of these tests confirm that the transformer meets all relevant international safety standards and regulations.
- Insulation Resistance Test
- High Voltage Test
- Magnetic Balance Test
- No-load and Load loss test
- Temperature Rise Test
- Impulse Voltage Test
- Noise Test

Product Drawings:

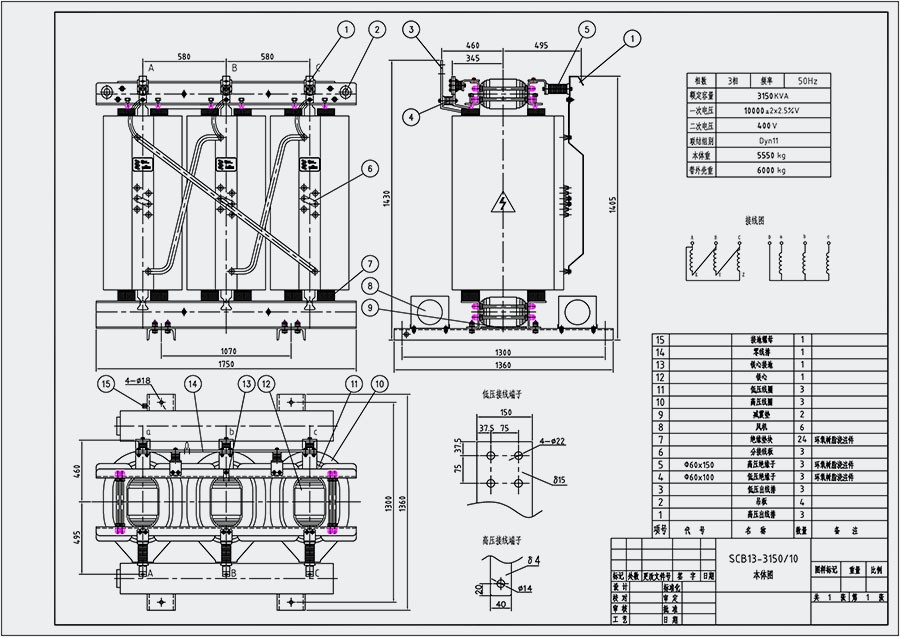

The product comes with a range of technical documentation including a General Assembly drawing and a Schematic Diagram. These documents provide detailed information on the construction and technical specifications of the transformer and are an essential resource for installation, operation, and maintenance.

Overall, the 4 MVA Dry Type Transformer is a reliable and efficient solution for power distribution and transmission systems. It has been designed and manufactured to the highest technical standards and has undergone rigorous testing to ensure its quality and reliability.
