630 kVA Dry Type Step Up Power Transformers
The 630 kVA dry type step up power transformer is a popular choice due to its compact design and ease of installation. It does not require oil for cooling, which makes it safer to use compared to its oil-filled counterparts. Additionally, it is more environmentally friendly since it does not require oil or any other cooling fluids that may contaminate the environment.
Features
2-YEARS WARRANTY
Our sales manager Grace with 10-years distribution transformer exporter experience
Will Help You Make Technical Solutions and Shipment Solutions
Contact Grace Now!
Products Description

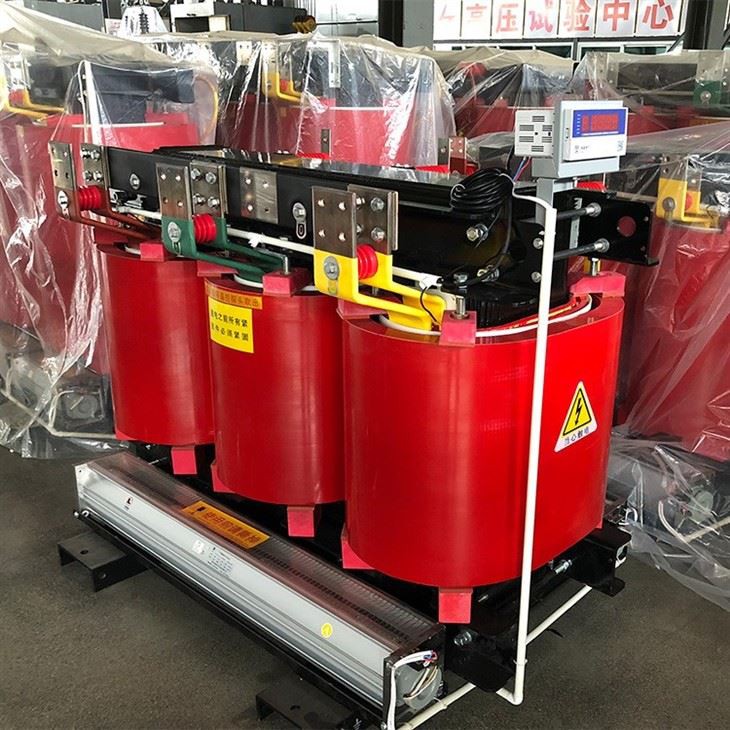

630 kVA Transformer Details
The 630kVA dry type step up power transformer is designed to operate at a frequency of 50Hz or 60Hz and consists of a primary winding, a secondary winding, and a core. The primary winding is connected to a low voltage power source, while the secondary winding is connected to a high voltage output. The core is made up of laminated magnetic sheets that help to increase the efficiency of the transformer.
These transformers are widely used in various applications, including renewable energy systems, power plants, and industrial processes. They are also used in commercial and residential buildings to power high voltage equipment such as air conditioning systems and elevator motors.
630 kVA Transformer Datasheet
Transformer Type | Dry-type |
Dry type transformer ratings | 630 kVA |
Primary Voltage | 11 kV |
Secondary Voltage | 33 kV |
Phases | 3 |
Frequency | 50 Hz |
Impedance Voltage | 5% |
Dry type transformer temperature rise | 80°C |
Cooling | Air Natural (AN) |
Insulation Class | Class F |
Efficiency | >98% |
Weight | 3325 kg |
dry type transformer sizes (L x W x H) | 2330x1250x1840 mm |
Winding Material | Copper |
Windings | Double Layer |
Core Type | Shell |
Core Material | CRGO |
Enclosure Material | Steel |
Protection Class | IP00 |
Transformers Permissible Overloading Rating | Continuous Overload of 50% Above the Rated Current for 1 Hour |
Noise Level | <70 dB |
Ambient Temperature | -5°C to +40°C |
Altitude | Up to 1000 m Above Sea Level |
Standards | IEC 60076, IS 2026, IEEE C57.12.00 |
Manufacturer | Zhongyi |

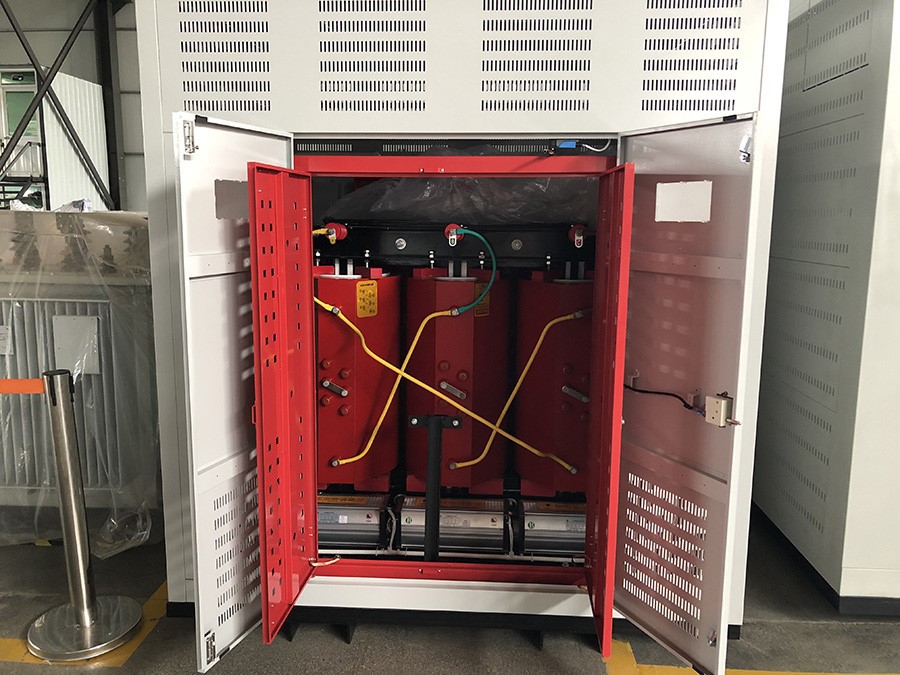

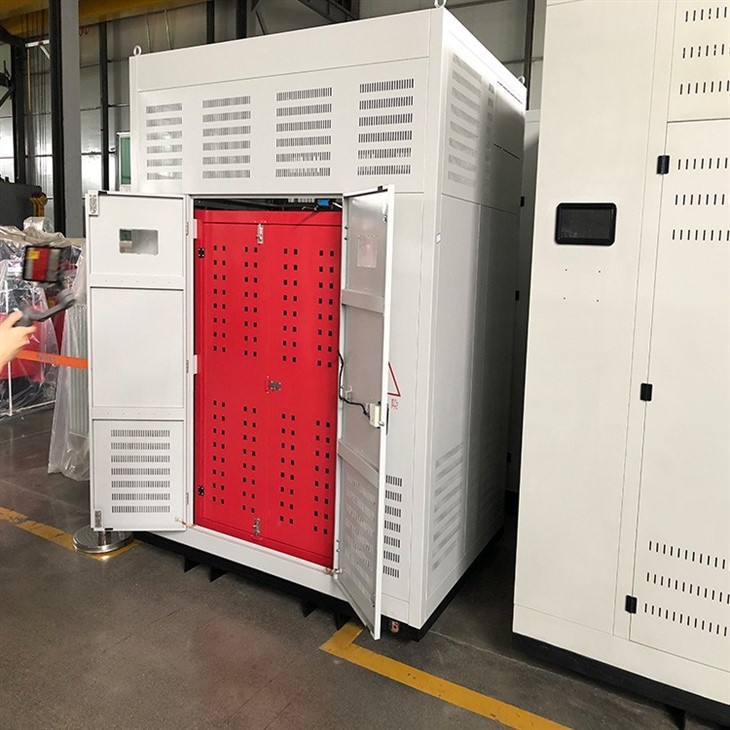

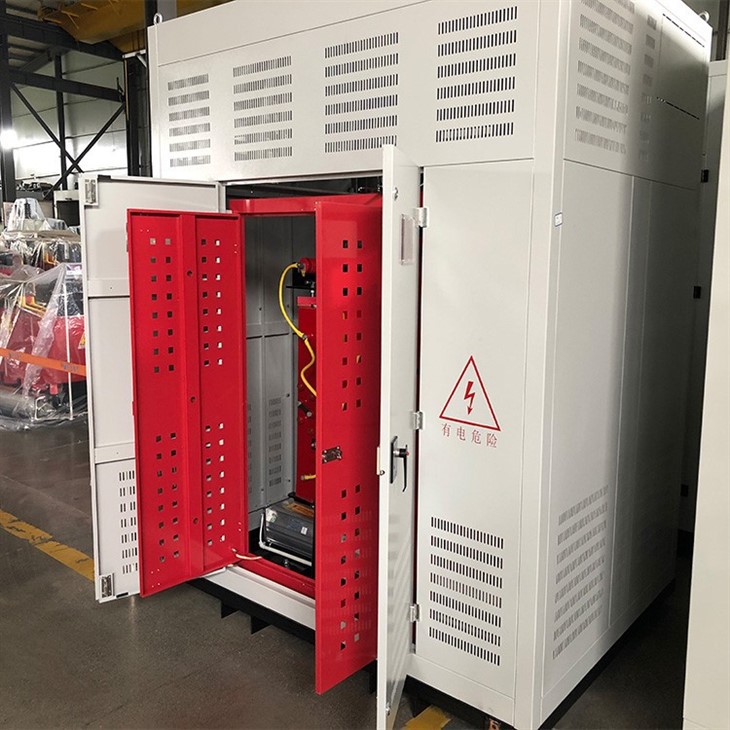

Dry Type Transformer With Enclosure
Dry type transformers installed outdoors shall have a enclosure

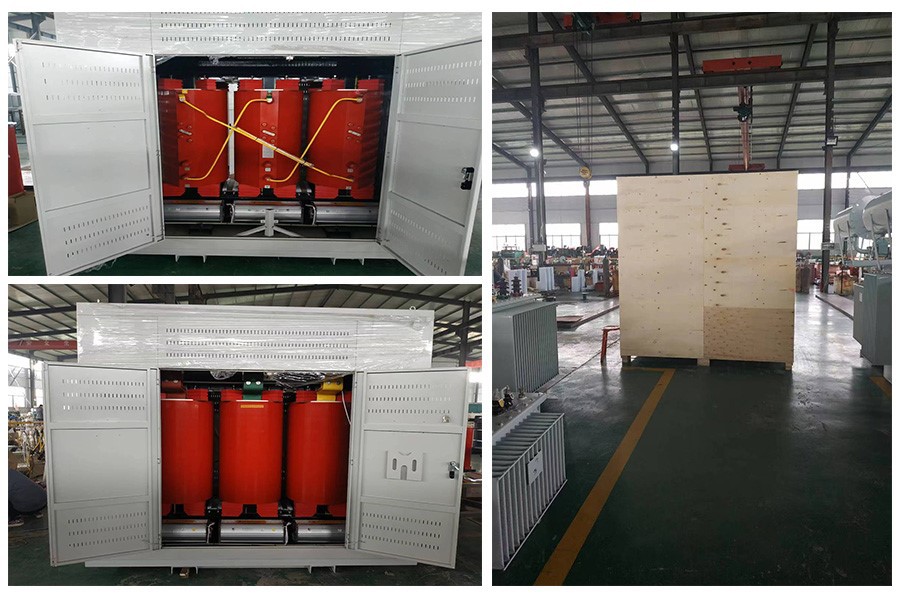

630 kVA Dry Type Step Up Power Transformers Packaging
Company Introduction
Baoding Zhongyi Electric Corporation is a leading manufacturer and exporter of oil-immersed and dry-type transformers. Located in Baoding City, Hebei Province, China, the company has been in operation for over 30 years and has established a solid reputation for the high quality and reliability of its products.
The company's product range includes power transformers, distribution transformers, dry-type transformers, rectifier transformers, furnace transformers, and special transformers for a variety of industrial and commercial applications. The transformers are designed to meet international standards and are certified by various third-party organizations.
With a global customer base and a strong presence in international markets, Baoding Zhongyi Electric Corporation is committed to delivering superior products and services to its customers. The company's success is attributed to its unwavering commitment to quality, innovative products, and customer-centric approach.
