3 Phase Power Transformer Diagram

A 3 phase power transformer is an essential component in an electrical power system. It is designed to provide a steady and reliable source of power to electrical equipment and machinery. This type of transformer is used in a wide variety of applications that require high levels of power, such as industrial, commercial, and residential settings.

The basic design of a 3 phase power transformer consists of three primary windings and three secondary windings. These windings are arranged in a specific configuration to ensure that the power delivered to the output remains balanced and consistent. In most cases, the primary windings are connected to the power supply, while the secondary windings are connected to the load.

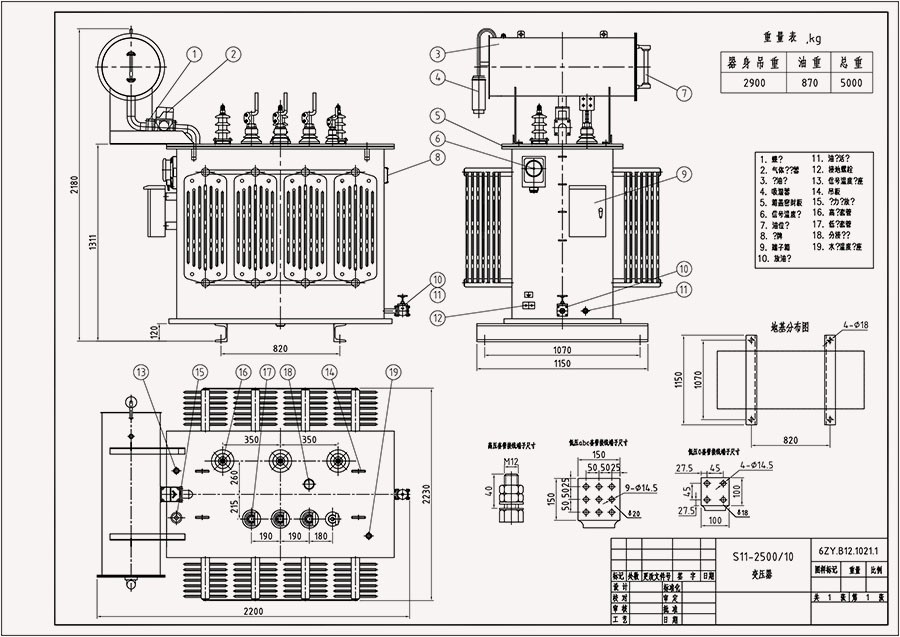

The diagram of a 3 phase power transformer shows the electrical components and connections of the system. The primary windings are typically denoted by the letters A, B, and C, while the secondary windings are labeled a, b, and c. In addition, the diagram will typically show the voltage and current ratings of the transformer, as well as any protection devices that are used to safeguard the system.

One of the key benefits of a 3 phase power transformer is its ability to handle high levels of power. The balanced three-phase power supply allows for a more efficient distribution of power, reducing the overall size and cost of the electrical system. In addition, the use of a 3 phase power transformer helps to reduce the amount of power loss and heat generated during transmission and distribution of power.

Overall, the 3 phase power transformer plays a vital role in ensuring that electrical power systems operate efficiently and effectively. With the ability to handle high levels of power and distribute it evenly, this type of transformer is an essential component in almost all electrical power systems. Whether used in an industrial, commercial or residential setting, a 3 phase power transformer provides a reliable and steady source of power.
