High Voltage HT Electric Switchgear Substation Kiosk

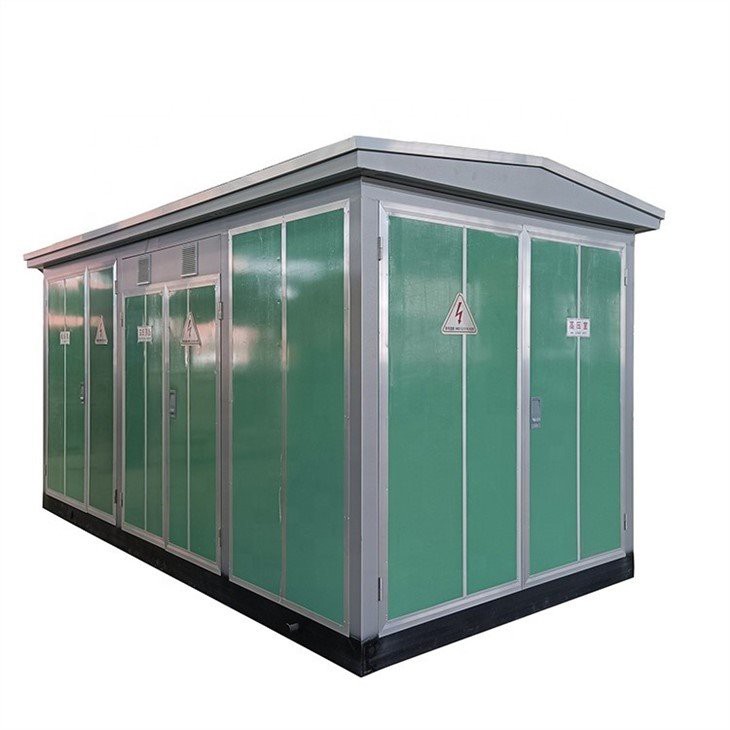

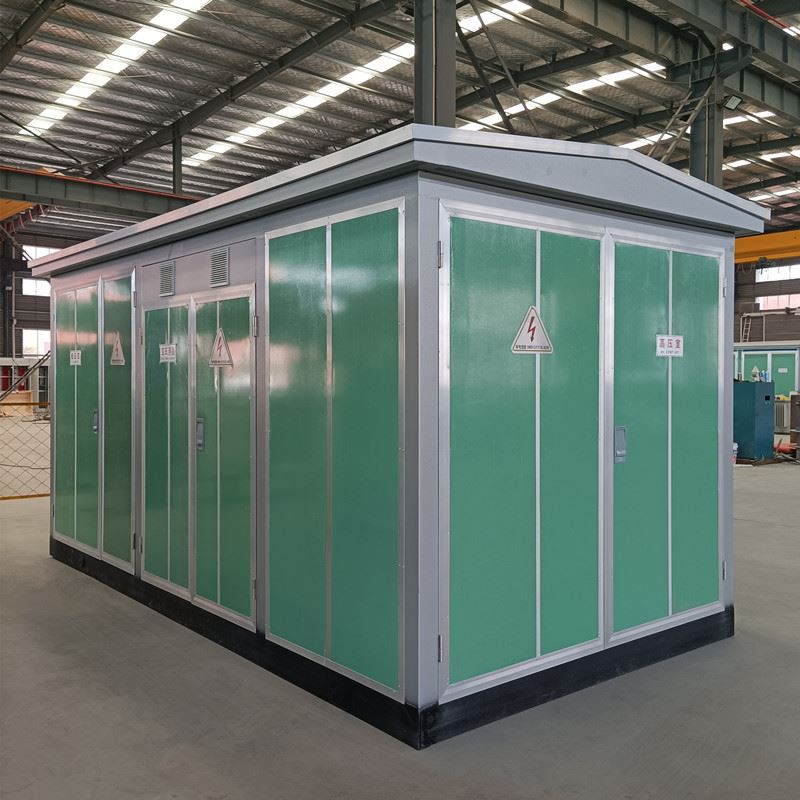

Box-type transformer (usually referred to as "compact substation") the traditional transformer is centrally designed in the box-type shell, with small size, light weight, low noise, low loss, high reliability, widely used in residential areas, commercial centers, light stations, airports, factories and mines, enterprises, hospitals, schools and other places.

Principle

As a complete set of distribution equipment, the box compact substation transformer is an organic combination of transformer, high-voltage voltage control equipment and low-voltage voltage control equipment. The basic principle is that through the pressure starting system, armored line, substation automatic system, DC system and corresponding technical equipment, reasonable assembly is carried out in the prescribed order, and all components are installed into a specific waterproof, dustproof and rodent-proof completely sealed toughened box structure, thus forming a specific transformer. Box-type transformer has been widely used in power engineering construction.

Advantage

1.Because the internal structure of the packaged substation is more reasonable, it occupies less space.

2.The operation method of the box-type transformer is very simple and convenient, and it is convenient for rapid assembly.

3.The application of box transformers is high.

4.The box-type transformer substation combination is flexible.

5.Box-type combined transformer operation safety, stability is high.

Our Compact Transformer is well installed and debugged before delivery, which help you save the time and make things easier.

Notes to the ordering of the Prefabricated Substation
1.High voltage:
Way of incoming: terminal type, ring type or double power in.
Whether there is high voltage metering or not. If yes, the position of the meter(front of the switch or behind the switch), the requirement of the meter gauge and its supplier is designated or not.
Type of the HV switch, one way is using the combination with high voltage vacuum load switch and the fuse, which is mainly used and economical; the other is adopting the disconnector switch and the vacuum breaker, which is used for the high capacity transformer and with higher price.
2.Transformer: the transformer type, the connection group symbol, capacity and the impedance voltage of the transformer.
3.Low voltage:
Switch Supplier.
The number of the outgoing ways and the rated current value of each outgoing switch.
Whether there is the compensation or not, if yes, the capacity of the compensation.
Whether with the metering or not. If yes, the position is necessary.
4.Type of the busbar(copper or aluminum)
5.Layout of the substation(whether with the operation corridor or not)
6.The material of transformer enclosure: composite board (commonly used), steel plate, stainless board or cement.
7.Delivery Period for prefabricated substation.

Compact Substation Specification (reference)

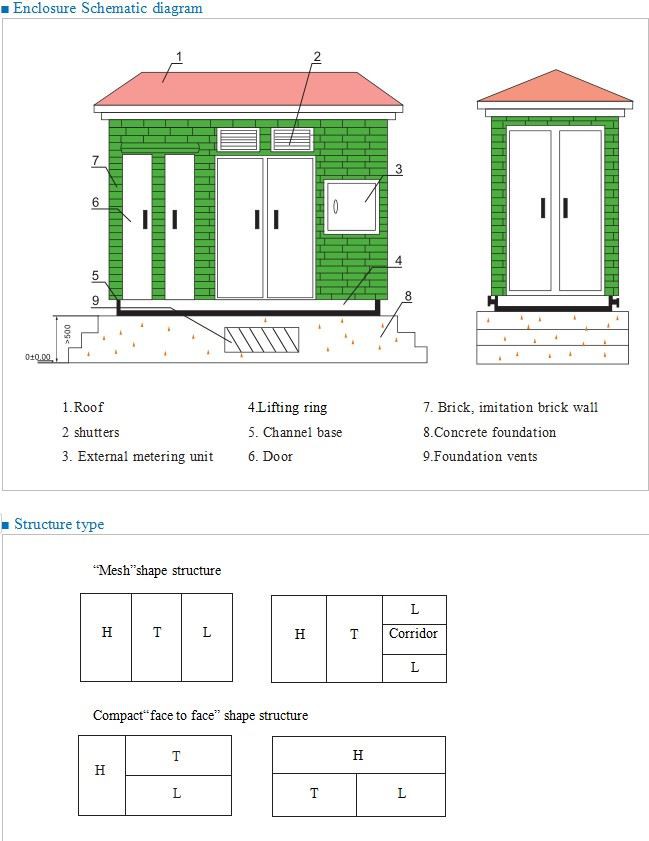

structural style
