Prefabricated Box Type Power Substation Equipment

MOQ:1pc
Warranty:1 year
OEM/ODM Service:Yes
Certification:ISO 9001
Shipping:Sea
Payment:T/T

Send Inquiry

Features

Products Description



 Prefabricated Box Type Power Substation Equipment Specification

DescriptionUnitData
HV compartmentRated FrequencyHz50
Rated voltagekV6 10 35
Max operating voltagekV6.9 11.5 40.5
Power frequency withstand voltagekV32/36 42/48 95/118
(phase to ground and between phases)/ disconnector fracture
lightning impulse withstand voltagekV60/70 75/85 185/215
(phase to ground and between phases)/ disconnector fracture
Rated currentA400 630
Rated short-time withstand currentkA12.5(2S) 16(2S) 20(2S)
Rated peak withstand currentkA32.5 40 50
LV compartmentRated voltageV380 200
Rated current of main circuitA100～3200
Rated short-time withstand currentkA15 30 50
Rated peak withstand currentkA30 63 110
Branch currentA10 ～ 800
Number of branch circuits/1 ～ 12
Compensation capacitykVA R0 ～ 360
TransformerRated capacitykVA50～2000
hort-circuit impedance%4 6
Tapping range/±2×2.5% ±5%
Connection group symbol/Yyn0 Dyn11
Products Photos

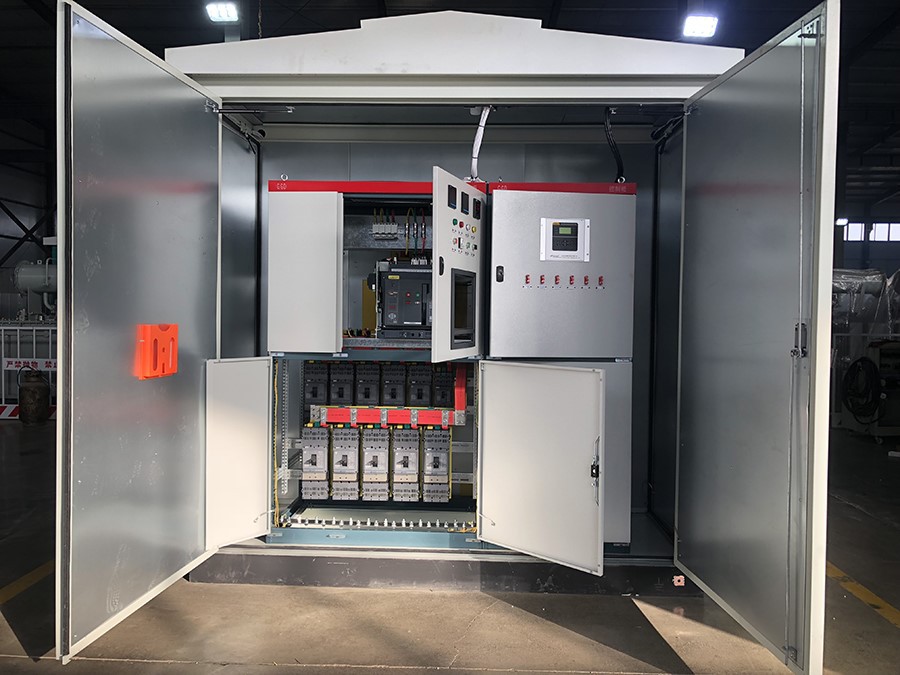

Substation With Low Voltage High Voltage Switchgear

Prefabricated Box Type Power Substation Equipment

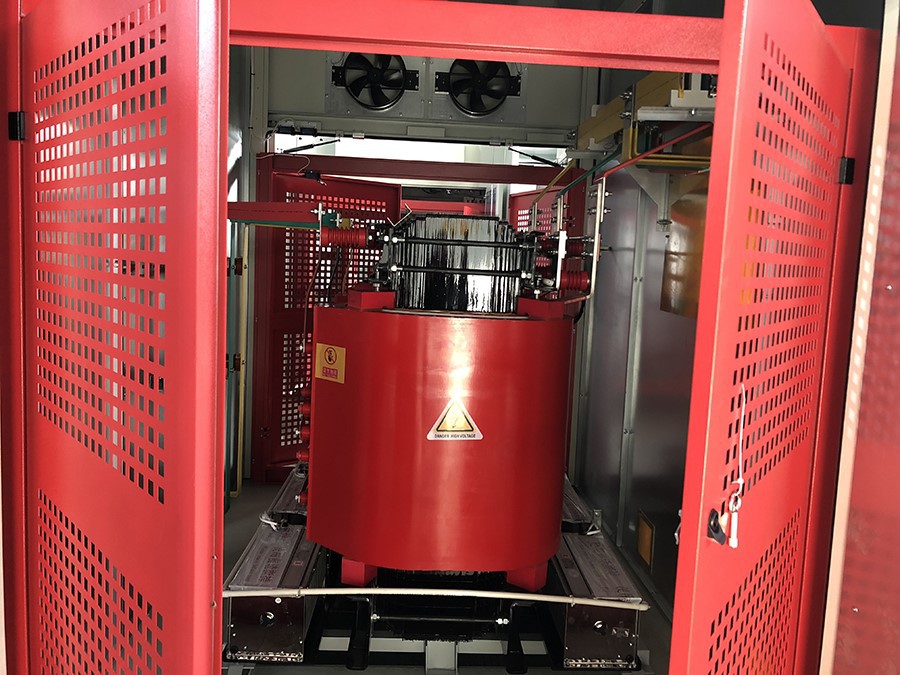

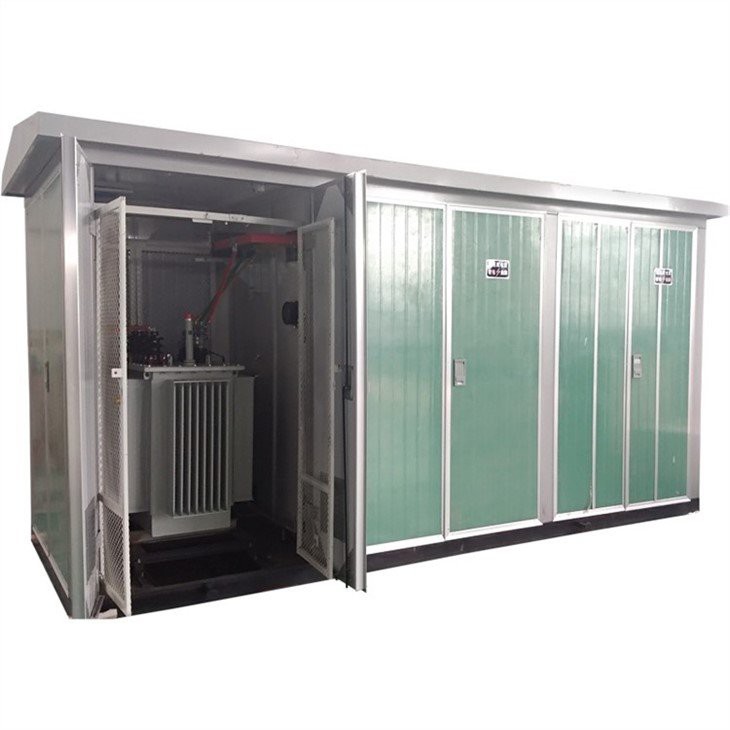

Substation With Transformer

Prefabricated Box Type Power Substation Equipment 1

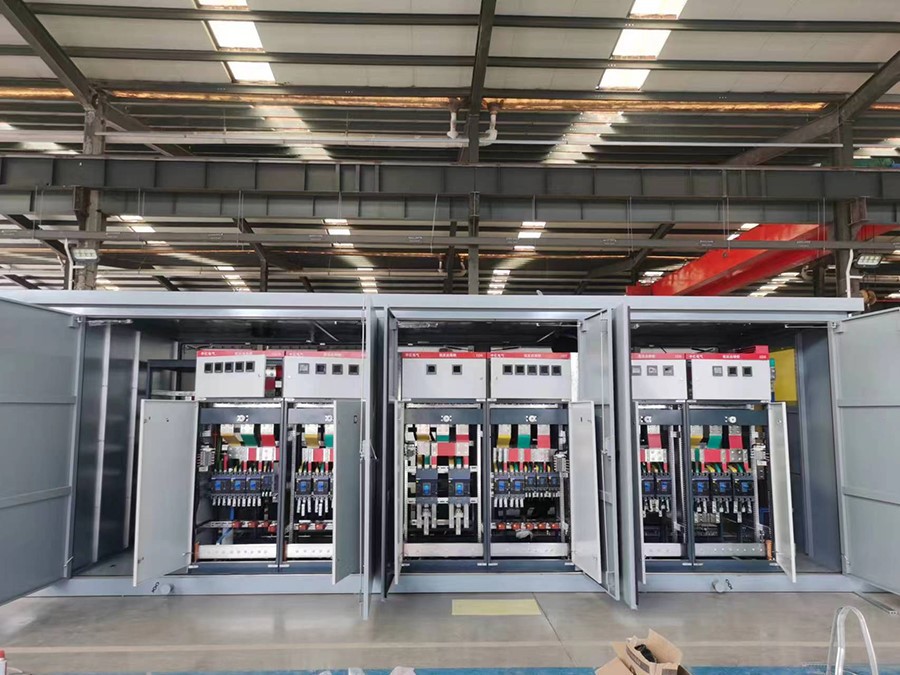

Export Case


Export Country: Kenya

Model: YBW-630/33  YBW-2500/33 YBW-4000/33

Export Date: September 20th, 2023

Prefabricated Box Type Power Substation Equipment 2

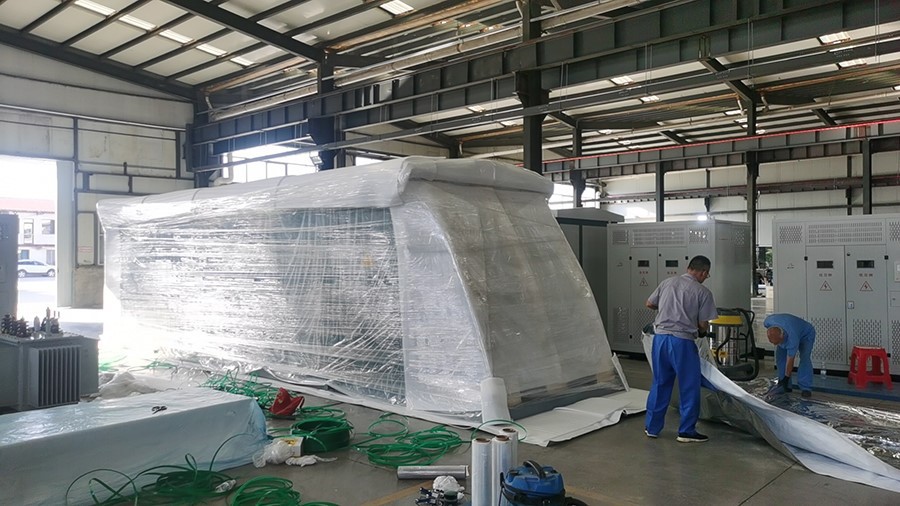

Packing & Delivery



 Prefabricated Box Type Power Substation Equipment 3


Our Service



1. One-stop supplier.

2. 16 years professional experiences in power industry.
3. Professional online technology support for perfecting your power energy solution free.

4. Experienced sales service,competitive price.
5. Whatever big or small order, we can provide you one-to-one service.

6. Based on mutural benefit,creat win-win business
