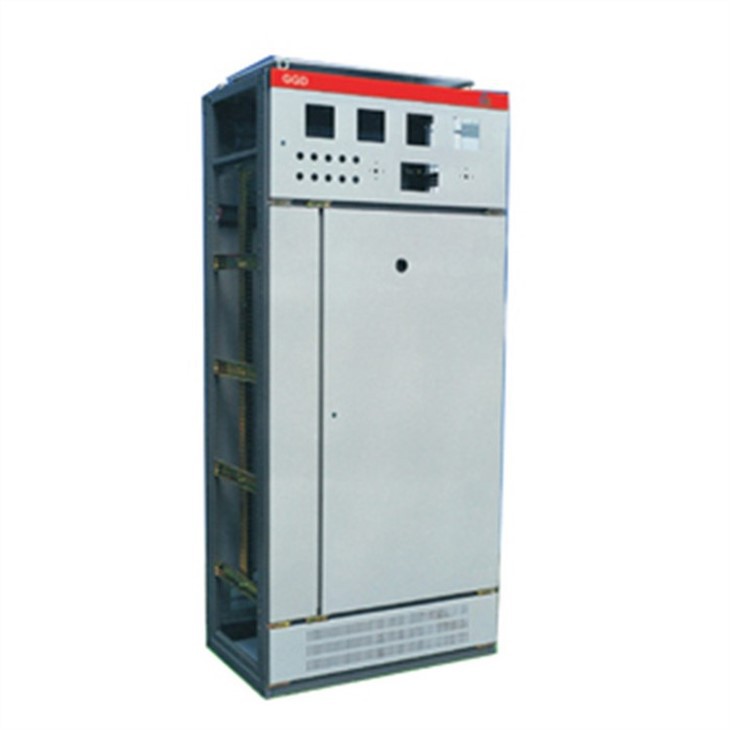

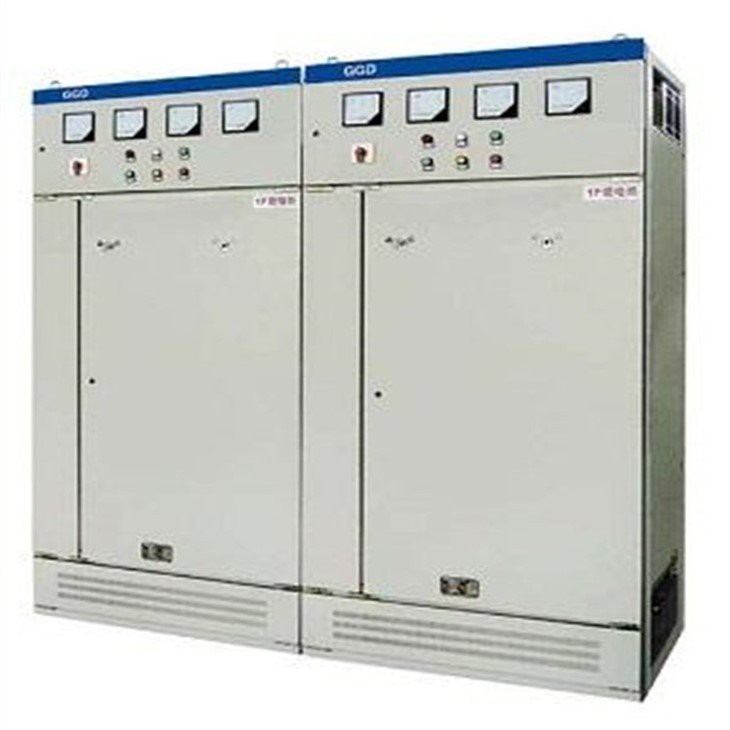

3 Phase Low Voltage Fixed Mounted Electrical Switchgear

GGD 3 Phase Low Voltage Fixed Mounted Electrical Switchgear is used for power lighting, power transformation, distribution and control for AC distribution system with rated frequency 50HZ and rated operation voltage 380V, rated current up to 3150A at power plant, substation, mine enterprises and other users.

3 Phase Low Voltage Fixed Mounted Electrical Switchgear owns high breaking capability, rated short time withstand current can be up to 50KA, circuit layout is flexible and combination is convenient and so on. It is one of typical products for assembled type, fixed panel switchgear in domestic.

3 Phase Low Voltage Fixed Mounted Electrical Switchgear complies with the national standards GB7251 Low-voltage Switchgear and Control Equipment, international standard IEC 60439 Low - voltage Switchgear and Control Equipment.

Environment condition:

1) Environment temperature: -5°C~+40°C

2) Altitude: ≤2000m

3) Relative humidity: ≤90%(+25°C)

And the relative humidity should not exceed than 5% when the maximum temperature is 40°C. A larger relative humidity is allowed at a lower temperature. There may be occasional condensation due to the change of temperature

4) Installation conditions: No severe vibration and shock, No corrosion

Technical Parameter:
