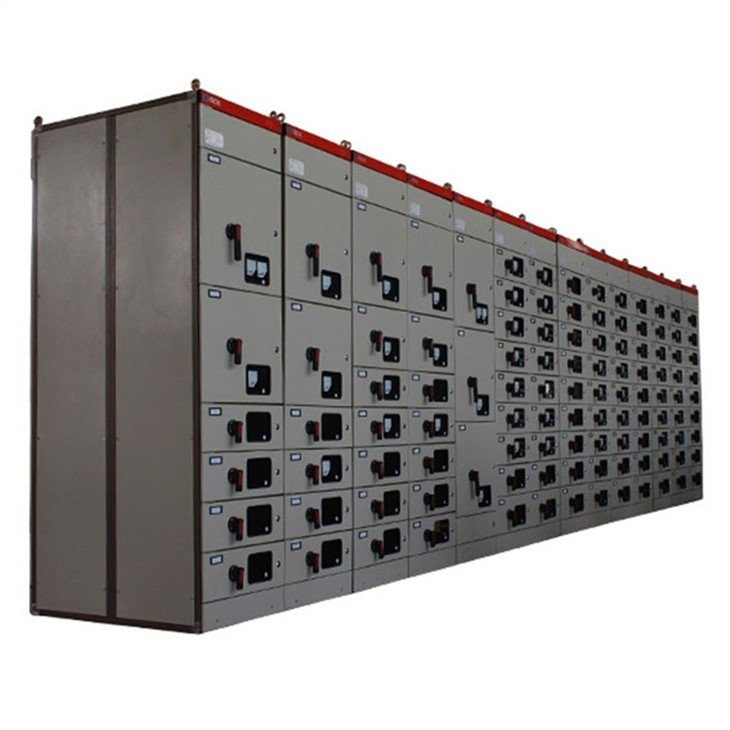

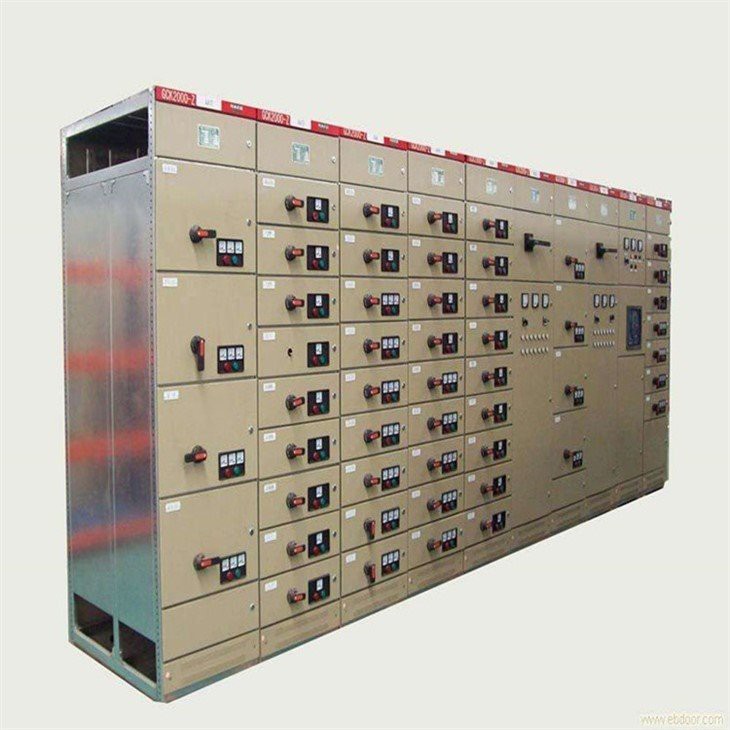

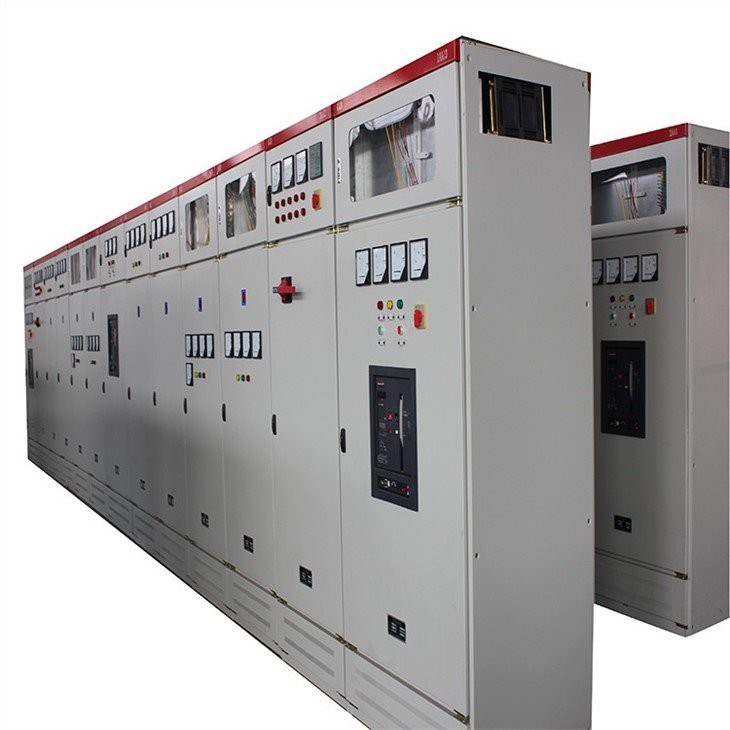

Low Voltage LT Draw Out Switchgear Equipment

 GCK Low Voltage Draw Out Switchgears is widely used in power plants, substations, factories and mining enterprises and high-rise buildings power distribution center PC and motor control center MCC, as AC 50-60Hz, rated operating voltage of 660V and below, rated current of 4000A and below power supply system distribution, motor centralized control. Low voltage power distribution unit for reactive power compensation. This product has the characteristics of high segmentation ability, good dynamic and thermal stability, reasonable and advanced structure, and strong versatility.

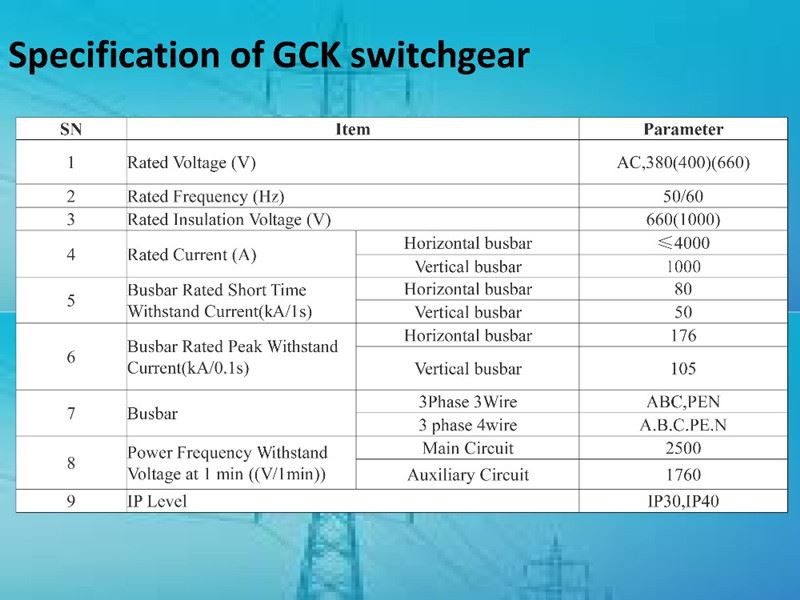

Specification

1. Internal structure galvanized, external pickling phosphating.
2. The cabinet is made of profiled steel and positioned by a 3-dimensional gusset plate.
3. The mounting holes of the bar frame and parts change according to the modulus E=25mm.

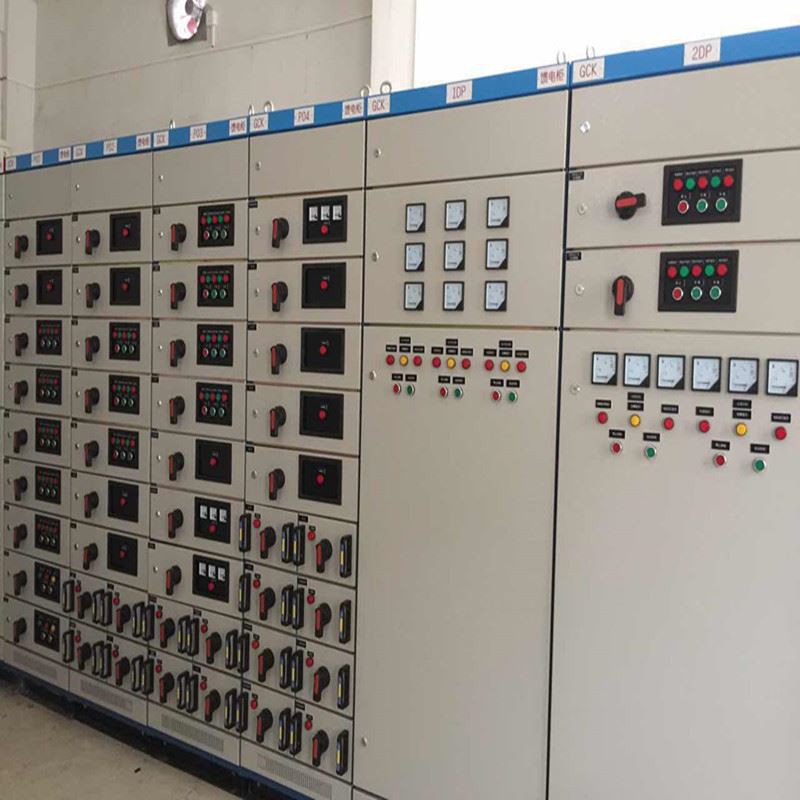

4. The motor control center (MCC) switchgear has two types: wall-mounted and not wall-mounted. The top is the horizontal busbar area, and the horizontal area is the drawer functional unit area.
5. The structure of the power center (PC) feeder cabinet is similar to that of the incoming line cabinet. When the feeding current is 630A~1600A, a cabinet of 1000*1000*2200 (width*deep*height) can be installed with two circuits, which are installed up and down.
6. The drawer function unit and the door are mechanically interlocked by the operating mechanism of the main switch. The functional unit compartments are separated by metal loose, the drawers are interchangeable and have a working position, a test position and a separation position.

Our company has more than 30000 square meters of modern workshops, more than 16000 square meters of R&D centers and staff apartments. With First-class production equlpment, complete testing methods, strong technical force and complete qualifications, our products have been exported to Russia, Uzbekistan, Indonesia, Algeria, Morocco, Zimbabwe, Ghana, Yemen, Ethiopia, Nigeria, Kenya, Cameroon, Madagascar, New Zealand, Zambia, Vietnam, India, Malaysia, Laos,Tanzania, Guatemala, Turkmenistan, South Africa, Rwanda, Oman and other countries.

Generally, we will use wooden packing suitable for long distance transportation such as sea transportation.We can also customize special packaging according to customer requirements.

1. One-stop supplier.

2. 14 years professional experiences in power industry.
3. Professional online technology support for perfecting your power energy solution free.

4. Experienced sales service,competitive price.
5. Whatever big or small order, we can provide you one-to-one service.

6. Based on mutural benefit,creat win-win business

Contact us to Get the best quotation!
