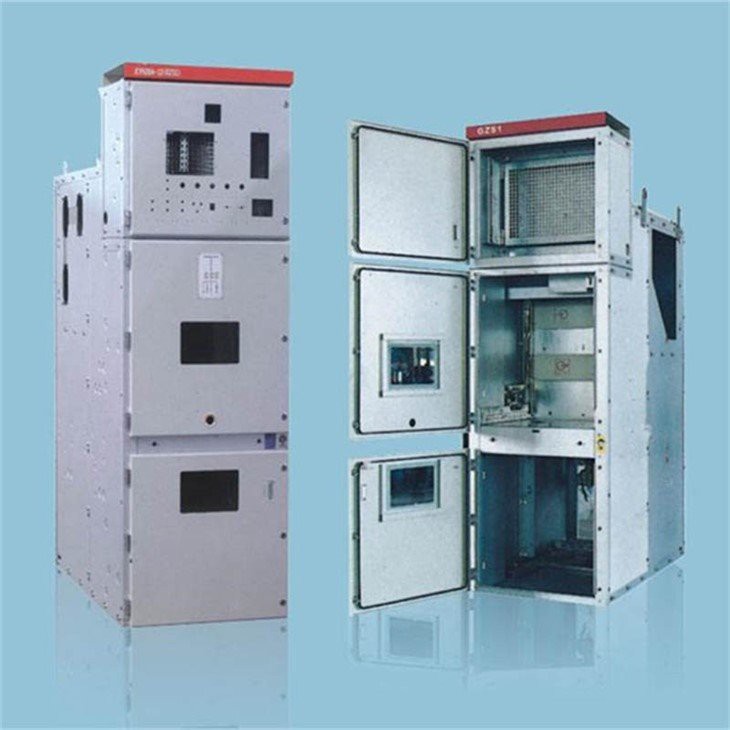

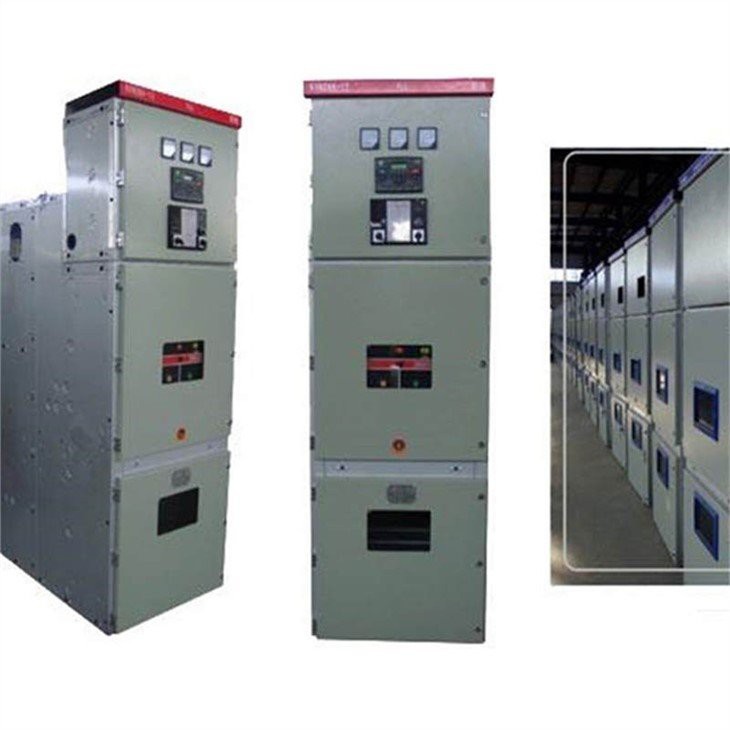

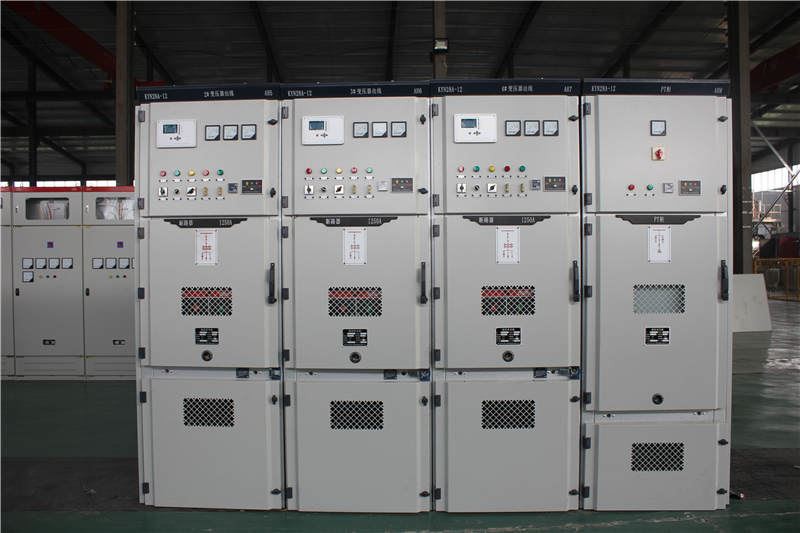

Indoor Medium Voltage GIS Switchgear Cabinet

KYN28-12 armoured removable AC metal-clad switchgear panel (called switch cabinet for short). It is applicable for power receiving and distribution in the 3.6-12Kv three-phase AC 50Hz single bus bar and single bus bar sectioning system. It has the functions of controlling, protecting and monitoring the circuit.

Send Inquiry

Features

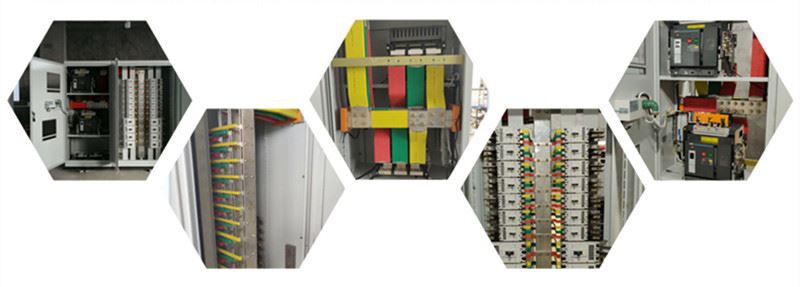

Products Description

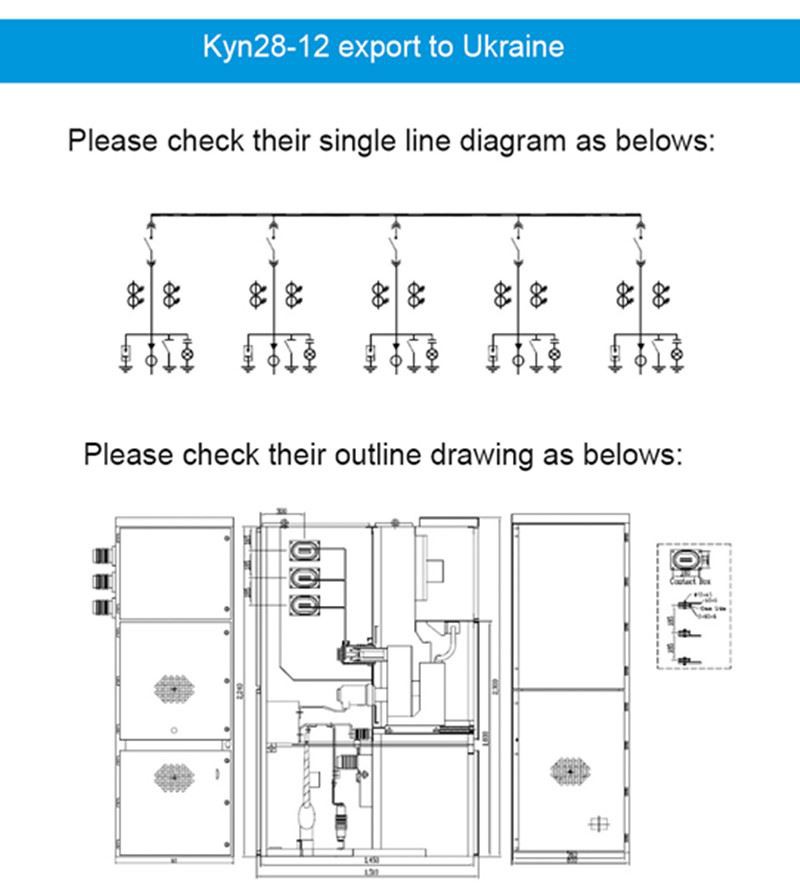

Design & Structure

The switch cabinet is metal-clad. Its structure design accords with the standards GB3906-91, GB11022-89,IEC298 and DL404. The crust structure is made of steel plates by means of bending and welding, which are joined by bolts. The hand buggy panel is the door of cabinet. The bosom of switch cabinet is divided into a breaker chamber, a main bus bar chamber, a cable chamber and a relay chamber by metal partitions. The degree of protection of the entire crust and compartments is IP2X equally. All the metal structures are connected to ground reliably. All the compartments of main circuit system have pressure release channels for independent exhaust.

Technical Parameter

Rated Voltage (kV,max)	3.6,7.2,12,24
Rated Frequency (Hz)	50/60
Rated Continuous Current of Busbar (A,max)	630,1250,1600,2000,2500,3150,4000
Rated Continuous Current of Feeder (A,max)	630,1250,1600,2000,2500,3150,4000
Rated Lightning Impulse Withstand Voltage (kV)	40,60,75,125
Power Frequency Withstand Voltage (kV)	24,32,42,65
Short-Circuit Interrupting Current (kA,max)	16,20,25,31.5,40
Short-Time Withstand Current,4s (kA,max)	16,20,25,31.5,40,50
Short-Circuit Making Current (kA peak)	40,50,63,80,100,125
Peak Withstand Current (kA peak)	40,50,63,80,100,125
Weight (kg)	1000~1500
Protection Level	IP4X (IP2X when circuit breaker chamber open
