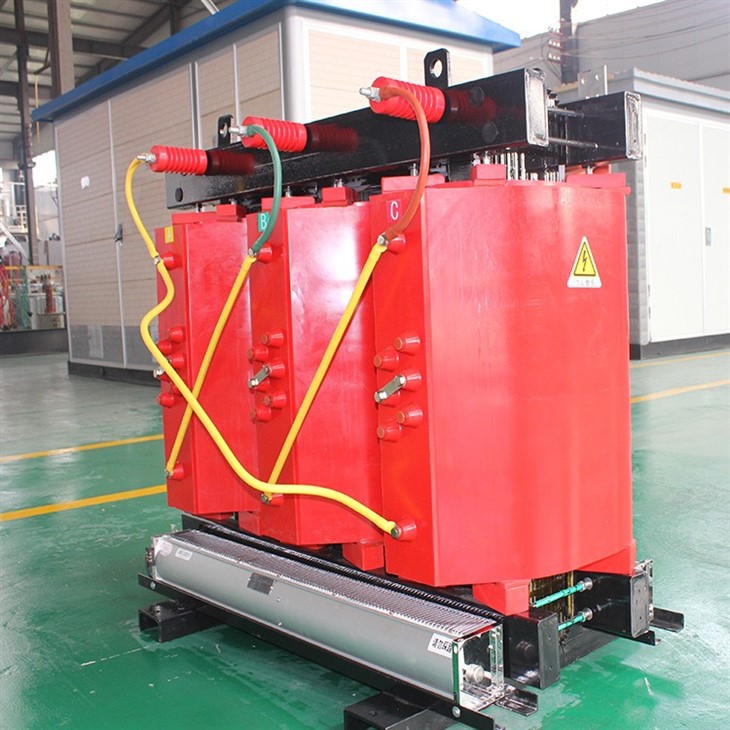

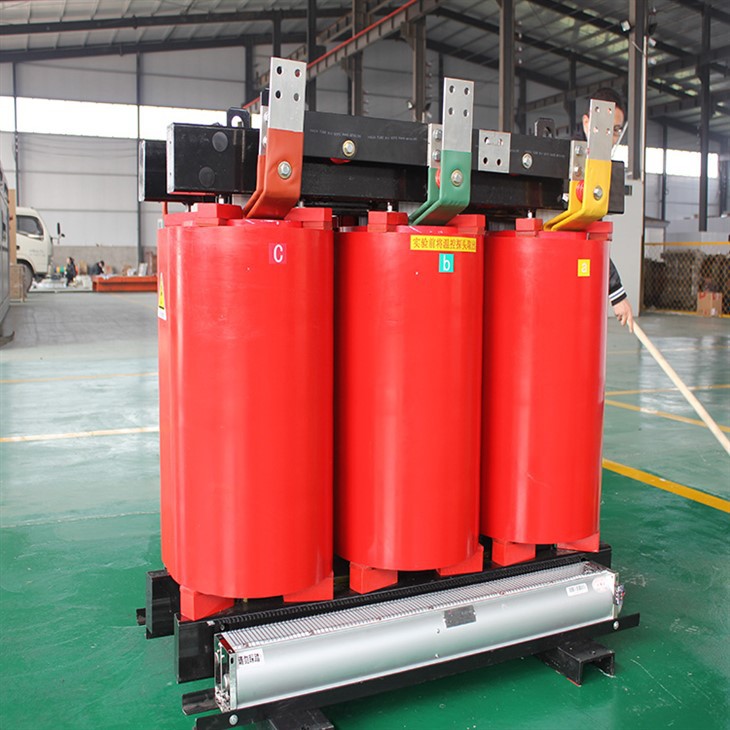

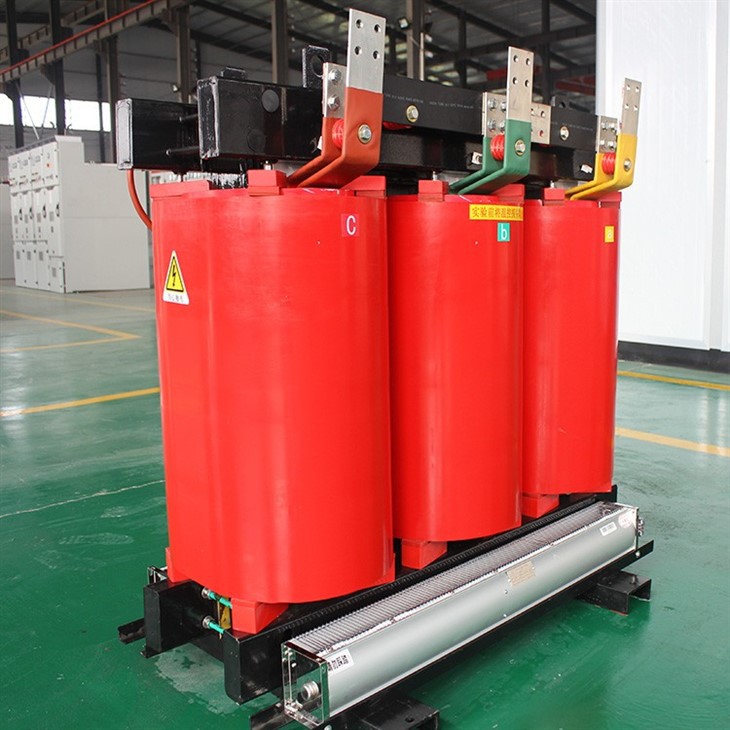

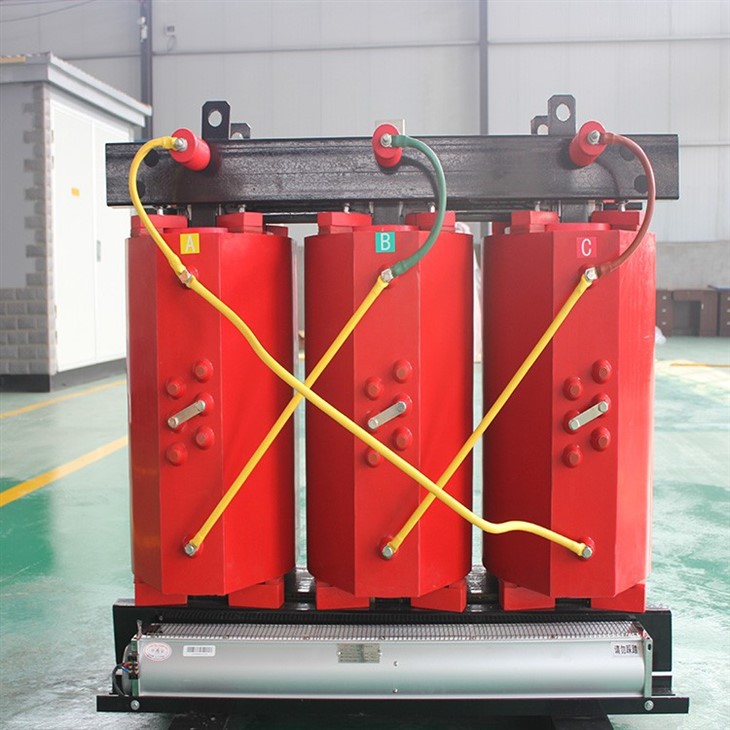

3150 KVA Dry Type Transformer

 The parameter for 3150 kVA Dry Type Transformer

1. Transformer Type - Dry Type

2. Rated Power - 3150 kVA

3. Rated Voltage - 10 kV

4. Rated Current - 226.9 A

5. Frequency - 50/60 Hz

6. Vector Group - Dyn11

7. Impedance Voltage - 6.5%

8. Insulation Level - 24 kV, LI-75AC

9. Cooling Method - AN/AF

10. Noise Level - <65 dB(A) at 1 meter

11. 3150 kva dry type transformer dimensions：5500*2700*3300mm

With its high power capacity, this transformer is well-suited for use in a variety of industrial and commercial applications. It has a low impedance voltage, which means that it can efficiently transfer power from the source to the load. The insulation level is also robust, ensuring safe and reliable operation even in demanding environments.

The cooling method used in this transformer is AN/AF, which allows for effective heat dissipation. The noise level of the transformer is also low, making it suitable for use in noise-sensitive areas.

We can provide customized service as per your requirments about oil or dry type transformer.

Welcome to contact us!

 Q: What is a 3150 kva dry type transformer?

A: 3150 kva dry type transformer is a type of electrical transformer that transforms electrical energy from one circuit to another circuit without using any liquids or oils as coolant. It is used in various industrial and commercial applications for power distribution, voltage conversion, and isolation purposes.

Q: What are the benefits of 3150 kva dry type transformers?

A: Some of the benefits of using 3150 kva dry type transformers include improved safety, reduced maintenance costs, enhanced reliability, and increased efficiency. These transformers are also environmentally friendly as they do not require any oil or liquid coolant.

Q: How does a 3150 kva dry type transformer work?

A: A 3150 kva dry type transformer works by transferring electrical energy from one circuit to another using magnetic induction. It has two coils of wire, a primary coil, and a secondary coil, which are wound around a magnetic core. When an electrical current flows through the primary coil, it creates a magnetic field that induces a current in the secondary coil, thus transferring energy.

Q: What is the lifespan of a 3150 kva dry type transformer?

A: The lifespan of a 3150 kva dry type transformer largely depends on several factors such as its design, usage conditions, maintenance practices, and environmental factors. However, most dry type transformers have a lifespan of 30 to 40 years or more.

Q: What are the safety measures to be taken while using 3150 kva dry type transformers?

A: The safety measures that should be taken while using a 3150 kva dry type transformer include ensuring proper grounding and insulation, using protective equipment, and complying with all safety regulations. Regular maintenance and testing are also critical to ensure proper functioning and reduce the risk of electrical hazards.
