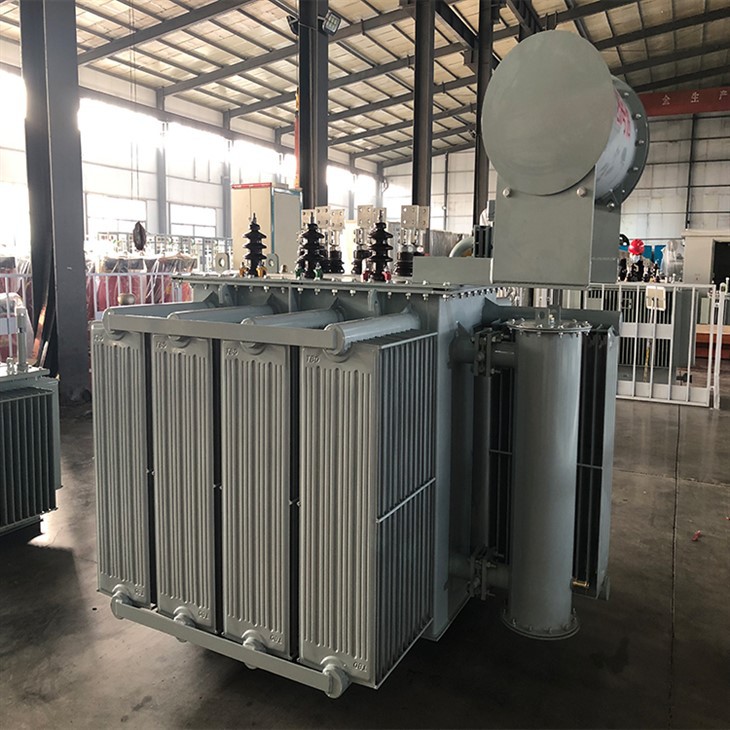

630 KVA Transformer
Model:S-630/10-0.4
Capacity:630 KVA
Input Voltage:10 KV
Output Voltage:0.4 KV
630 KVA Transformer Amps:36.4A/909.4A
Frequency:50Hz
Connection Group:Dyn11
Features
630 KVA Transformer Specifications
630 KVA Transformer Datasheet
|
Model |
S-630/10-0.4 |
|
Capacity |
630KVA |
|
Input Voltage |
10 KV |
|
Output Voltage |
0.4 KV |
|
630 KVA Transformer Amps |
36.4A/909.4A |
|
Frequency |
50Hz |
|
Connection Group |
Dyn11 |
|
630 KVA Transformer Load Capacity |
504KW |
|
Impedance Voltage |
4% |
|
Cooling Method |
ONAN |
|
630 KVA Transformer Oil Capacity |
270kg |
|
630 KVA Transformer Dimensions |
1520*1060*1250mm |
|
Weight |
1700kg |
630 KVA Transformer Details

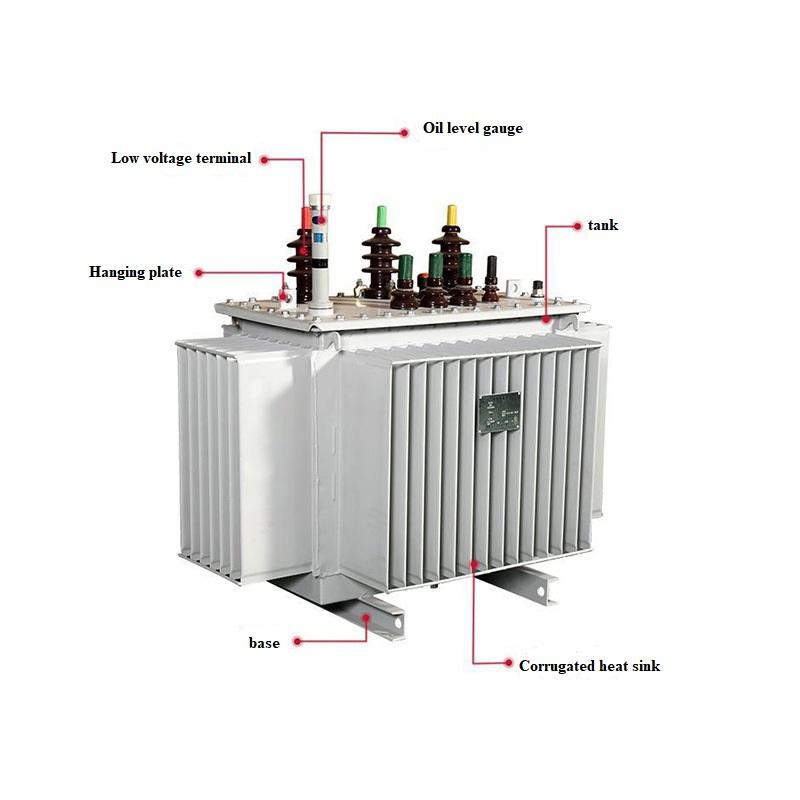

The 630kVA transformer is mainly composed of iron core, coil, oil tank, cooler, insulation material, etc.
The iron core is the core component of the transformer, which is composed of multiple iron sheets stacked together to increase the magnetic flux of the magnetic circuit.
The coil is made of highly conductive copper wire and is used to convert electrical energy.
The fuel tank and cooler are used for heat dissipation, while the insulation material is used to isolate each part.

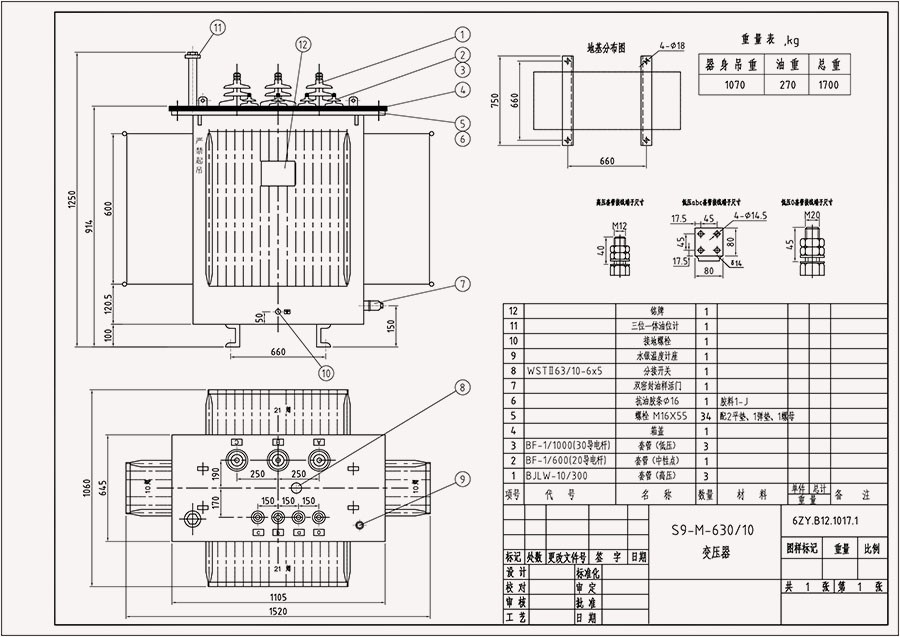

Product Drawings:
We provide product drawings for the 630 kva transformer to help you understand the detailed structure of the transformer, and to assist in installation and maintenance. If you have any questions about the product drawings, please feel free to contact us.

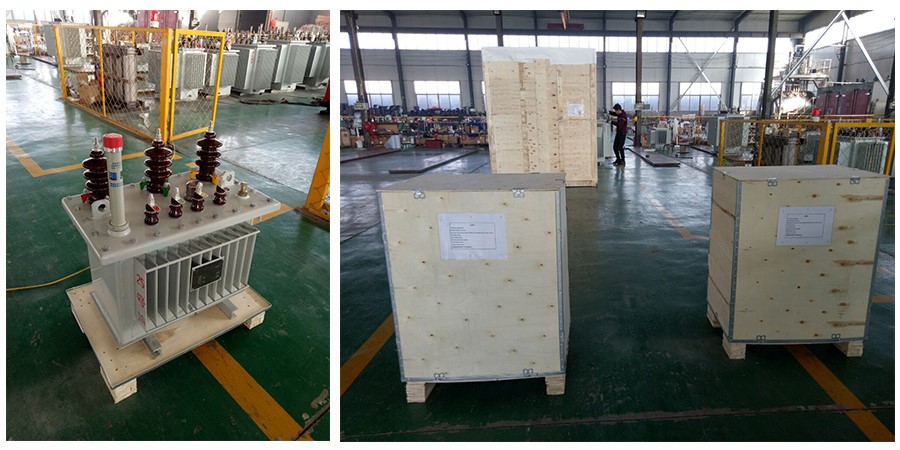

Product Packaging:
We take great care in packaging and shipping our products to ensure they arrive in perfect condition. The transformer is packaged in a sturdy, custom-made wooden crate to prevent damage during shipping. We also provide detailed installation and operating instructions to ensure optimal performance and safety.
Company Advantage:
Our company is a leading manufacturer and supplier of high-quality transformers, with over 20 years of experience in the industry. We pride ourselves on our strict quality control processes, our commitment to customer satisfaction, and our ability to deliver high-quality products at competitive prices.
Imported Transformer Precautions:
When importing transformers, it is important to follow a few precautions to ensure a smooth process.
Firstly, make sure the transformer meets local regulations and requirements.
Secondly, arrange for customs clearance and transportation in advance.
Finally, check the transformer thoroughly upon arrival to ensure it is in perfect condition.
In conclusion, the 630 kva transformer is a reliable, efficient, and easy-to-use transformer that is perfect for a wide range of industrial and commercial applications. If you have any questions or would like to learn more about this product, please feel free to contact us.
