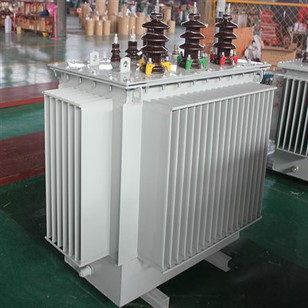

1000 KVA Transformer
Rated Voltage:10/0.4kV
Power Ratings:1000kVA
Frequency:50Hz
Current Rating:57.7/1443.4A
Connection Group:Dyn11
Cooling Method:ONAN
No-load Current:≤0.3%
Features
1000 KVA Transformer Specification
|
Rated Voltage |
10/0.4kV |
|
Power Ratings |
1000kVA |
|
Frequency |
50Hz |
|
1000 KVA Transformer To Amps |
57.7/1443.4A |
|
Connection Group |
Dyn11 |
|
Cooling Method |
ONAN |
|
No-load Current |
≤0.3% |
|
No-load Loss |
≤1.15kW |
|
1000 KVA Transformer Impedance (75℃) |
4.5% |
|
Load Loss(75℃) |
≤10.30kW |
|
Total Loss(75℃) |
≤11.45kW |
|
Oil BDV Value |
≥35kV |
|
Temperature rise |
65K |
|
Lighting Impulse Voltage |
Full Wave:75kV Chopper Wave:85kV |
|
Noise Level |
≤62dB |
|
1000 KVA Transformer Dimensions |
1730*1300*1580mm |
|
1000 KVA Transformer With Oltc Price |
USD7*28.00/SET |

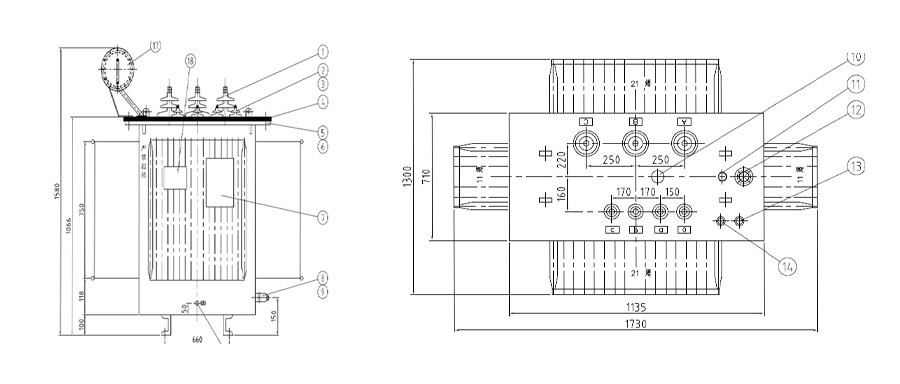

1000KVA Transformer Drawing
