Packaging Method In Dry Type Transformer Transportation

There are no special requirements for dry-type transformers during transportation, but due to the particularity of dry-type transformers, we must pay attention to moisture-proof protection during transportation. Dry type cast resin transformers cannot be affected by moisture, which is prone to generate incorrect data after being affected by moisture.

Packaging Method In Dry Type Transformer Transportation

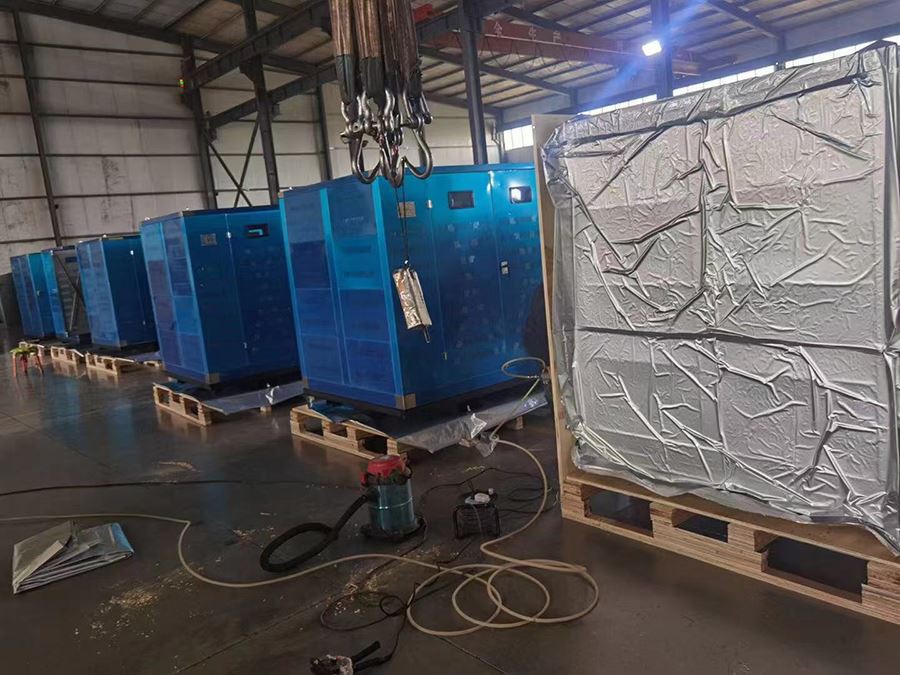

Method for vacuum packaging of dry-type epoxy resin transformers.

For the previous vacuum packaging, there is a possibility of condensation after gas leakage, vacuum failure, and the reasons for the entry of humid air. Because the inner space and the air are locked by solidification, the moisture that can separate the air is less, and the above-mentioned solidification problem can be better solved. In contrast, special air-filled membranes with greater plasticity were selected as filling materials. This air-filled film is used to protect fragile items in the express delivery industry. Material procurement, tooling, operations and cost management are well established.

Feasibility of a new method for vacuum packaging of dry-type epoxy resin transformers

The key to the air-filled film filling method is that the air-filled film can withstand the negative pressure inside the vacuum bag. Due to the insufficient toughness of ordinary air-filled membranes, it is easy to crack, so special air-filled membranes with strong pressure resistance and toughness must be used. In addition, due to the limitation of the external strength of the dry-type transformer (excessive vacuum will cause the external deformation), so the vacuum is drawn out by an ordinary vacuum cleaner, and the internal vacuum is not too high. This air-filled membrane can withstand the pressure of normal use. After placing the air-filled membrane, there is no need to remove the air as much. Even when packing in dry weather, after the vacuum bag is taken out of the vacuum bag, it is packed with tape to adapt to the outside, release the vacuum bag, and adjust the internal and external pressure balance to seal. With such small damage, without air convection, the dryness of the package is guaranteed.
